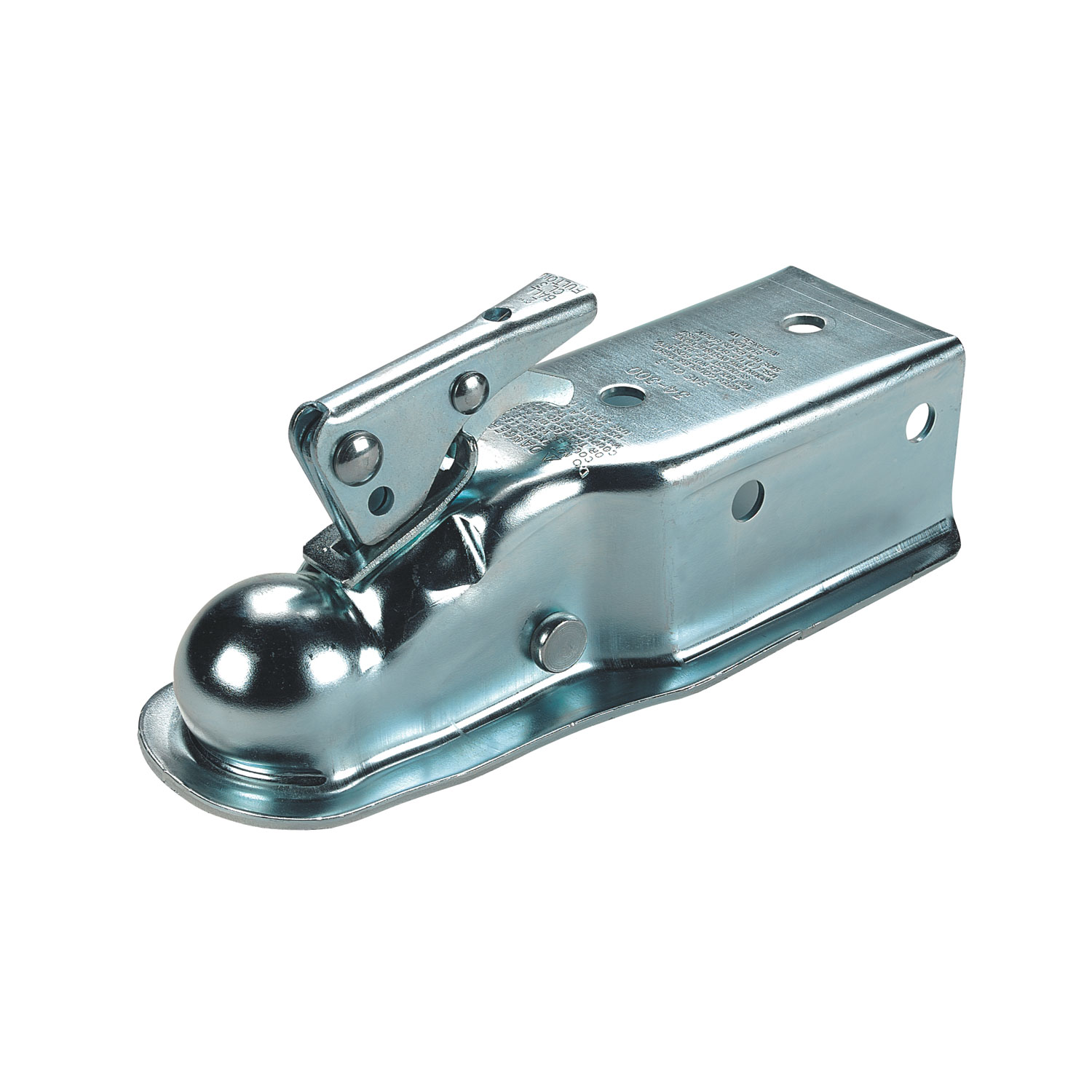

Fulton 5,000 lbs Straight Coupler, 2 in. Diameter, 3 in. Channel Width FL34300 0317Fulton$44.80Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Fulton
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
The F3484 is a stamped coupler manufactured by Cequent Performance Products (available under Bulldog®, Fulton®, Pro-Series®, and Reese Towpower® brands). It connects a trailer tongue to a towing vehicle's hitch ball. The coupler is available in bolt-on or weld-on installation methods and supports Class 1, 2, 3, and 4 trailers.
The F3484 coupler is available in two configurations: Straight Tongue Couplers (for Class 1, 2, 3, and 4 trailers) and A-Frame Couplers (which can only be used with 50-degree trailer tongues). The specific class and tongue type must match your trailer.
No. A-Frame couplers can only be used with 50-degree trailer tongues. Using this coupler on any other tongue angle will not be safe or effective.
For Class 1 couplers, the preferred method is to use four (4) 3/8" grade 5 bolts through the side holes. An alternate method is to use two (2) 3/8" grade 5 through bolts and locknuts, provided they can be torqued to the appropriate SAE proof load specifications (23 ft. lbs. for 3/8" bolts). The trailer manufacturer must specify the exact number and size of fasteners required.
For Class 2, 3, and 4 couplers, the preferred method is to use four (4) 1/2" grade 5 bolts through the side holes. An alternate method is to use two (2) 1/2" grade 5 through bolts and locknuts, provided they can be torqued to the appropriate SAE proof load specifications (55 ft. lbs. for 1/2" bolts). The trailer manufacturer must specify the exact number and size of fasteners required.
A-Frame couplers are bolted to the tongue members using grade 5 hardware with locknuts through the available mounting holes in the coupler housing. For couplers using 1/2" hardware, washers must be placed beneath all bolt heads and locknuts. Bolts must be torqued to appropriate SAE proof load specifications (55 ft. lbs. for 1/2" bolts).
Two (2) 5/8" x 5" grade 5 bolts are provided with the mounting bracket. These bolts are inserted through two sets of holes in the mounting bracket and the coupler, and the locknuts are tightened to 100-110 ft. lbs.
Yes, if you are using the weld-on installation method. All welding must be performed by an AWS (American Welding Society) certified welder. This is a mandatory requirement stated multiple times in the manual.
Before mounting the coupler, confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in both open and closed positions before installing. You must also verify that the coupler's internal stop can be butted against the end of the trailer tongue for maximum overlap.
Gussets are required if the tongue height is 6 inches or less. If your trailer tongue is taller than 6 inches, gussets are not required.
A minimum coupler/tongue overlap of 6.5 inches is required. The coupler's internal stop must be butted against the end of the trailer tongue to achieve maximum overlap.
The mounting bracket must be centered on the tongue and remain vertical after installation. If gussets are required (tongue height 6 inches or less), a 1/4" minimum fillet weld is required all around the bracket.
For bolt-on installation, drilling may be required depending on your trailer's existing holes and the coupler's mounting holes. The manual does not specify whether pre-drilled holes are present or if drilling is necessary. For weld-on installation, no drilling is required—the coupler is welded directly to the tongue. Consult your trailer manufacturer or the coupler supplier for specific drilling requirements for your application.
For weld-on installation, yes—welding is a permanent modification. For bolt-on installation, no permanent modifications are required if the mounting holes already exist on your trailer. However, the manual states that no deformation of the trailer tongue end is allowed during installation.
3/8" grade 5 bolts must be torqued to 23 ft. lbs. according to SAE proof load specifications.
1/2" grade 5 bolts must be torqued to 55 ft. lbs. according to SAE proof load specifications.
5/8" grade 5 bolts must be torqued to 110 ft. lbs. The mounting bracket locknuts should be tightened to 100-110 ft. lbs.
A 1/8" minimum fillet weld is required on both sides and the top of the coupler for straight tongue couplers.
A 3/16" minimum fillet weld is required on both sides and the top of the coupler for A-Frame couplers.
A 1/4" minimum fillet weld is required all around the mounting bracket when gussets are installed (required when tongue height is 6 inches or less).
Before towing, you must: (1) Check the vehicle, mounting bracket, hitch, hitch ball, and coupler for signs of wear or damage; (2) Verify the coupler handle opens and closes freely; (3) Close the coupler securely, ensuring the hitch ball is fully seated in the coupler ball pocket and the handle or latch is in the closed position; (4) Check mounting bracket hardware for wear and proper tightness, and tighten to appropriate SAE proof load specifications using only grade 5 hardware; (5) Verify trailer safety chains are properly connected according to SAE J684; (6) Ensure all trailer lighting is hooked up and working properly.
The coupling procedure varies by coupler style: For Fas-Lok® style: (1) Block trailer wheels; (2) Align hitch ball beneath coupler ball pocket; (3) Open coupler by pulling latch trigger and lifting the locking lever; (4) Lower coupler over hitch ball until ball is fully seated into ball pocket; (5) Move locking lever to closed position; (6) Check that latch is engaged by lifting up on back of locking lever; (7) Verify hitch ball is fully seated and ball clamp is below the ball. For Yoke-style: (1) Block trailer wheels; (2) Align hitch ball beneath coupler ball pocket; (3) Open coupler by lifting latch, raising yoke, and pulling back; (4) Lower coupler over hitch ball until ball is fully seated; (5) Push latch handle forward until yoke drops over coupler nose; (6) Verify hitch ball is fully seated and ball clamp is below the ball. For Low-Latch: (1) Block trailer wheels; (2) Align hitch ball beneath coupler ball pocket; (3) Open coupler by lifting latch upward and pulling back; (4) Lower coupler over hitch ball until ball is fully seated; (5) Move locking lever forward until latch handle tips enter slots; (6) Verify hitch ball is fully seated and ball clamp is below the ball. Do not tow if ball is not fully seated with coupler in closed position and latch engaged.
To uncouple: (1) Block trailer wheels; (2) Open locking lever; (3) Raise trailer off of hitch ball; (4) Return handle to closed position. Use caution when uncoupling as the tongue may rise suddenly due to negative tongue load.
Use only the proper ball for this coupler as indicated on the coupler body. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
Do not exceed the lesser of the weight ratings for the mounting bracket, coupler, hitch, vehicle, ball, or trailer (including load). You must weigh your trailer plus any added load and ensure the total does not exceed any of these component ratings.
No. Do not tow if the ball is not fully seated and/or the coupler is not closed. This is a critical safety requirement.
Do not use the coupler. If coupler operation has been impaired in any way after installing the mounting bracket and/or coupler, the coupler must not be used. Replace the complete coupler and mounting bracket if deformed or damaged.
After installation is complete, you must: (1) Check that coupler operation has not been impaired in any way; (2) Check for interference again (in both open and closed positions) to ensure no parts of the tow vehicle, tongue, ground, or other accessories interfere with the coupler; (3) If the coupler is to be primed or painted, remove excess paint/primer buildup from the ball pocket and latching mechanism. Do not use the coupler if its operation has been impaired.
The following procedures should be performed at least annually: (1) Check welds and mounting bolt torque; (2) Grease ball pocket; (3) Oil pivot points with SAE 30 wt. motor oil. Additionally, keep the ball pocket and mechanism clean. When parking or storing your trailer, keep the coupler off the ground so dirt and other foreign material will not build up in the coupler ball pocket.
At least annually, you should check the welds and mounting bolt torque. Bolts should be tightened to appropriate SAE proof load specifications: 23 ft. lbs. for 3/8" bolts, 55 ft. lbs. for 1/2" bolts, and 110 ft. lbs. for 5/8" bolts.
The F3484 is available for straight tongue trailers (Class 1, 2, 3, 4) or A-Frame trailers with 50-degree tongues. Verify your trailer type and class. Contact the trailer manufacturer or Cequent Performance Products at 1-800-632-3290 to confirm fitment.
For bolt-on installation: Class 1 requires four 3/8" grade 5 bolts (or two 3/8" through bolts with locknuts); Class 2/3/4 requires four 1/2" grade 5 bolts (or two 1/2" through bolts with locknuts). For mounting bracket: two 5/8" x 5" grade 5 bolts. The trailer manufacturer must specify exact requirements.
3/8" bolts: 23 ft. lbs.; 1/2" bolts: 55 ft. lbs.; 5/8" bolts: 110 ft. lbs. All bolts must be grade 5 and torqued to SAE proof load specifications.
No. Do not tow if the ball is not fully seated and/or the coupler is not closed. This is a critical safety requirement.
Annually: check welds and bolt torque, grease the ball pocket, and oil pivot points with SAE 30 wt. motor oil. Keep the ball pocket and mechanism clean at all times.
