Dutton-Lainson 1,500 lb., TW4000 DC Electric Winch, 20 ft. Strap, Clutch, No Remote

Name: Dutton-Lainson 1,500 lb., TW4000 DC Electric Winch, 20 ft. Strap, Clutch, No Remote
Brand: Dutton-Lainson
SKU: DL25200
Price: 415.42 USD
Availability: InStock

Ask a Question About This Product

Our in-house experts typically reply within one business day.

Related products

Shop all

Dutton-Lainson 1,500 lb., SA5015DC Electric Winch, Clutch, RemoteDutton-Lainson$696.74In Stock

Dutton-Lainson 1,500 lb., SA5000DC Electric Winch, Clutch, No RemoteDutton-Lainson$556.19Out of Stock

Dutton-Lainson 3,000 lb., TW9015 DC Electric Winch, Clutch, RemoteDutton-Lainson$804.59Out of Stock

Dutton-Lainson 3,000 lb., TW9000 DC Electric Winch, Clutch, No RemoteDutton-Lainson$733.50Out of Stock

Dutton-Lainson 1,500 lb., DLx1500 Pulling Winch, Black, 20 ft. StrapDutton-Lainson$124.90In Stock

StrongArm 12 volt DC electric winch for vehicle or boat trailer use
1,500 lb. capacity (for boats up to 4,000 lbs.)
Power in, controlled freewheeling clutch, and positive mechanical brake
20' of 2" wide polyester strap and snap hook

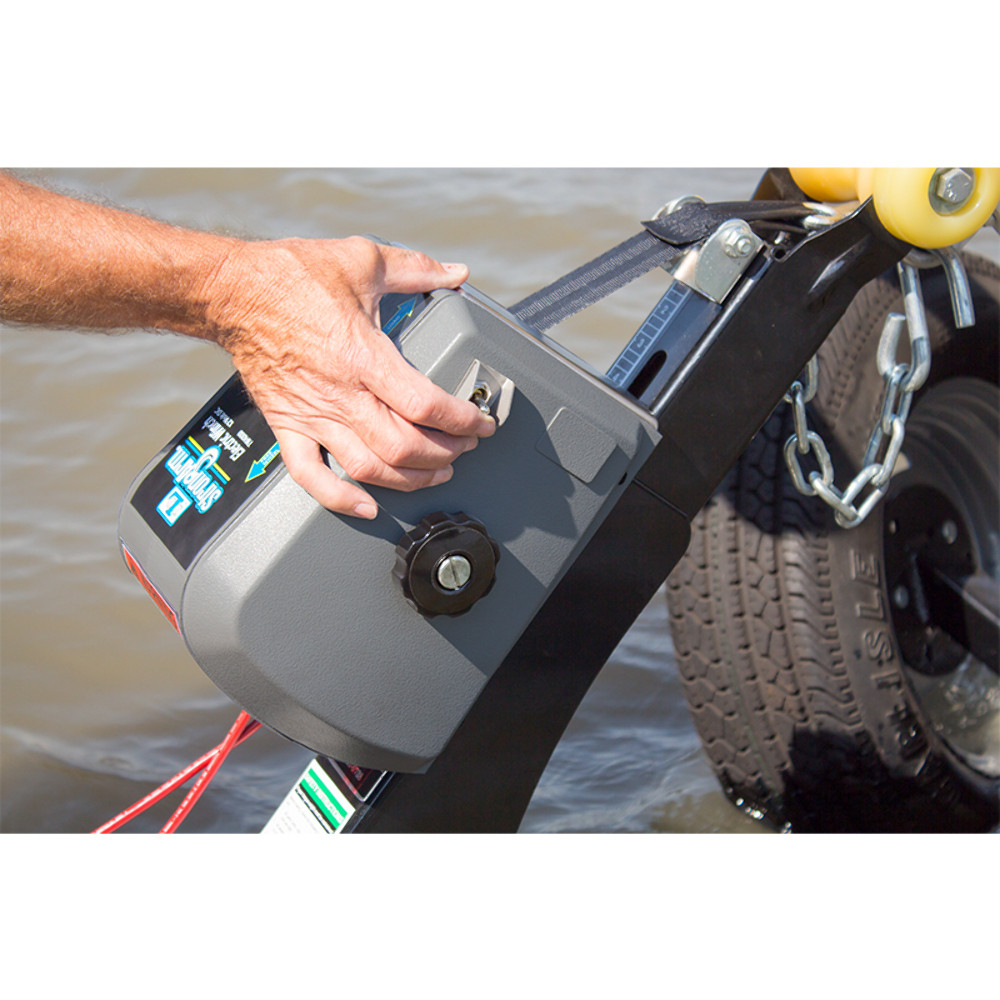

Clutch control knob engages gears or releases load in a controlled freewheel mode
Powered by your vehicle battery, using included wiring harness (25' positive battery wire, 8' ground wire)
Electric switch and clutch controls are conveniently located on the same side for easy operation
High-torque 12 volt DC motor has circuit-breaker overload protection
Built to the same high quality standards as regular SA-series StrongArm electric winches
Can be manually operated with a 5/8" socket wrench in case of power loss
Made in the U.S.A.
NOTE: This winch has a maximum run time of 3 minutes. See owner's manual for more details.

Details

The Dutton-Lainson Company's versatile StrongArm electric winches provide load-moving muscle with just the push of a button or switch, saving manpower and making quick work of difficult loading and pulling jobs. Features include:

Gear-train uses heat-treated sintered-iron gears for smooth, quiet operation
Final drive gears are heat-treated high carbon steel for greater strength
Precision needle bearings are used in high-load areas for low friction and longer life
Die formed base is adapted for quick mounting applications
Hook safety snap keeps load securely attached
High impact weather resistant case provides excellent protection for cable and internal components
Attractive brushed stainless steel front plate for superior rust resistance
Electric switch automatically returns to the "OFF" position when released
Accessories allow for easy mounting on trailers, vehicle hitch balls, and other machinery and equipment
Also compatible with 2" wide strap

What makes StrongArm electric winches different?

Design:

is more compact, allowing winch to fit into tight spaces better than long, open-reel winches.

is aesthetically attractive- black outer case and smooth lines vs. a long, open-reel look.

is safer, as cable and reel are enclosed inside the cover. On open-reel winches, fingers can get caught in the reel or cable as the winch is operated, and any frayed strands of cable can cause cuts.

protects cable, so it's not exposed to the elements, which accelerates wear and rusting.

Unique features:

Clutch release- user can pay out load in neutral and still control it with clutch mechanism. Other winches can only freewheel with no load on winch, so the only way to let load out is by using the motor, which is slower and results in extra wear and tear. Also, the clutch lever automatically returns to a locked position when released (except on the TW4000).

Spur gear system vs. planetary gears- a planetary gear system generates much more heat, and draws more amps from the power source. Because the motor and gears are attached directly to the spool, the heat build-up from running the winch transfers directly to the drum and cable. In contrast, the StrongArm winch's spur gear system is much more efficient, it gives off less heat, and it draws fewer amps.

Rating system:

Capacity ratings are based on the third layer of cable, while other winches are rated based on the first layer of cable.

DC winches are great for mobile applications or around water (for vertical lifting applications, order a winch with no clutch lever installed). Easy to install and operate on:

ATVs
Race car trailers (also for moving extra tires)
Antique car trailers
Boat trailers
Hay bale movers
Pickup cranes
Livestock feeding equipment
Livestock trailers
Boat lifts
Articulating conveyors

All D-L StrongArm electric winches are built for multipurpose hauling and pulling operations. They are not to be used as hoists for lifting, supporting, or transporting people, or for handling loads over areas where people could be present.

Part #	Class	GTW / TW	Ball Diameter	Latch Style	Channel Width	Finish
25101	3	5,000 / 700 lbs.	2"	Posi-lock	--	Zinc-plated
25210	3	5,000 / 700 lbs.	2"	Posi-lock	--	Gloss black
25217	4	7,000 / 1,050 lbs.	2"	Sleeve-lock	--	Gloss black
25200	4	10,000 / 1,500 lbs.	2-5/16"	Easy-lock	--	Gloss black
25227	4	12,500 / 1,875 lbs.	2-5/16"	Sleeve-lock	--	Gloss black

Part #	Class	GTW / TW	Ball Diameter	Latch Style	Channel Width	Finish
25101	3	5,000 / 700 lbs.	2"	Posi-lock	--	Zinc-plated
25210	3	5,000 / 700 lbs.	2"	Posi-lock	--	Gloss black
25217	4	7,000 / 1,050 lbs.	2"	Sleeve-lock	--	Gloss black
25200	4	10,000 / 1,500 lbs.	2-5/16"	Easy-lock	--	Gloss black
25227	4	12,500 / 1,875 lbs.	2-5/16"	Sleeve-lock	--	Gloss black
