Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

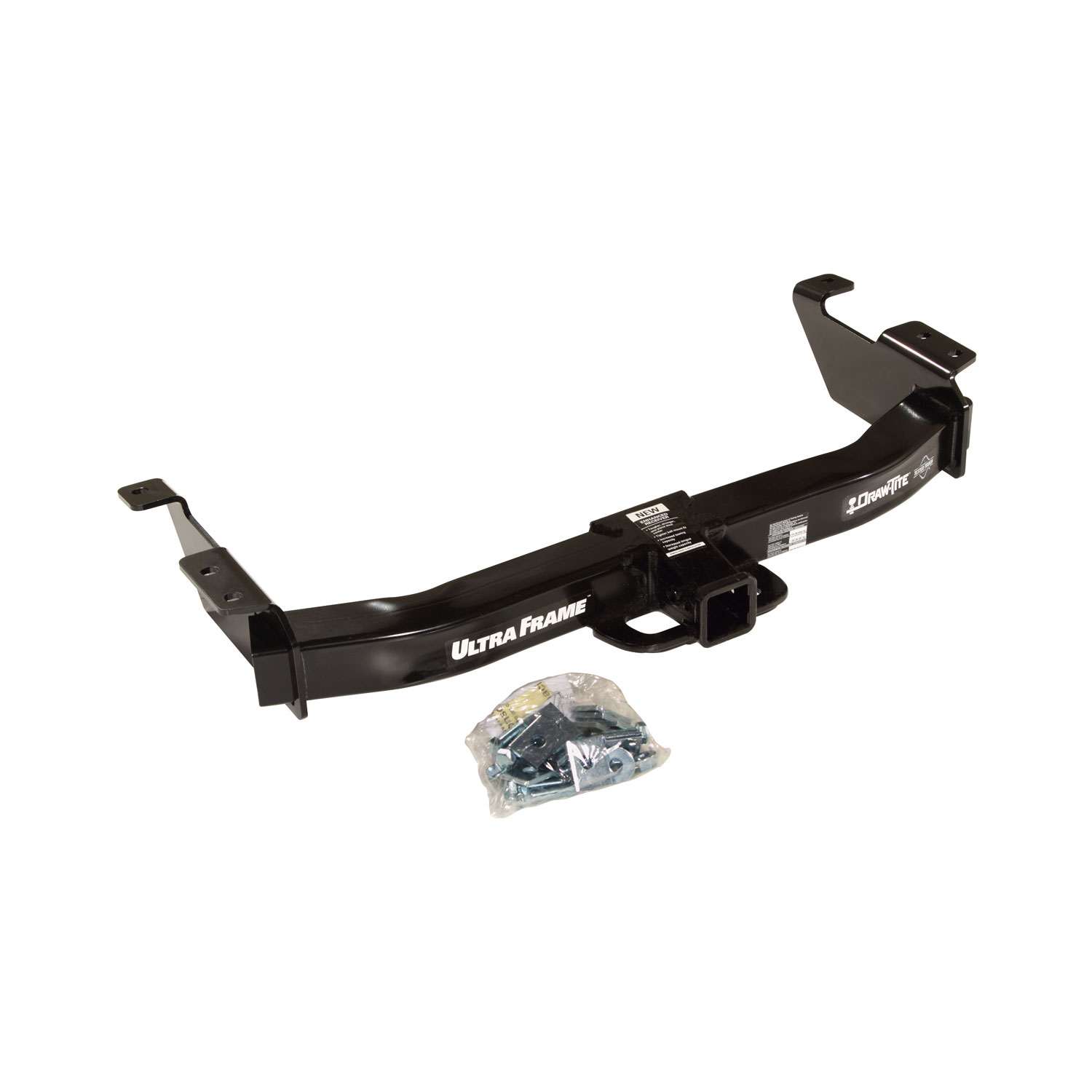

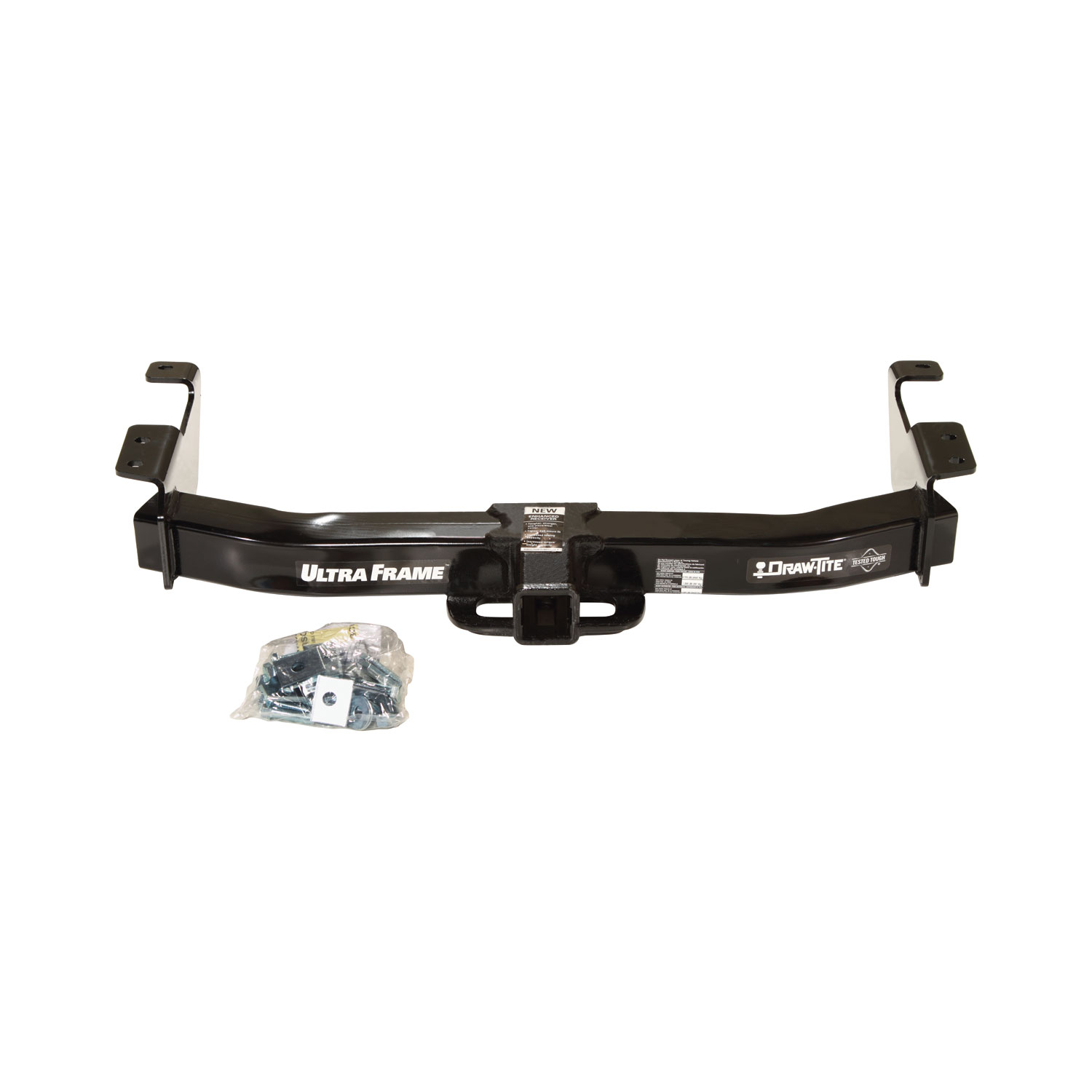

DRAW-TITE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 10,000 lbs. gross trailer weight (GTW) and up to 1,500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 12,000 lbs. weight distribution (WD) and 1,200 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41945 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 44 LBS |
| GROSS TOWING WEIGHT: | 10,000 LBS. |
| GROSS TONGUE WEIGHT: | 1,500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | V |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 12,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,200 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2014 | Ford E-150 Econoline | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2000 - 2014 | Ford E-250 Econoline | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2000 - 2002 | Ford E-350 Econoline | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2003 - 2014 | Ford E-350 Econoline Super Duty | Class 5 Trailer Hitch: 10000 lbs 1,500/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Ford E-150 Econoline, Ford E-250 Econoline, Ford E-350 Econoline, Ford E-350 Econoline Super Duty 41945 (Part #DT41945) fits the following vehicles: 2000-2014 Ford E-150 Econoline; 2000-2014 Ford E-250 Econoline; 2000-2002 Ford E-350 Econoline; 2003-2014 Ford E-350 Econoline Super Duty. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Ford E-150 Econoline, Ford E-250 Econoline, Ford E-350 Econoline, Ford E-350 Econoline Super Duty 41945 (Part #DT41945) is designed to fit the 2000-2014 Ford E-150 Econoline.
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Ford E-150 Econoline, Ford E-250 Econoline, Ford E-350 Econoline, Ford E-350 Econoline Super Duty 41945 (Part #DT41945) fits 2000-2014 Ford E-150 Econoline models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Ford E-150 Econoline, Ford E-250 Econoline, Ford E-350 Econoline, Ford E-350 Econoline Super Duty 41945 (Part #DT41945) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 41945 is a hitch for Ford Econoline Van, all models. It is a weight-carrying or weight-distributing hitch depending on the ball mount configuration used.
Yes, the 41945 hitch is designed for Ford Econoline Van, all models.
The maximum towing capacity depends on the ball mount type used. With a weight-distributing ball mount, the maximum gross trailer weight is 12,000 lbs (5,448 kg) and maximum tongue weight is 1,200 lbs (545 kg). With a weight-carrying ball mount, the maximum gross trailer weight is 10,000 lbs (4,540 kg) and maximum tongue weight is 1,500 lbs (681 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch capacity.
You will need wrenches in 13/16" and 7/8" sizes and a torque wrench. No drilling is required.

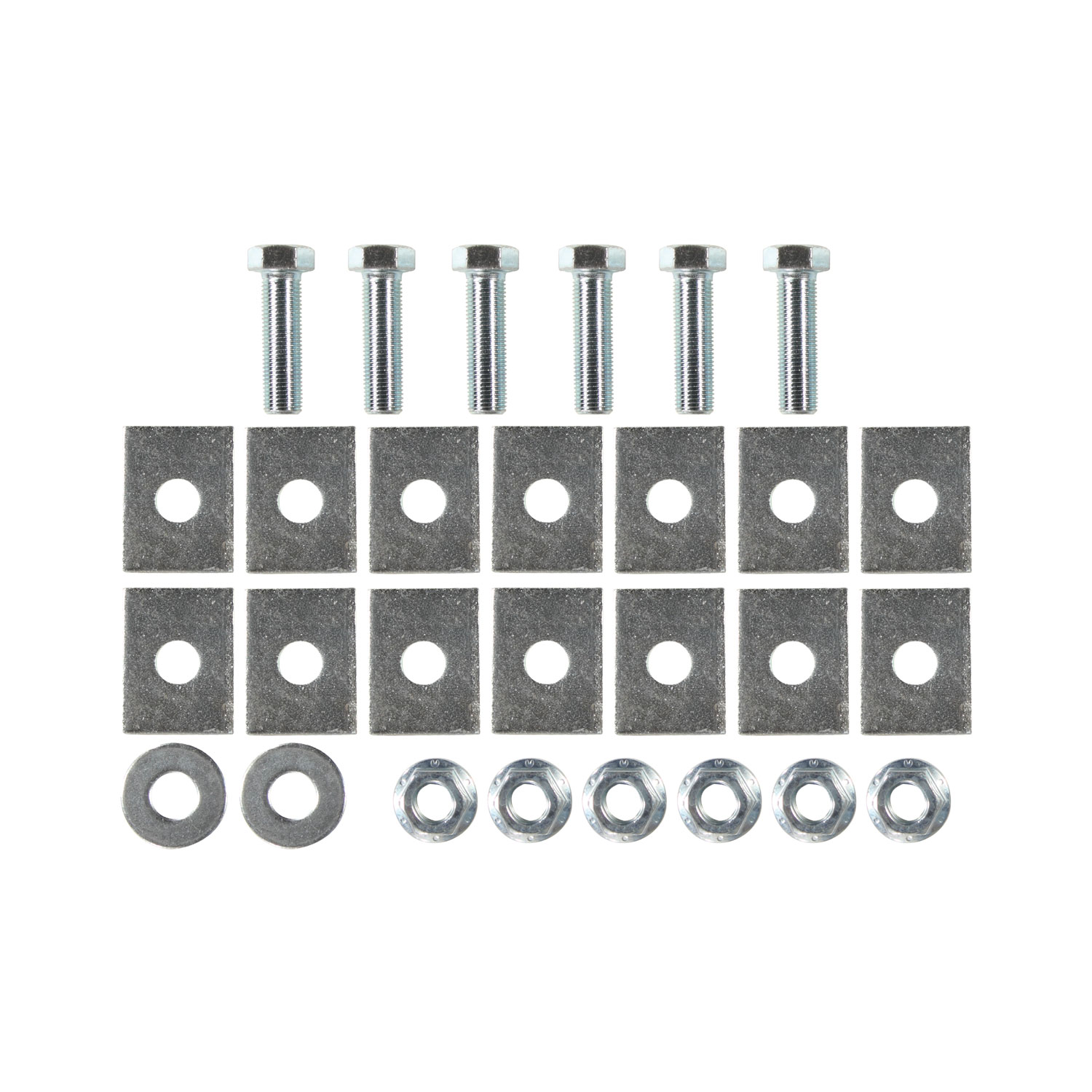

The fastener kit 41945F includes: 6 hex head bolts (9/16-18 x 2.00 GR5), 6 flanged locknuts (9/16-18), 14 blocks (1.50 x 2.00 x .250), and 2 washers (9/16").
If a carbon canister is present on the driver's side frame rail, it must be lowered before installation. After the hitch is installed, the carbon canister must be reattached. It must not contact the bolt head; if it does, loosen the canister fasteners and reposition it to ensure clearance.
If a factory-installed optional driver's side trailer wiring connector is present on the bumper, it must be disconnected before raising the hitch into position. After installation, it must be reconnected and positioned to clear the hitch.
1. If present, lower the carbon canister from the driver's side frame rail. 2. Disconnect the factory trailer wiring connector from the bumper if present. 3. Raise the hitch into position and attach with fasteners as shown in the diagram, making sure to sandwich a block between the hitch and frame at the middle attachment. 4. Reinstall the factory trailer wiring connector to clear the hitch. 5. Reattach the carbon canister if present, ensuring it does not contact the bolt head.
A block (1.50 x 2.00 x .250) must be sandwiched between the hitch and frame at the middle attachment point. The manual does not explain the reason, but this is a required step shown in the installation diagram.
All 9/16-18 grade 5 fasteners must be tightened with a torque wrench to 120 Lb.-Ft. (163 N·m).
Tighten all 9/16-18 grade 5 fasteners to 120 Lb.-Ft. (163 N·m) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection as part of ongoing maintenance.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes regular inspection.
No, no drilling is required. The manual lists drill bits as NONE under Equipment Required.
The wiring access location is SUV1 or SUV2, as indicated in the manual.
Yes, the 41945 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
