Complete CURT Class 4 2" trailer hitch and 4-flat custom wiring kit engineered for the 2002 - 2004 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.). Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Ford F350 Super Duty, F450 Super Duty, F550 Super Duty and F650 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.

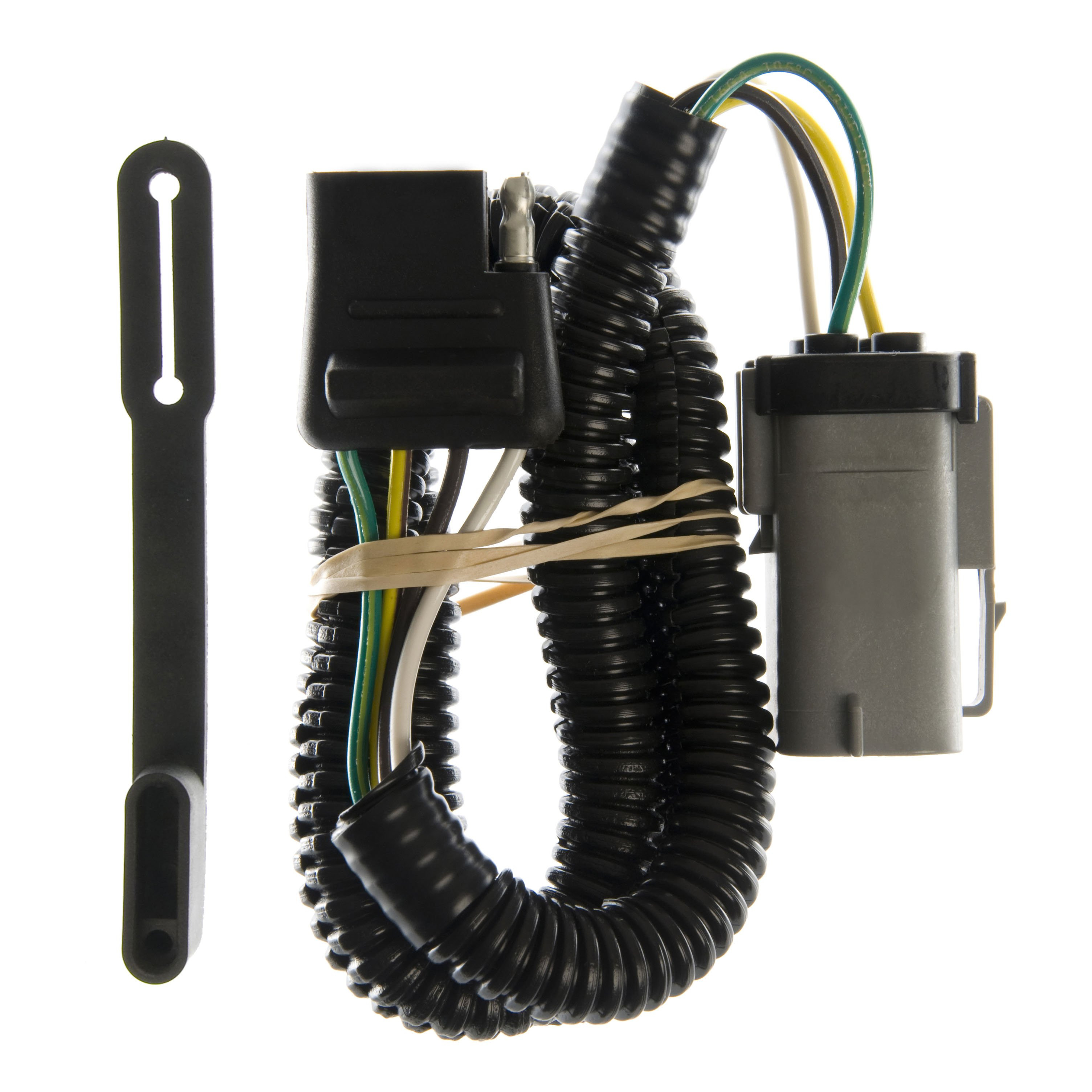

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Ford F250 Super Duty and F350 Super Duty (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2004 | Ford F-350 Super Duty | Cab & chassis with 34" frame width (O.D.) |
The 02 - 04 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14048 (Part #CHW-1181) fits 2002-2004 Ford F-350 Super Duty models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 02 - 04 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14048 (Part #CHW-1181) is designed to fit the 2002-2004 Ford F-350 Super Duty.
The 02 - 04 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14048 (Part #CHW-1181) fits the following vehicles: 2002-2004 Ford F-350 Super Duty. Always verify your specific year, make, and model before ordering.
The 02 - 04 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14048 (Part #CHW-1181) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Curt part number 14048 is designed for 1999-current Ford F-350, F-450, F-550, and F-650 models. Verify your truck model and year against this list before purchasing.
The hitch weight is 40 lbs.
The kit includes 10 bolts (1/2-13 UNC, Grade 8, part 10-10288), 10 serrated flange nuts (1/2-13 UNC, Grade 8, part 20-00062), 4 square hole spacers (0.250 x 1.50 x 2.00", part CM-SP1), and 2 cylindrical spacers (0.313", part CM-SP142).
A 9/16" drill bit is required to drill the front mounting holes. A clamp is needed to hold the hitch in position during alignment and drilling. A torque wrench is required to torque all fasteners to 110 lb.-ft. Standard wrenches or sockets for 1/2-13 fasteners are also needed.
Yes. Drilling is required. You must drill one hole on each side of the frame using a 9/16" drill bit at the rearmost mounting location. The hitch uses existing factory holes at the back of the frame and newly drilled holes at the front.
A 9/16" drill bit is required to drill the front mounting holes in the frame.
Raise the hitch into position and clamp it in place. Use the rivet clearance holes in the side plates as alignment guides to ensure the hitch is properly positioned before marking and drilling the front mounting holes.
Fasten the hitch to the frame holes at the back first, then to the newly drilled holes at the front. After the hitch is secured, attach the mounting plates and fasten them to the truck as shown in the diagram.
All hardware must be torqued to 110 lb.-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. Curt 14048 is designed for Ford F-350, F-450, F-550, and F-650 trucks; consult your vehicle's owner manual for the specific towing limit for your model and year.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain safe operation and prevent loosening due to vibration and use.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Curt 14048 fits 1999-current Ford F-350, F-450, F-550, and F-650.
Yes. You must drill two holes (one on each side) using a 9/16" drill bit at the front mounting location.
All fasteners must be torqued to 110 lb.-ft.
A 9/16" drill bit is required to drill the front frame mounting holes.
The hitch weight is 40 lbs.
Yes, Curt part 55265 is designed for Ford F-250 & F-350 Heavy Duty vehicles. The installation connects to the vehicle's existing trailer wiring harness connector located behind the rear bumper next to the spare tire.
The vehicle's trailer wiring harness connector is located behind the rear bumper next to the spare tire. The connector on the harness will be similar to the connector on the product.
Insert the harness connector into the vehicle's connector located behind the rear bumper next to the spare tire. Make sure the connectors are fully inserted with locking tabs in place. Then route the 4-flat to the center of the vehicle and secure it in a convenient out-of-the-way location. Secure any loose wires with the cable ties provided.
Route the 4-flat to the center of the vehicle and secure it in a convenient out-of-the-way location. This keeps it accessible and protected from damage.
Cable ties are provided to secure loose wires. The manual does not specify other hardware included with the product.
Before drilling, verify that miscellaneous items hidden behind or under any surface are not present. This avoids damage to hidden components and personal injury.
Yes, Curt 55265 is designed for Ford F-250 & F-350 Heavy Duty trucks.
