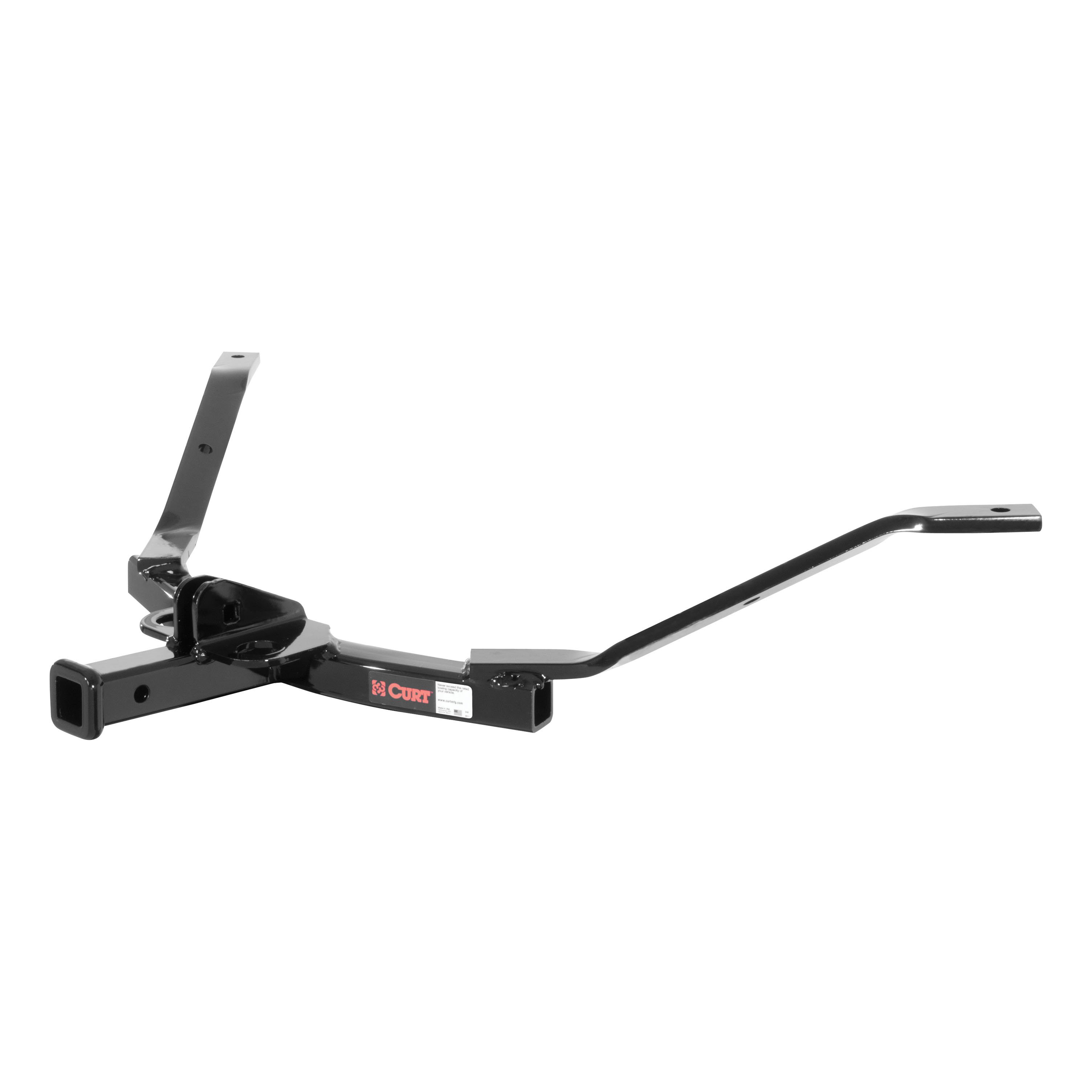

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2003 - 2007 Honda Accord Frame mount. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Honda Accord (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Honda Accord and Acura TSX (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2007 | Honda Accord Frame mount | — |
Yes, the 03 - 07 Honda Accord Frame mount Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11327 (Part #CHW-1720) is designed to fit the 2003-2007 Honda Accord.
The 03 - 07 Honda Accord Frame mount Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11327 (Part #CHW-1720) fits the following vehicles: 2003-2007 Honda Accord. Always verify your specific year, make, and model before ordering.
The 03 - 07 Honda Accord Frame mount Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11327 (Part #CHW-1720) fits 2003-2007 Honda Accord models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The 03 - 07 Honda Accord Frame mount Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11327 (Part #CHW-1720) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt 11327 is designed for 2003–2007 Honda Accord in Sedan, Coupe, and Hybrid body styles. Confirm your model year and body style match before purchasing.
The Curt 11327 is designed for 2003–2007 Honda Accord vehicles. It is compatible with Sedan, Coupe, and Hybrid body styles within this model year range.
Gross load capacity is 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. Do not exceed your vehicle manufacturer's recommended towing capacity.
The tongue weight capacity is 200 lbs when the hitch is used as a weight-carrying hitch. Always verify that your vehicle's manufacturer-recommended towing capacity is not exceeded.
The Curt 11327 is designed for use with ball mount #D-20 / 45520.
Required tools: 3/8" drive ratchet, 3/4" and 11/16" and 10mm sockets (3/8" drive), 3/8" drive torque wrench, and power drill with 5/8" bit.
The kit includes: one 7/16" fishwire, one 1/2-13 UNC grade 8 carriage bolt (1-3/4") with flange nut, two 7/16-14 UNC grade 8 carriage bolts (1-1/2" each) with flange nuts, and two 0.250 × 1.00 × 2.50" square hole spacers.
The supplied 7/16" fishwire is used to pull the 7/16" carriage bolts and spacers through the vehicle frame access holes and into the existing holes in the frame rail. This allows you to route hardware through the frame without removing the frame.
Yes. You must lower the exhaust system to access the frame rails and heat shields. Be careful not to allow mufflers to fall under their own weight. The exhaust is re-installed after hitch installation.
Be careful not to allow mufflers to fall under their own weight when lowering the exhaust system. Support the exhaust adequately to prevent injury or damage.
Yes. You must mark and drill a 5/8" hole in the heat shield 4 1/2" back from the forward-most hole on the frame rail. Mark holes and hold the hitch in position to check before drilling. Remove heat shields to drill.
A 5/8" hole must be drilled in the heat shield. The hole is located 4 1/2" back from the forward-most hole on the frame rail. Mark the hole and hold the hitch in position to verify placement before drilling. Remove the heat shield to drill.
No. The manual specifies that heat shields must be removed before drilling the 5/8" hole. After drilling, the heat shields are re-installed.
1. Lower the exhaust system carefully. 2. Mark and drill 5/8" holes in heat shields 4 1/2" back from the forward-most frame rail hole (remove heat shields first). 3. Use fishwire to pull 7/16" carriage bolts and spacers through frame access holes into existing frame holes (repeat for both sides). 4. Re-install heat shields. 5. Raise hitch over vehicle tow loop and secure with 1/2" carriage bolt and flange nut (finger tighten; support hitch so receiver tube does not rotate). 6. Rotate hitch straps to frame rails and secure with 7/16" flange nuts. 7. Torque all 7/16" fasteners to 70 lb-ft and all 1/2" fasteners to 110 lb-ft. 8. Raise exhaust and re-install rubber isolators.
Support the hitch so the receiver tube does not rotate and hit the bumper fascia. The hitch is raised into position over the vehicle tow loop and initially secured with the 1/2" carriage bolt and flange nut (finger tightened). The hitch straps are then rotated to the frame rails and secured with 7/16" flange nuts.
Fishwire is a flexible wire tool supplied with the kit. It is used to pull the 7/16" carriage bolts and spacers through the vehicle frame access holes and into the existing holes in the frame rail. This allows you to route hardware through the frame without disassembly.
Torque all 7/16" fasteners to 70 lb-ft and all 1/2" fasteners to 110 lb-ft.
All 7/16" fasteners on the Curt 11327 must be torqued to 70 lb-ft.
All 1/2" fasteners on the Curt 11327 must be torqued to 110 lb-ft.
The 1/2-13 UNC grade 8 carriage bolt is 1-3/4" long. It is used to secure the hitch to the vehicle tow loop and is torqued to 110 lb-ft.
The 7/16-14 UNC grade 8 carriage bolts are 1-1/2" long. Two are included in the kit and are torqued to 70 lb-ft each.
Two square hole spacers are included, each measuring 0.250 × 1.00 × 2.50 inches. These are routed through the frame access holes along with the 7/16" carriage bolts.
Do not exceed your vehicle manufacturer's recommended towing capacity. The Curt 11327 has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight, but your vehicle's manufacturer limit may be lower and must be observed.
After installation, verify that all fasteners are tight and all structural components are sound. Periodically re-check the hitch during use to ensure fasteners remain tight and components remain in good condition.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before and after towing is recommended.
Yes, Curt part 55502 is designed for the Acura TSX. It is also compatible with the Honda Accord. Verify your vehicle model is one of these before purchasing.
Yes, Curt part 55502 is designed for the Honda Accord. It is also compatible with the Acura TSX. Verify your vehicle model is one of these before purchasing.

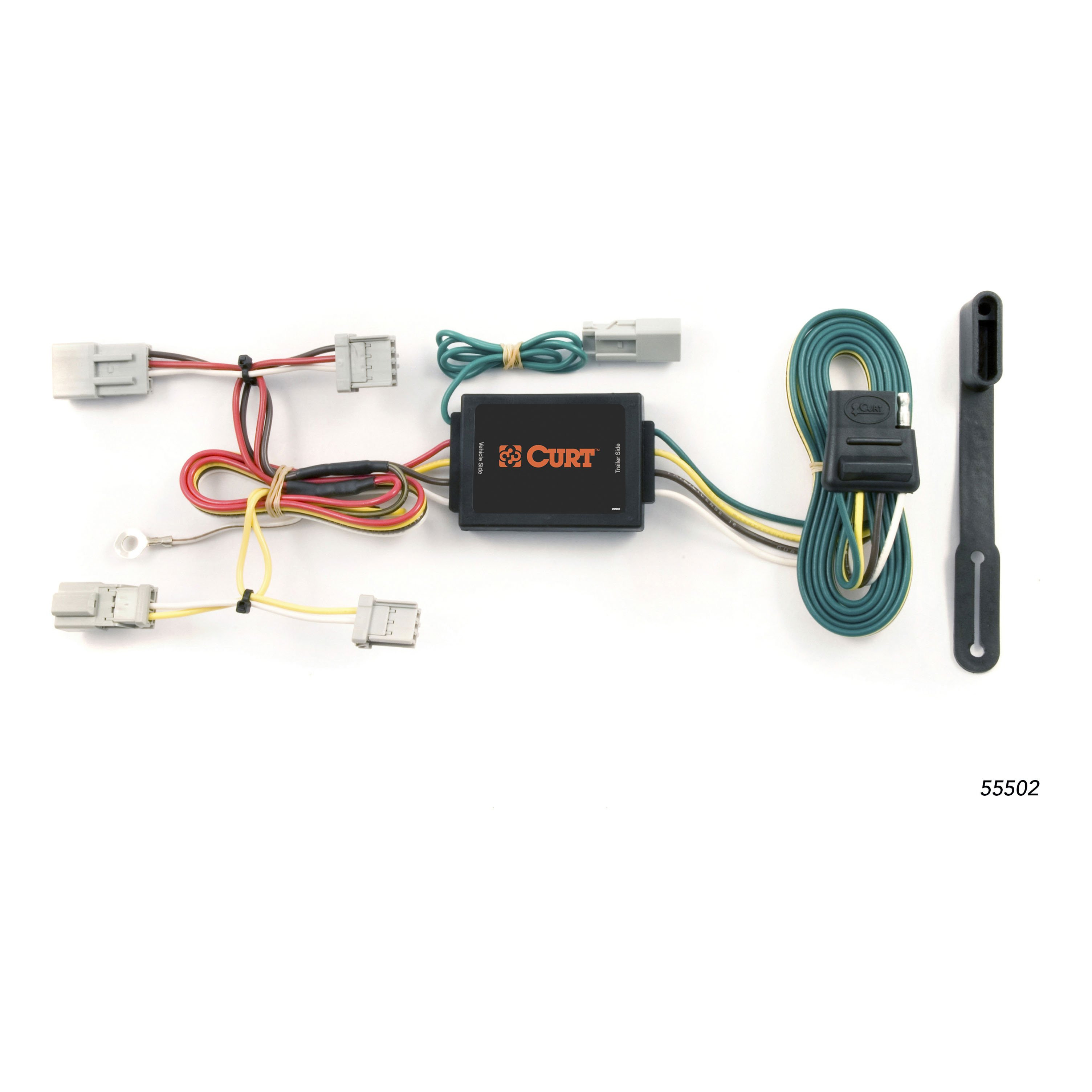

The kit includes a T-connector adapter, a black converter box, double-sided tape for securing the converter box, a white wire with ring terminal, and a screw for securing the white wire to the grounding point.
No. You only need to partially remove the felt trunk liner on the driver's side to expose the taillight wiring. The full liner does not need to be removed.
Open the trunk and remove the threshold panel. Partially remove the felt trunk liner on the driver's side to expose the taillight wiring. You will also need to locate a suitable grounding point near the connectors.
Separate the existing taillight harness connectors carefully, being careful not to break the locking tabs. Insert the T-connector between the harness connectors and lock it into place. Ensure the connectors are fully inserted with locking tabs in place.
Route the single connector with the green wire to the 2-way connector just below the threshold on the driver's side of the car.
Secure the black converter box using the double-sided tape provided to a suitable location in the trunk area. The manual does not specify the exact location, so choose an area that is accessible and does not interfere with trunk contents.
Yes. You must drill a 3/32" pilot hole to secure the white wire with ring terminal to a grounding point near the connectors.
Drill a 3/32" pilot hole to secure the white wire with ring terminal to the grounding point.
Before drilling, verify that miscellaneous items may not be hidden behind or under surfaces to avoid damage to the vehicle and/or personal injury. Inspect the area carefully before drilling the pilot hole.
After securing the black converter box and the white grounding wire, reposition the trunk liner and reattach the threshold panel to complete the installation.
The Curt 55502 is designed for the Acura TSX and Honda Accord.
Yes, you must drill a 3/32" pilot hole to secure the white grounding wire. Always verify the area is clear of hidden items before drilling.
Open the trunk, remove the threshold panel, and partially remove the felt trunk liner on the driver's side to expose the taillight wiring.
You will need a drill with a 3/32" bit, a screwdriver, and basic hand tools. The manual does not specify additional tools.
