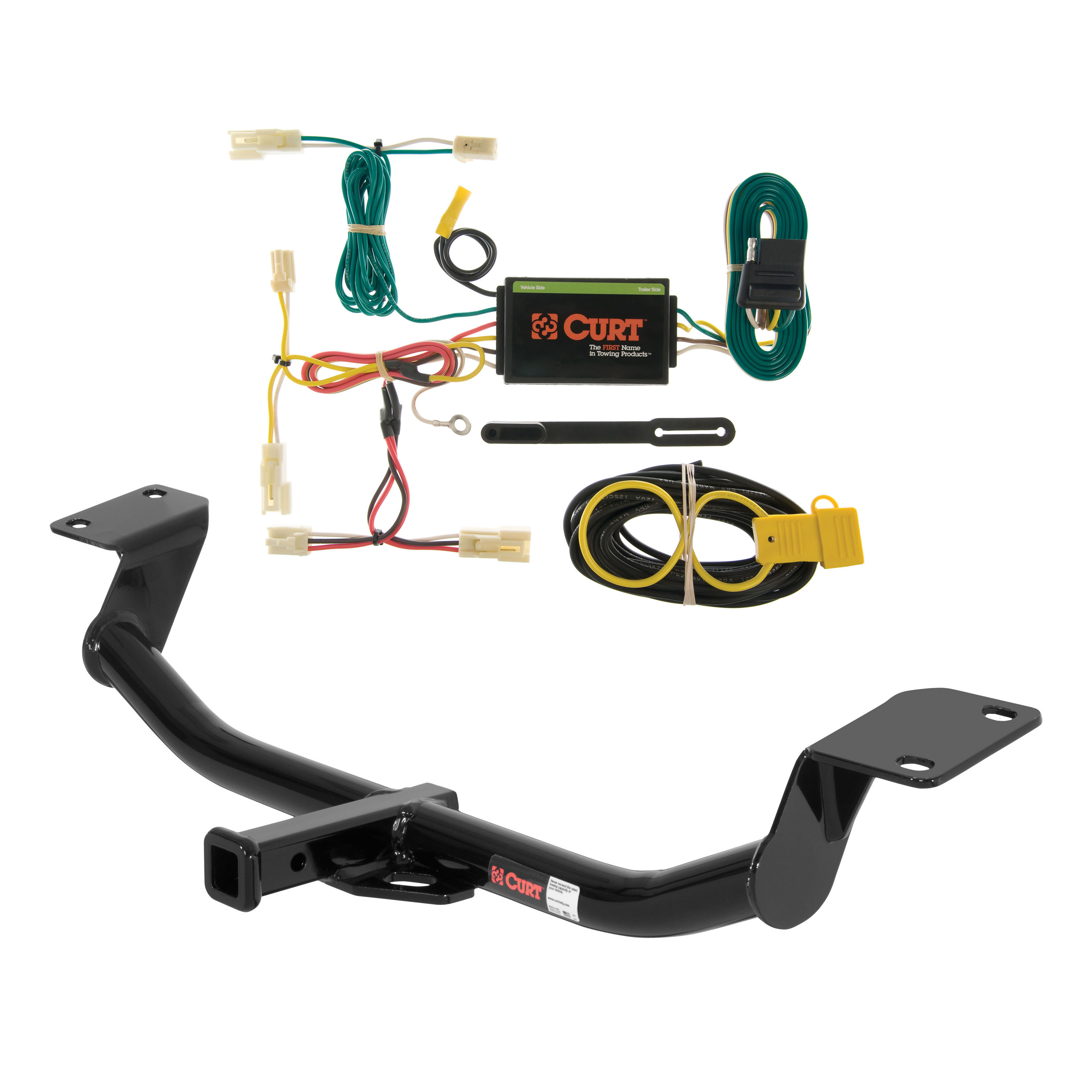

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2003 - 2010 Pontiac Vibe GT. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Pontiac Vibe and Toyota Matrix (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 2,500 lbs. GTW and 250 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.

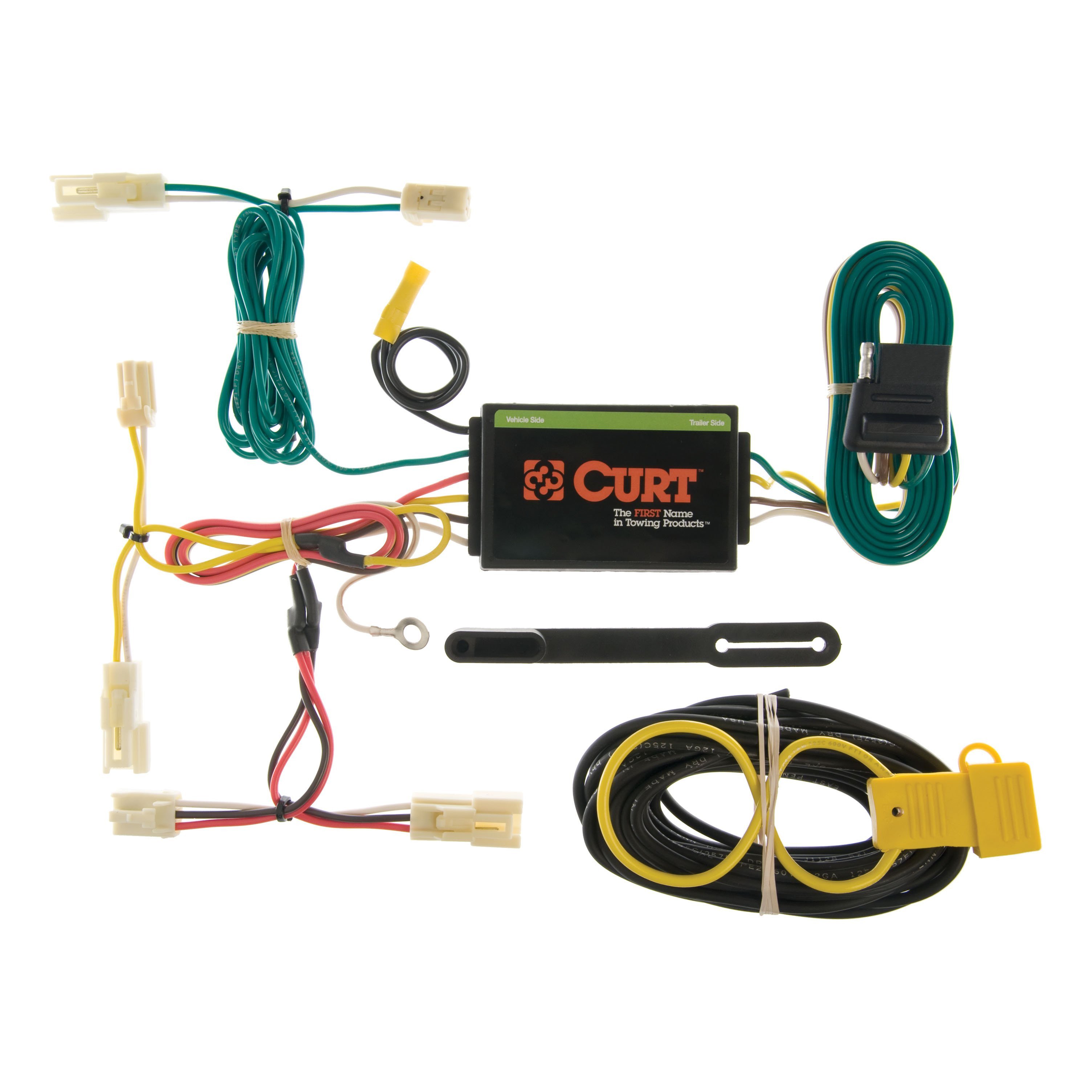

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Pontiac Vibe (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2010 | Pontiac Vibe | GT |
The 03 - 08 Pontiac Vibe GT Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12221 (Part #CHW-2629) fits 2003-2008 Pontiac Vibe models. The 2008 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 03 - 08 Pontiac Vibe GT Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12221 (Part #CHW-2629) is designed to fit the 2003-2008 Pontiac Vibe.
The 03 - 08 Pontiac Vibe GT Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12221 (Part #CHW-2629) fits the following vehicles: 2003-2008 Pontiac Vibe. Always verify your specific year, make, and model before ordering.
The 03 - 08 Pontiac Vibe GT Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12221 (Part #CHW-2629) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The hitch weight is 24,880 lbs.
Yes, Curt part number 12221 is designed for Pontiac Vibe and Toyota Matrix all models.
The Toyota Matrix XR and XRS lower valance may require minor trimming to accommodate the hitch. Heat shield modification may also be required on either frame rail.
You will need a ratchet, 10" extension, 19mm socket, and a torque wrench.
The hitch includes 4 hex bolts (M12x1.25, 30mm, Class 10.9, zinc-plated, part number 10-10419) and 4 conical toothed washers (1/2", part number 30-00149).
No, drilling is not required. The hitch uses existing weld nuts in the frame rails.
The Curt 12221 is designed for use with ball mount part number D-55001 or 45501.
Torque the M12x1.25 hex bolts to 86 lb-ft.
1. Raise the hitch into position over the exhaust and align the slots in the hitch with the weld nuts in the frame rails closest to the rear end of the vehicle. 2. Install the hex bolts and conical toothed washers into the weld nuts. 3. Torque the bolts to 86 lb-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual specifies a gross load capacity when used as a weight-carrying hitch, but the exact values are not clearly visible in the provided documentation. Contact Curt Technical Support at 1-877-287-8634 for your specific vehicle's capacity.
All non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Yes, it fits all Pontiac Vibe and Toyota Matrix models. Toyota Matrix XR and XRS may require minor lower valance trimming.
No drilling required. The hitch uses existing frame rail weld nuts.
Ratchet, 10" extension, 19mm socket, and torque wrench.
Torque M12x1.25 hex bolts to 86 lb-ft.
Non-trailer loads must be supported by auxiliary stabilizing straps. Improper support voids the warranty.
Periodically check that all fasteners are tight and structural components are sound.
Yes, the Curt 55057 is designed for Pontiac Vibe passenger cars. The harness connects to the vehicle's taillight wiring harness connectors located behind the driver and passenger side taillight housings in the trunk.
The harness is rated for 3.0 amps per side on signal circuits and 6.0 amps total on tail and running circuits. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
You will need a Phillips screwdriver and a flat blade screwdriver. No power tools or specialized equipment are required.
Open the tailgate and remove the driver and passenger side wiring access panels from the cargo area. Then remove the carpet, spare tire retaining cap, tire jack storage tray, spare tire retaining nut, and spare tire.
Locate the vehicle's taillight wiring harness connectors behind the driver and passenger side taillight housings. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness adapter between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place.
On the driver side, route the harness end with the red and brown wires and the end with the yellow wire through the opening below the side cargo storage area behind the panel to the wiring access area. Route the harness end with the green wire to the passenger side and repeat the same routing process.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you will need to drill a 3/32" pilot hole. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
When not in use, roll up the 4-flat connector and store it in a convenient, out of the way location inside the trunk. When in use, route the 4-flat to the center of the vehicle and out of the trunk.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Secure any loose wires with the provided cable ties to prevent them from moving or becoming damaged.
Yes, install the provided 4-flat dust cover to help prevent corrosion.
The Curt 55057 is designed for Pontiac Vibe passenger cars.
You need a Phillips screwdriver and a flat blade screwdriver.
Yes, you must remove the spare tire, tire jack storage tray, spare tire retaining cap, and spare tire retaining nut from the cargo area.
The battery connection must use a 10-amp maximum fuse. Exceeding this can cause overheating and fire.
Signal circuits are rated at 3.0 amps per side; tail and running circuits are rated at 6.0 amps total.
