04-04 Ford F-150 Heritage Edition CURT 4-flat Plug and Play Trailer WiringCURT$74.55In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| T-Connector Location | T3 |
| Warranty | One-Year Limited Warranty |
| Electrical System Type | 2W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |

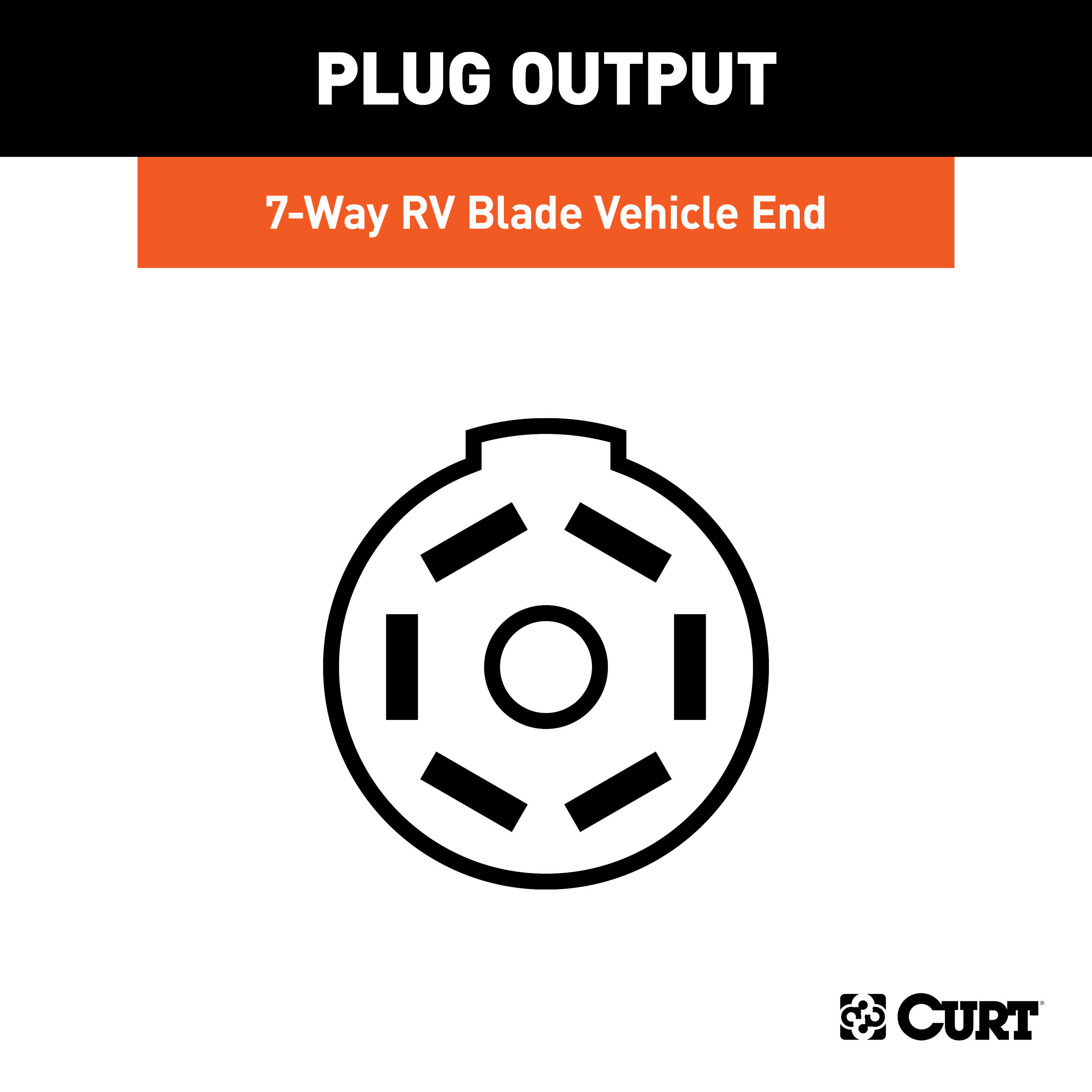

| Output Type | 7-Way Flat |
| Side Application Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 | Ford F-150 Heritage Edition | Excluding 20" spare tire |
The 04-04 Ford F-150 Heritage Edition Excluding 20" spare tire CURT 7-way Plug and Play Trailer Wiring (Part #CTW870) fits the following vehicles: 2004 Ford F-150 Heritage Edition. Always verify your specific year, make, and model before ordering.
The 04-04 Ford F-150 Heritage Edition Excluding 20" spare tire CURT 7-way Plug and Play Trailer Wiring (Part #CTW870) fits 2004 Ford F-150 Heritage Edition models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 04-04 Ford F-150 Heritage Edition Excluding 20" spare tire CURT 7-way Plug and Play Trailer Wiring (Part #CTW870) is designed to fit the 2004 Ford F-150 Heritage Edition.
The 04-04 Ford F-150 Heritage Edition Excluding 20" spare tire CURT 7-way Plug and Play Trailer Wiring (Part #CTW870) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 55242 is designed for Ford F-150 Light Duty and Ford F-150 Heritage models equipped with a factory 4-flat connector. Verify your vehicle has the factory 4-flat connector before purchasing. If your F-150 does not have this factory connector, this product will not be compatible.
Yes, the Curt 55242 custom wiring connector is compatible with Ford F-250 Light Duty models that have a factory 4-flat connector. Confirm your vehicle is equipped with the factory 4-flat connector before installation.

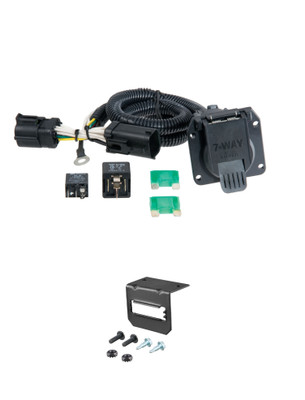

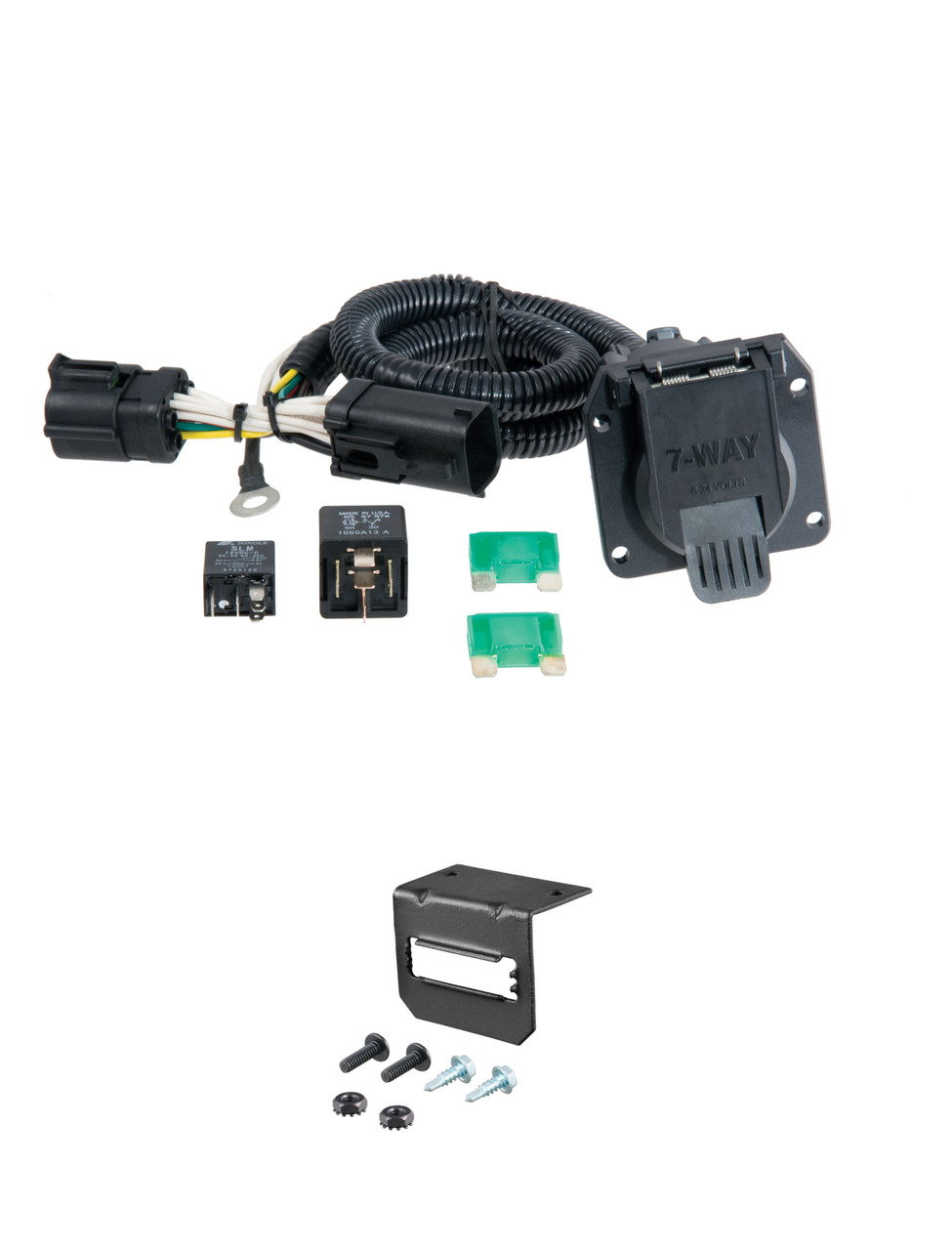

The Curt 55242 includes the custom wiring connector, a white ground wire with ring terminal, a provided screw for grounding, 30-amp maxi-fuses for the trailer tow electric brake and trailer tow battery charge circuits, and relays for the trailer tow backup lamp and trailer tow battery charge functions. A 7-way socket is also included but must be mounted separately using a bracket or electrical box (not included).
Yes. You must disconnect the negative battery cable in the engine compartment before proceeding with installation. This is required before accessing the vehicle power distribution box and inserting fuses and relays. Reconnect the negative battery cable only after all fuses and relays have been installed and all other steps are complete.
The vehicle wiring harness connectors are located under the rear of the vehicle, inside the driver side frame rail. The connector ends will be similar to those on the custom wiring connector. Handle them carefully to avoid damaging the locking tabs when separating them.
Locate the vehicle wiring harness connectors under the rear of the vehicle inside the driver side frame rail. Carefully separate the connectors without damaging the locking tabs. Insert the custom wiring connector between the separated connectors. The connector ends are designed to match, ensuring proper alignment.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The grounding area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required. You must locate a suitable grounding point near the connector. If an existing screw with nut is available in the vehicle frame, no drilling is needed. If not, you must drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
The pilot hole size is 3/32". This hole is drilled in the vehicle frame to accommodate the provided ground screw if a suitable existing screw with nut is not available. The grounding area must be free of rust, dirt and paint before drilling.

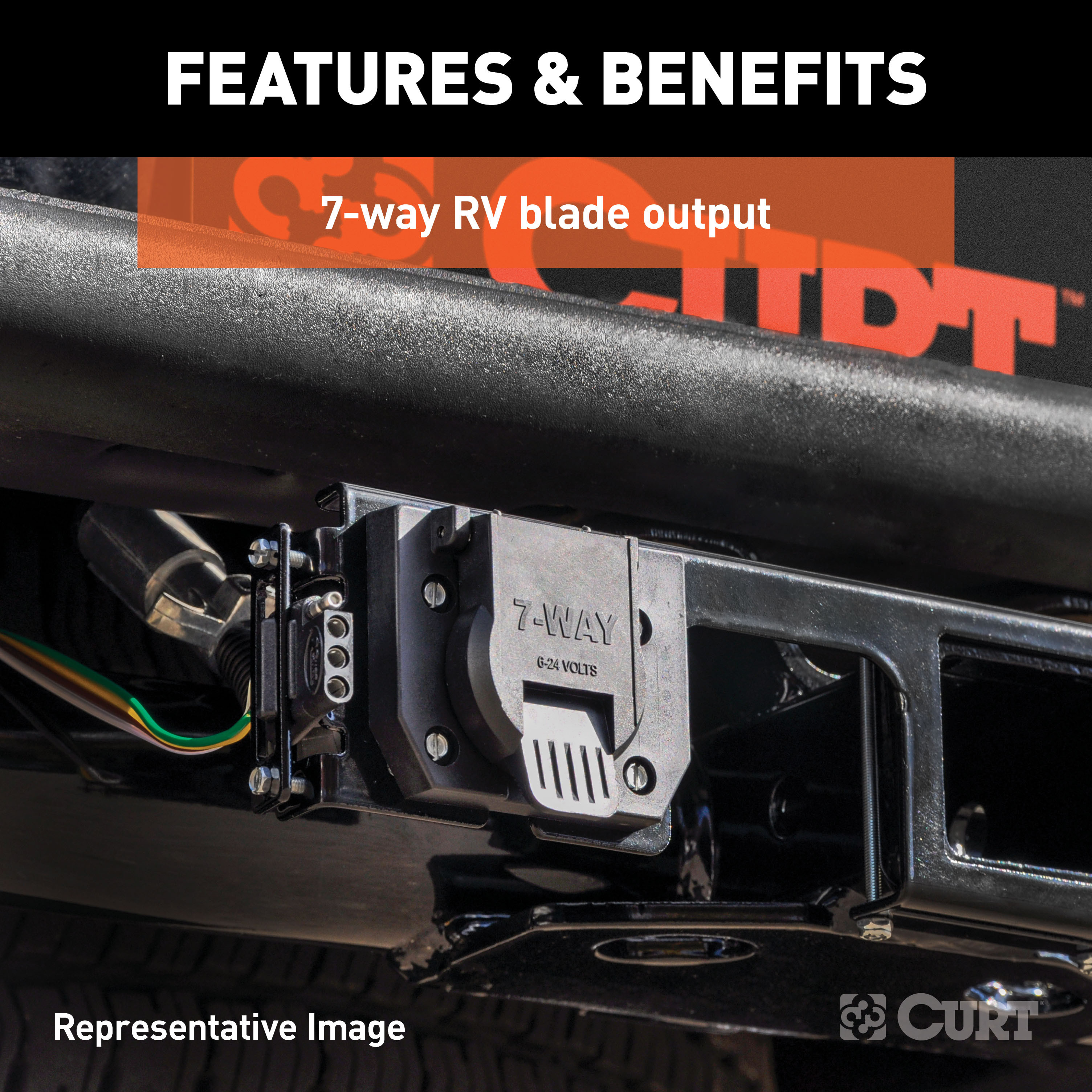

Mount the 7-way socket in an accessible location using a bracket or electrical box (not included). Secure any loose wires after mounting. The manual does not specify exact mounting locations, so choose a location that is easily accessible for trailer connection and protected from weather and road debris.
The power distribution box is located on the driver side of the engine compartment. The trailer tow relay block is attached to it. Open the cover(s) to access the relays and fuses. Consult your vehicle owner's manual for the exact location and layout specific to your model year.
Two 30-amp maxi-fuses are provided. One is for the TRAILER TOW ELECTRIC BRAKE circuit and one is for the TRAILER TOW BATTERY CHARGE circuit. Consult your vehicle owner's manual to locate the correct fuse positions in the power distribution box. Insert the fuses into the locations specified in your owner's manual.
Two relays are provided: the TRAILER TOW BACKUP LAMP RELAY and the TRAILER TOW BATTERY CHARGE RELAY. Consult your vehicle owner's manual to locate the correct relay positions in the trailer tow relay block attached to the power distribution box. Insert the relays into the locations specified in your owner's manual.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for the specific lamp load rating of your vehicle.
After installation is complete, test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring connector functions properly. If the test light does not illuminate or the trailer does not function correctly, review each installation step to verify all connections are secure and all fuses and relays are properly installed.
The Curt 55242 fits Ford F-150 Light Duty, F-150 Heritage, and F-250 Light Duty models with factory 4-flat connectors. Verify your vehicle has this factory connector before purchasing.
Yes, disconnect the negative battery cable before accessing the power distribution box. Reconnect it only after all fuses and relays are installed.
Drilling may be required only for the ground wire. If no existing screw with nut is available in the vehicle frame, drill a 3/32" pilot hole. Always check for hidden items before drilling.
Two 30-amp maxi-fuses (trailer tow electric brake and battery charge) and two relays (backup lamp and battery charge) are included. Consult your owner's manual to locate where they install in the power distribution box.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
