Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2004 - 2005 Mitsubishi Endeavor. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mitsubishi Endeavor (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 500 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Mitsubishi Endeavor (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2005 | Mitsubishi Endeavor | — |
The 04 - 05 Mitsubishi Endeavor Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13569 (Part #CHW-2453) fits 2004-2005 Mitsubishi Endeavor models. The 2005 model year is the last year covered by this part number. For newer models, check for an updated version.
The 04 - 05 Mitsubishi Endeavor Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13569 (Part #CHW-2453) fits the following vehicles: 2004-2005 Mitsubishi Endeavor. Always verify your specific year, make, and model before ordering.
Yes, the 04 - 05 Mitsubishi Endeavor Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13569 (Part #CHW-2453) is designed to fit the 2004-2005 Mitsubishi Endeavor.
The 04 - 05 Mitsubishi Endeavor Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13569 (Part #CHW-2453) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13569 is designed for 2003–2005 Mitsubishi Endeavor models.
The hitch weight is 60 lbs.
The hitch includes 7 M10×1.25 hex head cap screws (HHCS), class 10.9, zinc-plated (part number 10-10298) and 7 S-CON washers, 7/16 inch, zinc-plated (part number 30-00163).
No, drilling is not required. The hitch attaches to existing M10 weldnuts in the frame rails.
Yes, you must temporarily lower the muffler by removing the rear rubber hanger during installation. The hanger is re-attached after the hitch is secured.
1. Temporarily lower the muffler by removing the rear rubber hanger. 2. Place the hitch into position, fitting it to the inside and bottom of the frame rails one side at a time, with the driver side positioned first. 3. Align the hitch with the M10 weldnuts in the frame. 4. Install all seven M10 fasteners. 5. Torque all M10 fasteners to 48 lb.-ft. 6. Re-attach the rubber exhaust hanger.
Install the driver side first. The hitch is fitted to the inside and bottom of the frame rails one side at a time, with the driver side positioned first.
All seven M10 fasteners must be torqued to 48 lb.-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual specifies that this hitch has a gross load capacity when used as a weight-carrying hitch and when used as a weight-distribution hitch, but the exact capacity values are not provided in this manual. Contact Curt Manufacturing technical support at 877-287-8634 for the specific capacity ratings.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
The hitch attaches to the inside and bottom of the frame rails using existing M10 weldnuts. It also attaches to an existing weld nut on the inside body panel.
Yes, the Curt 13569 is designed for 2003–2005 Mitsubishi Endeavor models.
No, drilling is not required. The hitch uses existing M10 weldnuts in the frame.
You must temporarily lower the muffler by removing the rear rubber hanger during installation, then re-attach it after the hitch is secured.
Torque all seven M10 fasteners to 48 lb.-ft.
Seven M10×1.25 hex head cap screws (class 10.9) and seven 7/16-inch S-CON washers are included.
Periodically check that all fasteners are tight and all structural components are sound.
Yes, Curt part 56039 is designed for the Mitsubishi Endeavor. The installation manual confirms compatibility with this vehicle model.

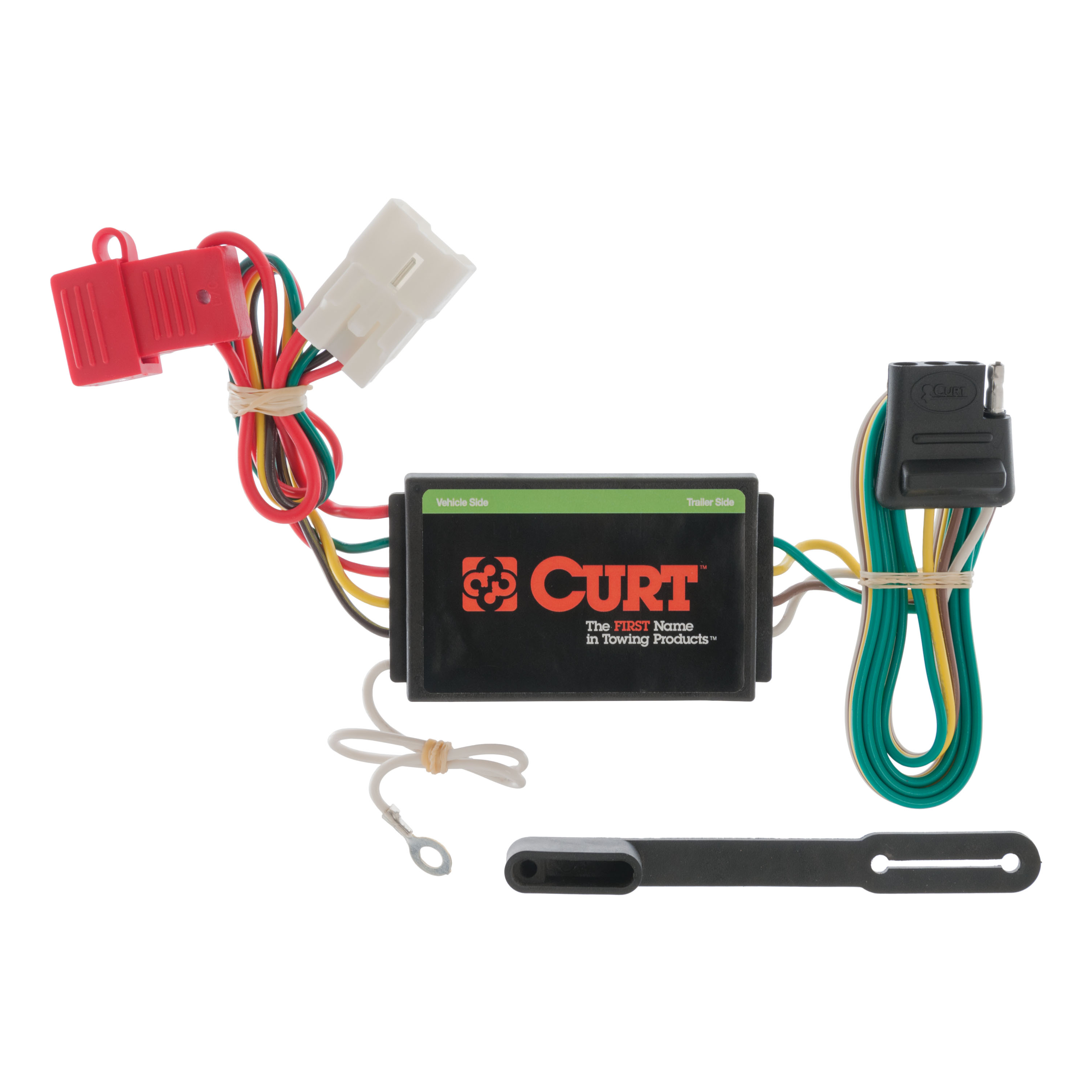

The kit includes a black converter box, a T-connector harness, a 4-flat connector, double-sided tape for adhering the converter box, and cable ties for securing loose parts and routing the 4-flat connector.
Open the rear hatch and remove vehicle floor coverings and the spare tire storage cover. Remove the storage compartment cover on the driver's side by removing two cargo anchor brackets using a 10 mm socket.
A 10 mm socket is required to remove the two cargo anchor brackets from the driver's side storage compartment cover. Silicone sealant (not provided) is also needed to seal the grommet after routing the 4-flat connector.
Locate the vehicle's factory tow harness under the storage compartment. Insert the converter harness into the vehicle's tow harness, ensuring the connectors are fully inserted with locking tabs in place.
Adhere the black converter box to the frame of the car using the double-sided tape provided in the kit.
Route the 4-flat through the grommet in the rear center of the spare tire storage area. Outside the vehicle, route the 4-flat to the center of the bumper and secure it in a convenient out-of-the-way location using the cable ties provided.
No drilling is required. The 4-flat connector is routed through an existing grommet in the rear center of the spare tire storage area. The grommet must be slit and sealed with silicone to create a moisture-tight seal.
Before slitting the grommet, verify that miscellaneous items hidden behind or under any surface are not present to avoid damage and/or personal injury.
Use silicone sealant to seal the grommet after routing the 4-flat connector through it. This creates a moisture-tight seal. The manual does not specify a particular brand or type of silicone.
Secure any loose parts of the T-connector with the cable ties provided in the kit.
Yes, the Curt 56039 is designed for the Mitsubishi Endeavor.
A 10 mm socket is required to remove cargo anchor brackets. Silicone sealant (not provided) is needed to seal the grommet.
No, the 4-flat connector routes through an existing grommet. The grommet must be slit and sealed with silicone.
The kit includes a black converter box, T-connector harness, 4-flat connector, double-sided tape, and cable ties.
