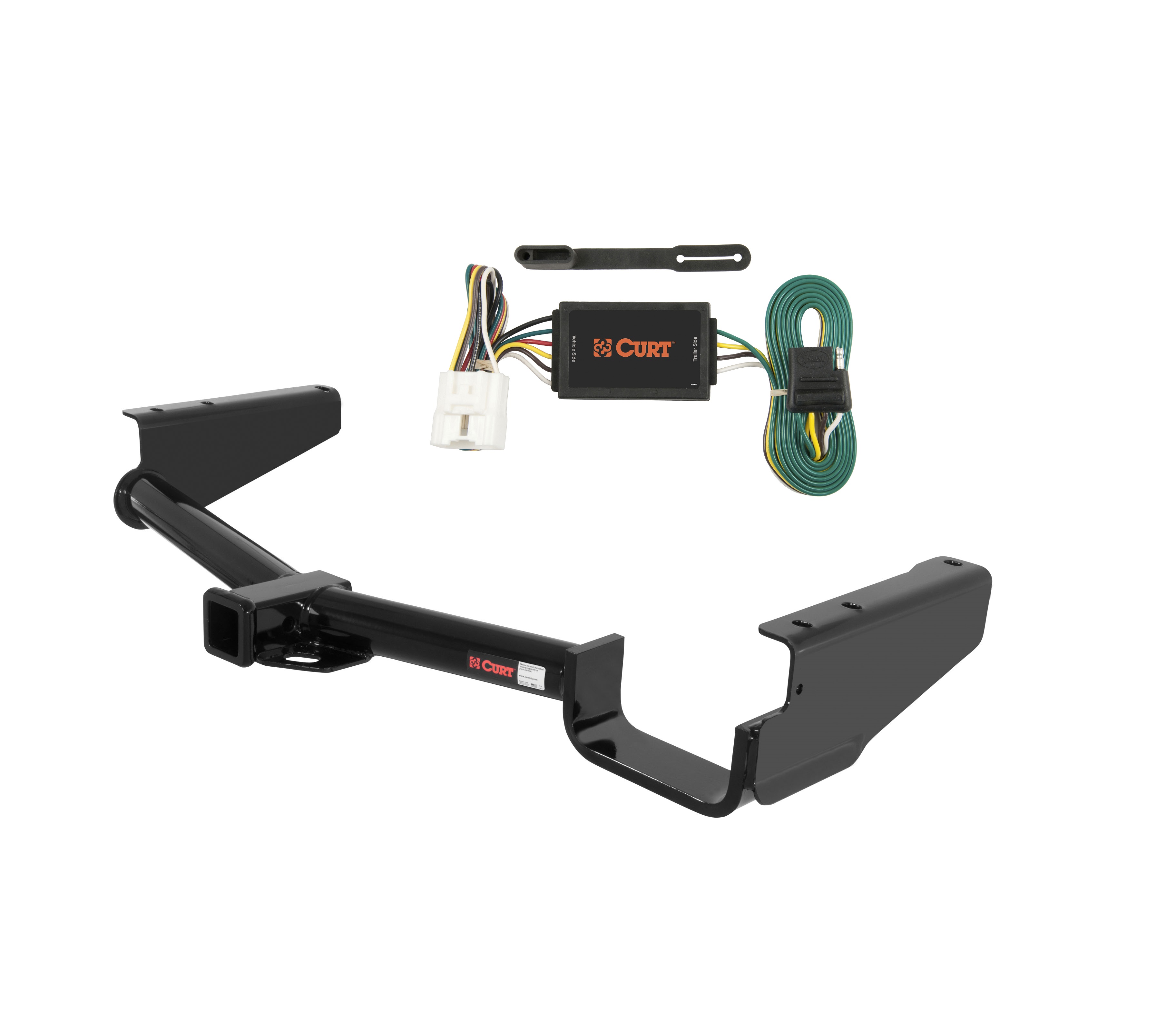

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2004 - 2007 Toyota Highlander. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

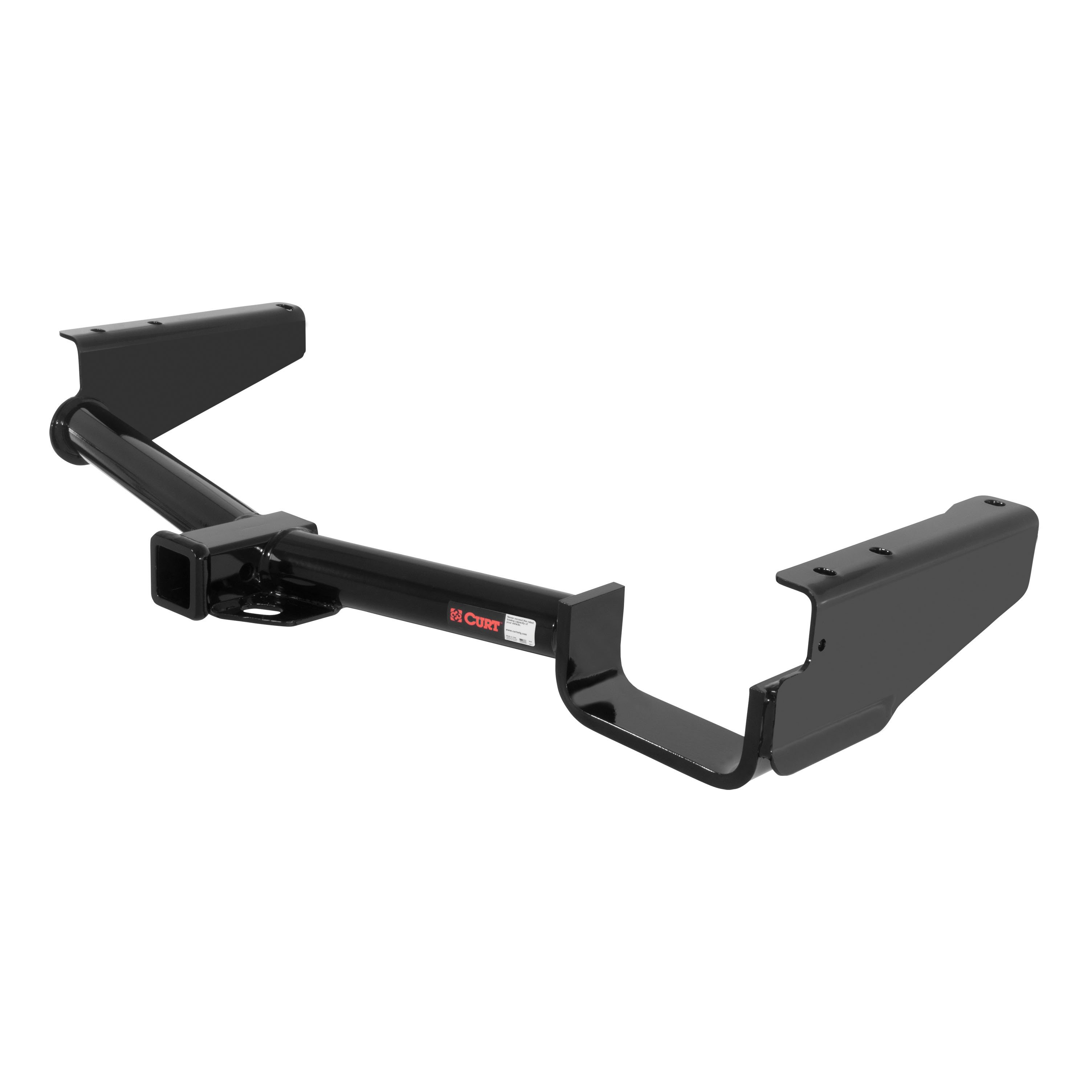

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota Highlander and Lexus RX330, RX350 and RX400h (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Toyota Highlander (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2007 | Toyota Highlander | — |
Yes, the 04 - 07 Toyota Highlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13530 (Part #CHW-2892) is designed to fit the 2004-2007 Toyota Highlander.
The 04 - 07 Toyota Highlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13530 (Part #CHW-2892) fits the following vehicles: 2004-2007 Toyota Highlander. Always verify your specific year, make, and model before ordering.
The 04 - 07 Toyota Highlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13530 (Part #CHW-2892) fits 2004-2007 Toyota Highlander models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The 04 - 07 Toyota Highlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13530 (Part #CHW-2892) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The Curt 13530 receiver hitch is designed for 04-06 Lexus RX330 models. Confirm your vehicle year falls within this range before ordering.
Yes. The Curt 13530 is compatible with 04-07 Toyota Highlander and Highlander Hybrid models. A 2008 model year is outside this range and compatibility cannot be confirmed.
Yes. The Curt 13530 is designed for 07-current Lexus RX350 models, which includes 2010 and later model years.
Yes. The Curt 13530 is compatible with 06-current Lexus RX400H models, which includes 2006 and all later model years.
The hitch weight is 40 lbs.
The kit includes 6 M10×1.25 hex head cap screws (HHCS), class 10.9, part number 10-10271, and 6 conical washers (S-CON, 7/16 inch), part number 30-00163. These fasteners are installed into existing weldnuts in the vehicle frame.
Yes. Remove tie-down brackets if present on your vehicle before beginning installation.
Maneuver the passenger side plate around the exhaust, then hold the hitch up against the frame. Align the hitch mounting holes to the existing weldnuts in the frame before installing fasteners.
Install the 6 included M10×1.25 hex head cap screws (part 10-10271) with conical washers (part 30-00163) into the existing weldnuts in the frame. Do not use other fasteners.
Torque all M10 fasteners to 49 lb.-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual states this is a critical safety requirement, but specific capacity values for this hitch model are not provided in the documentation. Contact Curt Manufacturing at 1-877-287-8634 or consult your vehicle's owner manual for exact limits.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain safe operation and extends the life of the hitch.
Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
The Curt 13530 fits 04-06 Lexus RX330, 06-current RX400H, 07-current RX350, and 04-07 Toyota Highlander & Highlander Hybrid.
Six M10×1.25 hex head cap screws and six conical washers. These install into existing frame weldnuts.
Yes, remove tie-down brackets if present before installation.
Torque all M10 fasteners to 49 lb.-ft.
Periodically check that all fasteners are tight and all structural components are sound.
Yes, Curt part 56107 is designed for the Toyota Highlander. The manual does not specify model year restrictions, so contact Curt or your retailer to confirm compatibility with your specific year and configuration.

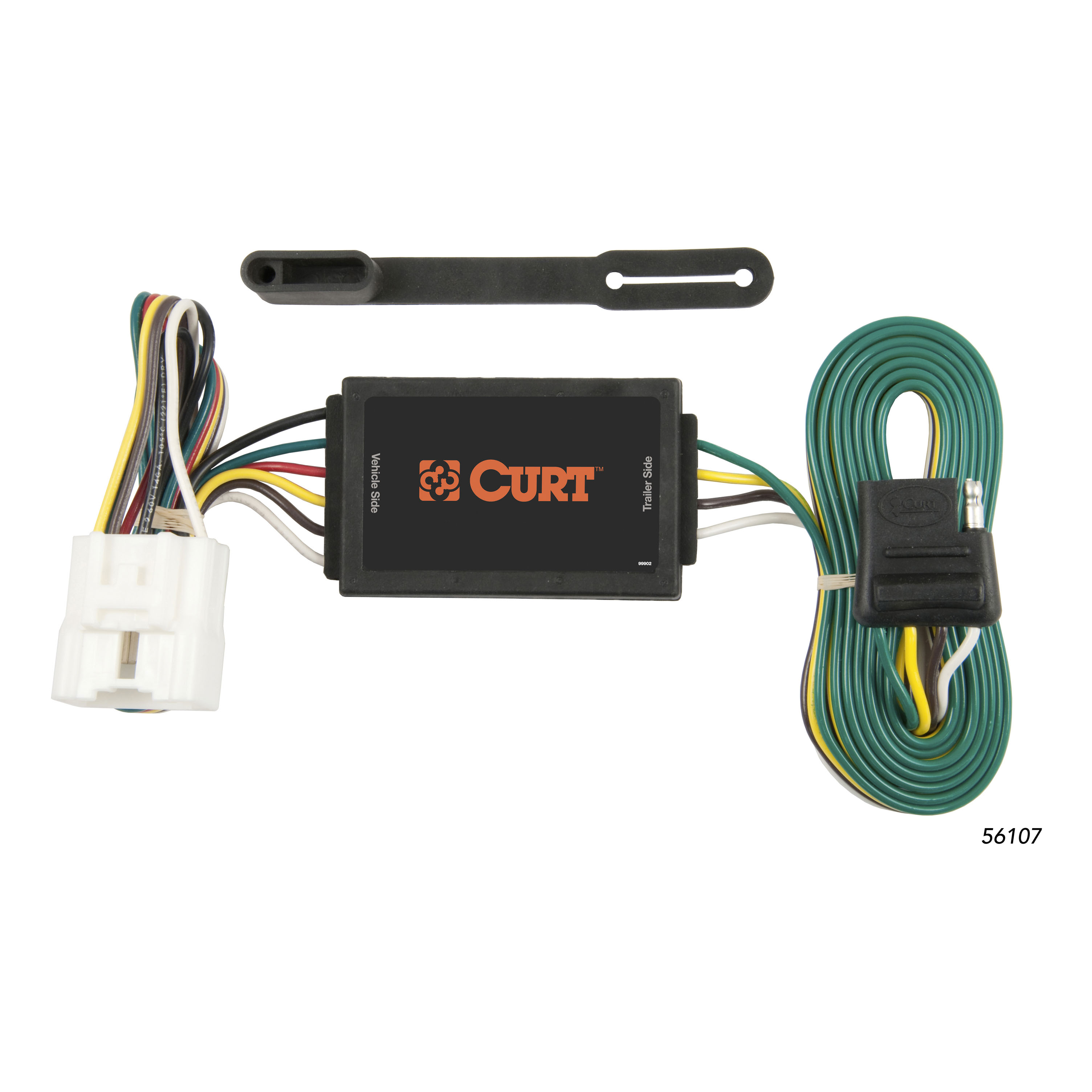

The kit includes a black converter box, a T-connector harness with a 4-flat connector, double-sided tape for adhering the converter box, and cable ties for securing loose parts.
Open the rear hatch and remove: the vehicle's rear cargo area cover, the rear storage tray (by lifting up and pulling out), the rear scuff panel (by removing plastic fasteners), and the driver's side storage tray (by removing two plastic nuts). These items are reinstalled after the harness is connected.
Locate the vehicle's trailer tow connector under the storage compartment. Insert the T-connector from the harness into the vehicle's connector, ensuring the connectors are fully inserted with locking tabs in place.
Adhere the black converter box to the frame of the vehicle using the double-sided tape provided with the kit.
Route the 4-flat wire between the cargo tray and the driver's side rear trim panel, then to the center of the vehicle and out the trunk when in use. When not in use, roll up and store the wire in the rear cargo tray.
Some vehicles may require the installation of a 20 amp mini fuse in the TOWING position of the fuse panel to function properly. Locate the fuse panel under the hood on the driver's side and install a 20 amp mini fuse if necessary. The manual does not specify which vehicles require this fuse, so test the connector after installation and install the fuse if the system does not function.
Yes, the Curt 56107 is designed for the Toyota Highlander. Confirm your specific model year with the retailer or Curt.
No drilling is mentioned in the installation instructions. The converter box is adhered using double-sided tape, and the harness connects to the vehicle's factory trailer tow connector.
Some vehicles require a 20 amp mini fuse in the TOWING position of the fuse panel. Install it if the connector does not function after installation.
Remove the rear cargo area cover, rear storage tray, rear scuff panel, and driver's side storage tray. All are reinstalled after the harness is connected.
The kit includes a black converter box, T-connector harness with 4-flat connector, double-sided tape, and cable ties.
