| Side Application Type Description | Blank |
| T-Connector Location | S1,S2 |
| Warranty | One-Year Limited Warranty |
| Electrical System Type | 2W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2014 | Ford E-150 | — |
The 04-14 Ford E-150 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW800) fits 2004-2014 Ford E-150 models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 04-14 Ford E-150 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW800) fits the following vehicles: 2004-2014 Ford E-150. Always verify your specific year, make, and model before ordering.
Yes, the 04-14 Ford E-150 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW800) is designed to fit the 2004-2014 Ford E-150.
The 04-14 Ford E-150 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW800) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56020 is designed for Ford Econoline SUVs, mini and full-sized vans. The harness connects to the vehicle's taillight wiring system via connectors located behind the driver and passenger side taillight housings.

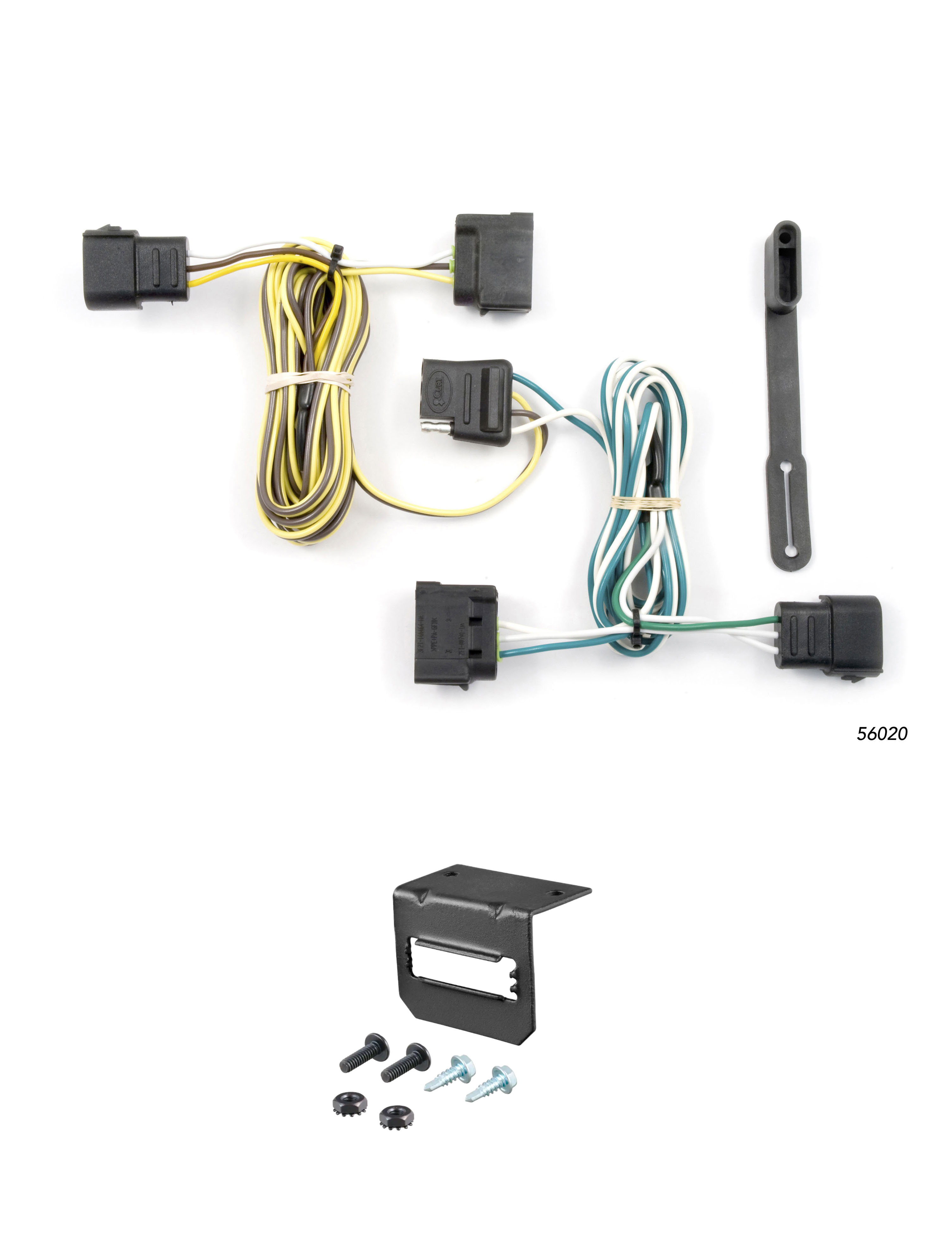

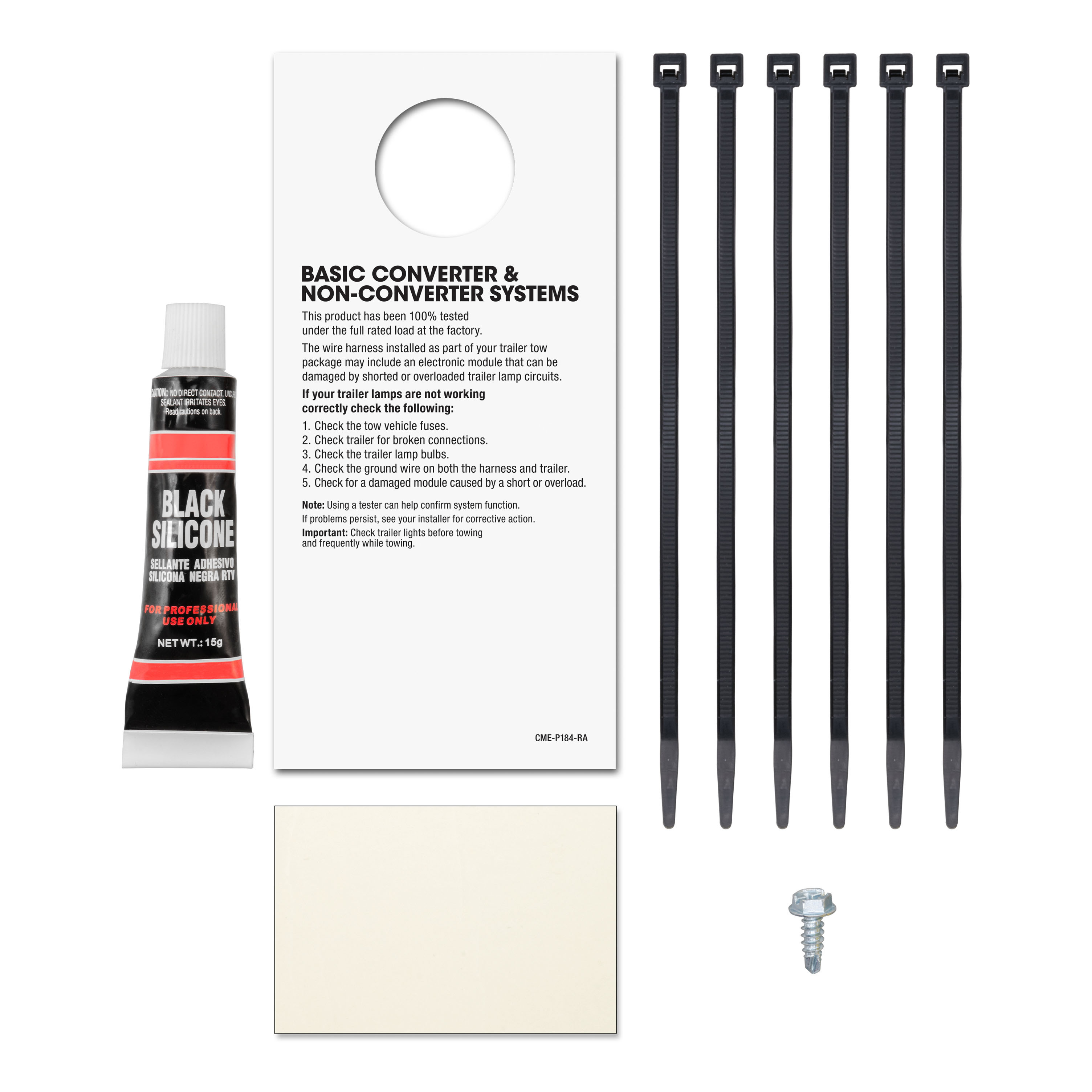

The Curt 56020 includes the custom wiring harness with yellow and green wire ends, provided sealant, cable ties, and a 4-flat dust cover.
You will need a ratchet, a T-15 Torx bit, and a cutting tool. The T-15 Torx bit is used to remove the four screws securing each taillight assembly. The cutting tool is used to cut a slit in the grommet to route the wiring harness.
The manual does not specify whether the battery must be disconnected. Check your vehicle owner's manual or contact the vehicle manufacturer for more information.
Open the rear cargo doors and remove the eight Phillips screws securing the rear scuff panel. Pull the scuff panel out at the bottom and then up, taking care not to damage the alignment tabs on the back. Behind each taillight, you will find the vehicle taillight wiring harness connectors.
Remove the four T-15 Torx screws securing each taillight assembly. Start on the driver side, then repeat on the passenger side. Take care not to damage the locking tabs on the connectors when separating them from the taillight housing.
Yes. Locate the grommet behind the taillight where the vehicle taillight wiring passes from inside the cabin to the taillight. Remove the grommet and cut a slit large enough to route the custom wiring harness through it.
The harness end with the yellow wire is routed on the driver side. The harness end with the green wire is routed on the passenger side.
Insert the wiring harness end with the yellow wire between the separated taillight connectors on the driver side. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the harness end with the green wire.
Use the provided sealant to seal the cut in the grommet and around all the wires after routing the custom wiring harness through the grommet opening.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out-of-the-way location inside the trunk.
Secure any loose wires with the provided cable ties. This helps keep the wiring organized and prevents damage during vehicle operation.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Install the provided 4-flat dust cover to help prevent corrosion. This should be done during the final reinstallation step.
Yes, the Curt 56020 is designed for Ford Econoline SUVs, mini and full-sized vans.
You need a ratchet, T-15 Torx bit, and cutting tool.
Yes, you must cut a slit in the grommet behind the taillight to route the wiring harness through.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
