| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S1,S2 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2009 | Hyundai Tucson | — |
The 05-09 Hyundai Tucson CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1460) fits 2005-2009 Hyundai Tucson models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 05-09 Hyundai Tucson CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1460) is designed to fit the 2005-2009 Hyundai Tucson.
The 05-09 Hyundai Tucson CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1460) fits the following vehicles: 2005-2009 Hyundai Tucson. Always verify your specific year, make, and model before ordering.
The 05-09 Hyundai Tucson CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1460) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 55528 is designed for the Hyundai Tucson. The manual does not specify model year restrictions, so compatibility should be confirmed with the retailer or manufacturer if your vehicle is significantly older or newer than the manual publication date (02/18/09).

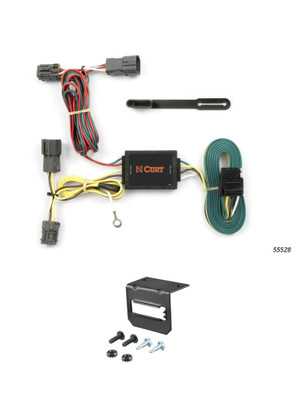

The kit includes a T-Connector with yellow and green wire ends, a black converter box, double-sided tape, cable ties, an eyelet, a screw, and a 4-flat connector. The manual does not specify quantities of cable ties or other consumables.
You will need a Phillips head screwdriver to remove the vehicle's taillight housing screws. If you do not have a suitable existing grounding point (screw with nut in the vehicle frame), you will need a drill with a 3/32" bit to create one.
Open the hatch and remove the two Phillips head screws from each taillight housing. Separate the vehicle's electrical connector from the back of the taillight housing. Repeat on both sides.
Route the T-Connector end with the yellow wire up through the opening under the driver's side taillight housing and insert it between the separated vehicle connector and the taillight housing connector.
Route the T-Connector end with the green wire along the back side of the bumper to the passenger side, then insert it between the separated connectors at the passenger side taillight housing, following the same procedure as the driver's side.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If none is available, drill a 3/32" hole and secure the white wire using the eyelet and screw provided in the kit.
Drilling is required only if a suitable existing grounding point (screw with nut in the vehicle frame) is not available near the connector. If you must drill, use a 3/32" bit and secure the white wire using the eyelet and screw provided.
Drill a 3/32" hole for the ground wire if an existing grounding point is not available. Secure the white wire using the eyelet and screw provided in the kit.
Adhere the black converter box to the frame of the vehicle using the double-sided tape provided in the kit. Choose a location that is secure and does not interfere with vehicle operation.
Secure any loose parts of the T-Connector with the cable ties provided in the kit to prevent movement and potential damage during vehicle operation.
Route the 4-flat connector to the center of the vehicle and secure it in a convenient location that is out of the way and does not interfere with vehicle operation or occupants.
Before drilling, verify that miscellaneous items are not hidden behind or under any surface where you plan to drill. This prevents damage to hidden components and personal injury.
Yes, the Curt 55528 is designed for the Hyundai Tucson. Confirm the specific model year with the retailer if your vehicle is significantly older or newer than the 2009 manual publication date.
The converter box is adhered to the vehicle frame using double-sided tape provided. The T-Connector wires are inserted between the vehicle's taillight connectors, and loose parts are secured with cable ties.
Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
