16-24 Volvo XC90 Excluding plug-in hybrid CURT 4-flat Plug and Play Trailer WiringCURT$93.89In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2005 - 2014 Volvo XC90
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2014 | Volvo XC90 | — |

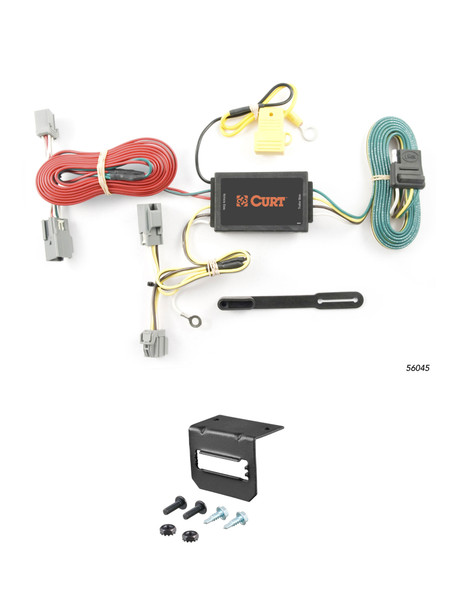

The 05-14 Volvo XC90 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2565) fits 2005-2014 Volvo XC90 models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 05-14 Volvo XC90 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2565) fits the following vehicles: 2005-2014 Volvo XC90. Always verify your specific year, make, and model before ordering.
Yes, the 05-14 Volvo XC90 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2565) is designed to fit the 2005-2014 Volvo XC90.
The 05-14 Volvo XC90 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2565) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 56045 is designed for the Volvo XC-90. The installation manual is specific to this vehicle model.
You must remove the rear cargo door, floor trim, and access panels on each side of the vehicle to access the taillight wiring harness and power cable stud.
The taillight wiring harness is located inside the access panel area on the driver's side. You will find a matching harness on the passenger side. Both must be accessed after removing the floor trim and access panels.
Separate the taillight wiring connectors on both the driver's and passenger sides, being careful not to damage the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors on the driver's side, ensuring the locking tabs are in place. Repeat this process on the passenger side.
Route the T-Connector end with the green wire through the trim panel access hole, along the threshold, and through the trim panel access hole on the opposite side. Repeat this routing on the passenger side.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" hole and secure the white wire using the eyelet and screw provided in the kit.
Drilling is required only if a suitable grounding point does not already exist near the connector. If needed, drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Always verify that no hidden items are behind or under any surface before drilling to avoid damage and personal injury.
Locate the vehicle's power cable stud on the driver's side. Remove the nut using a wrench or socket. Place the T-Connector's yellow ring terminal on the end of the fuse holder on the stud.
Adhere the black converter box to the frame of the vehicle using the double-sided tape provided in the kit.
Secure any loose parts of the T-Connector with the cable ties provided in the kit.
When in use, route the 4-flat wire to the center of the vehicle and out of the hatch. When not in use, roll up the wire and store it in an out-of-the-way location in the trunk.
Yes, you must replace all items removed during installation, including the rear cargo door, floor trim, and access panels.
You will need a wrench or socket to remove the nut from the vehicle's power cable stud. A drill with a 3/32" bit is required only if you need to create a grounding hole. The kit includes cable ties, an eyelet, a screw, and double-sided tape.
Before drilling, verify that no miscellaneous items are hidden behind or under any surface to avoid damage and personal injury.
When separating the taillight wiring connectors, be careful not to damage the locking tabs, as these must remain intact to secure the T-Connector.
The Curt 56045 is designed for the Volvo XC-90.
You need a wrench or socket to remove the power cable stud nut. A drill with a 3/32" bit is required only if a grounding point must be created. The kit includes cable ties, eyelet, screw, and double-sided tape.
Drilling is required only if no suitable grounding point exists on the vehicle frame. If drilling is needed, a 3/32" hole is drilled and the white wire is secured with the provided eyelet and screw.
Remove the rear cargo door, floor trim, and access panels on each side to access the taillight harness and power cable stud.
Before drilling, verify that no hidden items are behind or under any surface to avoid damage and personal injury.
