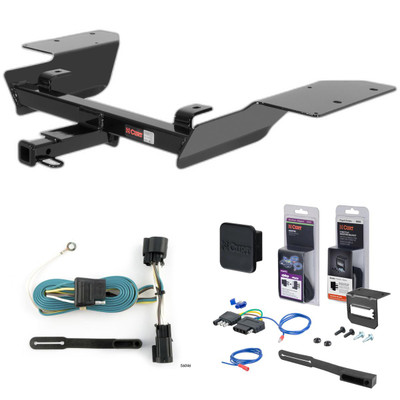

Complete CURT Class 2 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2006 - 2013 Chevrolet Impala. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Chevy Impala (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 300 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Impala (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2013 | Chevrolet Impala | — |
Yes, the 06 - 13 Chevrolet Impala Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12252 (Part #5W-CHW-403) is designed to fit the 2006-2013 Chevrolet Impala.
The 06 - 13 Chevrolet Impala Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12252 (Part #5W-CHW-403) fits 2006-2013 Chevrolet Impala models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The 06 - 13 Chevrolet Impala Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12252 (Part #5W-CHW-403) fits the following vehicles: 2006-2013 Chevrolet Impala. Always verify your specific year, make, and model before ordering.
The 06 - 13 Chevrolet Impala Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12252 (Part #5W-CHW-403) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 12252 is a receiver hitch designed for the Chevy Impala. It is a weight-carrying hitch that uses existing frame holes and access slots, requiring no drilling for installation.
Yes, Curt part number 12252 is designed for the Chevy Impala. The manual does not specify model year restrictions, so contact Curt technical support at 1-877-287-8634 to confirm your specific vehicle year and configuration.
Curt 12252 is designed for use with ballmount D221 or part number 45521.
The hitch includes: two 1/2-13 UNC carriage bolts 1-3/4" long (grade 8), four 1/2-13 UNC carriage bolts 1-1/4" long (grade 8), six 1/2-13 UNC serrated flange nuts (grade 8), six 0.250 x 1.00 x 3.00" square hole spacers, and six 1/2" fishwires.
No, the ballmount is not included. Curt 12252 is designed for use with ballmount D221 or part number 45521, which must be purchased separately.
No. Curt 12252 requires no drilling. The hitch uses existing frame holes and access slots on the Chevy Impala.
Yes. Step 1 of installation requires lowering the exhaust by removing rubber hangers from hanger brackets. If the vehicle is equipped with dual exhaust, the exhaust must be lowered on both sides.
1. Lower the exhaust by removing rubber hangers from hanger brackets (both sides if dual exhaust). 2. Fishwire 1/2" carriage bolts with spacers through the access slot in the frame rail on both sides. 3. Fishwire 1/2" carriage bolts with spacers through the access holes in the vehicle cross member on both sides. 4. Raise the hitch into position and finger-tighten at all carriage bolt locations with 1/2" flange nuts. 5. Torque all 1/2" hardware to 110 ft.-lbs.
Fishwires are flexible guides included with the hitch (six 1/2" fishwires per the parts list). They are used to route the 1/2" carriage bolts with spacers through the access slots in the frame rail and through the access holes in the vehicle cross member during installation. This allows the bolts to be positioned correctly without drilling.
All 1/2" hardware (carriage bolts and flange nuts) must be torqued to 110 ft.-lbs.
Non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain the integrity and safety of the installation.
Curt 12252 is designed for the Chevy Impala. Confirm your specific model year with Curt technical support at 1-877-287-8634.
No drilling is required. The hitch uses existing frame holes and access slots.
Yes. Remove rubber hangers from hanger brackets to lower the exhaust. If the vehicle has dual exhaust, lower both sides.
Torque all 1/2" hardware to 110 ft.-lbs.
Non-trailer loads must be supported by auxiliary stabilizing straps, or the warranty is voided.
The Curt 56046 is a custom wiring harness designed to provide trailer lighting connections for a Chevrolet Impala. It connects to the vehicle's existing taillight wiring and terminates in a 4-flat connector for trailer use.
The manual specifies the Curt 56046 is designed for Chevrolet Impala passenger cars. For confirmation that your specific model year and body style are compatible, check your vehicle owner's manual or contact the vehicle manufacturer, as the manual does not list specific model years.
You will need a flat blade screwdriver and a panel trim removal tool. If a suitable grounding point with an existing screw is not available, you will also need a drill to create a 3/32" pilot hole.
The harness includes a screw and ring terminal for grounding, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
The manual does not specify whether the battery must be disconnected. Consult your vehicle owner's manual or contact the vehicle manufacturer for guidance on electrical work safety procedures.
Open the tailgate and remove the plastic fastener and wing nut on both sides securing the rear scuff panel. Pull the scuff panel out at the bottom then up, taking care not to damage the alignment tabs. On the passenger side, pull back the felt trunk liner to reveal three plastic wing nuts securing the taillight. Remove these wing nuts and pull the taillight away from the vehicle, again protecting the alignment tabs. The vehicle taillight wiring harness connectors will then be visible under the taillight housing.
Separate the vehicle taillight wiring harness connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. The area must be free of rust, dirt and paint. If no existing screw is available, drill a 3/32" pilot hole. Secure the white ground wire using the ring terminal and provided screw.
Drilling is required only if a suitable grounding point with an existing screw is not available near the connector. If drilling is necessary, you will need to drill a 3/32" pilot hole. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Remove the grommet behind the taillight housing and make a small slit from the outside of the grommet to the center. Route the 4-flat wire through the grommet to the inside of the trunk and re-seat the grommet. When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out-of-the-way location inside the trunk.
Secure any loose wires with the provided cable ties to prevent tangling and ensure safe routing.
Reinstall all items removed during installation, including the rear scuff panel, taillight housing, and felt trunk liner. Install the provided 4-flat dust cover to help prevent corrosion of the connector.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. The specific product rating is not stated in the manual; consult the product documentation or contact Curt Manufacturing for the exact amperage or wattage specification.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The Curt 56046 is designed for Chevrolet Impala passenger cars. Confirm your specific model year with the vehicle manufacturer or your owner's manual.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause overheating and potential fire.
