17-24 HONDA Ridgeline CURT 4-flat Plug and Play Trailer WiringCURTOriginal price was $103.90. Current price is $95.76.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2006 - 2014 Honda Ridgeline
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | T1,T2 |
| Tail Light Circuits | 7.5 Amps |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2014 | Honda Ridgeline | — |
The 06-14 HONDA Ridgeline CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1391) fits the following vehicles: 2006-2014 Honda Ridgeline. Always verify your specific year, make, and model before ordering.
Yes, the 06-14 HONDA Ridgeline CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1391) is designed to fit the 2006-2014 Honda Ridgeline.
The 06-14 HONDA Ridgeline CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1391) fits 2006-2014 Honda Ridgeline models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 06-14 HONDA Ridgeline CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1391) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 55585 custom wiring harness is designed for Honda Ridgeline pickup trucks. The harness connects to the factory taillight connectors behind the driver and passenger side taillights.
The Curt 55585 is a custom wiring harness that integrates with your Honda Ridgeline's factory taillight wiring to provide trailer lighting control. It includes a converter box that processes the vehicle's taillight signals and outputs a 4-flat connector for trailer connection.

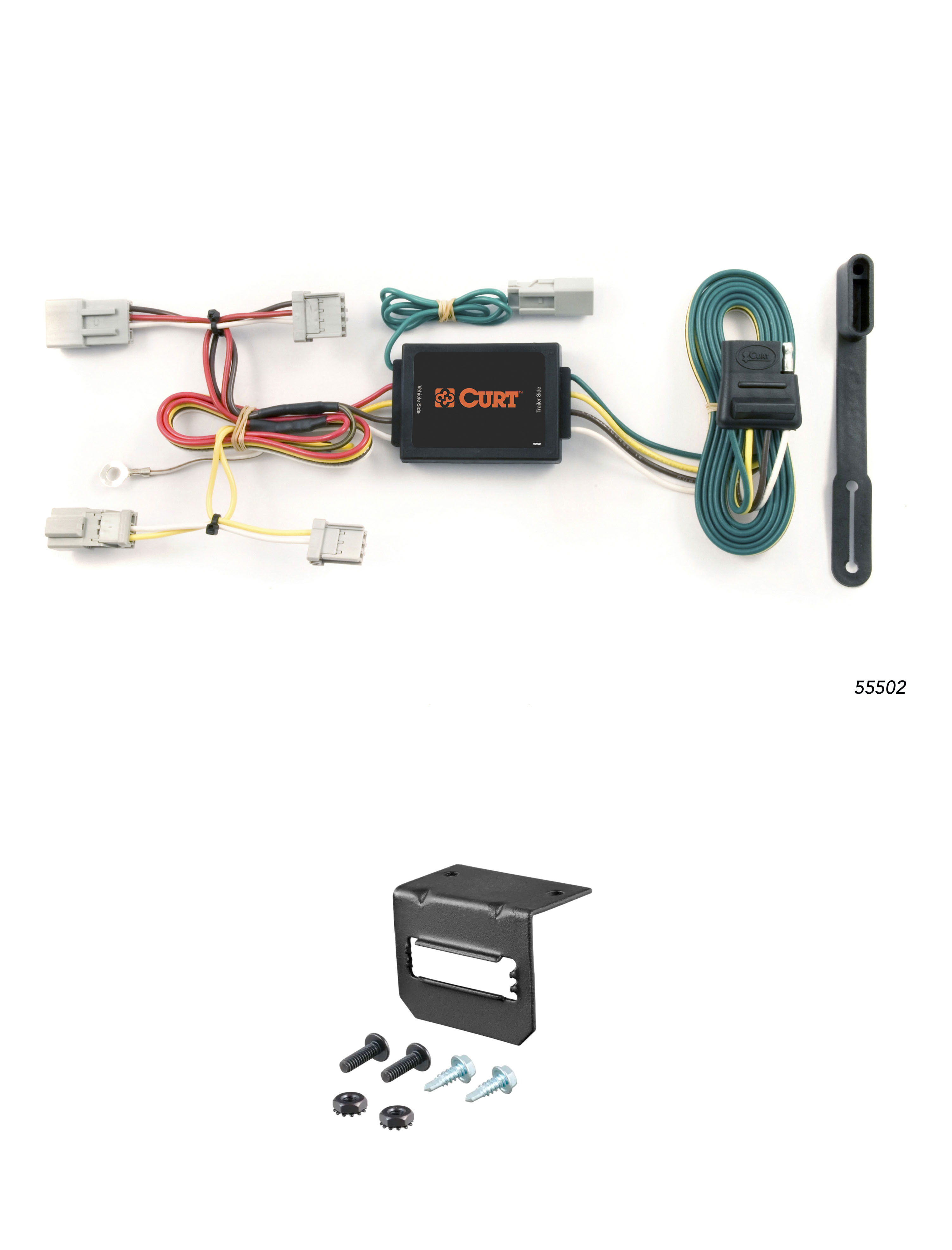

The kit includes the custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal, a provided screw for grounding, double-sided tape for mounting the converter box, cable ties for securing loose wires, and a 4-flat dust cover.
The harness is rated for signal circuits at 3.0 amps per side and tail/running circuits at 6.0 amps total. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need a ratchet, 10mm socket, and a panel trim removal tool. A 3/32" drill bit is also required if you need to drill a pilot hole for the grounding screw, as a suitable existing grounding point may not be available.
Open the vehicle tailgate and remove the 10mm bolts securing the taillights. Carefully pull the taillight assembly rearward, taking care not to damage the alignment tabs on the back of the housing.
The yellow wire end connects on the driver side and the green wire end connects on the passenger side. Each harness end inserts between the separated factory taillight connectors behind the removed taillight housings. Ensure the connectors are fully inserted with locking tabs in place.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole in an area free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. Before drilling, check for hidden items behind or under surfaces to avoid damage and personal injury.
Drilling is required only if a suitable existing grounding point is not available near the taillight connector. If drilling is necessary, you will drill a 3/32" pilot hole in an area free of rust, dirt and paint. Before drilling, check for hidden items behind or under surfaces to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The converter box should be mounted in a secure location where it will not be disturbed during normal vehicle use.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
After installation, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Reinstall all items removed during installation, including the taillights and any scuff panels. Install the provided 4-flat dust cover to help prevent corrosion. Test the harness for proper function using a test light or by connecting a properly wired trailer.
Yes, the Curt 55585 custom wiring harness is designed for Honda Ridgeline pickup trucks.
You need a ratchet, 10mm socket, panel trim removal tool, and a 3/32" drill bit (if drilling a grounding hole is necessary).
Signal circuits: 3.0 amps per side; tail/running circuits: 6.0 amps total. Do not exceed the product rating or your vehicle's lamp load rating, whichever is lower.
