CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2008 Isuzu i-290
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |

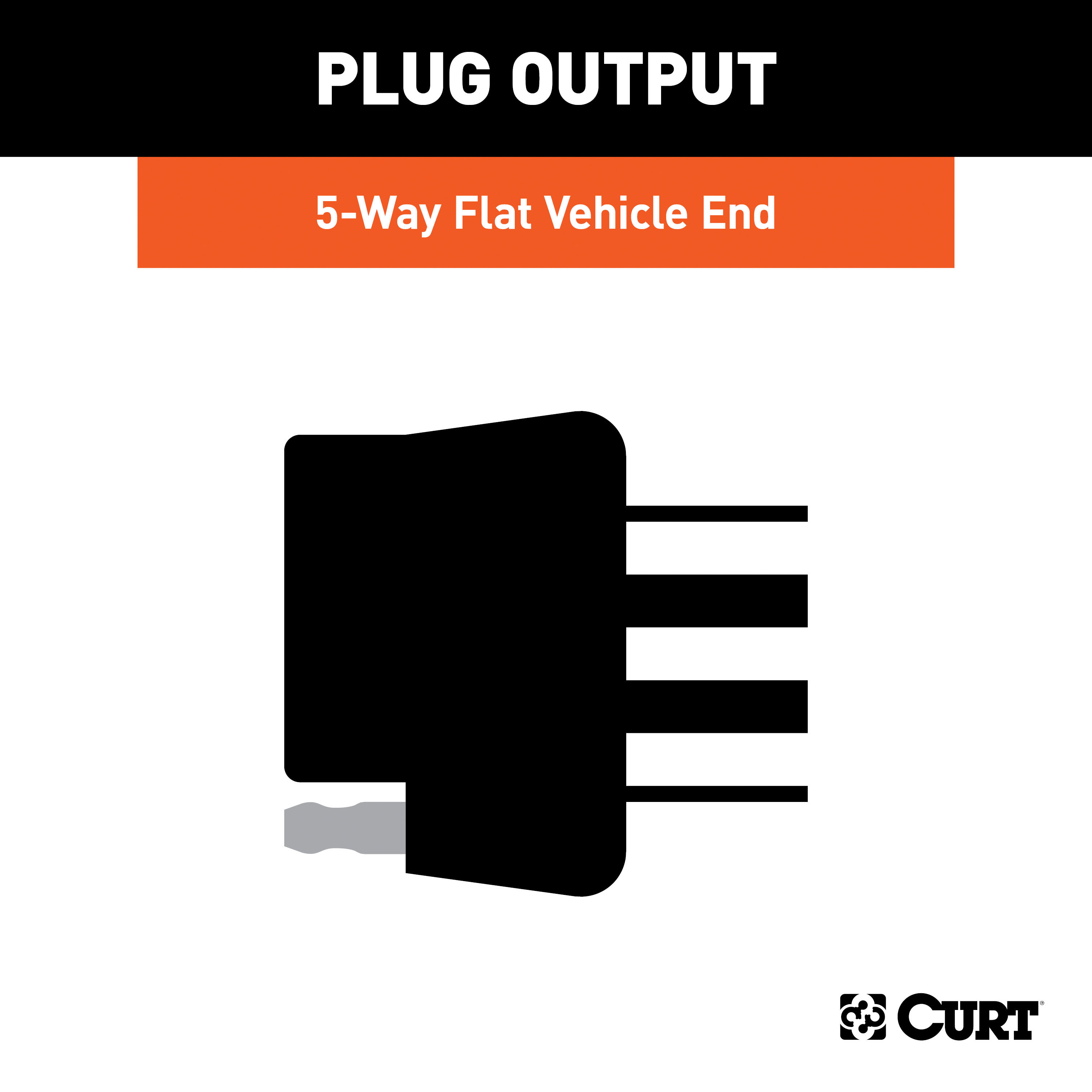

| Output Type | 5-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | T3 |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2008 | Isuzu i-290 | — |
Yes, the 07-08 ISUZU I-290 CURT 5-Flat Plug and Play Trailer Wiring (Part #CTW1512) is designed to fit the 2007-2008 Isuzu i-290.
The 07-08 ISUZU I-290 CURT 5-Flat Plug and Play Trailer Wiring (Part #CTW1512) fits 2007-2008 Isuzu i-290 models. The 2008 model year is the last year covered by this part number. For newer models, check for an updated version.
The 07-08 ISUZU I-290 CURT 5-Flat Plug and Play Trailer Wiring (Part #CTW1512) fits the following vehicles: 2007-2008 Isuzu i-290. Always verify your specific year, make, and model before ordering.
The 07-08 ISUZU I-290 CURT 5-Flat Plug and Play Trailer Wiring (Part #CTW1512) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56510 T-Connector Harness is designed for Isuzu Pickup, Chevy Colorado, and GMC Canyon trucks. Verify your vehicle model matches one of these applications before purchasing.
The Curt 56510 is a T-Connector Harness that integrates with your vehicle's tail light wiring system. It allows you to connect trailer lighting and electrical components to your truck's existing tail light circuit.
You will need a 3/32" drill bit to create a pilot hole for the grounding wire. The harness comes with cable ties, double-sided tape, a ring terminal, and a screw for securing the ground wire. No other specialized tools are mentioned in the manual.
The package includes cable ties, double-sided tape, a ring terminal, and a screw for securing the white ground wire to the vehicle frame. These items are used to secure the harness and establish the ground connection.
The vehicle's tail light wiring harness is located underneath the truck bed near the driver's side frame rail. Look for connectors that match the connector ends of the T-Connector harness.
Locate the vehicle's tail light connectors under the truck bed near the driver's side frame rail. Carefully separate the vehicle's connectors without breaking the locking tabs. Check that the mating surfaces are clean and free of dirt. Insert the T-Connector harness between the vehicle's connectors until fully seated.
Before inserting the T-Connector, verify that the mating surfaces of the vehicle's connectors are free of dirt and clean them if necessary. This ensures a proper electrical connection.
Yes, you must drill a 3/32" pilot hole to secure the white ground wire. This hole is drilled into a suitable grounding point on the vehicle's frame or cross member. Do not drill into the vehicle floor or bed.
Drill the 3/32" pilot hole into a suitable grounding point near the tail light connector, such as the vehicle's frame or cross member. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
Use a 3/32" drill bit to create the pilot hole for the white ground wire.
Locate a suitable grounding point near the connector on the vehicle's frame or cross member. Clean dirt and rustproofing from the area. Drill a 3/32" pilot hole and secure the white wire with the ring terminal using the screw provided.
Route the T-Connector harness to the center of the vehicle. Secure the converter and wires to the vehicle's cross member or other mounting points using the cable ties and double-sided tape provided.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. This includes checking for fuel lines, brake lines, wiring, and other components that could be damaged by drilling.
Drilling into the vehicle floor or bed can damage hidden components, fuel lines, brake lines, or wiring, and may cause personal injury. The manual specifies that you must use the vehicle's frame or cross member as the grounding point instead.
Yes. Before inserting the T-Connector harness, check that the mating surfaces of the vehicle's connectors are free of dirt and clean them if necessary. This ensures proper electrical contact.
Yes. Before drilling the 3/32" pilot hole, clean dirt and rustproofing from the grounding area on the frame or cross member. This ensures a good electrical connection.
Yes, the Curt 56510 T-Connector Harness is designed for Chevy Colorado, Isuzu Pickup, and GMC Canyon trucks.
Yes, you must drill a 3/32" pilot hole into the vehicle's frame or cross member to secure the ground wire. Do not drill into the floor or bed.
Verify that no hidden items (fuel lines, brake lines, wiring) are behind or under the drilling area. Clean dirt and rustproofing from the grounding point before drilling.
