Complete CURT Class 5 2-1/2" trailer hitch and 4-flat custom wiring kit engineered for the 2007 - 2010 Dodge Ram 3500 Cab & chassis. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

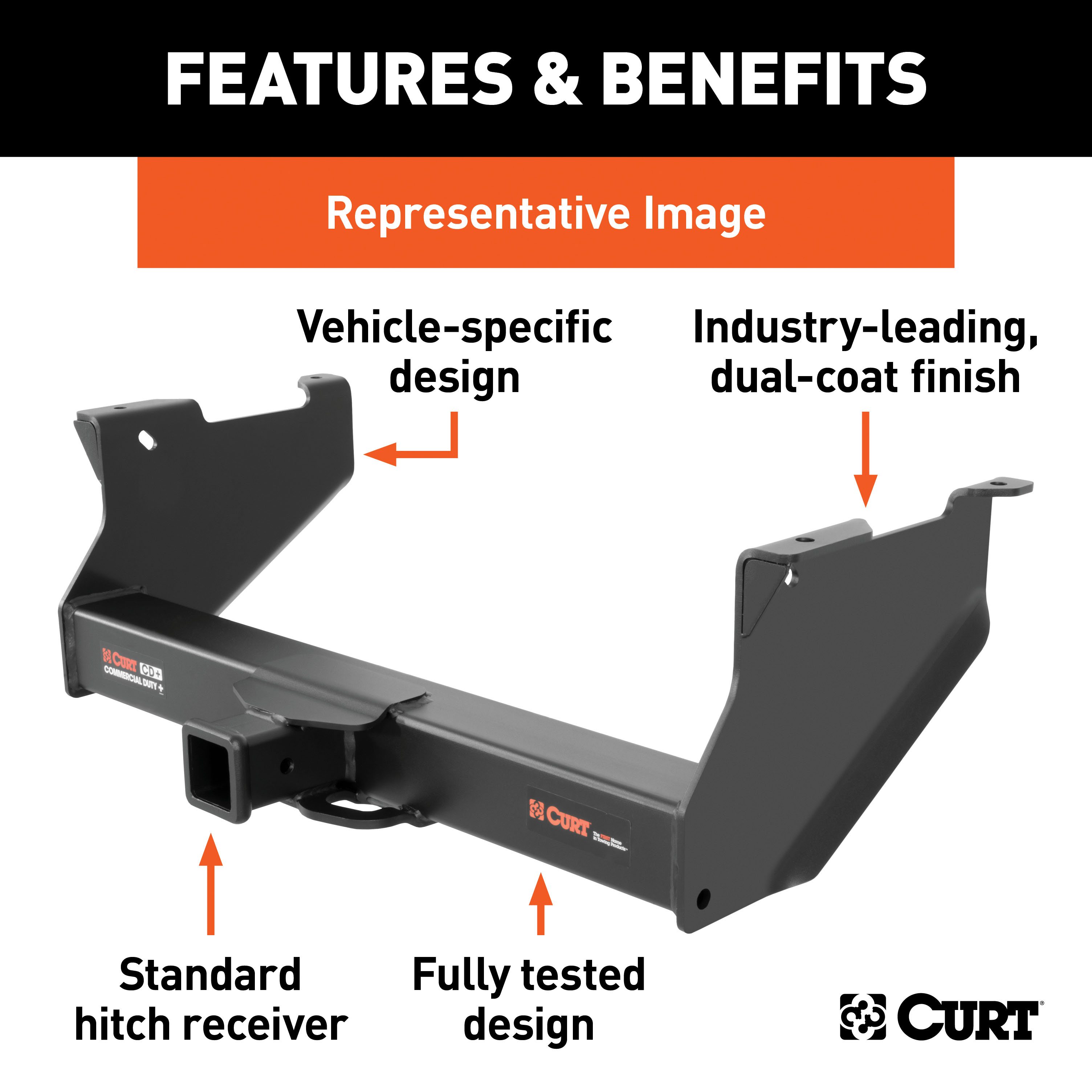

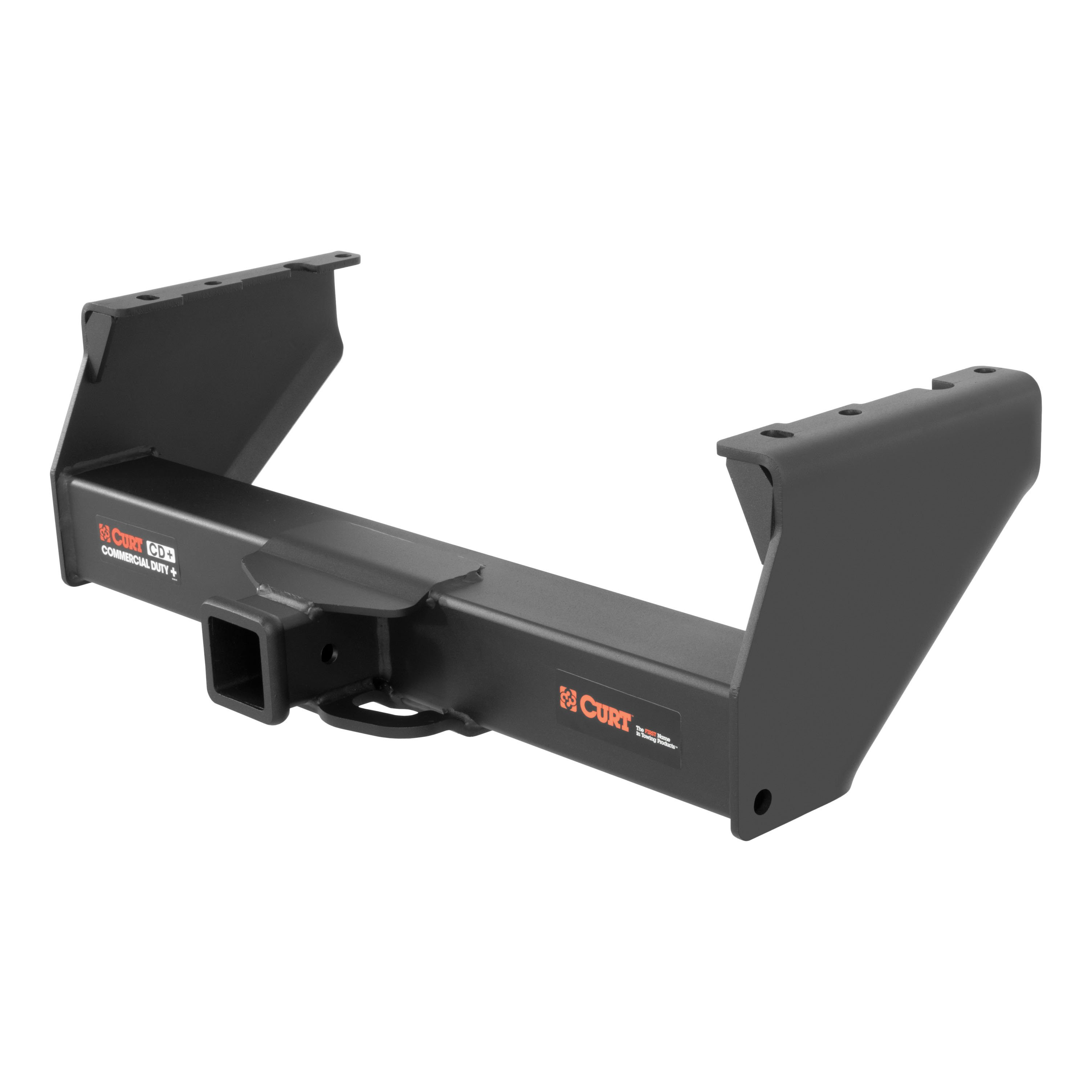

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 3500, 3500 HD or 3500 Classic, Dodge Ram 3500, 4500 or 5500, GMC Sierra 3500, 3500 HD or 3500 Classic and Ram 3500, 4500 or 5500 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

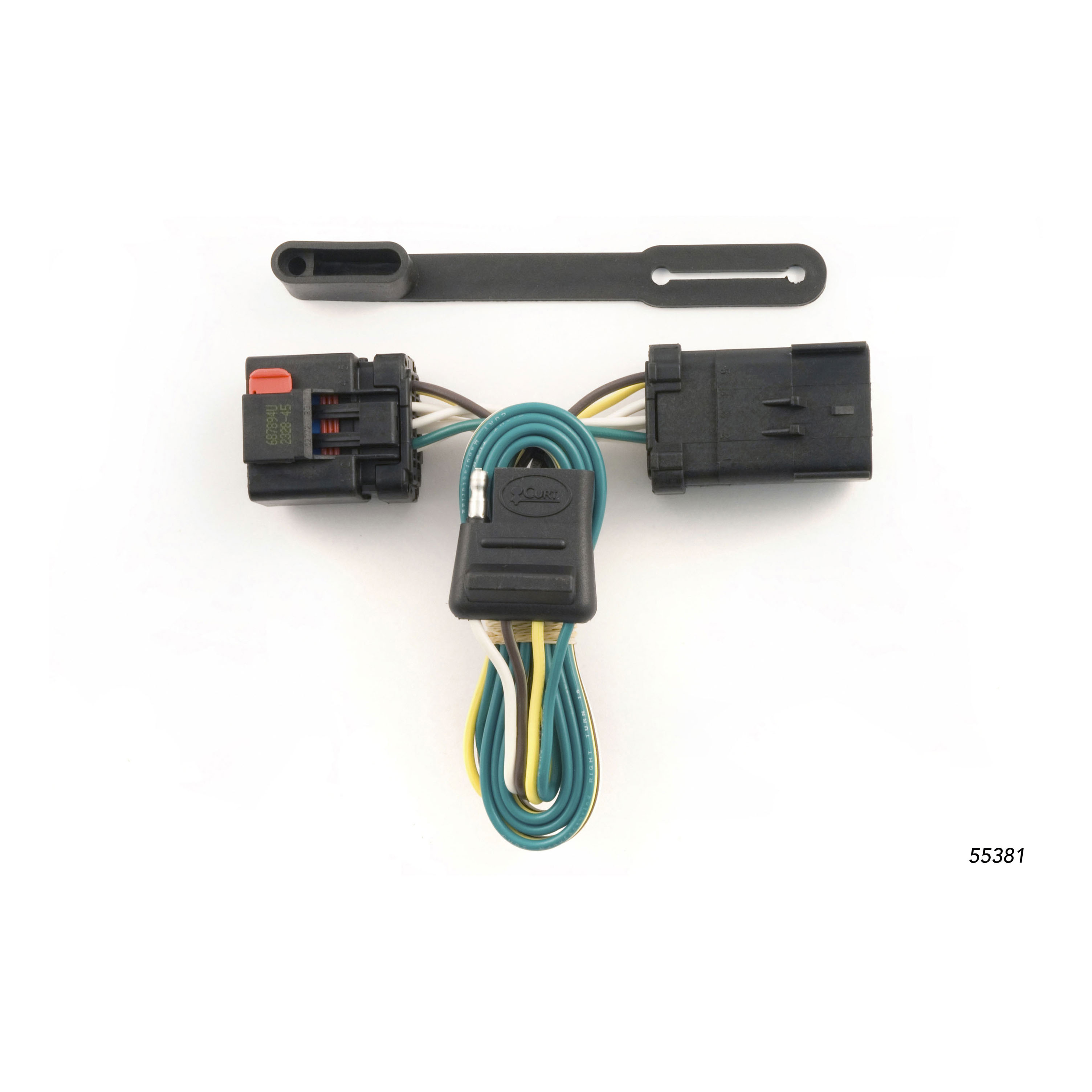

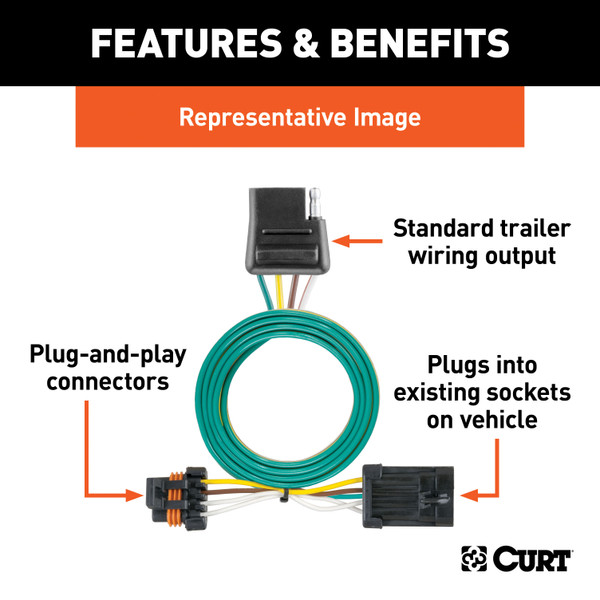

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chrysler Aspen and Pacifica, Dodge Dakota, Durango, Dodge Ram 2500, 1500 Van, 2500 Van, Dodge Sprinter 2500 and 3500, Jeep Commander, Grand Cherokee and Liberty and Mitsubishi Raider (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2010 | Dodge Ram 3500 | Cab & chassis |
The 07 - 10 Dodge Ram 3500 Cab & chassis Curt 2-1/2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15800 (Part #CHW-878) fits 2007-2010 Dodge Ram 3500 models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The 07 - 10 Dodge Ram 3500 Cab & chassis Curt 2-1/2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15800 (Part #CHW-878) fits the following vehicles: 2007-2010 Dodge Ram 3500. Always verify your specific year, make, and model before ordering.
Yes, the 07 - 10 Dodge Ram 3500 Cab & chassis Curt 2-1/2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15800 (Part #CHW-878) is designed to fit the 2007-2010 Dodge Ram 3500.
The 07 - 10 Dodge Ram 3500 Cab & chassis Curt 2-1/2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15800 (Part #CHW-878) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 15800 hitch is designed for 2001-Present Chevrolet Silverado 3500 HD Cab & Chassis models with 34" wide frames. Confirm your frame width before purchasing.
Yes, the Curt 15800 is compatible with 2001-Present GMC Sierra 3500 HD Cab & Chassis models with 34" wide frames.
Yes, the Curt 15800 is compatible with 2007-Present Dodge Ram 3500 HD Cab & Chassis and 2008-Present Dodge Ram 4500/5500 HD Cab & Chassis models with 34" wide frames.
The Curt 15800 has a gross load capacity of 20,000 lbs trailer weight and 2,700 lbs tongue weight when used as a weight-carrying hitch, and the same capacity when used as a weight-distribution hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 60 lbs.
The kit includes 6 M16x2 hex flange bolts (part 10-10284), 6 M16x2 hex nuts (part 20-00134), 6 M16 lock washers (part 30-00151), and 6 M16 flat washers (part 30-00150).
Required tools are: ratchet, torque wrench, 21mm socket, drill, 25/32" drill bit, chisel, grinder, clamps, and center punch.
Yes. On all models, remove the temporary license plate bracket and return it with hardware to the owner. On select Chevrolet and GMC models, you must also remove the two rear-most fuel tank shield bolts from the frame rail and support the fuel tank shield as necessary. On Dodge models, remove the rear-most rivet on the bottom of the frame rail on each side.
Yes, drilling is required. You must drill 3 holes on each side of the frame rail using a 25/32" drill bit, using the hitch as a template. On select GM models, you may need to enlarge existing holes instead of drilling new ones. The manual indicates that some GM models have an enlarged existing hole on both sides, and some Dodge and select GM models have a rivet to be removed.
A 25/32" drill bit is required.
Yes, on Dodge models and select GM models, you must remove the rear-most rivet on the bottom of the frame rail. On Dodge models, this is the rear-most rivet. On select GM models, the rivet is located approximately 3-1/2" from the end of the frame rails and aligns with the rear-most holes in the hitch.
All M16 hardware must be torqued to 195 ft-lbs.
Raise the hitch into position and place the rear edges of the horizontal flanges flush with the end of the frame rails, then clamp to the frame rail before drilling.
On select GM models, you have two alignment options: (a) align the 1" diameter slot with the rivet on the bottom of the frame rail on each side and clamp in place, or (b) align the rear-most rivet removed in the preparation step and the existing holes from the fuel tank shield bolts and clamp in place. The hitch side plates will slide between the frame rail and fuel tank shield.
Install M16 hex flange bolts through the holes drilled in the frame rails and out through the hitch side plates. Secure each bolt with an M16 flat washer, lock washer, and hex nut on the back side.
Do not exceed your vehicle manufacturer's recommended towing capacity. Although the Curt 15800 is rated for 20,000 lbs trailer weight and 2,700 lbs tongue weight, your vehicle's manufacturer may specify a lower limit, which must be observed.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Professional installation takes approximately 60 minutes. DIY installation for a novice takes approximately 64 minutes.
The Curt 15800 fits 2001-Present Chevrolet Silverado 3500 HD, 2001-Present GMC Sierra 3500 HD, 2007-Present Dodge Ram 3500 HD, and 2008-Present Dodge Ram 4500/5500 HD Cab & Chassis models with 34" wide frames.
The Curt 15800 is rated for 20,000 lbs trailer weight and 2,700 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
You need a ratchet, torque wrench, 21mm socket, drill, 25/32" drill bit, chisel, grinder, clamps, and center punch.
All M16 hardware must be torqued to 195 ft-lbs.
Yes. Remove the temporary license plate bracket on all models. On select GM models, also remove the two rear-most fuel tank shield bolts. On Dodge models, remove the rear-most rivet on the bottom of each frame rail.
Part 55381 fits Dodge Ram 1500, 2500, and 3500 models equipped with a factory 7-way connector. If your vehicle has the factory 7-way connector, this harness is compatible. Vehicles without the factory 7-way connector are not supported by this product.
Yes, part 55381 is compatible with Jeep Grand Cherokee models that have a factory 7-way connector. The harness is designed to work with the factory 7-way connector on this vehicle.
Yes, part 55381 fits Dodge Sprinter 2500 and 3500 models, as well as Freightliner Sprinter 2500 and 3500 models, provided they have a factory 7-way connector.
Yes. The 55381 custom wiring harness is designed to work only with vehicles equipped with a factory 7-way connector. The harness is inserted between the factory 7-way connector and the vehicle wiring harness. Vehicles without a factory 7-way connector cannot use this product.
The 55381 is a custom wiring harness that connects between your vehicle's factory 7-way connector and the vehicle wiring harness. It allows you to use aftermarket trailers and towing equipment with your vehicle's existing electrical system.
The manual does not specify any special tools required. The installation involves locating the factory 7-way connector under the driver side bumper, removing mounting screws or bolts, separating connectors by pressing a red locking tab, and reinstalling components. Standard hand tools for removing fasteners should be sufficient.
The factory 7-way connector is located under the bumper on the driver side of the vehicle, near the taillight wiring harness. The exact location varies by vehicle type: on SUVs, vans and pickup trucks, look behind the driver side taillight housing (location S1 for SUVs/vans, T1 for pickup trucks).
Carefully press the red locking tab on the connector sideways and pull the connectors apart. Take care not to damage the locking tabs during this process. Once separated, ensure the mating surfaces of both connectors are free of dirt and clean if necessary before proceeding.
Insert the custom wiring harness between the separated factory 7-way connector and vehicle wiring harness. Make sure both connectors are fully inserted with locking tabs in place. Push the red locking tabs back to their original position to secure the connection.
Reinstall all items you removed during installation. Install the provided 4-flat dust cover to help prevent corrosion of the connectors.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
Before drilling to avoid damage and personal injury, check for miscellaneous items that may be hidden behind or under any surface. However, the standard installation of the 55381 does not require drilling—it is a connector-based installation.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The 55381 fits Chrysler Aspen and Pacifica, Dodge Dakota, Durango, Ram 1500/2500/3500, Ram vans, and Sprinter vans, Freightliner Sprinter vans, Jeep Commander, Grand Cherokee, and Liberty, and Mitsubishi Raider—all with factory 7-way connectors. Check your vehicle's documentation to confirm it has a factory 7-way connector.
No. The 55381 is a connector-based installation that requires no drilling, cutting, or permanent modifications. It connects between your factory 7-way connector and vehicle wiring harness.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause overheating and fire. Check your vehicle owner's manual for the tow vehicle lamp load rating.
Test for proper function using a test light or by connecting a properly wired trailer. Ensure all installation steps have been completed.
