| Electrical System Type | 2W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S1,S2 |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2012 | GMC Acadia | — |

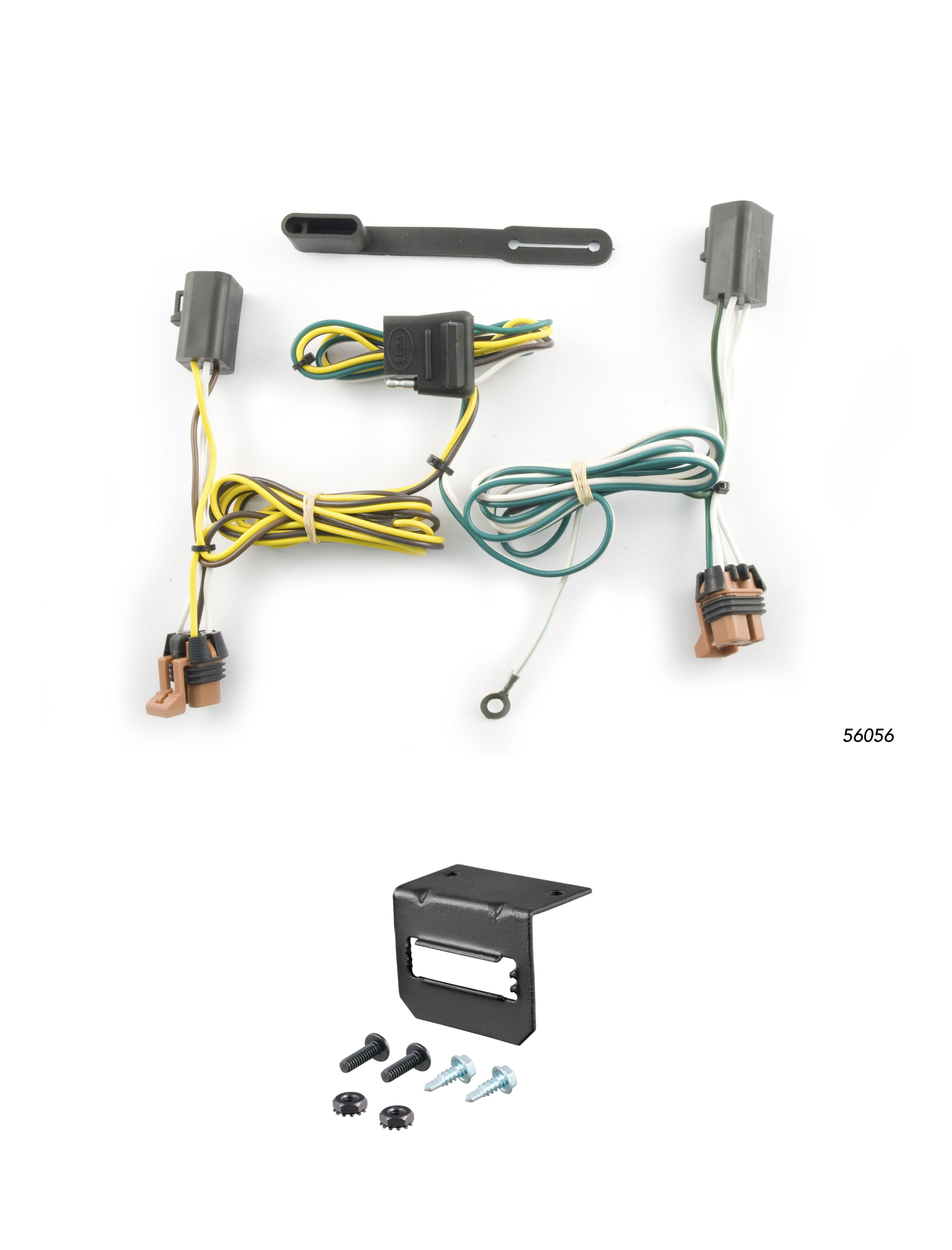

The 07-12 GMC Acadia CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1024) fits 2007-2012 GMC Acadia models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The 07-12 GMC Acadia CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1024) fits the following vehicles: 2007-2012 GMC Acadia. Always verify your specific year, make, and model before ordering.
Yes, the 07-12 GMC Acadia CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1024) is designed to fit the 2007-2012 GMC Acadia.
The 07-12 GMC Acadia CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1024) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56056 is designed for GMC Acadia vehicles in the SUVs, Mini & Full-Sized Vans category. The harness connects to the factory taillight wiring connectors behind each taillight housing.
The Curt 56056 is a custom wiring harness that integrates with your vehicle's taillight wiring to provide trailer lighting connections. It includes a 4-flat connector for trailer use and must be routed to the center of the vehicle and out of the trunk when in use.
You will need a ratchet, 7mm socket, and panel trim removal tool. If no suitable existing screw is available for the ground wire, you may need to drill a 3/32" pilot hole, which requires a drill with a 3/32" bit.
The manual does not specify whether battery disconnection is required. Contact Curt Manufacturing or your vehicle manufacturer for guidance on this safety step.
Open the vehicle tailgate and remove the two 7mm bolts securing each taillight. Carefully pull the taillight rearward, taking care not to damage the locking tabs. Behind the taillight assembly you will find the vehicle taillight wiring harness connectors.
The custom wiring harness end with the yellow wire connects to the driver side taillight. The end with the green wire connects to the passenger side taillight. Insert each end between the separated factory connectors, ensuring the connectors are fully inserted with locking tabs in place.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. The area must be free of rust, dirt and paint. If no suitable screw exists, drill a 3/32" pilot hole. Secure the white ground wire using the ring terminal and provided screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Drilling is required only if no suitable existing screw with nut is available in the vehicle frame near the taillight connector for the ground wire. If drilling is necessary, you will drill a 3/32" pilot hole. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
The manual states that you must not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. Contact Curt Manufacturing for the specific product rating, as it is not listed in the installation manual.
All installation steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or by connecting a properly wired trailer.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test the harness for proper function using a test light or by connecting a properly wired trailer.
Yes, the Curt 56056 is designed for GMC Acadia vehicles. It connects to the factory taillight wiring connectors behind each taillight housing.
You need a ratchet, 7mm socket, and panel trim removal tool. A drill with 3/32" bit may be needed if no existing screw is available for grounding.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause overheating and potential fire.
