Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2007 - 2013 Acura MDX. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Acura MDX (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 500 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

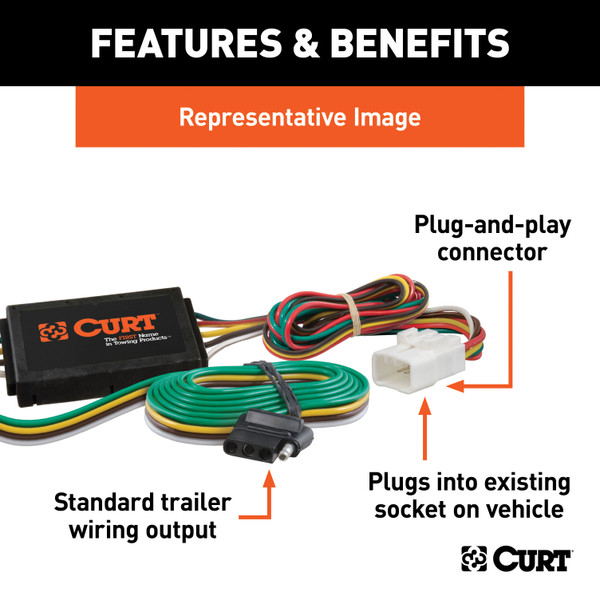

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Acura MDX (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Yes, the 07 - 13 Acura MDX Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13354 (Part #CHW-9) is designed to fit the 2007-2013 Acura MDX.
The 07 - 13 Acura MDX Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13354 (Part #CHW-9) fits the following vehicles: 2007-2013 Acura MDX. Always verify your specific year, make, and model before ordering.
The 07 - 13 Acura MDX Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13354 (Part #CHW-9) fits 2007-2013 Acura MDX models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The 07 - 13 Acura MDX Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13354 (Part #CHW-9) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13354 is designed for the Acura MDX, with the exception of models equipped with a full-size spare tire. If your MDX has a full-size spare, this hitch is not compatible.
The hitch weight is 28 lbs.
When used as a weight carrying hitch, the gross load capacity is 4,000 lbs. trailer weight and 400 lbs. tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
When used as a weight distribution hitch, the gross load capacity is 5,000 lbs. trailer weight and 500 lbs. tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
You will need a 3/8" drive ratchet, a 22mm 3/8" drive socket, a 10mm 3/8" drive socket, and a torque wrench.
The hitch includes four M14x1.5 35mm hex head cap screws (part 10-10405), four 9/16" S-CON washers (part 30-00164), and four M14x1.5 40mm flange hex head cap screws (part 10-10406).
Removing the spare tire is recommended to ease installation, but not required. The manual notes that spare tire removal is optional to make the installation process easier. If you remove it, retain all hardware for re-installation.
Removing the muffler heat shield is recommended to ease installation, but not required. The manual notes that heat shield removal is optional to make the installation process easier. You must retain the heat shield and all hardware for re-installation.
Yes, you must remove the muffler hanger to allow the exhaust to drop down. This is required to provide clearance for hitch installation. You will re-attach the muffler hangers after installation is complete.
No, drilling is not required. The hitch uses existing weld nuts in both frame rails for fastening.
All 14mm fasteners must be torqued to 136 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval, so regular visual inspection and fastener checks are recommended as part of routine vehicle maintenance.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch itself supports 4,000 lbs. trailer weight and 400 lbs. tongue weight as a weight carrying hitch, or 5,000 lbs. trailer weight and 500 lbs. tongue weight as a weight distribution hitch, but your vehicle's towing limit may be lower.
Yes, the Curt 13354 is designed for the Acura MDX except models with a full-size spare tire.
You need a 3/8" drive ratchet, 22mm and 10mm 3/8" drive sockets, and a torque wrench.
All 14mm fasteners must be torqued to 136 lb-ft.
Removal is recommended to ease installation but not required. You must remove the muffler hanger to allow exhaust clearance.
As a weight carrying hitch: 4,000 lbs. trailer, 400 lbs. tongue. As a weight distribution hitch: 5,000 lbs. trailer, 500 lbs. tongue. Do not exceed your vehicle's manufacturer towing limit.

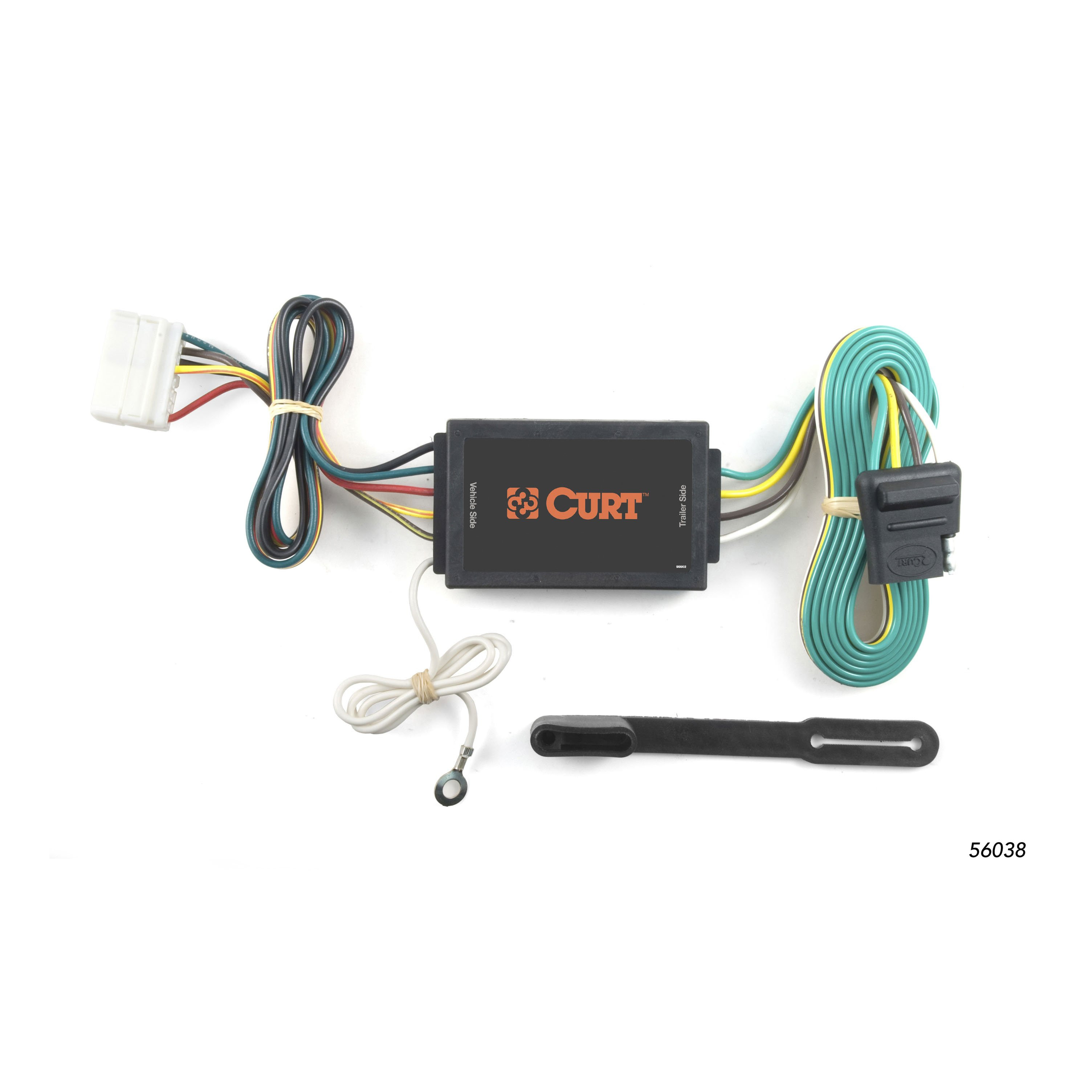

Yes, the Curt 56038 Custom Wiring Connector is designed for the Acura MDX. It is classified as a SUV, Mini & Full-Sized Van (S) application. Verify your vehicle matches the application before purchase.
The Curt 56038 has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
You will need a panel trim removal tool. The installation also requires drilling a 3/32" pilot hole for the provided ground screw, so a drill with a 3/32" bit is necessary. A test light or properly wired trailer is recommended to test the connector after installation.
Open the vehicle tailgate and remove the access door on the driver side rear scuff panel. Open the rear storage door and remove the storage tray and jack storage door. Pull back on the cargo liner to access the junction box where the connector will be installed.
The driver side vehicle wiring connector routes under the trim panel up to the junction box inside the removed driver side rear access door. The custom wiring connector inserts into the receptacle in the junction box.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you will need to drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out of the way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test the connector for proper function using a test light or by connecting a properly wired trailer.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
Test the connector for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
The Curt 56038 is designed for the Acura MDX (SUVs, Mini & Full-Sized Vans category).
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Panel trim removal tool and a drill with 3/32" bit for the ground screw pilot hole.
Drilling may be required if no existing screw with nut is available for grounding. You will drill a 3/32" pilot hole for the provided ground screw.
The connector inserts into the receptacle in the junction box inside the driver side rear access door.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2013 | Acura MDX | — |
