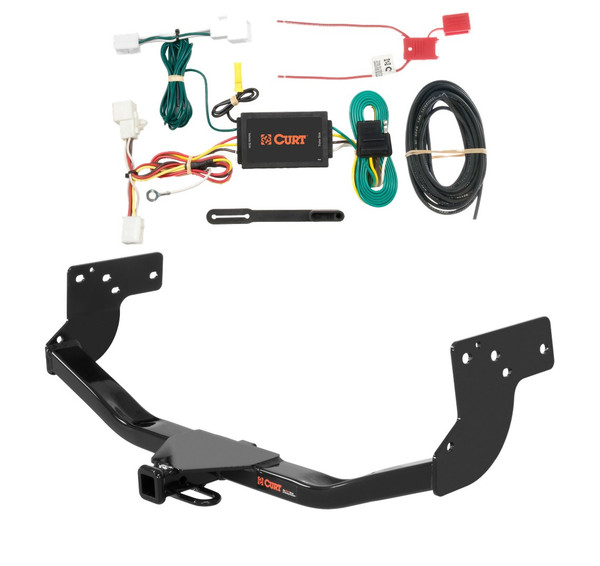

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2007 - 2015 Mazda CX-9. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

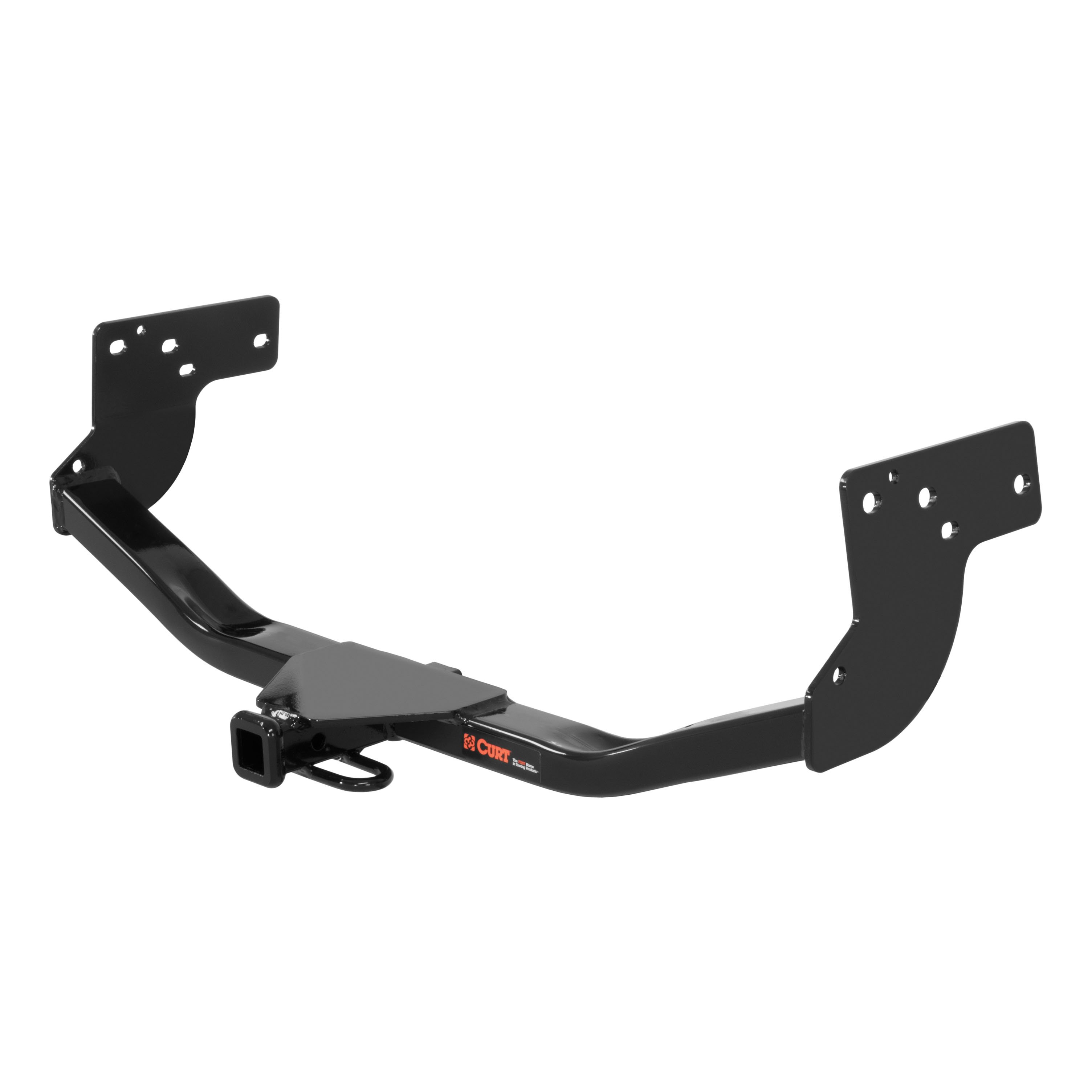

Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Mazda CX-9 (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.

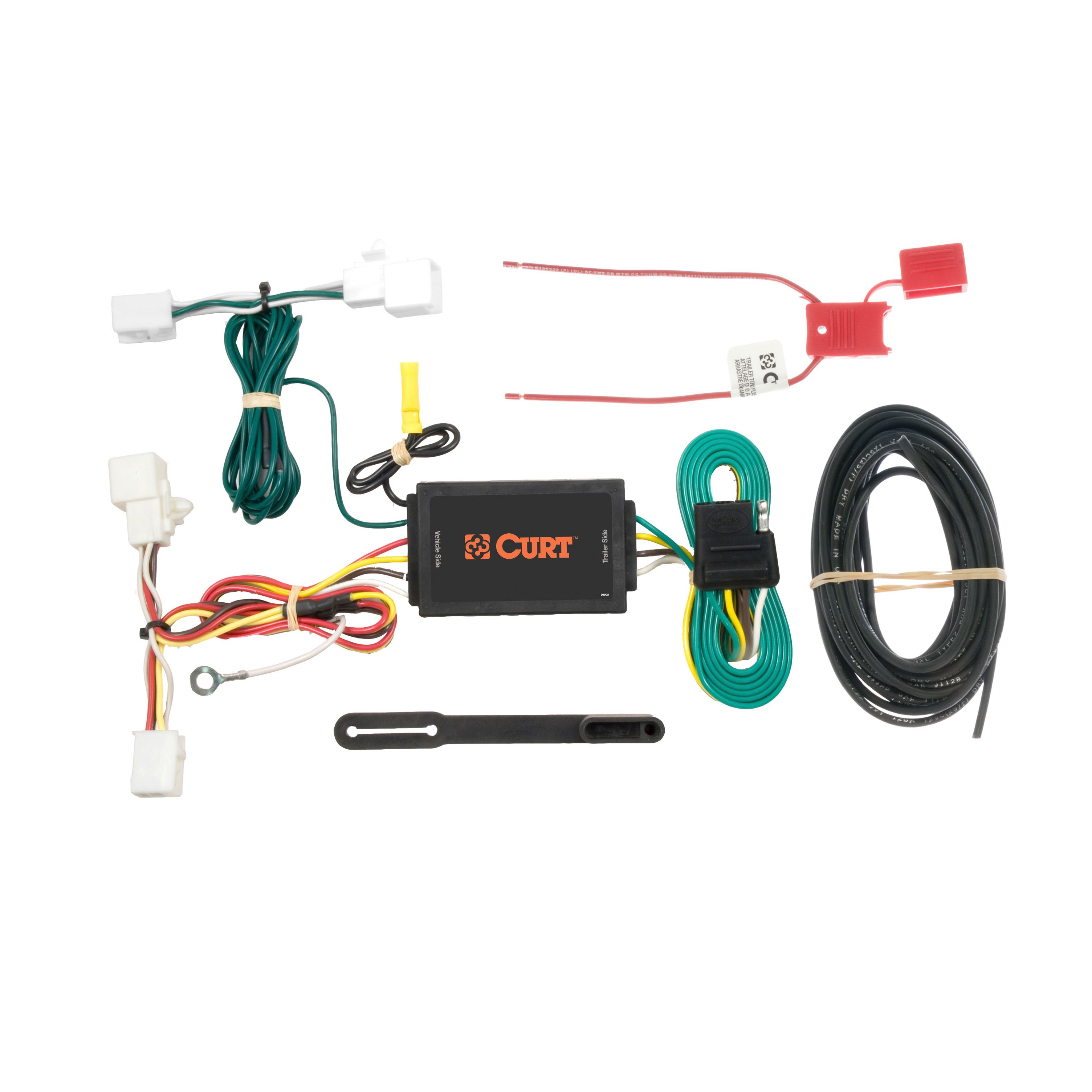

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mazda 2 hatchback, Mazda 5 and Mazda CX9 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2015 | Mazda CX-9 | — |
The 07 - 15 Mazda CX-9 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12112 (Part #CHW-2283) fits 2007-2015 Mazda CX-9 models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 07 - 15 Mazda CX-9 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12112 (Part #CHW-2283) fits the following vehicles: 2007-2015 Mazda CX-9. Always verify your specific year, make, and model before ordering.
Yes, the 07 - 15 Mazda CX-9 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12112 (Part #CHW-2283) is designed to fit the 2007-2015 Mazda CX-9.
The 07 - 15 Mazda CX-9 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12112 (Part #CHW-2283) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 12112 is designed for the Mazda CX-9. The hitch mounts to existing weldnuts on both the driver and passenger side frame rails, so no drilling is required.
Curt hitch 12112 is designed for use with ballmount #D-21/45521, or Euro ballmount #45571 (1 7/8" ball) or #45572 (2" ball). The ballmount is sold separately and must be purchased to complete the hitch assembly.
You will need a 19mm socket, 13mm socket, torque wrench, and ratchet. A torque wrench is essential because fasteners must be tightened to specific values: M12 hardware to 86 ft-lb and M8 hardware to 23 ft-lb.
No. Curt hitch 12112 requires no drilling. It mounts directly to existing weldnuts on the Mazda CX-9 frame rails.
1. Raise the hitch into position. 2. Attach finger-tight with (3) M12 hex bolts and 1/2" conical toothed washers and (1) M8 hex bolt with a 3/8" conical washer per side (4 fasteners total per side, 8 fasteners total). 3. Torque all M12 hardware to 86 ft-lb and all M8 hardware to 23 ft-lb.
All M12 hex bolts on Curt hitch 12112 must be torqued to 86 ft-lb.
All M8 hex bolts on Curt hitch 12112 must be torqued to 23 ft-lb.
Curt hitch 12112 includes: (6) M12×1.25×30 Class 10.9 hex head cap screws (part 10-10419), (6) 1/2" S-CON washers (part 30-00149), (2) M8×1.25×30 Class 10.9 hex head cap screws (part 10-10440), and (2) 3/8" S-CON washers (part 30-00148). This provides 3 M12 bolts with washers and 1 M8 bolt with washer per side.
The manual does not specify the gross load capacity or tongue weight for this hitch. You must not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing technical support at 1-877-287-8634 for capacity information specific to your vehicle.
Non-trailer loads applied to this hitch must be supported by Curt stabilizing straps part number 18050. Failure to properly support non-trailer loads will void the product warranty.
You should periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval; regular inspection before towing is recommended.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Yes. It mounts to existing frame rail weldnuts with no drilling required.
No drilling required. The hitch mounts directly to existing weldnuts on the frame rails.
19mm socket, 13mm socket, torque wrench, and ratchet. A torque wrench is required to tighten M12 bolts to 86 ft-lb and M8 bolts to 23 ft-lb.
Designed for ballmount #D-21/45521 or Euro ballmount #45571 (1 7/8" ball) or #45572 (2" ball). Ballmount sold separately.
M12 bolts: 86 ft-lb. M8 bolts: 23 ft-lb.
Yes, but non-trailer loads must be supported by Curt stabilizing straps part 18050. Improper support voids the warranty.
The Curt 56016 is designed for Mazda 2, Mazda 5, and Mazda CX-9 models. Confirm your vehicle model matches one of these applications before purchasing.
The harness is rated for Signal Circuits at 3.0 amps per side and Tail/Running Circuits at 6.0 amps total. Do not exceed these ratings or your vehicle's tow lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need a ratchet, 10mm socket, Phillips screwdriver, and panel trim removal tool. A 3/32" drill bit is also required if you need to drill a pilot hole for the grounding screw.
The harness includes a screw and ring terminal for grounding, double-sided tape for the converter box, cable ties for securing loose wires, and a 4-flat dust cover. A CME-PCL-INS sheet with battery routing information is also included.
The manual does not specify whether the battery must be disconnected before installation. Contact the vehicle manufacturer or Curt Manufacturing for guidance on this safety step.
Open the vehicle tailgate and remove all trunk floor coverings and storage trays. Then remove the scuff panel by pulling out on the bottom and then up, taking care not to damage the alignment tabs on the back.
Locate the vehicle taillight wiring harness connectors behind the trim panel. Separate the connectors from the taillight housing carefully to avoid damaging the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Drilling may be required. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you will need to drill a 3/32" pilot hole for the provided grounding screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided grounding screw. The area should be free of rust, dirt and paint before securing the white ground wire using the ring terminal.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
The harness has a yellow wire end for the driver side taillight connection, a green wire end for the passenger side taillight connection, a white wire for grounding, and a black power wire that routes from the vehicle battery. Refer to the included CME-PCL-INS sheet for detailed battery power wire routing.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Reinstall all items removed during installation, including trunk floor coverings, storage trays, scuff panel, and rear trim panels. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56016 fits Mazda 2, Mazda 5, and Mazda CX-9.
Ratchet, 10mm socket, Phillips screwdriver, panel trim removal tool, and a 3/32" drill bit if drilling is required.
10-amp maximum fuse for the battery connection. Do not exceed this rating or the product's amperage limits (3.0 amps per signal side, 6.0 amps total for tail/running circuits) to avoid warranty loss, overheating and fire.
