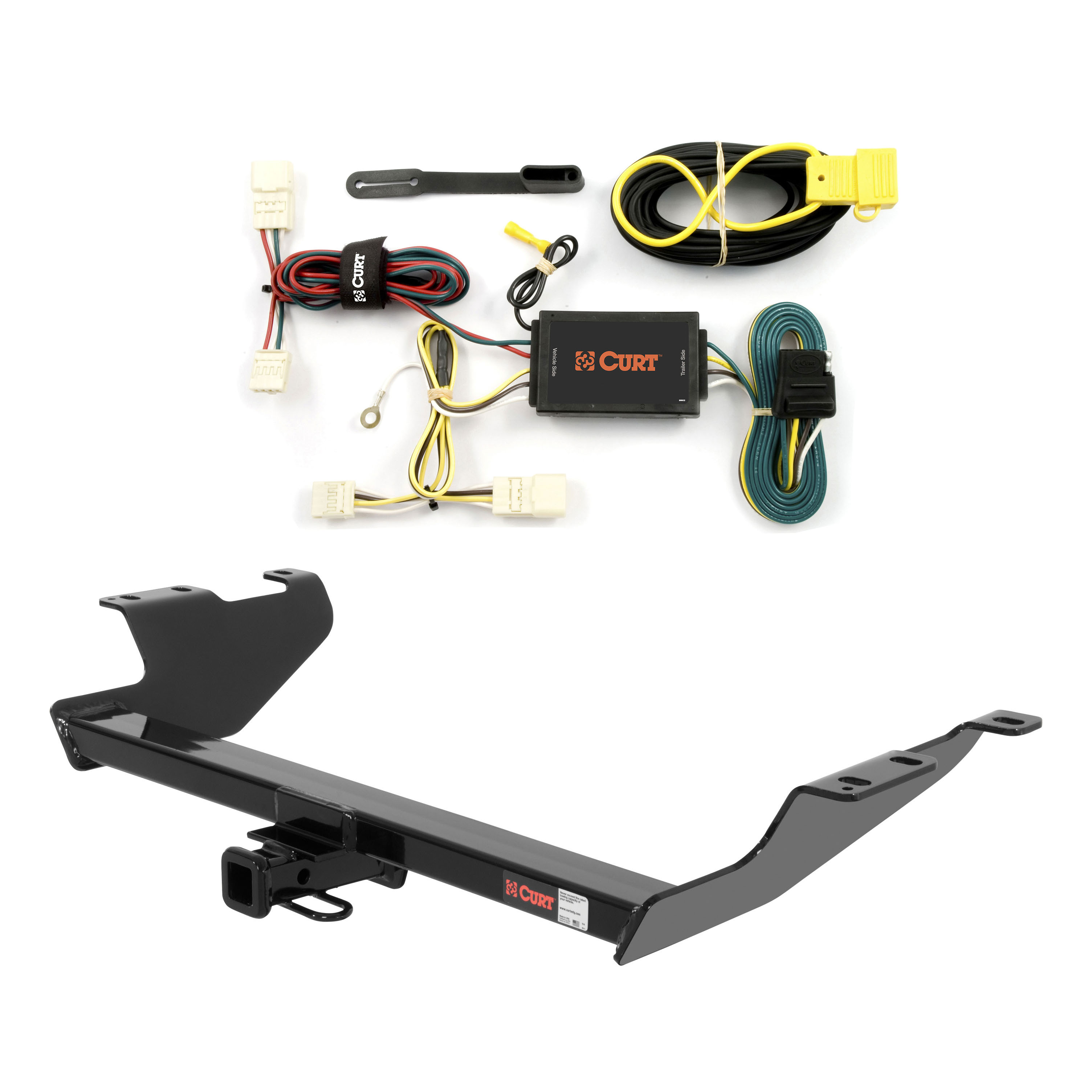

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2008 - 2010 Scion xB. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

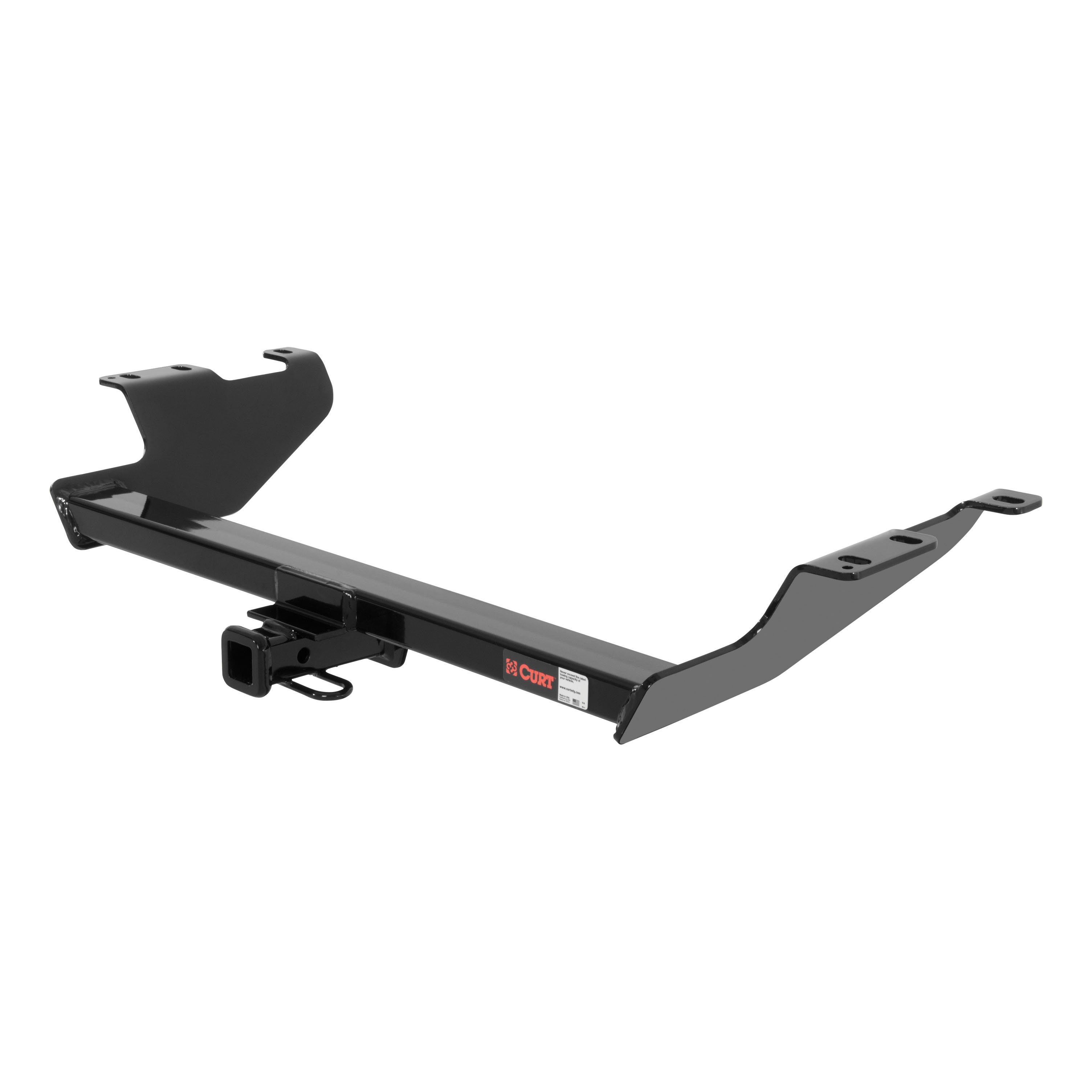

Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Scion xB (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Scion xB (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2010 | Scion xB | — |
The 08 - 10 Scion xB Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12490 (Part #CHW-2729) fits 2008-2010 Scion xB models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The 08 - 10 Scion xB Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12490 (Part #CHW-2729) fits the following vehicles: 2008-2010 Scion xB. Always verify your specific year, make, and model before ordering.
Yes, the 08 - 10 Scion xB Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12490 (Part #CHW-2729) is designed to fit the 2008-2010 Scion xB.
The 08 - 10 Scion xB Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12490 (Part #CHW-2729) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 12490 is designed for the Scion XB. However, it excludes the Release Series variant. If your vehicle is a Release Series model, this hitch is not compatible.
The manual specifies a gross load capacity for trailer weight and tongue weight when used as a weight-carrying hitch, but the exact values are not printed in this document. Contact Curt Technical Support at 1-877-287-8634 for the specific capacity ratings. Regardless of the hitch rating, you must not exceed your vehicle manufacturer's recommended towing capacity.
Yes. The Curt 12490 is designed for use with Curt ballmount part numbers 55001 or 45501. Consult the ballmount documentation for compatibility and installation details.
You will need: a ratchet, a torque wrench, a 19mm socket, and a 17mm socket.
No. The Curt 12490 requires no drilling. It attaches using existing frame rail mounting points on the Scion XB.
Yes. You must remove the OEM tow hook from the vehicle if present. Return the removed tow hook to the vehicle owner.
All 12mm fasteners must be torqued to 86 lb-ft.
The hitch includes 6 hex bolts M12×1.25, 30mm, Class 10.9, zinc-plated (part number 10-10419) and 6 conical tooth washers, 1/2 inch (part number 30-00149).
Non-trailer loads can be applied to this hitch, but they must be fully supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
You must not exceed your vehicle manufacturer's recommended towing capacity, even if the hitch has a higher rating. Check your Scion XB owner's manual for the maximum towing capacity.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval; inspect before each towing use and at regular maintenance intervals.
Periodically check all fasteners to ensure they remain tight and inspect all structural components for damage or corrosion. Retighten fasteners if needed. The manual does not specify a maintenance schedule; perform checks before each towing use.
Yes, the Curt 12490 is designed for Scion XB vehicles, but it excludes Release Series models.
No, the Curt 12490 requires no drilling.
All 12mm fasteners must be torqued to 86 lb-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. All non-trailer loads must be supported by auxiliary stabilizing straps or the warranty is voided.
Periodically check that all fasteners are tight and all structural components are sound.

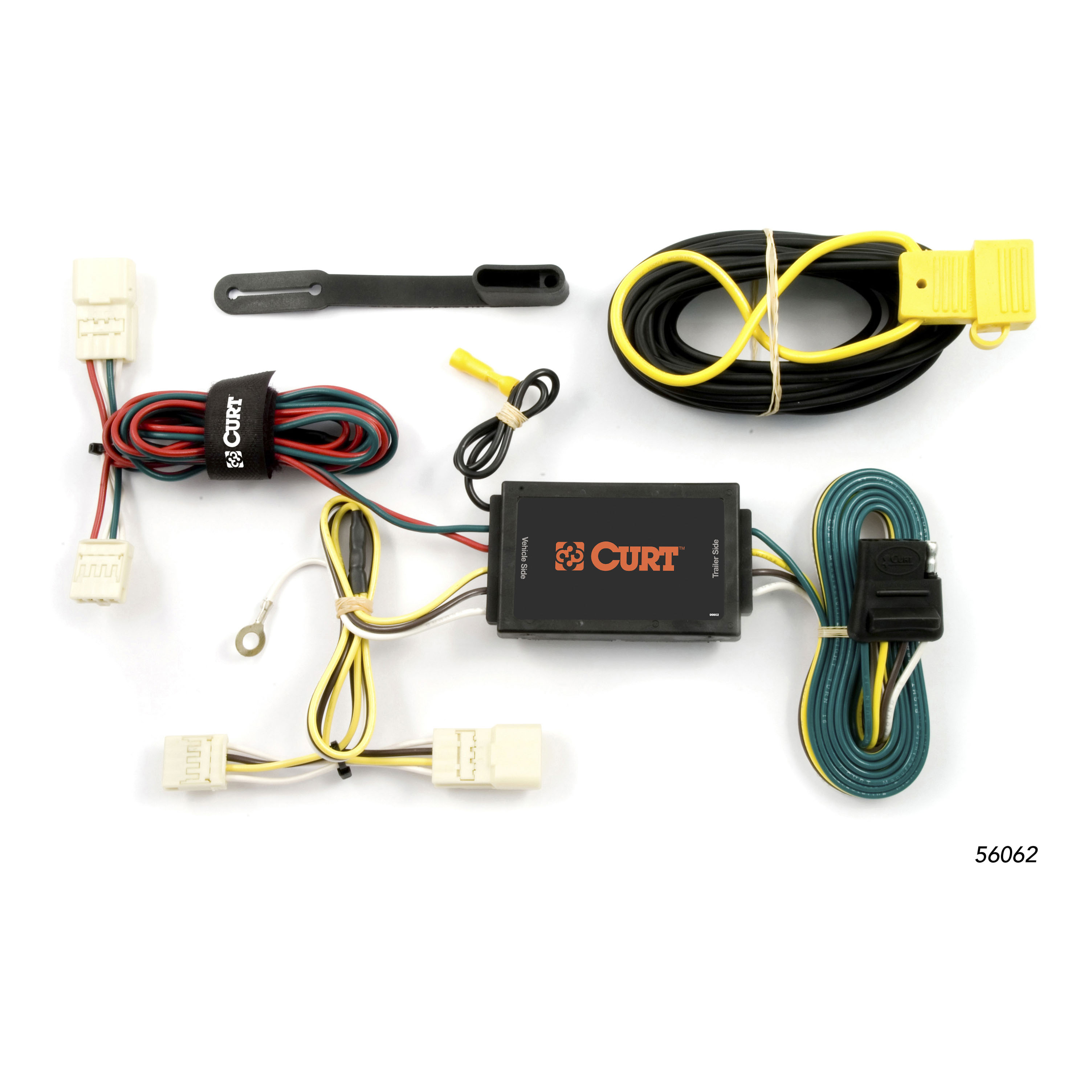

The Curt 56062 is a T-Connector wiring harness for the Scion XB that allows you to tap into the vehicle's taillight wiring. It includes a black converter box, T-Connector ends with colour-coded wires (yellow and green), a white ground wire with eyelet, cable ties, and a 4-Flat connector for trailer or accessory use.
The manual confirms the Curt 56062 is designed for the Scion XB. The manual does not specify model years, generations, or any exclusions. Verify fitment with the manufacturer or your retailer before purchase if you have a specific model year in mind.
You will need a 10mm socket to remove the nuts securing the hard plastic panels on each side of the spare tire storage. A drill with a 3/32" bit is required if you do not have a suitable existing screw with nut to use as a grounding point. The manual includes an eyelet and screw for the ground wire, and cable ties for securing loose parts.
Open the rear hatch and temporarily remove: the rear floor covering, foam tire cover, hard plastic panels on each side of the spare tire storage (2 nuts per side, 10mm socket), and the rear interior trim panels on both the driver and passenger sides. These items are reinstalled after the T-Connector installation is complete.
Place the black converter box on the driver's side just below the side trim panel. Route the end with the yellow wire behind the panel. The converter box connects to the vehicle's taillight wiring harness via the T-Connector.
Locate the vehicle's taillight wiring harness behind the rear interior trim panels on both sides. The harness has connection points matching the T-Connector ends. Carefully separate the existing connectors without breaking the locking tabs. Insert the T-Connector ends between the vehicle wiring connectors and lock into place, ensuring the locking tabs are fully inserted without damage.
Route the T-Connector end with the green wire from the driver's side to the passenger's side along the threshold and up behind the passenger-side trim panel. Insert the T end between the vehicle's taillight wiring connectors and lock into place, ensuring the locking tabs are fully inserted without damage.
The white ground wire should be secured to a suitable grounding point near the connector. You can use an existing screw with nut in the vehicle's frame, or drill a 3/32" hole and secure the white wire using the eyelet and screw provided with the kit. The manual recommends locating a grounding point near the connector on the driver's side.
Drilling is not required if you can locate a suitable existing screw with nut in the vehicle's frame to use as a grounding point. If no suitable existing fastener is available, you will need to drill a 3/32" hole for the ground wire eyelet. Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage to the vehicle or personal injury.
Route the black power wire from the battery through the rubber grommet in the tire storage area to the black converter box. The manual references a CME-PCL-INS sheet for detailed routing instructions, which should be included with your kit. Consult that sheet for the specific path and any additional connections required.
The T-Connector has three colour-coded wires: yellow (driver's side), green (passenger's side), and white (ground). The yellow and green wires connect to the taillight wiring harness on their respective sides. The white wire is the ground wire, secured to a grounding point near the connector.
Before drilling any hole, verify that no miscellaneous items are hidden behind or under the surface where you plan to drill. This prevents damage to the vehicle and personal injury. The manual specifically warns about this risk when drilling the 3/32" ground wire hole.
Use the cable ties provided with the kit to secure and bundle loose parts of the T-Connector. This prevents the wires and connectors from moving or becoming damaged during vehicle operation.
Store the 4-Flat connector in the rear cargo area when not in use. This connector is part of the T-Connector assembly and should be kept accessible for future use.
Reinstall all items that were removed during installation: the plastic trim panels, threshold, storage covers, floor covering, and any other items removed to access the wiring. Ensure all panels are properly seated and secured before closing the rear hatch.
The Curt 56062 is designed for the Scion XB. Verify the specific model year with the manufacturer or retailer before purchase.
You need a 10mm socket to remove panel fasteners and a drill with a 3/32" bit (if no existing ground point is available). The kit includes an eyelet, screw, and cable ties.
Remove the rear floor covering, foam tire cover, hard plastic panels on each side of the spare tire storage, and rear interior trim panels on both sides. All items are reinstalled after installation.
Yellow (driver's side), green (passenger's side), and white (ground). The yellow and green wires tap into the taillight harness; the white wire grounds to the vehicle frame.
Before drilling, verify no miscellaneous items are hidden behind or under the surface to avoid damage to the vehicle or personal injury.
