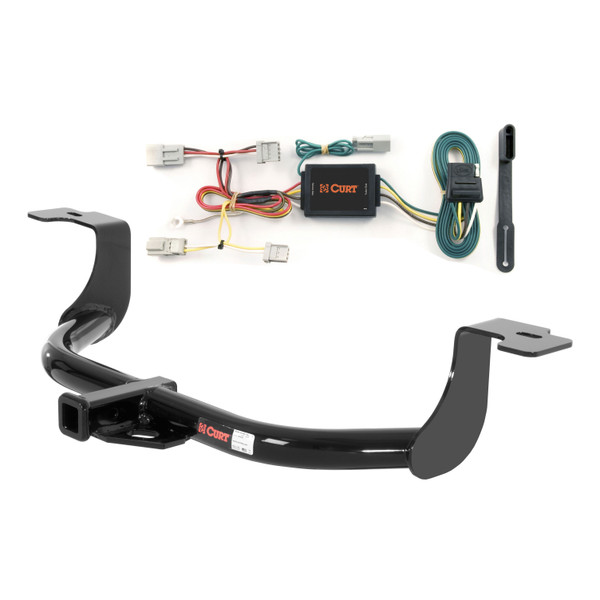

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2008 - 2012 Honda Accord Sedan. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

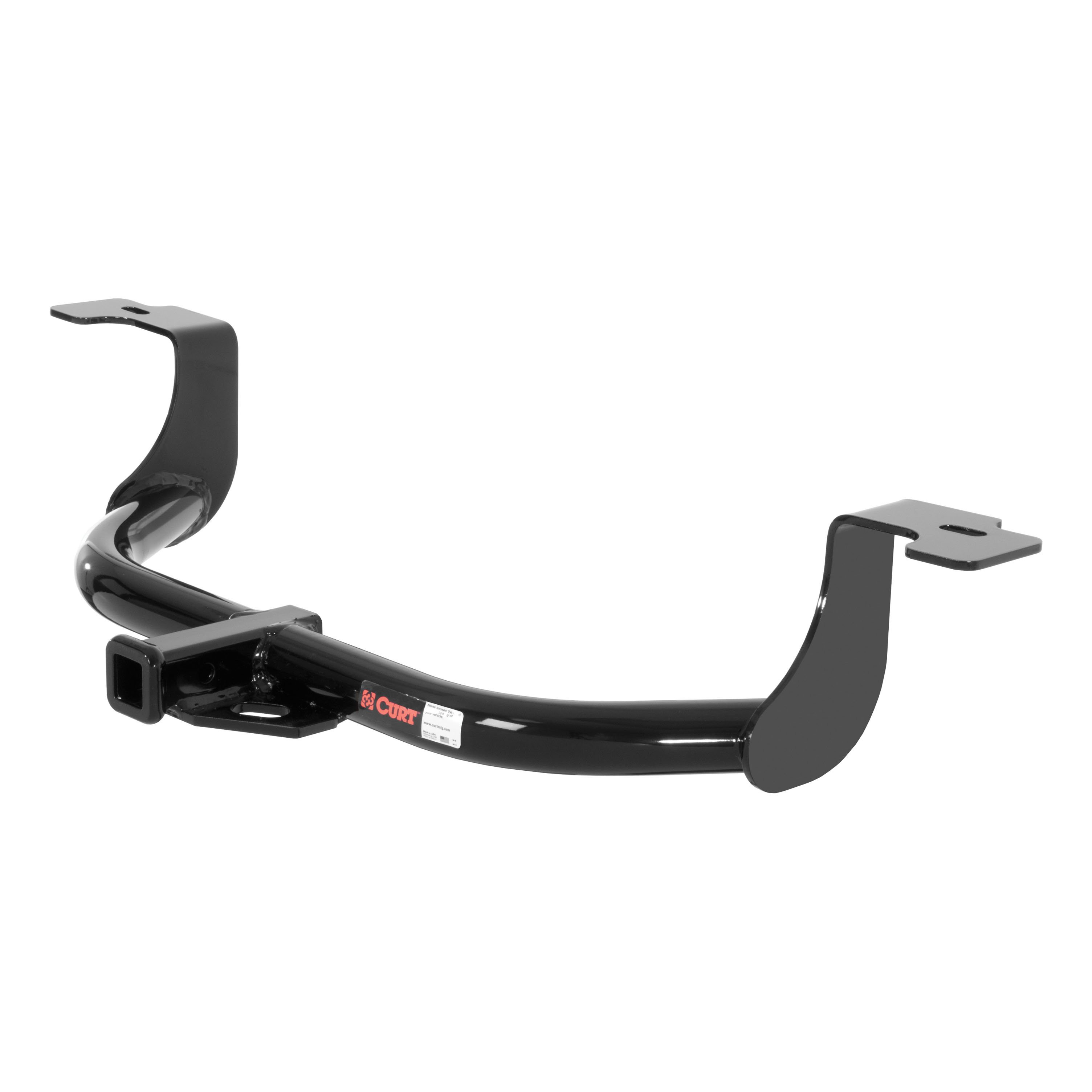

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Honda Accord and TSX (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.

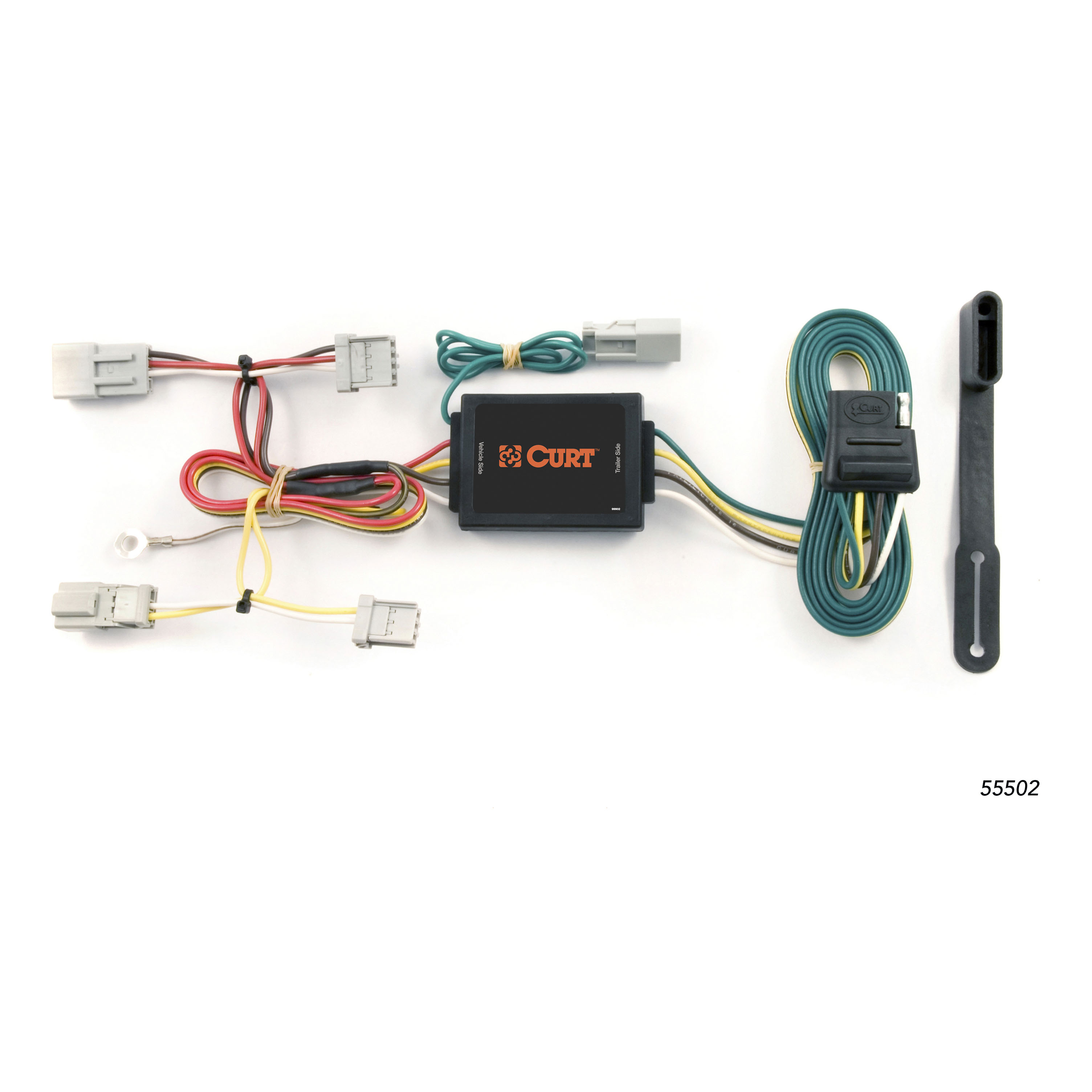

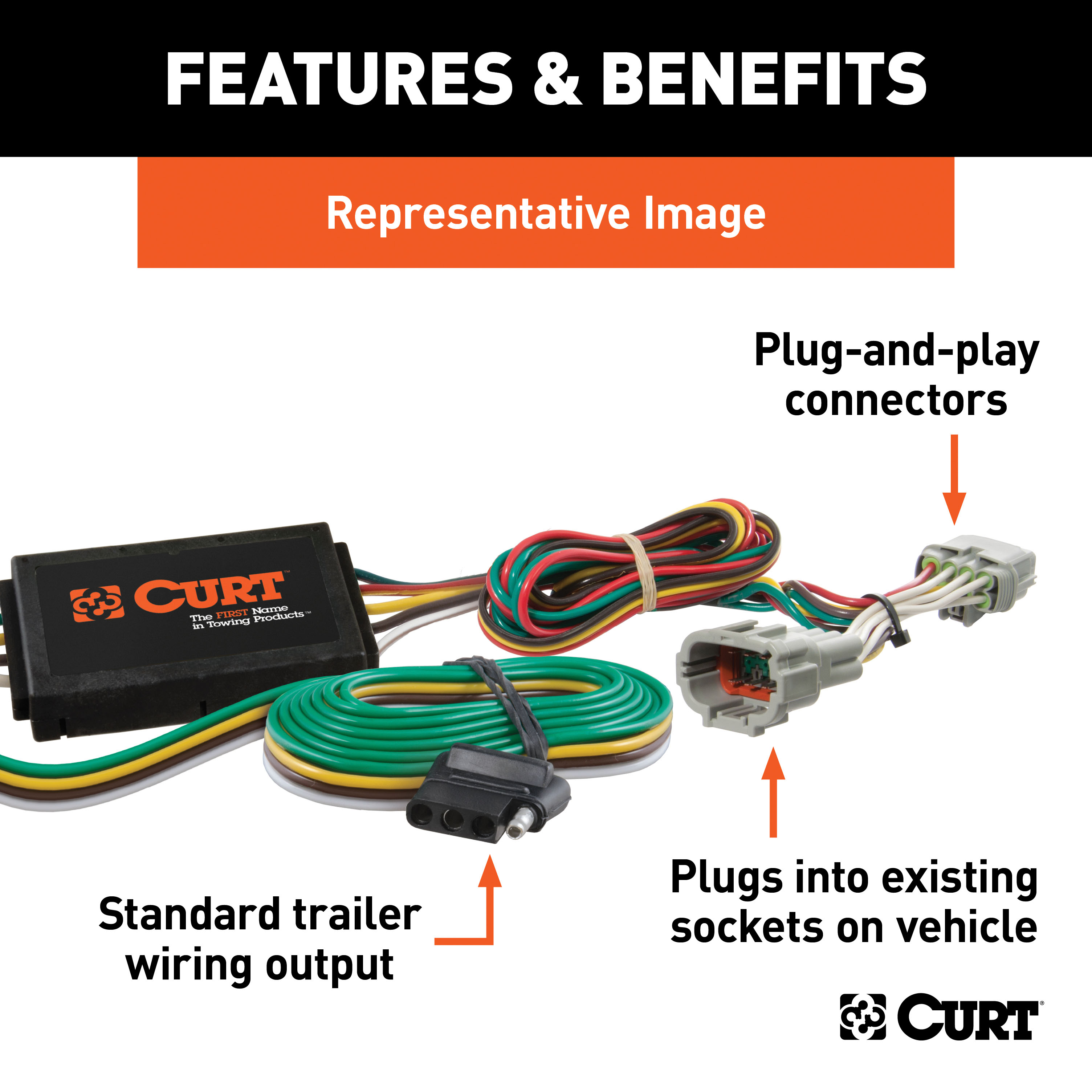

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Honda Accord and Acura TSX (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The 08 - 12 Honda Accord Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11085 (Part #CHW-1718) fits the following vehicles: 2008-2012 Honda Accord. Always verify your specific year, make, and model before ordering.
The 08 - 12 Honda Accord Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11085 (Part #CHW-1718) fits 2008-2012 Honda Accord models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 08 - 12 Honda Accord Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11085 (Part #CHW-1718) is designed to fit the 2008-2012 Honda Accord.
The 08 - 12 Honda Accord Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11085 (Part #CHW-1718) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The hitch weight is 90 lbs.
Yes, the Curt 11085 is designed for Honda Accord Sedan & Coupe and Acura TSX Sport Wagon models.
The hitch is designed for use with ball mount D-55001 / 45501, which requires hole enlargement and heat shield trimming. Euro mount options are available: part 45571 (1-7/8" ball) and part 45572 (2" ball).
The kit includes: 2 x 7/16-14 UNC Grade 8 carriage bolts (part 10-10282), 2 x 7/16-14 UNC Grade 8 serrated flange nuts (part 20-00103), 2 x 0.250 x 1.00 x 2.50" square hole spacers (part CM-SP11), 2 x 7/16" fishwire, 2 x 3/8-16 UNC Grade 5 serrated flange nuts (part 20-00099), and 1 x 3/8-16 x 1.00 x 1.88 U-bolt (part 3_8 - 16 x 1.00 x 1.88).
Required tools are: socket wrench, 10mm socket, 9/16" socket, 11/16" socket, torque wrench, die grinder or rotary tool, and aviation shears.
Yes. You must lower the exhaust by removing two rubber exhaust isolators for single exhaust vehicles or four isolators for dual exhaust vehicles. After hitch installation, the exhaust is raised and the isolators are reattached.
Yes. Remove heat shields by removing four screws per shield. Save the screws and shields for reinstallation after the hitch is mounted and trimmed.
If present, yes. Remove the underbody panel and trim, and save the panel and fasteners for reinstallation. The underbody panel is raised with the hitch during installation and must be resecured after the exhaust is reattached.
No drilling is required. However, the access holes in the frame rails may need to be enlarged with a die grinder or rotary tool to allow the fasteners to pass through. Check if hardware can be inserted through the access holes first; enlarge only if necessary.
Yes. After the hitch is raised into position, you must trim the heat shield(s) around the hitch using the heat shield trimming diagram provided. Reinstall the heat shields with the screws removed in Step 2.
Torque all 7/16" hardware to 70 lb-ft.
Torque all 3/8" hardware to 26 lb-ft.
The installed hitch position dimensions are: 4 3/4 in. (height from bottom), 10 in. (width), 12.75 in. (length), 1.00 in. (drop), 5.50 in. (setback), and 6.00 in. (overhang). Note: dimensions are approximate; confirm fit prior to trimming.
The gross load capacity when used as a weight carrying hitch is 2,000 lbs. trailer weight and 200 lbs. tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
Non-trailer loads applied to this hitch must be supported by stabilizing straps (part 18050). Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Yes, the Curt 11085 is designed for Honda Accord Sedan & Coupe and Acura TSX Sport Wagon models.
You need a socket wrench, 10mm, 9/16", and 11/16" sockets, torque wrench, die grinder or rotary tool, and aviation shears.
Yes. You must lower the exhaust by removing rubber isolators and remove heat shields by removing four screws per shield. Both are reinstalled after the hitch is mounted and trimmed.
Torque all 7/16" hardware to 70 lb-ft and all 3/8" hardware to 26 lb-ft.
The hitch supports 2,000 lbs. trailer weight and 200 lbs. tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, Curt part 55502 is designed for the Acura TSX. It is also compatible with the Honda Accord. Verify your vehicle model is one of these before purchasing.
Yes, Curt part 55502 is designed for the Honda Accord. It is also compatible with the Acura TSX. Verify your vehicle model is one of these before purchasing.
The kit includes a T-connector adapter, a black converter box, double-sided tape for securing the converter box, a white wire with ring terminal, and a screw for securing the white wire to the grounding point.
No. You only need to partially remove the felt trunk liner on the driver's side to expose the taillight wiring. The full liner does not need to be removed.
Open the trunk and remove the threshold panel. Partially remove the felt trunk liner on the driver's side to expose the taillight wiring. You will also need to locate a suitable grounding point near the connectors.
Separate the existing taillight harness connectors carefully, being careful not to break the locking tabs. Insert the T-connector between the harness connectors and lock it into place. Ensure the connectors are fully inserted with locking tabs in place.
Route the single connector with the green wire to the 2-way connector just below the threshold on the driver's side of the car.
Secure the black converter box using the double-sided tape provided to a suitable location in the trunk area. The manual does not specify the exact location, so choose an area that is accessible and does not interfere with trunk contents.
Yes. You must drill a 3/32" pilot hole to secure the white wire with ring terminal to a grounding point near the connectors.
Drill a 3/32" pilot hole to secure the white wire with ring terminal to the grounding point.
Before drilling, verify that miscellaneous items may not be hidden behind or under surfaces to avoid damage to the vehicle and/or personal injury. Inspect the area carefully before drilling the pilot hole.
After securing the black converter box and the white grounding wire, reposition the trunk liner and reattach the threshold panel to complete the installation.
The Curt 55502 is designed for the Acura TSX and Honda Accord.
Yes, you must drill a 3/32" pilot hole to secure the white grounding wire. Always verify the area is clear of hidden items before drilling.
Open the trunk, remove the threshold panel, and partially remove the felt trunk liner on the driver's side to expose the taillight wiring.
You will need a drill with a 3/32" bit, a screwdriver, and basic hand tools. The manual does not specify additional tools.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2012 | Honda Accord | Sedan |
