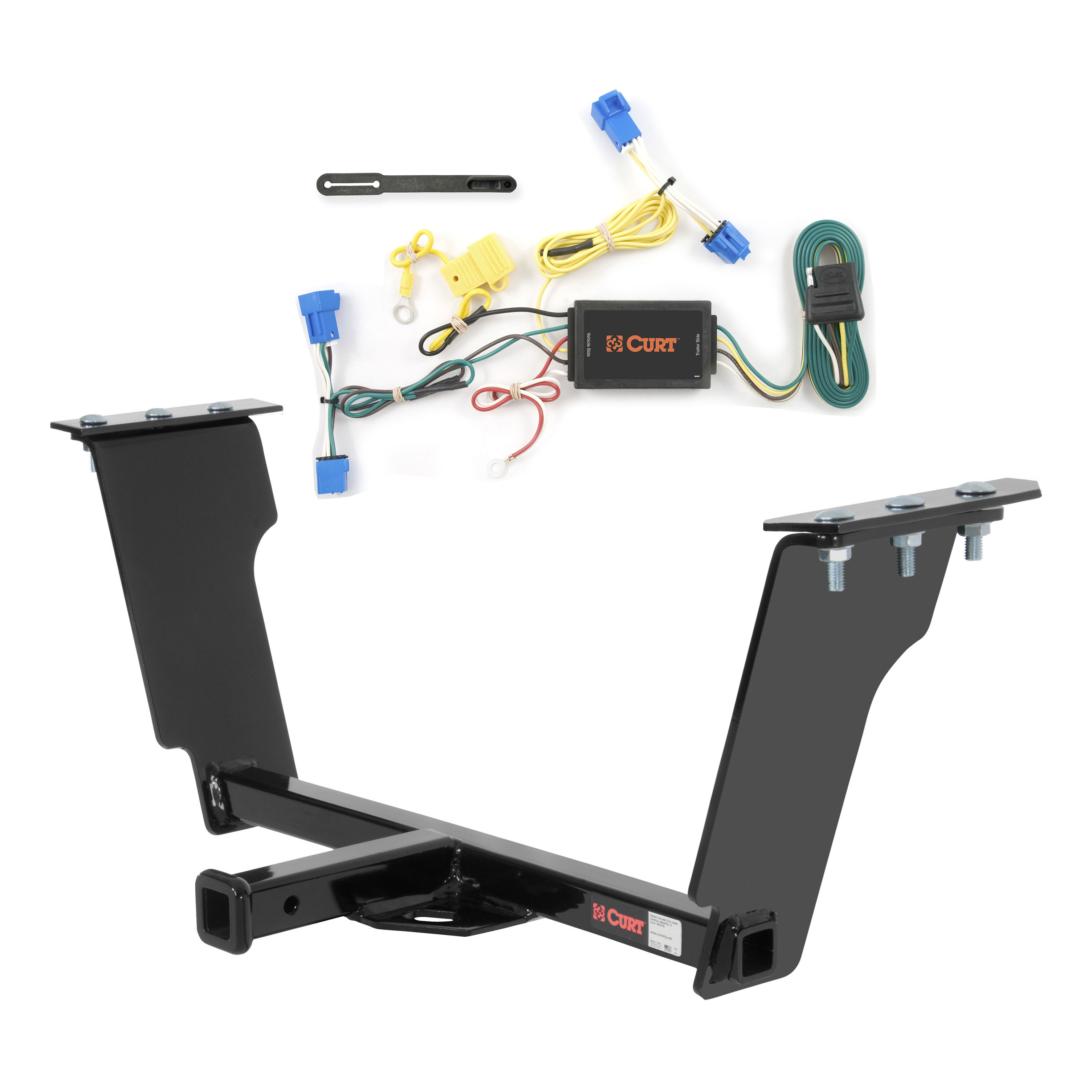

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2008 - 2013 Cadillac CTS Sedan. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Cadillac CTS and STS (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Cadillac CTS sedan and coupe (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2013 | Cadillac CTS | Sedan |
The 08 - 13 Cadillac CTS Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11307 (Part #CHW-229) fits 2008-2013 Cadillac CTS models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The 08 - 13 Cadillac CTS Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11307 (Part #CHW-229) fits the following vehicles: 2008-2013 Cadillac CTS. Always verify your specific year, make, and model before ordering.
Yes, the 08 - 13 Cadillac CTS Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11307 (Part #CHW-229) is designed to fit the 2008-2013 Cadillac CTS.
The 08 - 13 Cadillac CTS Sedan Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11307 (Part #CHW-229) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 11307 is designed for Cadillac CTS and STS 4 door sedans. It is compatible with both models.
The Curt 11307 is designed for use with ball mount part number D-221 / 45522.
The manual lists a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your vehicle's owner manual for the maximum towing limit.
The kit includes 6 carriage bolts (7/16-14 UNC, 1-3/4 inch, grade 8, part number 10-10314), 6 serrated flange nuts (7/16-14 UNC, grade 8, part number 20-00103), and 2 spacer plates (part number CM-11307-SP).
You need to remove the spare tire cover to access the trunk floor, but the manual does not state whether the spare tire itself must be removed. You will need to roll back the trunk carpet and padding to expose the bare metal floor of the trunk pan where the mounting holes are drilled.
Yes, lowering the exhaust is required. You must remove the two rearmost exhaust hangers and one forward exhaust hanger to lower the muffler(s) and provide clearance for hitch installation. After installation is complete, reinstall all three exhaust hangers.
Yes, drilling is required. You must drill three mounting holes on each side of the vehicle (six holes total) through the trunk pan. The process involves drilling 1/8 inch pilot holes first, then enlarging them to 1/2 inch. All drilled holes must be sealed to prevent exhaust fumes from entering the trunk.
The final mounting holes are 1/2 inch in diameter. The installation process begins with 1/8 inch pilot holes, which are then enlarged to 1/2 inch.
All fasteners must be tightened to 70 lb-ft.
Non-trailer loads can be applied to this hitch only if they are fully supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
All holes drilled in the vehicle must be sealed to prevent entry of exhaust fumes into the trunk. This is a critical safety measure to protect occupants.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain safe operation and prevent loosening of components due to vibration and use.
Yes, the Curt 11307 is designed for Cadillac CTS and STS 4 door sedans. Use with ball mount D-221 / 45522.
Lower the exhaust by removing three exhaust hangers, remove the spare tire cover, and roll back trunk carpet and padding to expose the bare metal floor.
Tighten all fasteners to 70 lb-ft.
The hitch is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Non-trailer loads are permitted only if fully supported by auxiliary stabilizing straps. Failure to do so voids the warranty.

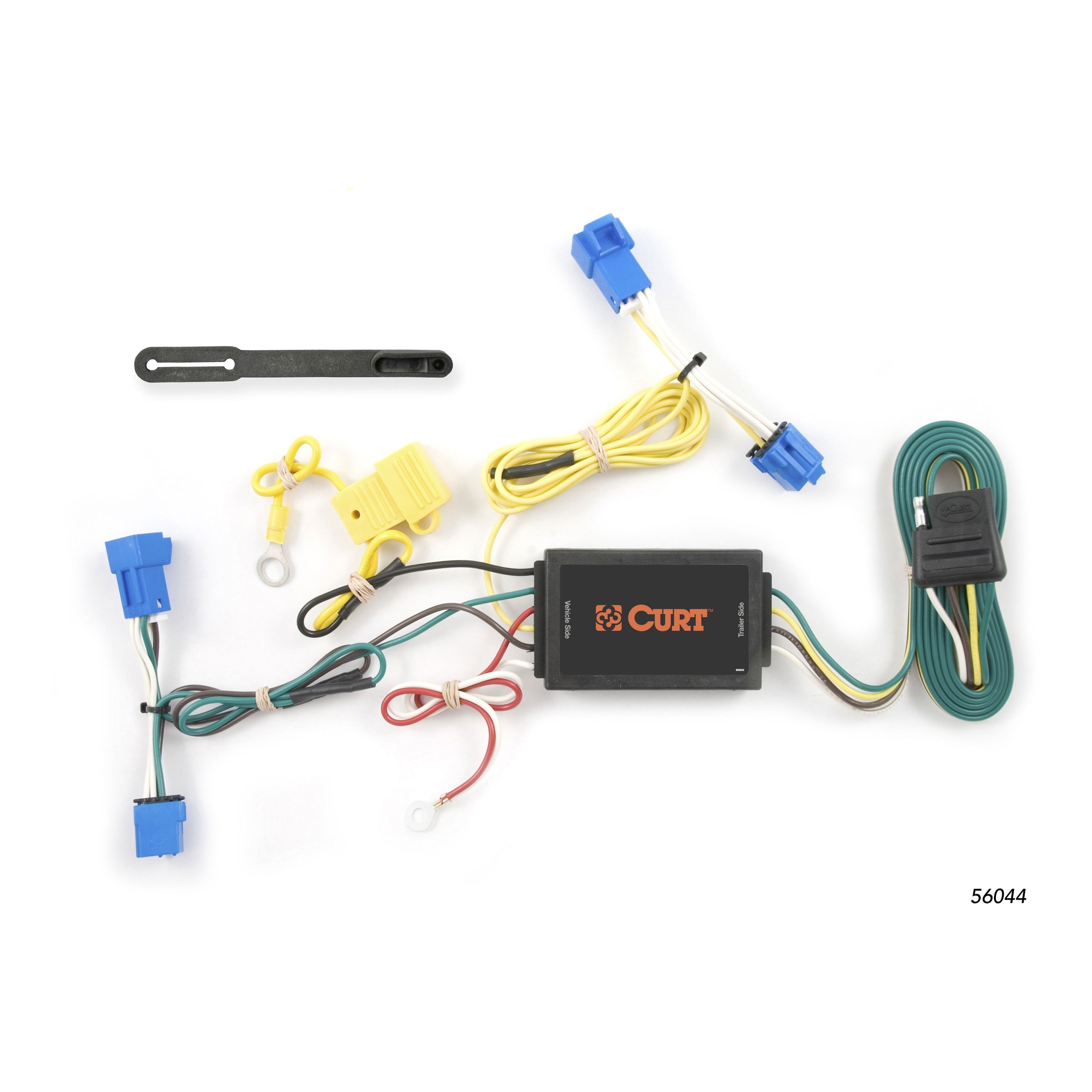

Yes, Curt part 56044 is designed for the Cadillac CTS. The manual does not specify which model years are supported, so contact Curt Manufacturing or your retailer to confirm your vehicle's year and generation are compatible.
Yes. Step 4 requires you to disconnect the vehicle's positive battery cable before attaching the terminal ring to the positive battery post. Reconnect the cable after the terminal ring is secured.
Open the trunk and remove: the vehicle's rear scuff panel, the battery compartment cover (passenger side), and the felt trunk liner (driver's side). These removals provide access to the vehicle's wiring harness and routing paths for the T-Connector.
You will need a flathead screwdriver to depress the locking tab on the vehicle's taillight harness. If a suitable grounding point is not available, you will need to drill a 3/32" hole, which requires a drill bit of that size. A screwdriver is also needed to secure the white ground wire with the eyelet and screw provided.
On the passenger side, use a flathead screwdriver to depress the locking tab and separate the vehicle's taillight harness. Place the full assembly in the battery compartment. Insert the T-Connector end with the green wire between the separated housings, ensuring the locking tabs are in place. Repeat this process on the driver's side using the T-Connector end with the yellow wire.
Route the T-Connector end with the yellow wire under the felt trunk liner and under the vehicle's removed rear scuff panel, then under the felt trunk liner on the driver's side. Then repeat the connection process from step 2 on the driver's side using this yellow wire end.
The green wire end of the T-Connector is inserted between the separated housings of the vehicle's taillight harness on the passenger side. The manual does not specify the function of the green wire; contact Curt Manufacturing for details on what circuit it connects to.
The yellow wire end of the T-Connector is routed under the trunk liner and rear scuff panel and inserted between the separated housings of the vehicle's taillight harness on the driver's side. The manual does not specify the function of the yellow wire; contact Curt Manufacturing for details on what circuit it connects to.
The white wire is the ground wire. It must be secured to a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" hole and secure the white wire using the eyelet and screw provided in the kit.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point is available, drill a 3/32" hole and secure the white wire using the eyelet and screw provided.
If you need to drill a grounding point for the white wire, drill a 3/32" hole. Secure the white wire using the eyelet and screw provided in the kit.
A fuse is provided and must be inserted into the fuse holder as part of step 4. The manual does not specify the fuse amperage or what circuit it protects; contact Curt Manufacturing for this information.
The kit includes a black converter box that must be adhered to the frame of the car using the double-sided tape provided. The manual does not specify the function of the converter box; contact Curt Manufacturing for details.
Adhere the black converter box to the frame of the car using the double-sided tape provided in the kit.
The kit includes a 4-flat wire that should be routed to the center of the vehicle and out the trunk when in use. When not in use, roll it up and store it in the battery compartment. The manual does not specify what the 4-flat wire connects to; contact Curt Manufacturing for details.
Route the 4-flat wire to the center of the vehicle and out the trunk when in use. When not in use, roll it up and store it in the battery compartment.
Cable ties are provided to secure any loose parts of the T-Connector. Use them during step 6 after adhering the black converter box to the frame.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. This prevents damage to vehicle components and personal injury.
The Curt 56044 is designed for the Cadillac CTS. Confirm your vehicle's year with Curt or your retailer, as the manual does not specify which model years are supported.
Drilling is required only if a suitable grounding point is not available on the vehicle's frame. If needed, drill a 3/32" hole for the white ground wire. Before drilling, verify that no hidden components will be damaged.
