CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

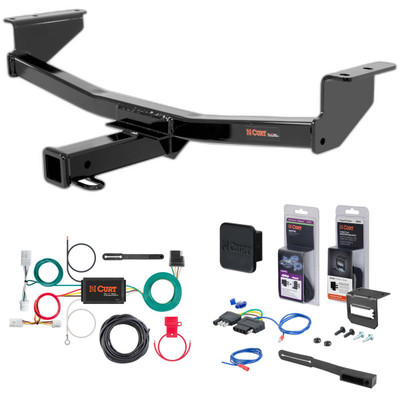

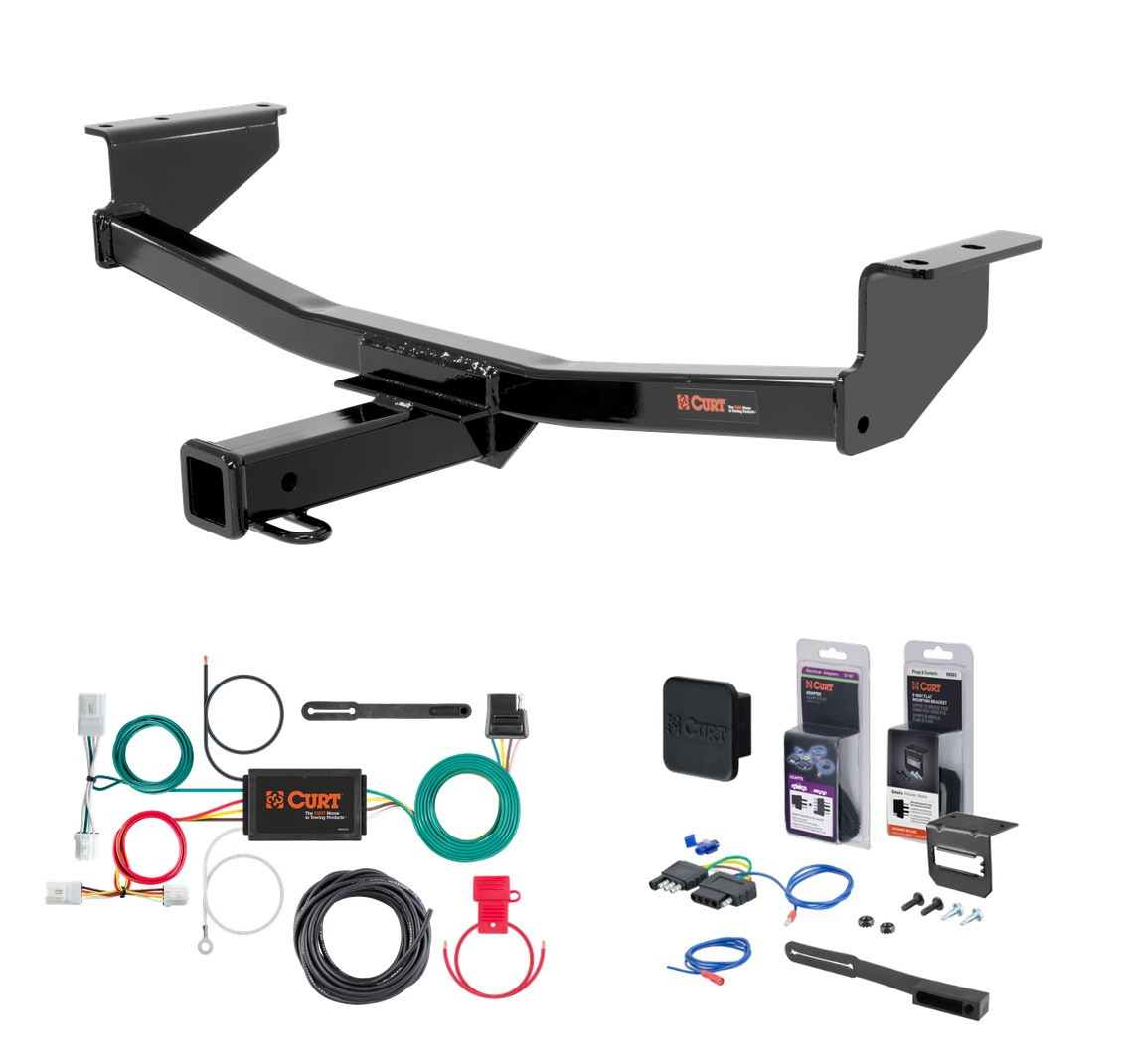

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2008 - 2020 Nissan Rogue Excluding Krom. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Nissan Rogue and Rogue Select (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Infiniti G25, G35, G37 and Q60 and Nissan Rogue (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2020 | Nissan Rogue | Excluding Krom |
The 08 - 20 Nissan Rogue Excluding Krom Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13204 (Part #5W-CHW-2552) fits the following vehicles: 2008-2020 Nissan Rogue. Always verify your specific year, make, and model before ordering.
The 08 - 20 Nissan Rogue Excluding Krom Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13204 (Part #5W-CHW-2552) fits 2008-2020 Nissan Rogue models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 08 - 20 Nissan Rogue Excluding Krom Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13204 (Part #5W-CHW-2552) is designed to fit the 2008-2020 Nissan Rogue.
The 08 - 20 Nissan Rogue Excluding Krom Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13204 (Part #5W-CHW-2552) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT 13204 fits Nissan Rogue models from 2008 to current, in S, SL, and SV trim levels. It does not fit the KROM model.
The hitch has a gross load capacity of 3,500 lbs trailer weight and 525 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
You will need: 3/8" drive ratchet, 3/8" drive 8" extension, 3/8" drive torque wrench, 8mm socket, 18mm socket, 19mm socket, flat and Phillips head screwdrivers, wire pipe brush, and safety glasses.
Yes. You must remove lower underbody panels (if present), the tow hook/bracket from the passenger side frame rail (4-5 bolts), and lower the exhaust for ease of installation. All removed parts should be returned to the vehicle owner.
No, drilling is not required. The hitch uses existing weldnuts on both frame rails.
All 12mm fasteners must be torqued to 86 lb-ft.
The hitch includes 5 hex head cap screws (M12x1.25, grade 10.9, yellow zinc, part 10-10275) and 5 conical washers (1/2", part 30-00149).
Two people may be required to ease installation, though the manual does not state this is mandatory.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning installation.
Non-trailer (wheelless) loads can be carried, but they must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
No drilling required. The hitch uses existing weldnuts on the frame rails.
Torque all 12mm fasteners to 86 lb-ft.
3/8" drive ratchet, torque wrench, sockets (8mm, 18mm, 19mm), 8" extension, screwdrivers, wire pipe brush, and safety glasses.
Remove lower underbody panels (if present), the tow hook/bracket from the passenger side frame rail, and lower the exhaust.
Wear safety glasses at all times during installation. Do not exceed your vehicle manufacturer's towing capacity. Non-trailer loads must be supported by 18050 stabilizing straps.
Yes, the Curt 56033 is designed for Infiniti G35 sedans. It is also compatible with Infiniti G25 and G37 sedans, and Nissan Rogue vehicles. The harness connects to the taillight wiring connectors located behind the taillight housing inside the trunk.
Yes, the Curt 56033 custom wiring harness is compatible with Nissan Rogue vehicles. The installation process for the Rogue differs slightly from Infiniti models: you will remove the rear scuff panel, storage covers and floor coverings from the trunk to access the taillight wiring connectors.
The Curt 56033 has a Signal Circuits rating of 3.0 amps per side and a Tail/Running Circuits rating of 6.0 amps total. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower, as this can cause loss of warranty, overheating and potential fire.
You will need a ratchet, 10mm socket, Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. The harness includes a provided screw and ring terminal for grounding, double-sided tape for the converter box, and a 4-flat dust cover.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process. Reconnect the negative battery terminal only after all other installation steps are complete and all items removed during installation have been reinstalled.
On the driver side, insert the custom wiring harness end with the yellow wire between the separated vehicle taillight connectors. Make sure the connectors are fully inserted with locking tabs in place. Then route the harness end with the green wire to the passenger side and repeat the process using the green wire end. Take care not to damage the locking tabs when separating the original connectors.
Not necessarily. First, locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you may drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area must be free of rust, dirt and paint.
Drill a 3/32" pilot hole if an existing screw with nut is not available in the vehicle frame near the taillight connector. The area should be free of rust, dirt and paint before securing the white ground wire using the ring terminal and provided screw.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The exact location may vary depending on your vehicle model and available space.
The harness has a yellow wire end for the driver side connection, a green wire end for the passenger side connection, a white ground wire, and a black power wire. The yellow and green wires connect to the vehicle taillight connectors on their respective sides. The white wire provides grounding near the taillight connector. The black power wire routes from the vehicle battery as shown on the included CME-PCL-INS sheet.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed this rating, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
After installation is complete, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly. Reconnect the negative battery terminal and reinstall all items removed during installation before testing.
The Curt 56033 includes the custom wiring harness with yellow and green wire ends, a white ground wire with ring terminal, a black power wire, a black converter box, a provided screw for grounding, double-sided tape for mounting the converter box, and a 4-flat dust cover to help prevent corrosion.
For Infiniti G25/G35/G37 sedans, open the tailgate and remove the rear scuff panel, then pull back the felt liner to locate the taillight connectors. For Nissan Rogue, open the trunk, remove the rear scuff panel, storage covers and floor coverings, then remove fasteners securing the rear trim panels on both sides to access the taillight connectors. The connector connection process (Steps 4-5) is the same for both vehicle types.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or your tow vehicle's lamp load rating, whichever is lower. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating. Exceeding either rating can cause loss of warranty, overheating and potential fire.
The Curt 56033 fits Infiniti G25, G35 and G37 sedans, and Nissan Rogue vehicles.
You need a ratchet, 10mm socket, Phillips screwdriver, flat blade screwdriver, and panel trim removal tool.
Yes, disconnect the negative battery terminal before installation and reconnect it only after all installation steps are complete.
Drilling is not always required. First try to use an existing screw with nut in the vehicle frame for grounding. Only drill a 3/32" pilot hole if no existing screw is available.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating as it can cause overheating and potential fire.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
