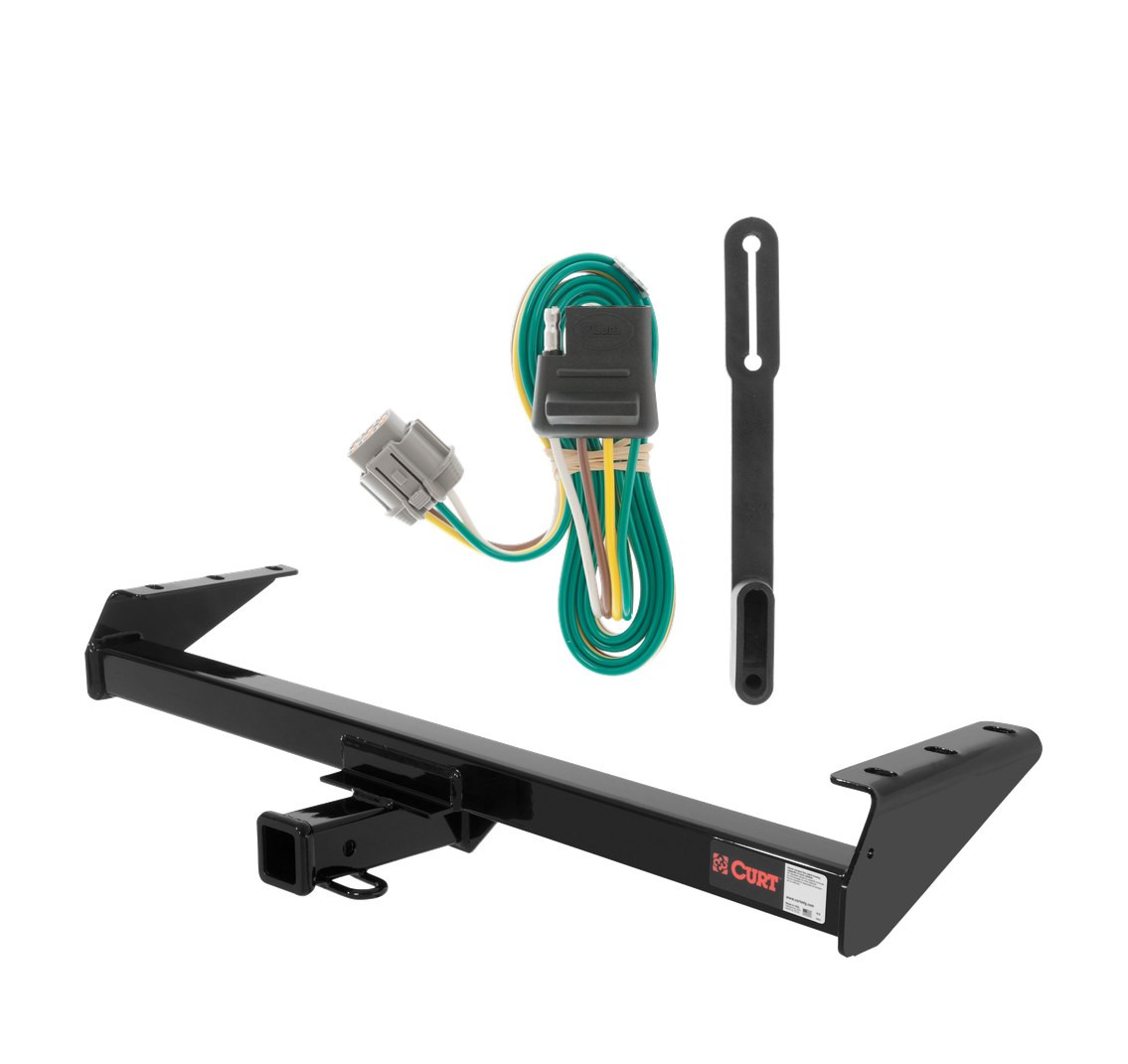

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2009 - 2012 Suzuki Equator. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

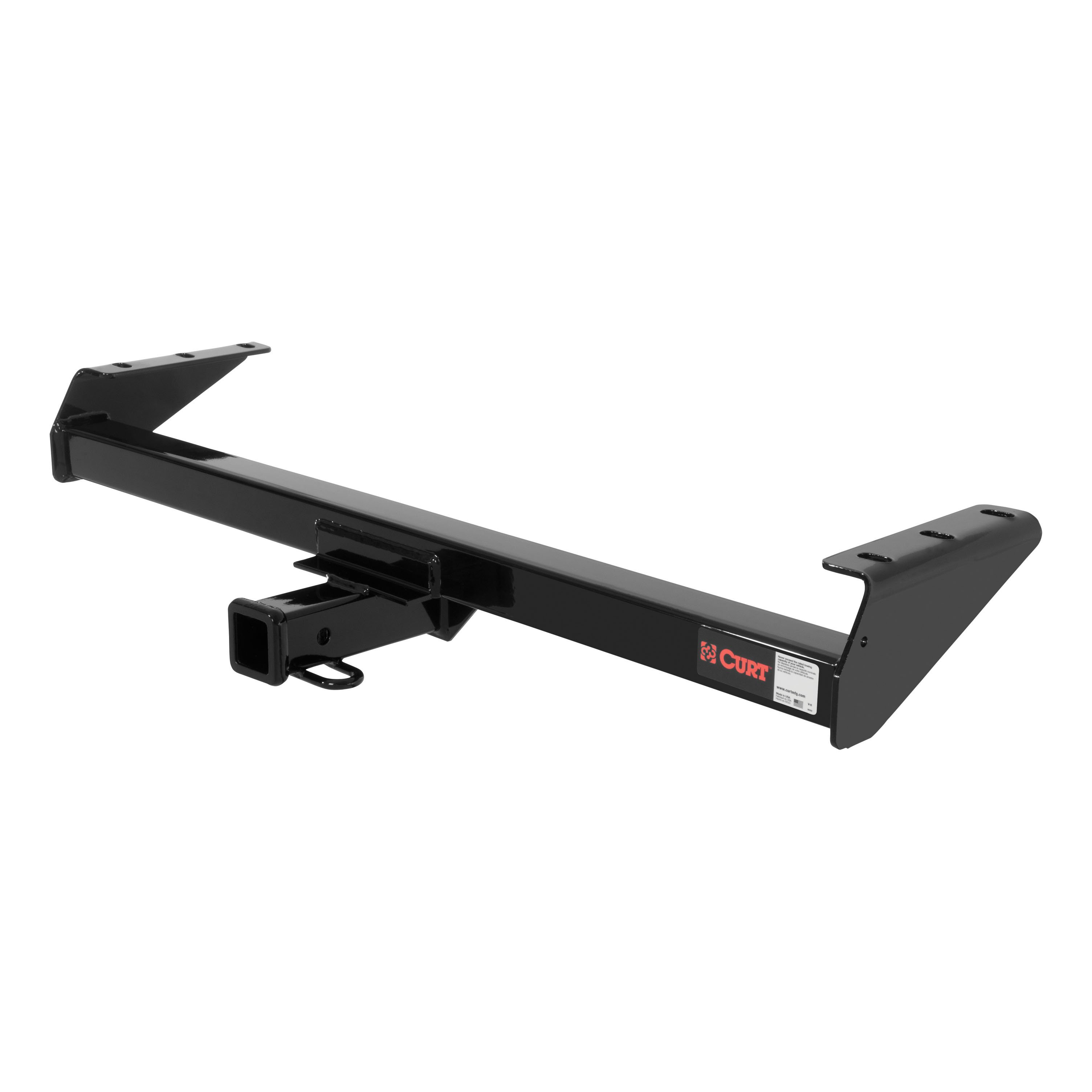

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Nissan Frontier and Suzuki Equator (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 800 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

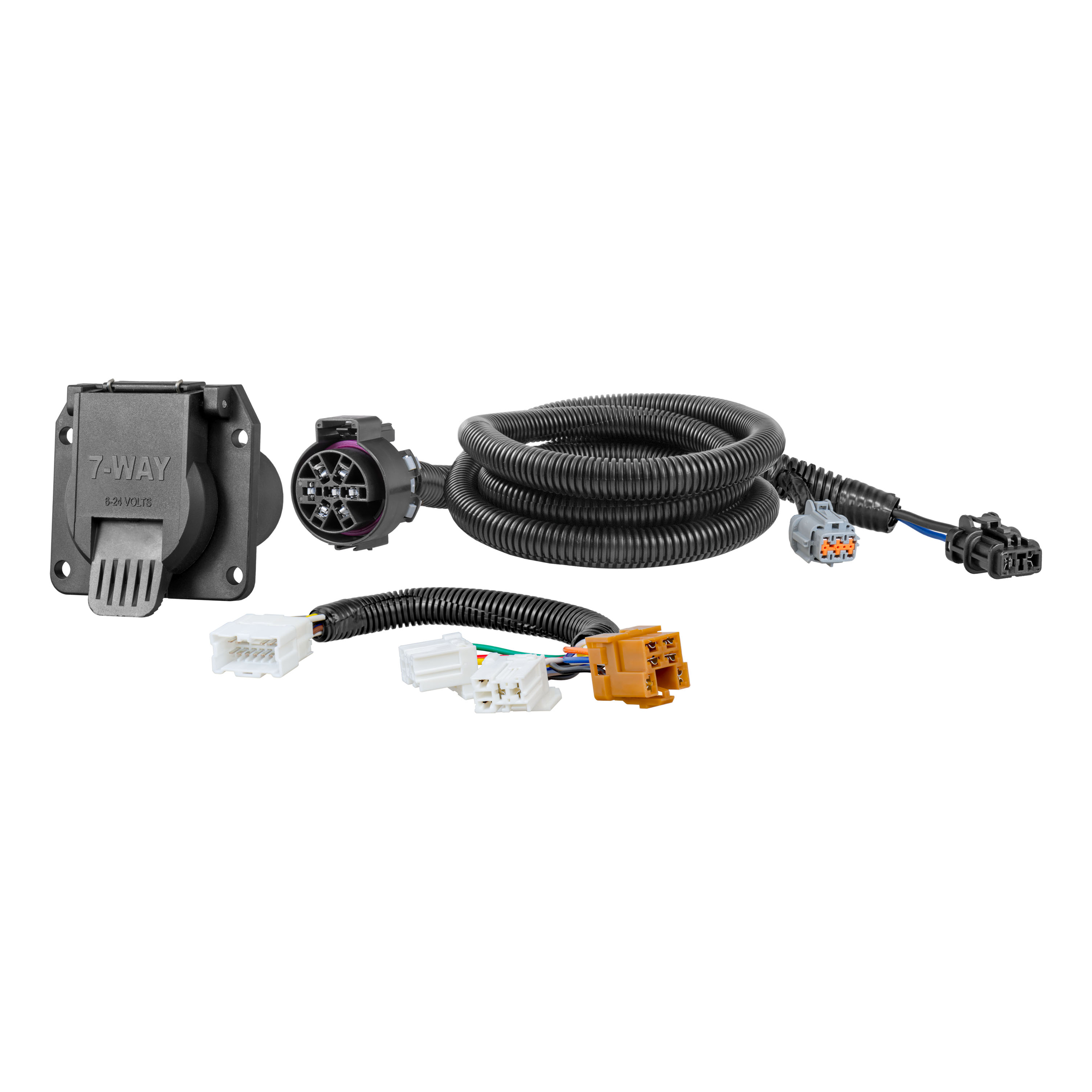

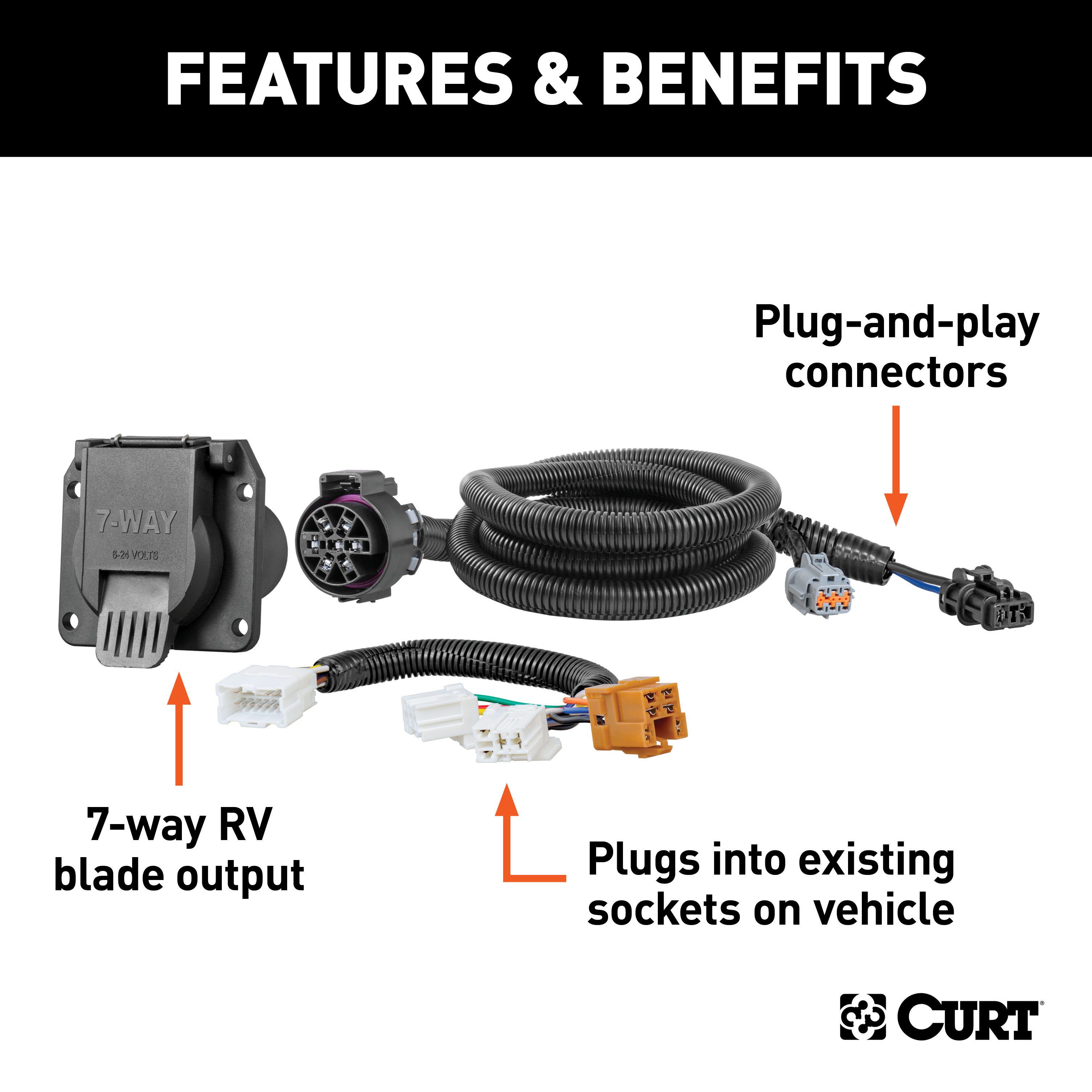

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Nissan Frontier, Pathfinder, Xterra and Suzuki Equator (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2012 | Suzuki Equator | — |
The 09 - 12 Suzuki Equator Curt 2", Class 3 Trailer Tow Hitch + 7-way Wiring Kit 13241 (Part #CHW-2815) fits the following vehicles: 2009-2012 Suzuki Equator. Always verify your specific year, make, and model before ordering.
The 09 - 12 Suzuki Equator Curt 2", Class 3 Trailer Tow Hitch + 7-way Wiring Kit 13241 (Part #CHW-2815) fits 2009-2012 Suzuki Equator models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 09 - 12 Suzuki Equator Curt 2", Class 3 Trailer Tow Hitch + 7-way Wiring Kit 13241 (Part #CHW-2815) is designed to fit the 2009-2012 Suzuki Equator.
The 09 - 12 Suzuki Equator Curt 2", Class 3 Trailer Tow Hitch + 7-way Wiring Kit 13241 (Part #CHW-2815) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 13241 (also designated RRH13241) is designed for Nissan Frontier and Suzuki Equator vehicles. Confirm your vehicle model matches before purchasing.
The manual specifies a gross load capacity of 5,000 lbs trailer weight and 500 lbs tongue weight when used as a weight carrying hitch, and 8,000 lbs trailer weight and 800 lbs tongue weight when used as a weight distribution hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
No, drilling is not required. The hitch uses existing factory weldnuts on the frame rails, so no holes need to be drilled into your vehicle.
The kit includes 6 M12×1.25 hex head cap screws (HHCS), class 10.9, zinc-plated (part 10-10275) and 6 conical washers (part 30-00149). These fasteners secure the hitch to the existing factory weldnuts on the frame rails.
All M12 fasteners must be torqued to 86 lb-ft.
1. Raise the hitch into position. 2. Secure it with the M12 bolts and conical washers into the existing factory weldnuts on the frame rails as shown in the diagram. 3. Torque all M12 fasteners to 86 lb-ft. No drilling is required.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and prevent loosening due to vibration and use.
Curt Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Nissan Frontier and Suzuki Equator.
No. The hitch uses existing factory weldnuts on the frame rails.
Six M12×1.25 hex head cap screws and six conical washers. These bolt into existing factory weldnuts.
Torque all M12 fasteners to 86 lb-ft.
Weight carrying: 5,000 lbs trailer / 500 lbs tongue. Weight distribution: 8,000 lbs trailer / 800 lbs tongue. Do not exceed your vehicle manufacturer's towing capacity.
Periodically check that all fasteners are tight and structural components are sound.
Yes, the Curt 56226 is designed for Nissan Frontier, Pathfinder, and Xterra, as well as Suzuki Equator. It is classified as a SUV/Mini & Full-Sized Van (S) connector. Verify your vehicle model matches the application list before purchasing.
Yes, the Curt 56226 custom wiring connector is compatible with the Suzuki Equator. It is designed for SUVs, Mini & Full-Sized Vans in the S category.
You will need a panel trim removal tool and a flat blade screwdriver. These are the only tools specified in the installation instructions.
The Curt 56226 includes a custom wiring connector with relays, a 7-way harness connector, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion. A bracket for mounting the 7-way end is not included and must be sourced separately.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process.
The vehicle 12-pin wiring connector is located behind the passenger side kick panel. You must first remove the sill plate by pulling upwards on the front passenger side, then remove the kick panel to access the connector. The connector will be similar to the one on the harness with the relays.
Insert the custom wiring connector with relays fully into the vehicle 12-pin connector, ensuring the locking tabs are in place. Secure any loose wires with the provided cable ties.
The vehicle factory tow plug is located on the driver side, along the frame rail behind the rear bumper. Remove the protective cap carefully, taking care not to damage the locking tabs.
Insert the 7-way harness connector into the vehicle tow harness connector, ensuring the locking tab is in place. The connector will be similar to the one on the 7-way harness.
Route the 7-way connector to the center of the vehicle. Mount the 7-way end in an accessible location using a bracket (not included). Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation, reconnect the negative battery terminal, and install the provided 4-flat dust cover to help prevent corrosion.
Test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. Refer to your vehicle owner's manual or contact the vehicle manufacturer for specific lamp load rating information.
Yes, the Curt 56226 is designed for these vehicles in the SUV/Mini & Full-Sized Van (S) category.
Tools: panel trim removal tool and flat blade screwdriver. Included parts: custom wiring connector with relays, 7-way harness, cable ties, and 4-flat dust cover. You must source a bracket separately for mounting the 7-way end.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
