CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2013 Suzuki Equator
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Electrical System Type | 2W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S5,T3 |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2013 | Suzuki Equator | — |

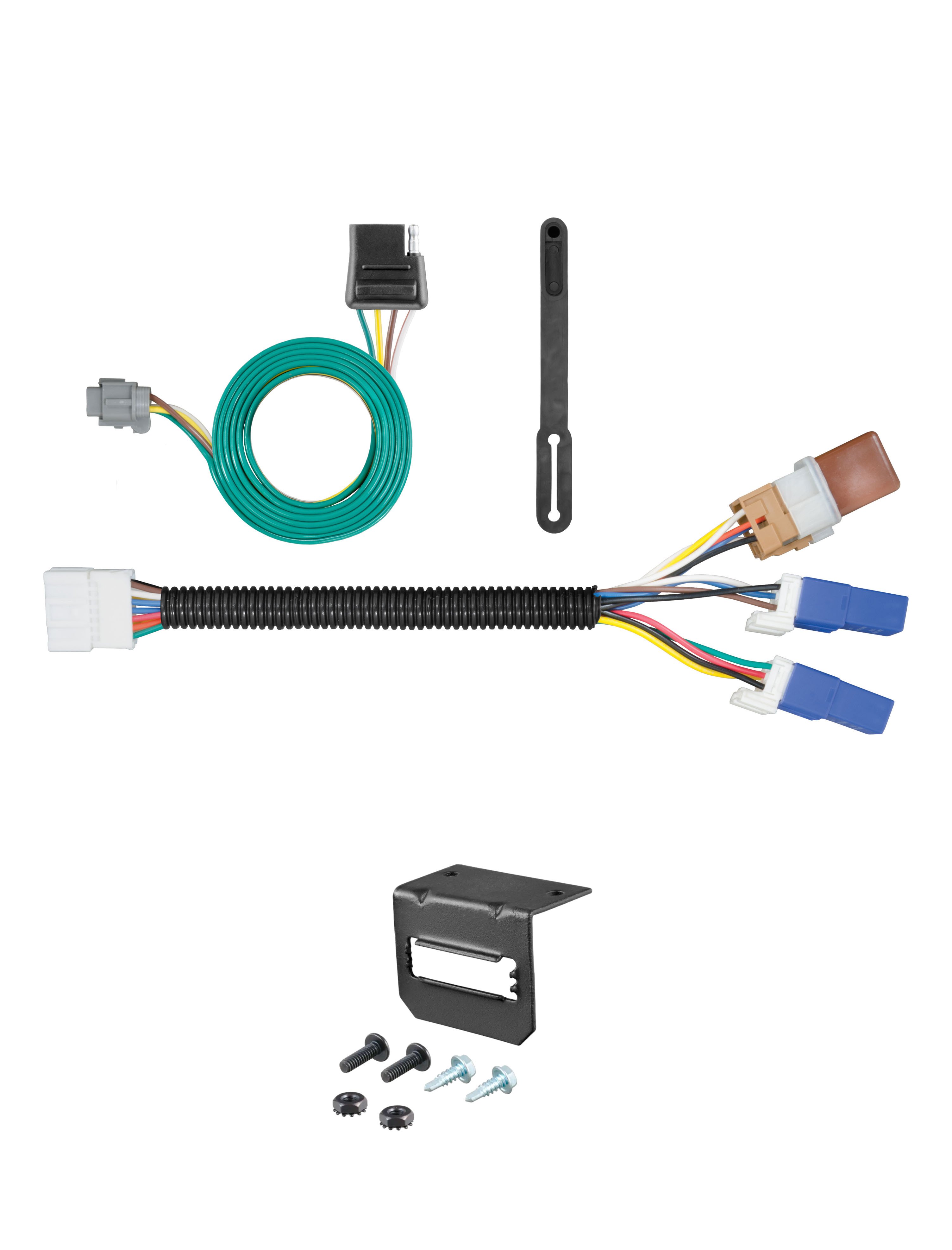

Yes, the Curt 56225 custom wiring connector is designed for Nissan Frontier, Pathfinder, and Xterra, as well as Suzuki Equator. The connector is available in two configurations: S5 for SUVs, mini and full-sized vans, and T3 for pickup trucks. Confirm which configuration matches your vehicle type before installation.
Yes, the Curt 56225 custom wiring connector is compatible with Suzuki Equator. The installation procedure is the same as for Nissan vehicles listed in the applications table.
You will need a 10mm socket. The installation kit includes cable ties and a 4-flat dust cover. No other specialized tools are required.
Yes, you must disconnect the negative battery terminal on the driver side under the hood before beginning installation. This is the first step in the installation process.
The vehicle wiring harness is located on the passenger side behind the kick panel. You will need to remove the sill plate by pulling upwards to access it. The harness connects to a 12-pin vehicle wiring connector.
Insert the custom wiring harness with relays into the vehicle 12-pin connector located behind the passenger side kick panel. Make sure the connectors are fully inserted with the locking tabs in place. Secure any loose wires with the provided cable ties.
The factory tow plug is located on the driver side along the frame rail behind the rear bumper. It will have a protective cap with locking tabs. Remove the cap carefully to avoid damaging the locking tabs.
Insert the 4-flat harness connector into the vehicle tow harness connector, making sure the locking tab is in place. The connectors should be fully seated.
Route the 4-flat harness to the center of the vehicle and secure it in a convenient out-of-the-way location using the provided cable ties. Avoid routing near sharp edges and hot exhaust areas.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Refer to your vehicle owner's manual or contact the vehicle manufacturer for the specific lamp load rating of your vehicle.
Test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring connector functions properly.
Yes, install the provided 4-flat dust cover after reconnecting the negative battery terminal. The dust cover helps prevent corrosion of the connector.
Yes, the Curt 56225 is designed for these vehicles. Two configurations are available: S5 for SUVs and vans, T3 for pickup trucks.
A 10mm socket is needed. The kit includes cable ties and a 4-flat dust cover. No other specialized tools are required.
Yes, disconnect the negative battery terminal before starting installation.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause overheating and potential fire.
