2010 - 2015 Lexus RX450h Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13143CURTIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2010 - 2015 Lexus RX450h
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

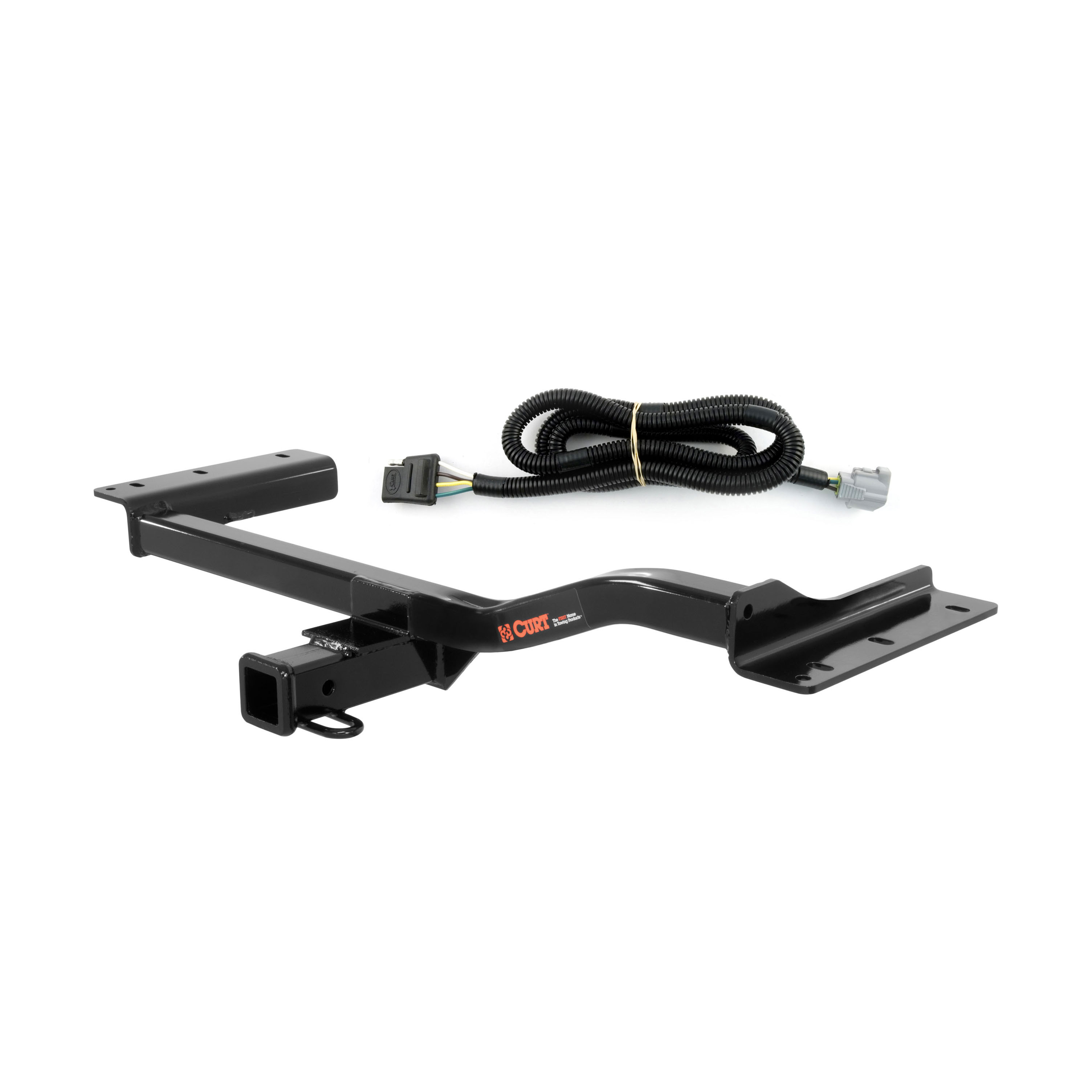

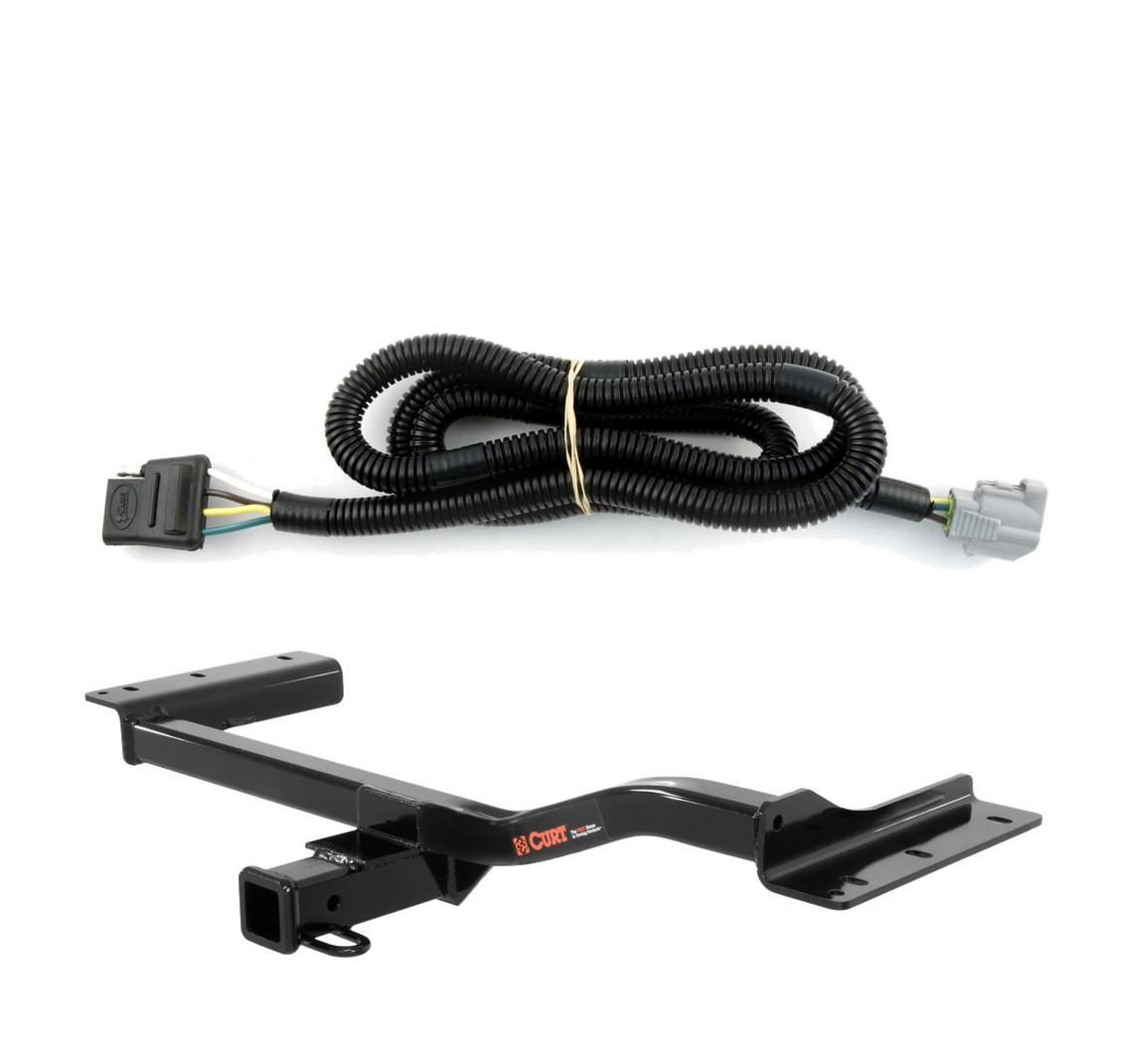

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2010 - 2015 Lexus RX450h. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Lexus RX350 and RX450h (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Lexus RX350 and RX450h (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2015 | Lexus RX450h | — |
The 10 - 15 Lexus RX450h Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13143 (Part #CHW-2169) fits the following vehicles: 2010-2015 Lexus RX450h. Always verify your specific year, make, and model before ordering.
Yes, the 10 - 15 Lexus RX450h Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13143 (Part #CHW-2169) is designed to fit the 2010-2015 Lexus RX450h.
The 10 - 15 Lexus RX450h Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13143 (Part #CHW-2169) fits 2010-2015 Lexus RX450h models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 10 - 15 Lexus RX450h Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13143 (Part #CHW-2169) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The part number is 13143. This hitch is designed for Lexus RX 350 (including F Sport) and RX 450H models from 2010–2015.
Yes, part number 13143 fits Lexus RX 350 F Sport models from 2010–2015. F Sport models require additional installation steps including placement of a support plate under the passenger side plate and relocation of the support bar, which will be rotated upside down from its original position.
Yes, part number 13143 is designed for Lexus RX 450H models from 2010–2015.
When used as a weight-carrying hitch, the gross load capacity is 4,000 lbs. trailer weight and 600 lbs. tongue weight. When used as a weight-distribution hitch, the gross load capacity is 5,000 lbs. trailer weight and 600 lbs. tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 35 lbs.
The hitch includes 6 M12 – 1.25 x 40 hex bolts and 6 conical toothed washers (1/2"). The hitch uses existing weldnuts in the frame rails (3 each side) and existing hole plugs. For F Sport models, the support bar is reattached using existing nuts removed from the tow loops.
Required tools are: ratchet, torque wrench, 9-inch socket extension, 10mm socket, 17mm socket, 19mm socket, screwdriver (flat head), and aviation shears. A rotary tool may be used as an alternative to aviation shears for trimming the fascia. Safety glasses must be worn at all times during installation.
No, drilling is not required. The hitch uses existing weldnuts in the frame rails and existing hole plugs.
Yes, trimming is required. The underbody panel and lower fascia must be trimmed to accommodate the hitch and support bar (on F Sport models). Use masking tape to layout the trim area, then use a rotary tool or aviation shears to trim. The fascia trim area is 4.50 inches wide by 6.00 inches tall. Consult the vehicle owner prior to trimming.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve the quality of the install and reduce the time required.
Professional installation time is approximately 70 minutes. Novice (DIY) installation time is approximately 38 minutes. Actual time may vary depending on experience and familiarity with the vehicle.
All 12mm fasteners must be torqued to 86 ft-lbs. This applies to the M12 – 1.25 x 40 hex bolts that secure the hitch to the frame rail weldnuts.
Tow loop reattachment is optional on non-F Sport models. However, tow loops cannot be reattached on F Sport models. The existing tow loop fasteners are removed during installation and should be returned to the vehicle owner.
On F Sport models, the support plate is placed under the passenger side plate. The hitch is clamped between the frame and the support plate. The support bar is then attached to the hitch and support plate using existing nuts removed from the tow loops.
The support bar is rotated upside down (180 degrees) from how it was originally attached to the tow loops. It is then attached to the hitch and support plate using the existing nuts that were removed from the tow loops.
The exhaust may need to be temporarily lowered to ease installation. If lowered, the exhaust must be supported as needed to prevent damage. The exhaust should be reinstalled after the hitch is secured in position.
The installation sequence is: (1) remove lower fascia by removing 13 fasteners; (2) temporarily lower exhaust if needed; (3) remove existing hole plugs from frame rails; (4) on F Sport models, remove support bar by removing four nuts; (5) remove existing tow loop fasteners and tow loops; (6) raise hitch into position, aligning with existing weldnuts; (7) secure hitch with 12mm bolts and 1/2" conical toothed washers; (8) on F Sport models, attach support bar using existing nuts; (9) torque all 12mm fasteners to 86 ft-lbs; (10) reinstall exhaust if lowered; (11) trim fascia as needed and reattach.
After installation, verify that the fascia fits properly and has adequate clearance. Periodically check that all fasteners are tight and that all structural components are sound. Do not exceed your vehicle manufacturer's recommended towing capacity.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact inspection interval, but regular checks are recommended to maintain safe operation.
Never exceed your vehicle manufacturer's recommended towing capacity. The hitch itself supports up to 4,000 lbs. trailer weight and 600 lbs. tongue weight as a weight-carrying hitch, or 5,000 lbs. trailer weight and 600 lbs. tongue weight as a weight-distribution hitch, but your vehicle's manufacturer specifications take precedence.
Safety glasses must be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized Curt installer for additional assistance. Read all instructions thoroughly before beginning installation.
Yes, part number 13143 is designed for Lexus RX 350 (including F Sport) and RX 450H models from 2010–2015.
No, drilling is not required. The hitch uses existing weldnuts in the frame rails.
Professional installation takes approximately 70 minutes. Novice DIY installation takes approximately 38 minutes.
Safety glasses must be worn at all times during installation. If hesitant, contact an authorized Curt installer. Read all instructions thoroughly before beginning.
If the fascia does not fit properly after trimming, trim further as needed and try again. The fascia trim area should be approximately 4.50 inches wide by 6.00 inches tall. Check for proper fit and clearance before reattaching the fascia using the existing hardware.
Ensure the hitch plates are properly aligned with the existing weldnuts in the frame rails. Start with the passenger side plate and pull down on the exhaust to create clearance. If weldnuts require cleaning, use a rotary tool to clean them. Verify that the holes in the frame rails align with the holes in the hitch before inserting the bolts.

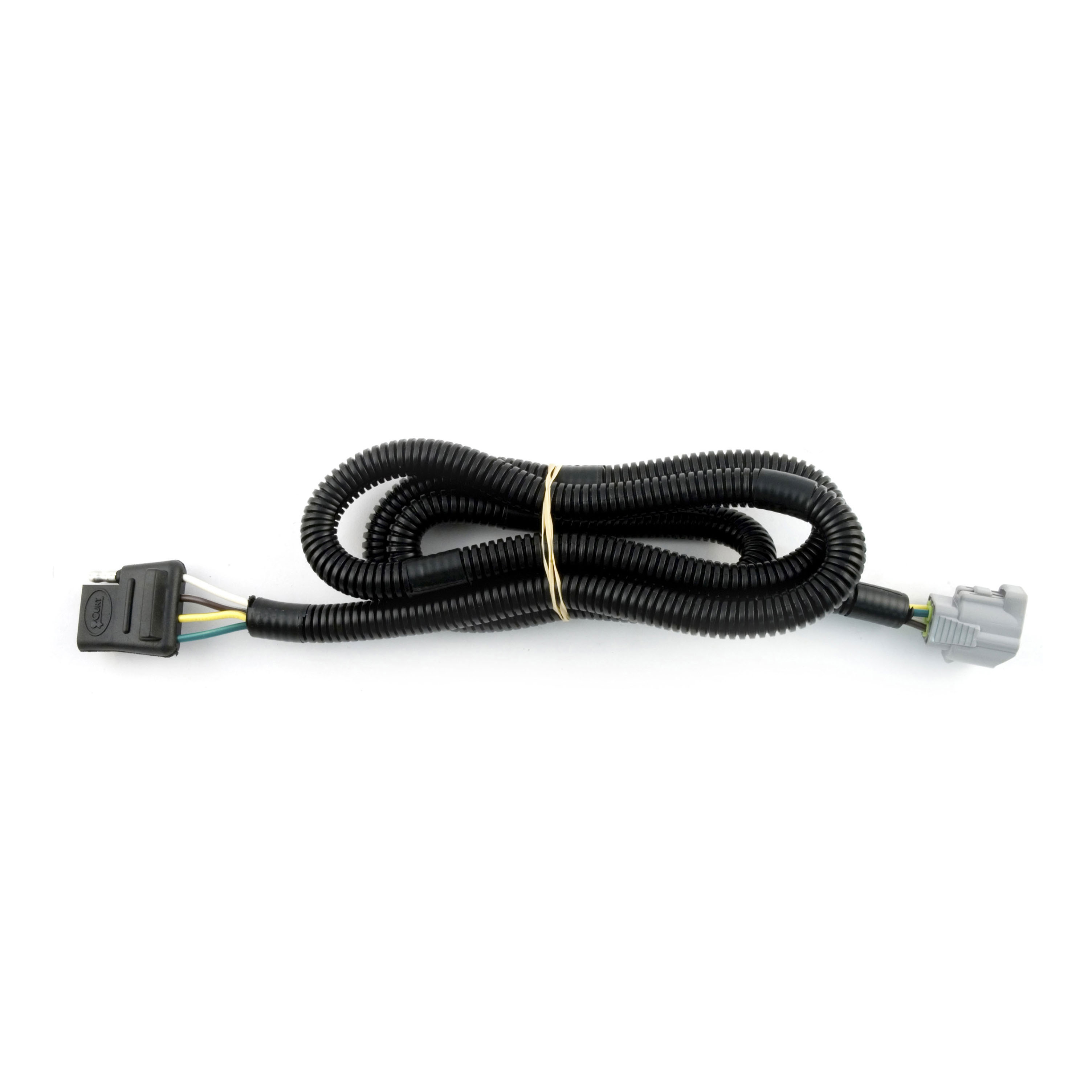

The Curt 56083 custom wiring connector is designed for Lexus RX 350 models equipped with a tow package. If your RX 350 has the tow package, the connector will fit. If you are unsure whether your vehicle has the tow package, check your vehicle owner's manual or contact the vehicle manufacturer.
Yes, the Curt 56083 custom wiring connector is compatible with the Lexus RX 450h.
Some RX 350 models may need to be programmed to accept the custom wiring connector. This programming must be done by a Lexus dealer. Check with your dealer to determine whether your specific vehicle requires programming.
The Curt 56083 includes the custom wiring connector, a protective cap for the vehicle plug, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
1. Locate the vehicle taillight wiring connector and remove the protective cap. 2. Insert the custom wiring connector end into the vehicle connector, ensuring the connectors are fully inserted with locking tabs in place. 3. Route the 4-flat connector to the center of the vehicle and out of the trunk when in use; roll up and store inside the trunk when not in use. Secure loose wires with the provided cable ties. 4. Some models may require dealer programming. 5. Reinstall all removed items and install the provided 4-flat dust cover.
The vehicle taillight wiring connector is located behind the driver side rear bumper. The manual refers to this location as 'S5' and shows a representative vehicle diagram, but for specific location details on your model, check your vehicle owner's manual or contact the vehicle manufacturer.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route the 4-flat to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. For the specific product rating, refer to the product documentation or contact Curt Manufacturing.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
The provided 4-flat dust cover helps prevent corrosion of the connector. Install it after completing the wiring connector installation.
Yes, the Curt 56083 is designed for Lexus RX 350 with tow package and RX 450h. Some models may require dealer programming.
The manual lists no tools as needed for installation. The connector plugs directly into the vehicle taillight wiring connector.
The manual does not specify whether bumper removal is required. The connector is located behind the driver side rear bumper. Check your vehicle owner's manual or contact the vehicle manufacturer for access instructions.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. Refer to product documentation for the specific rating.
Test for proper function using a test light or by connecting a properly wired trailer.
