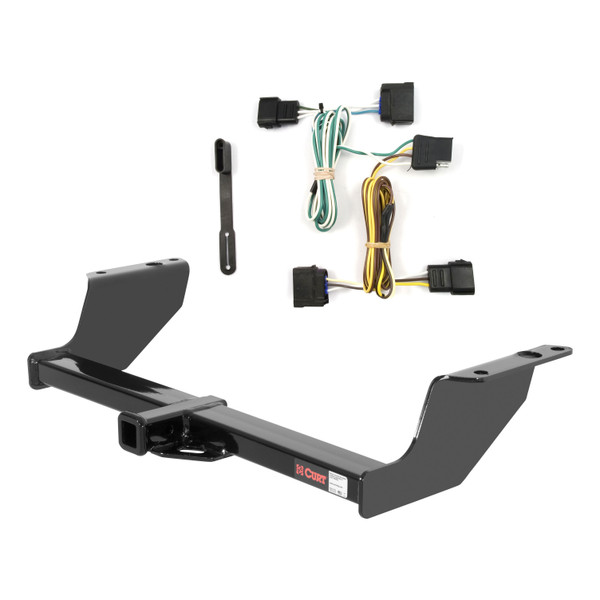

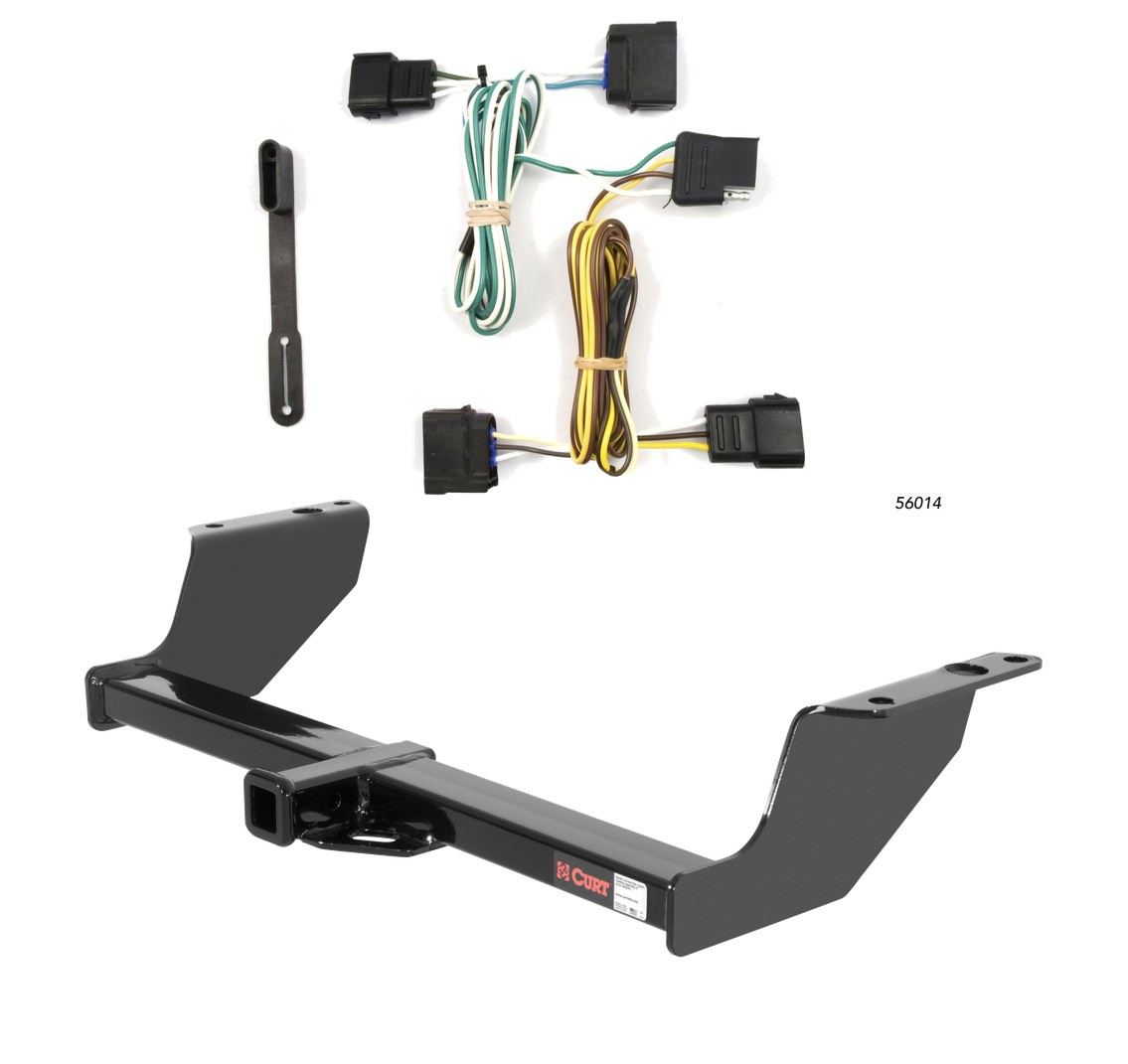

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2004 - 2011 Ford Ranger 2000 - 2005 models are no drill. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Mazda B2300, B3000, B4000 and Ford Ranger (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.

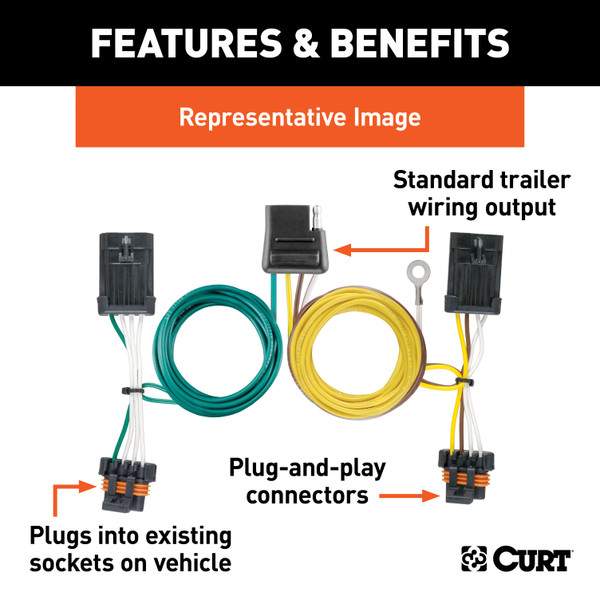

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Corvette, Ford Focus and Ford Ranger (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2011 | Ford Ranger | 00: 05 models are no drill |
The 2011 Ford Ranger 00 - 05 models are no drill Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12012 (Part #CHW-1274) fits 2011 Ford Ranger models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2011 Ford Ranger 00 - 05 models are no drill Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12012 (Part #CHW-1274) is designed to fit the 2011 Ford Ranger.
The 2011 Ford Ranger 00 - 05 models are no drill Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12012 (Part #CHW-1274) fits the following vehicles: 2011 Ford Ranger. Always verify your specific year, make, and model before ordering.
The 2011 Ford Ranger 00 - 05 models are no drill Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12012 (Part #CHW-1274) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 12012 is designed for Ford Ranger and Mazda trucks. However, the manual does not specify which model years or cab/bed configurations are compatible. Contact Curt Manufacturing or your dealer to confirm fitment for your specific vehicle year and configuration.
No. The manual explicitly states that relocation of the spare tire bracket is not required for this installation.
The kit includes: 6 square hole spacers (CM-SP1), 4 serrated flange nuts 1/2-13 UNC Grade 8 (part 20-00062), and 4 Grade 8 carriage bolts 1/2-13 UNC 1-3/4" long (part 10-10272).
If your vehicle has a step bumper, you must remove the rearmost bumper bracket bolts and J-nuts on both sides. The hitch is then positioned to sandwich the bumper brackets between the hitch and vehicle frame. The bumper brackets are reinstalled with the supplied fasteners.
Yes. You must drill two 1/2" holes into the frame at the forward end of the hitch. On some models, these holes may already exist. The hitch is used as a template to mark the hole locations.
Two 1/2" diameter holes must be drilled into the frame at the forward end of the hitch. The hitch itself is used as a template to mark the correct locations.
All 1/2" fasteners must be torqued to 110 lb-ft.
The square hole spacer (CM-SP1) is placed between the frame and side brackets at the forward attachment point on vehicles equipped with a step bumper. Six spacers are included in the kit.
The manual does not provide the gross load capacity, trailer weight limit, or tongue weight specification. You must not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing or your vehicle dealer for the specific capacity of hitch 12012.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual emphasizes this requirement. For the specific capacity rating of hitch 12012, contact Curt Manufacturing.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is a routine inspection requirement to maintain safe operation.
Hitch 12012 is designed for use with ballmount D-18 / 45518.
Yes, hitch 12012 is designed for Ford Ranger and Mazda trucks. Confirm your specific model year with Curt Manufacturing.
Yes. Two 1/2" holes must be drilled into the frame at the forward end of the hitch (some models may have pre-existing holes).
The kit includes 6 square hole spacers, 4 Grade 8 carriage bolts (1/2-13 UNC, 1-3/4" long), and 4 serrated flange nuts (1/2-13 UNC).
All 1/2" fasteners must be torqued to 110 lb-ft.
Periodically check that all fasteners are tight and all structural components are sound.
Yes, Curt part 56014 is designed to fit both Chevrolet Corvette and Ford Focus. However, the installation procedure differs between the two vehicles. Ford Focus installation accesses taillights from the trunk and uses a 3/32" ground hole if needed. Corvette installation removes taillights using T10 Torx screws and routes wiring through a rubber grommet in the trunk felt liner.
The Curt 56014 includes a T-Connector harness with two connector ends (one with yellow wire for driver side, one with green wire for passenger side), a 4-Flat connector, a white ground wire with ring terminal, a screw for grounding, and cable ties for securing the 4-Flat connector.
1. Open the trunk and remove the rear scuff panel by removing its plastic fasteners. Pull back the felt trunk liner on both sides to access the two 10mm nuts holding each taillight. Remove the nuts and carefully pull out each taillight. 2. Locate the black taillight wiring harness connectors behind each taillight and separate them carefully without damaging the locking tabs. 3. Route the T-Connector end with the yellow wire from underneath the vehicle to the driver side housing and insert it between the separated connectors, ensuring full insertion with locking tabs in place. 4. Locate a suitable grounding point near the connector (existing screw with nut in the frame) or drill a 3/32" hole and secure the white ground wire using the ring terminal and screw provided. 5. Repeat step 3 on the passenger side using the T-Connector end with the green wire. 6. Route the 4-Flat to the center of the vehicle and secure it in an out-of-the-way location near the hitch using the cable ties provided.
1. Remove the two taillights closest to the center of the vehicle by removing the T10 Torx screws holding each in place. 2. Locate the black taillight wiring harness connectors behind each taillight and separate them carefully without damaging the locking tabs. 3. Route the T-Connector end with the yellow wire across from the passenger side taillight opening to the driver's side taillight opening and insert it between the separated connectors, ensuring full insertion with locking tabs in place. 4. Repeat step 3 on the passenger side using the T-Connector end with the green wire. 5. Open the trunk and pull back the felt trunk liner on the passenger side behind the taillight to reveal the rubber grommet. Remove the grommet and make a small slit from the outside to the center using a utility knife. Route the 4-Flat and white ground wire through the slot in the grommet. Locate a suitable grounding point near the connector (existing screw with nut in the vehicle's frame near the grommet). 6. Route the 4-Flat out from under the felt trunk liner and out of the trunk when in use. When not in use, roll up and store in an out-of-the-way location in the trunk.
Drilling is not always required. The installation calls for locating a suitable existing grounding point (an existing screw with nut in the vehicle's frame) near the connector. Only if no suitable grounding point exists should you drill a 3/32" hole and secure the white ground wire using the ring terminal and screw provided.
No drilling is required for the Corvette installation. However, you will need to use a utility knife to make a small slit in the rubber grommet that the taillight wires run through, from the outside to the center, to route the 4-Flat and white ground wire through it.
For Ford Focus: a tool to remove plastic fasteners from the rear scuff panel and a 10mm socket or wrench to remove the taillight nuts. A 3/32" drill bit is needed only if you must drill a grounding hole. For Chevrolet Corvette: a T10 Torx screwdriver or bit to remove the taillight screws and a utility knife to slit the rubber grommet. Both vehicles may require a screwdriver to access or install the grounding screw. The manual does not specify whether a torque wrench is required.
The yellow wire is routed to the driver side taillight connector, and the green wire is routed to the passenger side taillight connector. The T-Connector harness has separate ends for each side to allow the trailer wiring to tap into the vehicle's existing taillight circuits.
The white ground wire must be secured to a suitable grounding point near the T-Connector. On Ford Focus, this is located near the driver side connector. On Chevrolet Corvette, it is located near the grommet in the trunk. The wire is secured using a ring terminal and screw. If no existing screw with nut is available in the vehicle's frame, you may drill a hole (3/32" on Ford Focus) to install the grounding screw.
On Ford Focus, route the 4-Flat to the center of the vehicle and secure it in an out-of-the-way location near the hitch using the cable ties provided. On Chevrolet Corvette, route the 4-Flat through the slitted rubber grommet in the trunk felt liner, then out from under the felt trunk liner and out of the trunk when in use. When not in use on the Corvette, roll up and store the 4-Flat in an out-of-the-way location in the trunk.
Take care not to damage the locking tabs when separating the taillight wiring harness connectors. The connectors must be fully inserted with locking tabs in place after inserting the T-Connector ends to ensure a secure connection.
The Curt 56014 is designed for Chevrolet Corvette and Ford Focus only. Installation procedures differ between the two vehicles.
For Ford Focus: 10mm socket/wrench, plastic fastener removal tool, and optionally a 3/32" drill bit. For Chevrolet Corvette: T10 Torx screwdriver/bit and utility knife. Both may need a screwdriver for the grounding screw.
On Ford Focus, drilling a 3/32" hole is required only if no existing grounding point is available. On Chevrolet Corvette, no drilling is needed, but you must slit the rubber grommet with a utility knife.
Yes. On Ford Focus, remove both taillights by removing 10mm nuts after pulling back the trunk felt liner. On Chevrolet Corvette, remove the two center taillights by removing T10 Torx screws.
The T-Connector harness inserts between the separated taillight connectors (yellow wire to driver side, green wire to passenger side). The white ground wire must be secured to an existing frame screw or a drilled hole using the provided ring terminal and screw.
