Verify Fitment
Select your vehicle to confirm this part fits.

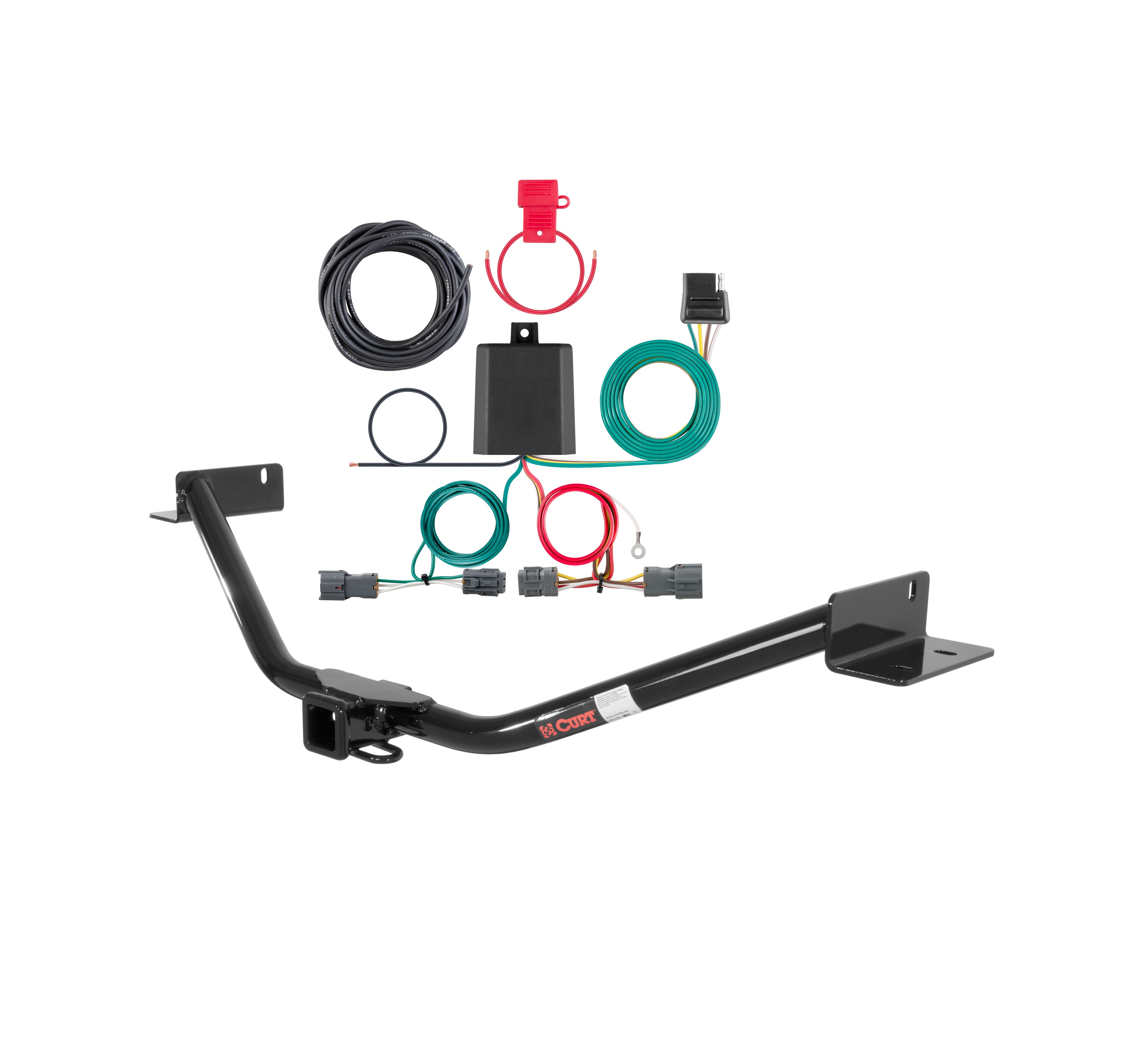

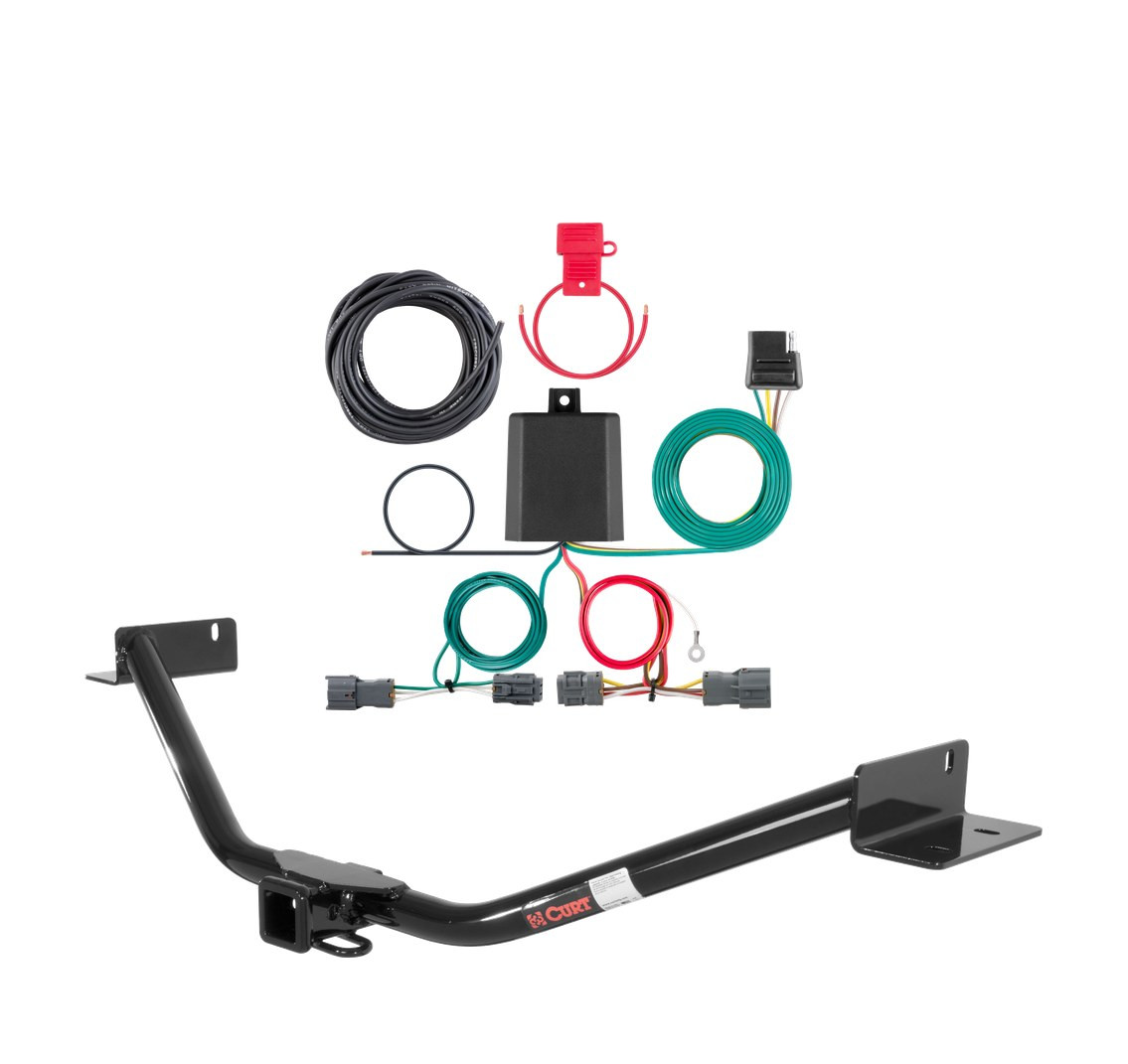

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2011 - 2013 Kia Sorento Excluding SX. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Santa Fe and Kia Sorento (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

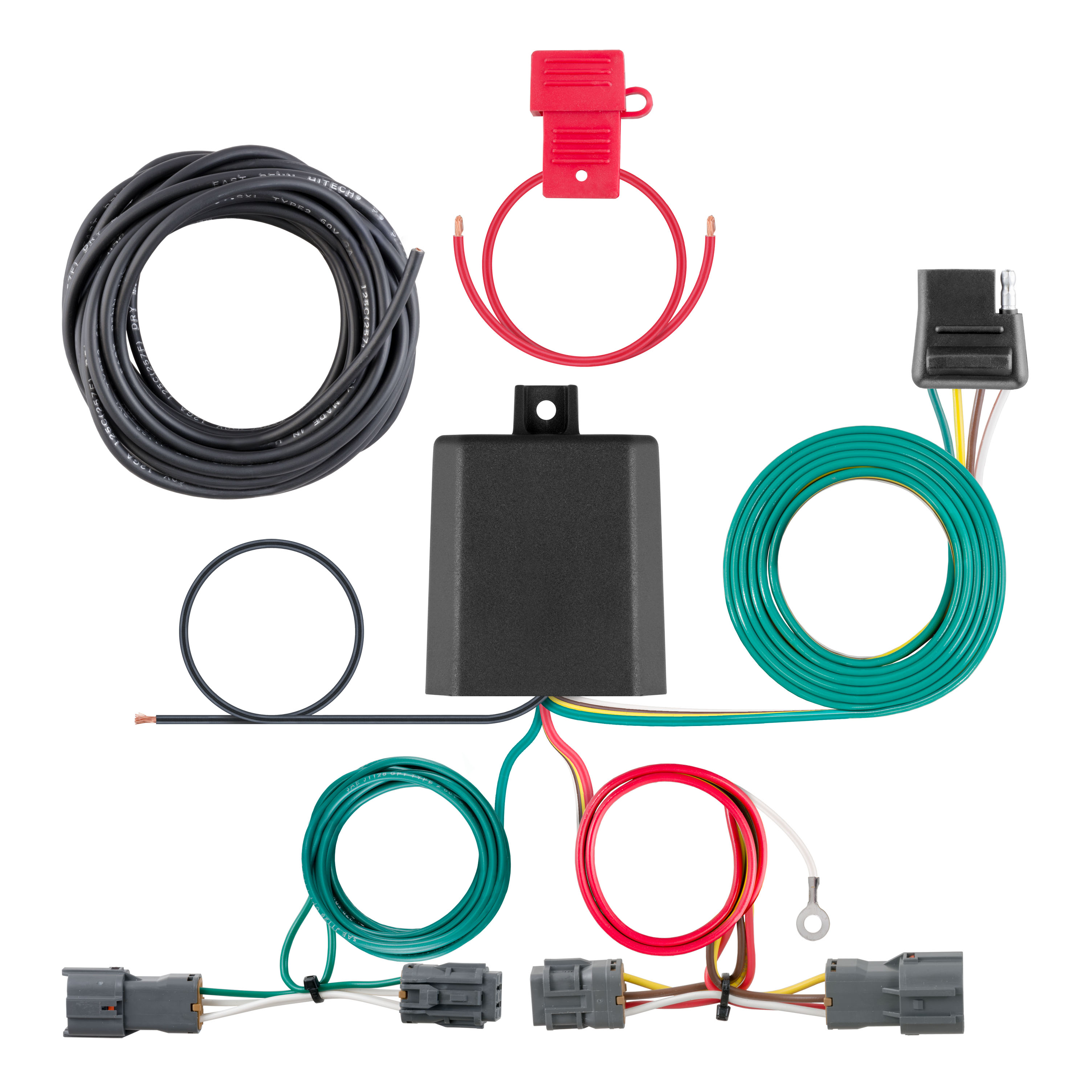

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Kia Sorento (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2013 | Kia Sorento | Excluding SX |
Yes, the 11 - 13 Kia Sorento Excluding SX Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13073 (Part #CHW-2069) is designed to fit the 2011-2013 Kia Sorento.
The 11 - 13 Kia Sorento Excluding SX Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13073 (Part #CHW-2069) fits the following vehicles: 2011-2013 Kia Sorento. Always verify your specific year, make, and model before ordering.
The 11 - 13 Kia Sorento Excluding SX Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13073 (Part #CHW-2069) fits 2011-2013 Kia Sorento models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The 11 - 13 Kia Sorento Excluding SX Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13073 (Part #CHW-2069) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Curt part number 13073 is designed for the Hyundai Santa Fe and 2nd Generation Kia Sorento, including SX models. If your vehicle is a different year, model, or generation, this hitch is not compatible. Verify your vehicle's year and model before purchasing.
The spare tire must be lowered and temporarily removed during installation to ease access to the exhaust and heat shield. After installation is complete, the spare tire is reinstalled in its original position. The hitch is designed to accommodate the factory spare tire once installation is finished.
No drilling is required. The hitch uses existing weldnuts on both the driver and passenger side frame rails. All fasteners are installed through existing pass-through holes in the frame rails.
Yes, the heat shield must be trimmed to allow the hitch side plate to rest against the vehicle frame rail. Approximately 8 inches of the heat shield along the inside of the frame rail will be removed. The heat shield is then reattached with the original nuts after trimming.
Fascia trimming is required on some models. If the vehicle fascia prevents the hitch from being raised completely into position, trim the fascia according to the trim diagram provided in the manual. Trim dimensions are approximate and may vary depending on vehicle model. Check fit prior to trimming.
Required tools are: 11/16" and 5/8" socket, 10mm and 18mm socket, ratchet, torque wrench, screwdriver, tape measure, aviation shears, utility knife, marking pen, swivel socket, and socket extension.
The hitch includes: (4) M10 - 1.25 x 30 hex bolts, (6) 7/16" conical toothed washers, (2) 7/16 - 14 x 4 1/2 hex bolts, and (2) 7/16-14 hex flange nuts. The M10 bolts and washers secure the hitch to the frame rails. The 7/16" bolts and nuts are installed through the side plates and frame rail pass-through holes.
1. Lower the exhaust by removing three rubber isolators. 2. Lower and temporarily remove the spare tire. 3. Remove the heat shield by removing three nuts and one screw. 4. Trim the heat shield to allow the hitch side plate to rest against the vehicle frame rail (approximately 8 inches). 5. Reattach the heat shield with the three nuts. 6. Raise the hitch into position by raising the passenger side over the exhaust. 7. Secure with supplied M10 bolts and 7/16" conical toothed washers. 8. Install 7/16" hardware through side plates and frame rail pass-through holes. 9. Torque all fasteners. 10. Raise the exhaust and reinstall the spare tire.
All 7/16" hardware (hex bolts and hex flange nuts) must be torqued to 70 lb-ft.
All M10 hardware (M10 - 1.25 x 30 hex bolts) must be torqued to 48 lb-ft.
The manual lists a gross load capacity of 3,500 lbs. trailer weight and 350 lbs. tongue weight when used as a weight-carrying hitch.
All non-trailer loads applied to the 13073 hitch must be supported by Curt 18050 Stabilizing Straps. Do not apply non-trailer loads without this support.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This should be done before each use and at regular intervals during ownership.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing and at routine maintenance intervals is recommended.
The 13073 fits Hyundai Santa Fe and 2nd Generation Kia Sorento, including SX models.
No drilling is required. The hitch uses existing weldnuts and pass-through holes in the frame rails.
Yes, approximately 8 inches of the heat shield along the inside of the frame rail must be trimmed. The heat shield is then reattached with the original nuts.
A torque wrench is essential, along with 10mm and 18mm sockets, 11/16" and 5/8" sockets, ratchet, screwdriver, tape measure, aviation shears, utility knife, marking pen, swivel socket, and socket extension.
Torque 7/16" hardware to 70 lb-ft and M10 hardware to 48 lb-ft.
When used as a weight-carrying hitch, the 13073 supports 3,500 lbs. trailer weight and 350 lbs. tongue weight.
Yes, all non-trailer loads must be supported by Curt 18050 Stabilizing Straps.
The Curt 56328 fits Kia Sorento models excluding the SX trim. It is designed for SUVs, mini and full-sized vans. If your Sorento is an SX model, this harness is not compatible. Check your vehicle's trim level in your owner's manual or on your vehicle's documentation before purchasing.
The Curt 56328 has two amperage ratings: Signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total. You must not exceed these ratings or your tow vehicle's lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
You need a Phillips screwdriver. If you need to drill a grounding point, a drill with a 3/32" bit is required. All other fasteners and hardware, including double-sided tape, cable ties, a ground screw, and a 4-flat dust cover, are provided with the harness.
Yes. You must disconnect the negative battery terminal before beginning installation. This is a required safety step. Reconnect the battery only after all installation steps are complete and all items have been reinstalled.
Remove both taillight assemblies by removing the two Phillips head screws holding each one in place. Separate the vehicle's taillight wiring harness connectors from the taillight housing. Insert the custom wiring harness end with the yellow wire between the separated connectors on the driver side, ensuring the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the harness end with the green wire. Take care not to damage the locking tabs during removal or installation.
Route the custom wiring harness end with the green wire down through the opening under the driver side taillight, over to the passenger side along the backside of the bumper, and up through the opening under the passenger side taillight. Secure any loose wires with the provided cable ties.
Drilling may be required for the ground connection. You must locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you will need to drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole if needed. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. A suitable grounding point should be flat and clean.
Mount the black converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Mounting the box in a protected area is critical—failure to do so can cause loss of warranty, product failure, overheating and potential fire.
Route the black power wire from the vehicle battery to the black converter box. The manual references an included CME-PCL-INS sheet for detailed routing instructions. Route the black wire through any rubber grommet in the trunk area if applicable. Consult the CME-PCL-INS sheet for the specific routing path for your vehicle.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location. When in use, route it to the center of the vehicle. Secure any loose wires with the provided cable ties.
After installation, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly. If testing reveals no function, refer to the troubleshooting section or contact the manufacturer.
The battery connection must be fuse protected with a maximum 10 amp fuse. Do not exceed this rating. Exceeding the product rating can cause loss of warranty, overheating and potential fire. The fuse must not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
The Curt 56328 fits Kia Sorento models excluding the SX trim.
A Phillips screwdriver is required. A drill with 3/32" bit may be needed if drilling a ground point. All fasteners, tape, ties and hardware are provided.
Yes, disconnect the negative battery terminal before starting installation and reconnect it only after all steps are complete.
The battery connection must be fuse protected with a maximum 10 amp fuse. Do not exceed this rating or the product may overheat or catch fire.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Yes, remove both taillight assemblies by removing the two Phillips head screws holding each one in place to access the taillight connectors.
Drilling may be required for the ground connection if no existing screw with nut is available in the vehicle frame. If drilling is needed, a 3/32" pilot hole is required. Always check for hidden items before drilling.
