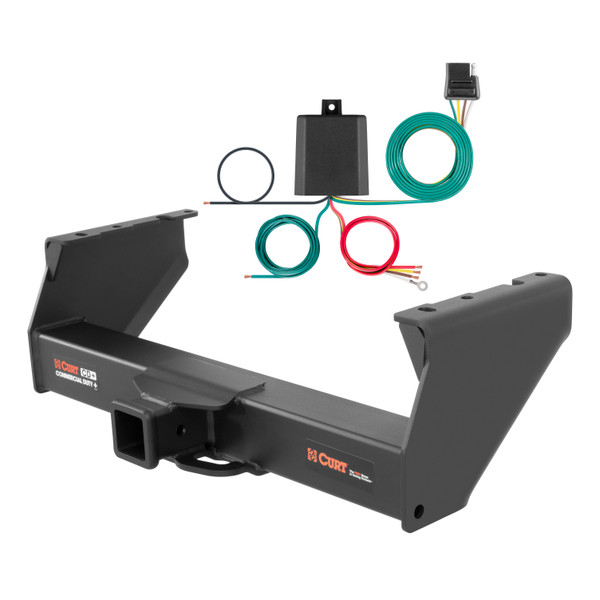

2011 - 2024 RAM 5500 Curt 2-1/2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15800

Complete CURT Class 5 2-1/2" trailer hitch and Universal Wiring Kit engineered for the 2011 - 2024 RAM 5500. Vehicle-specific hitch fit, with a universal taillight converter for trailer wiring; all hardware and instructions included.

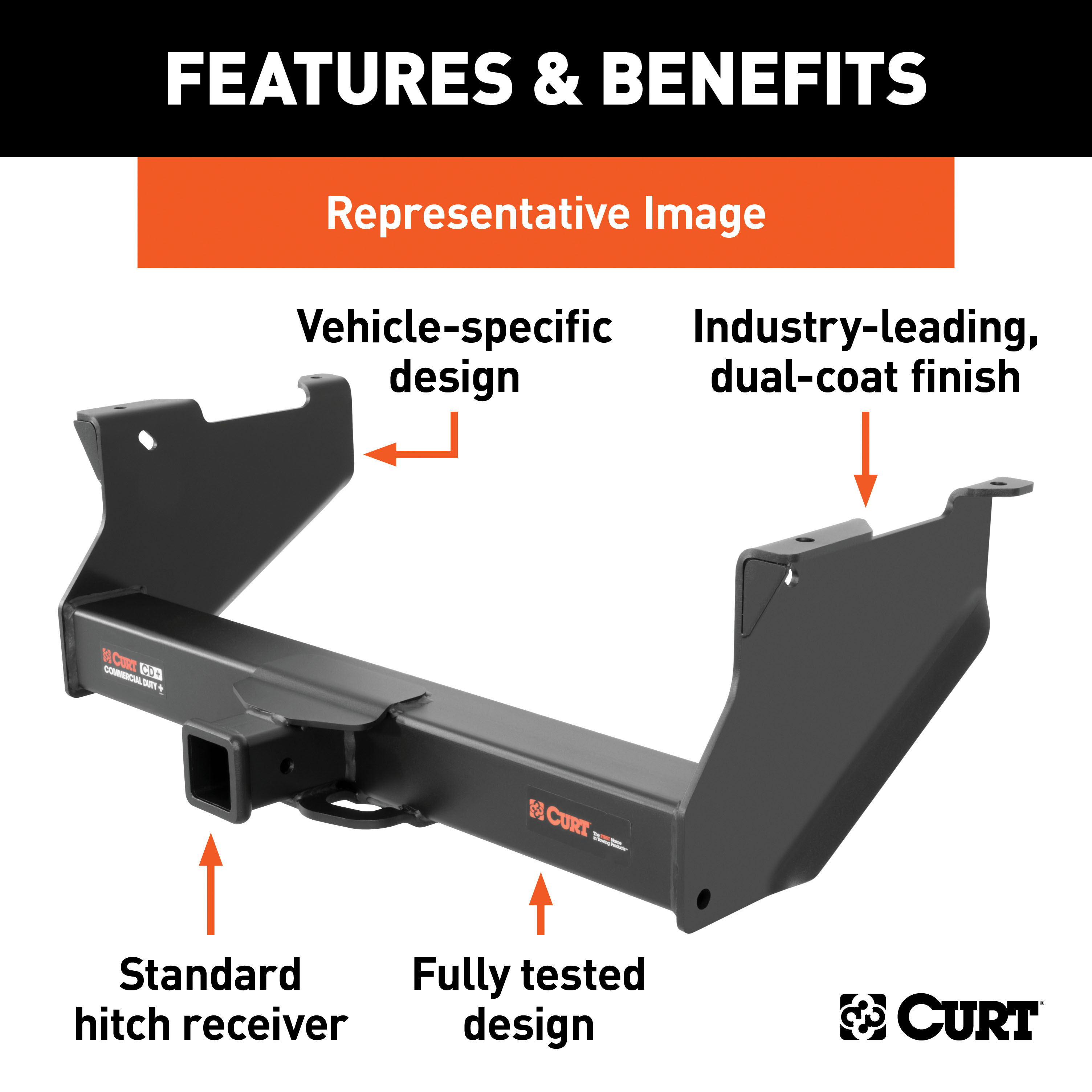

CURT Class 5, 2-1/2" Trailer Tow Hitch

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 3500, 3500 HD or 3500 Classic, Dodge Ram 3500, 4500 or 5500, GMC Sierra 3500, 3500 HD or 3500 Classic and Ram 3500, 4500 or 5500 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

Universal Wiring Kit

This CURT universal taillight converter is the go-to solution when a vehicle-specific custom harness isn't available for your make and model. It provides a standard 4-way flat trailer connector for tail lights, brake lights and turn signals, and is compatible with most vehicles (light splicing required). Built with surface-mount circuitry and a potted enclosure for durability against moisture, vibration and road debris. Includes a dust cover and is backed by a limited one-year warranty.
