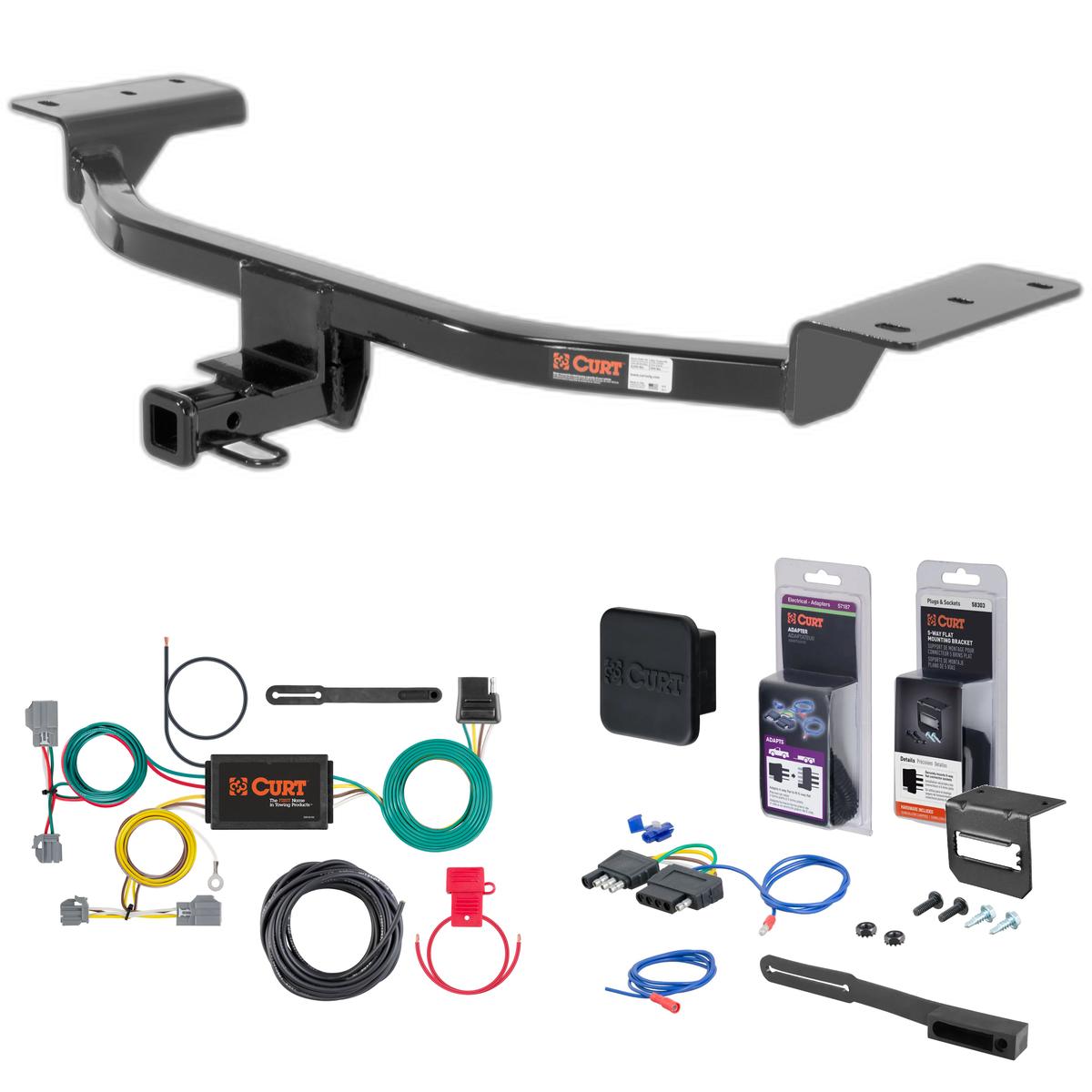

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2012 - 2018 Ford Focus Sedan. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Ford Focus (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Focus sedan (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2018 | Ford Focus | Sedan |
The 12 - 18 Ford Focus Sedan Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11158 (Part #5W-CHW-1236) fits 2012-2018 Ford Focus models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 12 - 18 Ford Focus Sedan Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11158 (Part #5W-CHW-1236) is designed to fit the 2012-2018 Ford Focus.
The 12 - 18 Ford Focus Sedan Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11158 (Part #5W-CHW-1236) fits the following vehicles: 2012-2018 Ford Focus. Always verify your specific year, make, and model before ordering.
The 12 - 18 Ford Focus Sedan Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11158 (Part #5W-CHW-1236) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

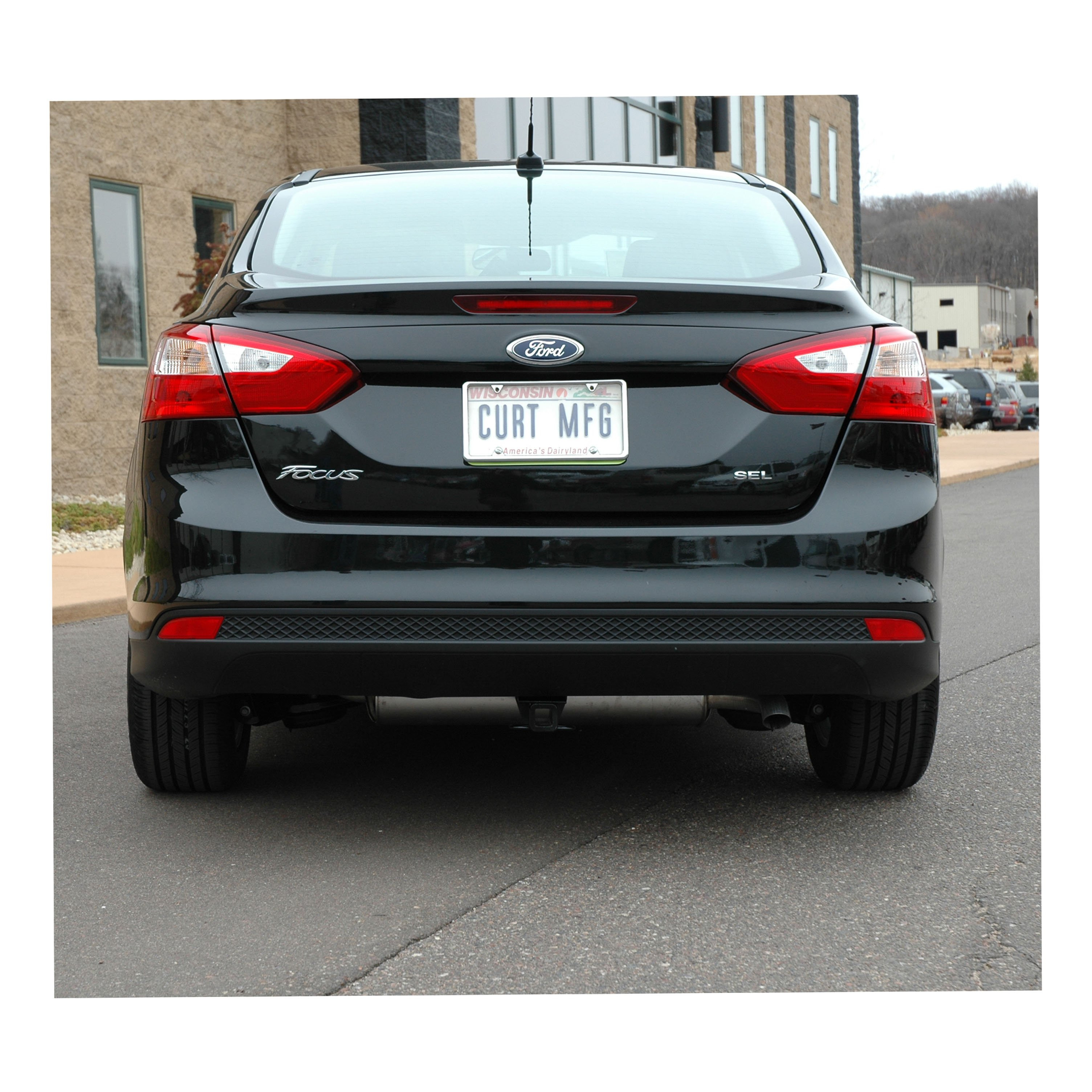

The CURT 11158 is designed for 2012-Present Ford Focus in Sedan and Hatchback body styles. It does not fit Focus ST or Focus Electric models. Confirm your vehicle matches these specifications before purchasing.
The CURT 11158 is rated for a minimum of 2,000 lbs trailer weight and 200 lbs tongue weight as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your vehicle's owner manual for the final towing limit.
All non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for information on the 18050 straps.
The CURT 11158 is designed for use with ball mount #D-55001 or #45501. A Euro mount option is also available: #45571 (1-7/8") or #45572 (2" ball).
Required tools are: ratchet, torque wrench, power drill, die grinder, 15/32" drill bit, 6" socket extension, 11/16" socket, 13mm socket, and safety glasses. Proper tools will greatly improve installation quality and reduce installation time.
Two people may be required to ease installation. The installation difficulty is rated as moderate to challenging depending on your experience level. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 877-287-8634.
Yes, drilling is required. You will drill holes in the vehicle frame rails using a 15/32" drill bit. The hitch is used as a template to mark drill locations on both sides before drilling. A power drill and die grinder are needed to enlarge access holes.
Fishwire is a technique used to route the 7/16"-14 carriage bolts and SP7 spacers through enlarged access holes and out the holes drilled in the frame rails. Two 7/16" fishwires are included in the parts kit. The manual references a fishwire diagram for detailed technique guidance.
No, you do not need to remove the exhaust system. You only need to remove the 4 bolts securing the 2 rear exhaust brackets and lower them temporarily. The bolts are returned to the owner. The hitch side plates are then sandwiched between the frame rails and exhaust brackets during final assembly.
Torque all M8 hardware (M8x1.25 hex bolts) to 23 ft-lbs. Torque all 7/16" hardware (7/16"-14 carriage bolts and flange nuts) to 70 ft-lbs. Use a torque wrench to ensure proper tightness.
Periodically check that all fasteners are tight and all structural components are sound. This is especially important after initial installation and before each towing use.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. Using proper tools will greatly improve the quality of the install and reduce the time required.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. Perform this check before each towing use and at regular intervals during the towing season.
Yes, if your vehicle is a 2012-Present Ford Focus Sedan or Hatchback (excluding ST and Electric models). Check your vehicle specifications before purchasing.
Minimum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, torque wrench, power drill, die grinder, 15/32" drill bit, 6" extension, 11/16" socket, 13mm socket, and safety glasses.
Yes, drilling is required. You will drill holes in the frame rails using a 15/32" drill bit and enlarge access holes with a die grinder.
M8 hardware: 23 ft-lbs. 7/16" hardware: 70 ft-lbs.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer or call technical support at 877-287-8634.
Safety glasses must be worn at all times during installation.

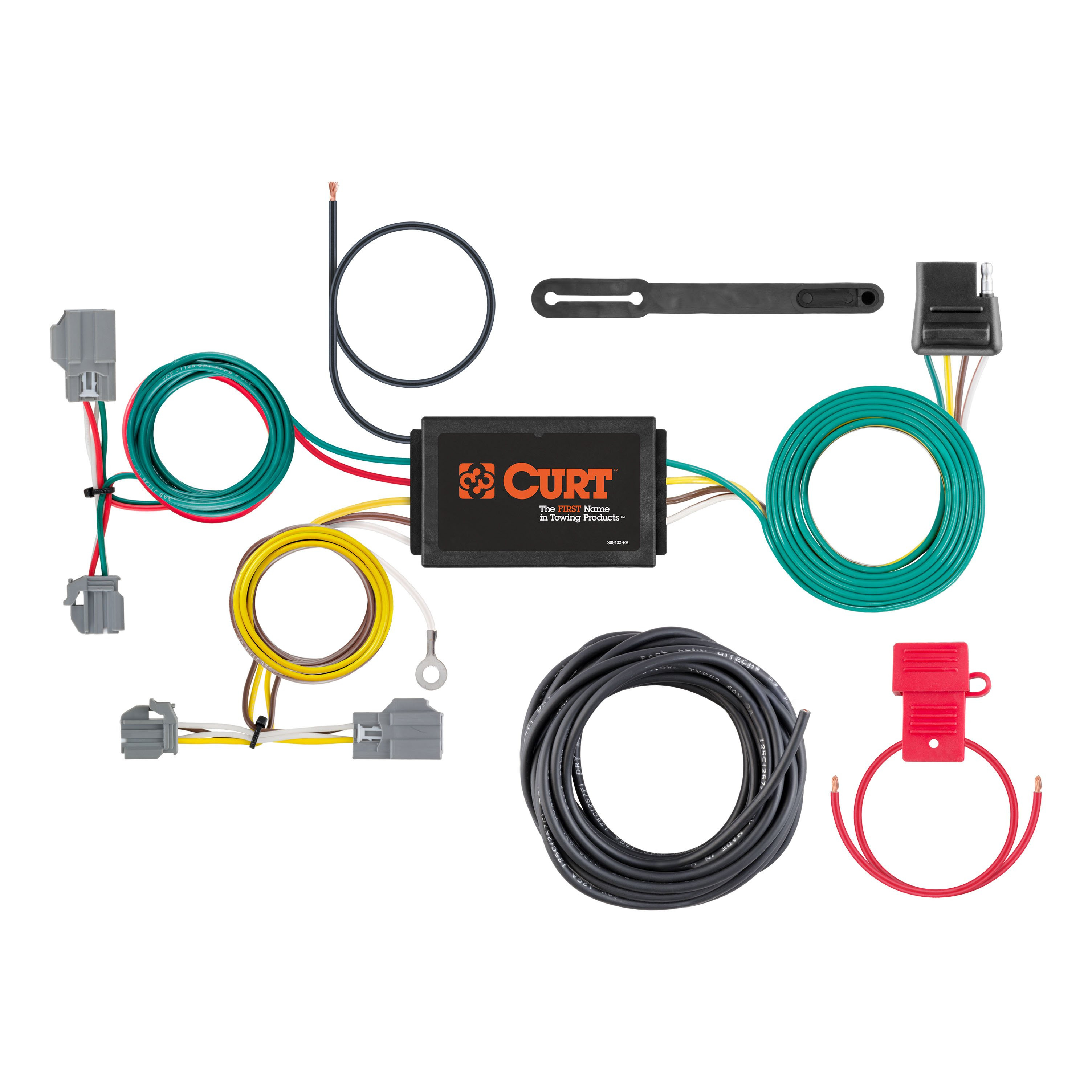

Yes, the 56138 Custom Wiring Harness is designed for Ford Focus sedans. The harness is installed behind the driver and passenger side taillight housings inside the trunk.
The 56138 has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this fuse rating can cause loss of warranty, overheating and potential fire.
You will need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool.
The manual does not specify whether the battery must be disconnected. Consult your vehicle owner's manual or the vehicle manufacturer for guidance on safe electrical work procedures.
Drilling may be required. Step 6 instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw if no existing point is available. The area must be free of rust, dirt and paint before securing the white ground wire.
Drill a 3/32" pilot hole for the provided ground screw. The area should be free of rust, dirt and paint before installation.
Remove all trunk floor coverings, foam cargo trays surrounding the spare tire, and the rear scuff panel. On both sides of the trunk, remove the plastic fastener holding the plastic trim panel and the plastic fastener holding the felt trunk liner. Take care not to damage the alignment tabs on the back of the scuff panel.
Pull back the felt liner to locate the vehicle taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. On the driver side, insert the custom wiring harness end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the harness end with the green wire.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
The 56138 uses colour-coded wires for different connections: yellow wire connects to the driver side taillight, green wire connects to the passenger side taillight, white wire is the ground wire, and black wire is the power wire from the vehicle battery. The harness also includes a black converter box.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route it to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The 56138 includes the custom wiring harness with colour-coded wires (yellow, green, white, and black), a black converter box, a provided screw for the ground connection, double-sided tape for mounting the converter box, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Yes, the 56138 is designed for Ford Focus sedans. Installation is behind the driver and passenger side taillight housings inside the trunk.
You need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool.
Drilling may be required for the ground wire connection. You may drill a 3/32" pilot hole if no existing screw with nut is available in the vehicle frame.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Test for proper function using a test light or by connecting a properly wired trailer.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
