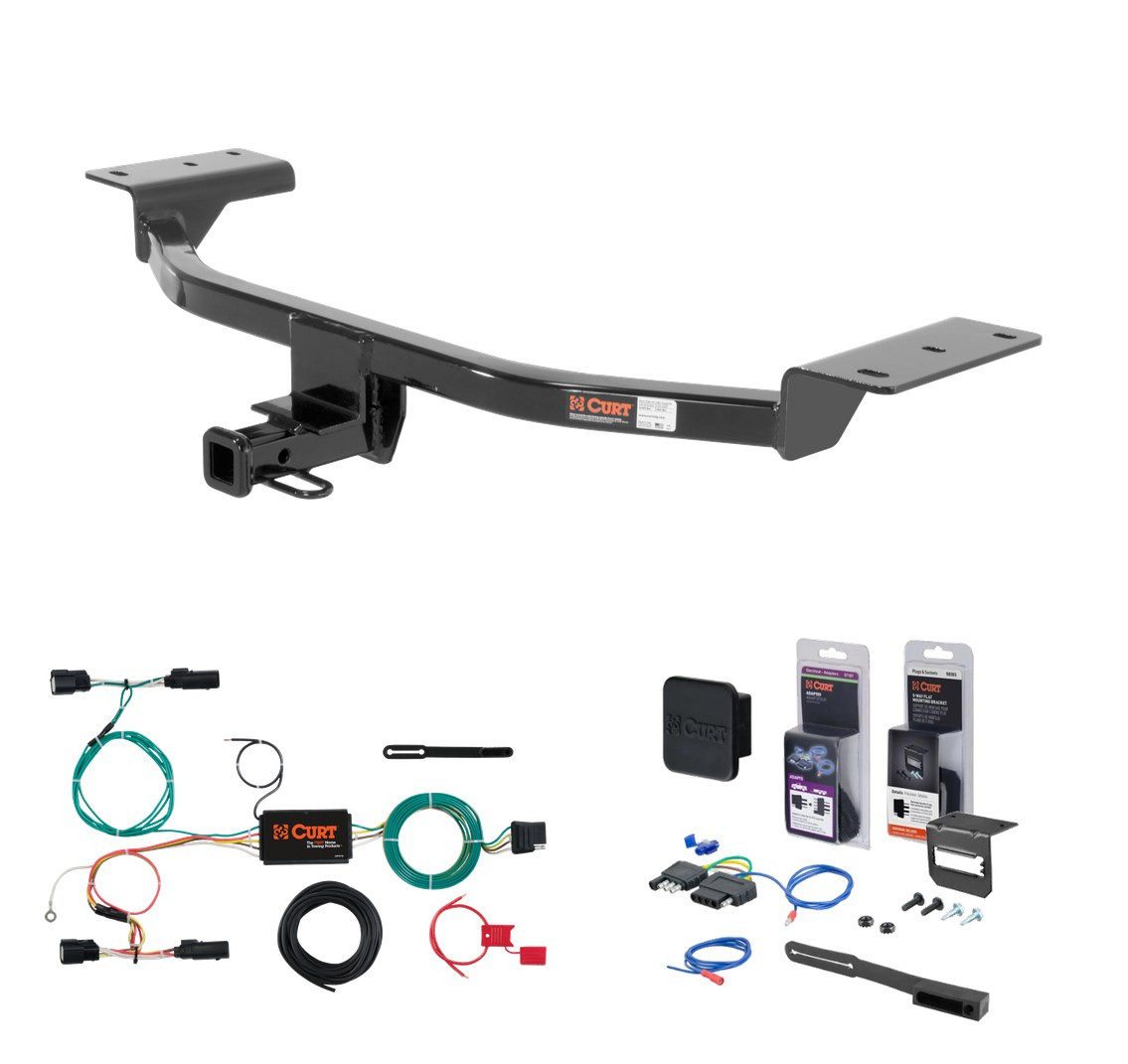

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2015 - 2018 Ford Focus Hatchback, excluding RS and ST. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Ford Focus (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Focus hatchback (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2018 | Ford Focus | Hatchback, excluding RS and ST |
Yes, the 15 - 18 Ford Focus Hatchback, excluding RS and ST Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11158 (Part #5W-CHW-1233) is designed to fit the 2015-2018 Ford Focus.
The 15 - 18 Ford Focus Hatchback, excluding RS and ST Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11158 (Part #5W-CHW-1233) fits the following vehicles: 2015-2018 Ford Focus. Always verify your specific year, make, and model before ordering.
The 15 - 18 Ford Focus Hatchback, excluding RS and ST Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11158 (Part #5W-CHW-1233) fits 2015-2018 Ford Focus models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The 15 - 18 Ford Focus Hatchback, excluding RS and ST Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11158 (Part #5W-CHW-1233) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 11158 is designed for 2012-Present Ford Focus in Sedan and Hatchback body styles. It does not fit Focus ST or Focus Electric models. Confirm your vehicle matches these specifications before purchasing.
The CURT 11158 is rated for a minimum of 2,000 lbs trailer weight and 200 lbs tongue weight as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your vehicle's owner manual for the final towing limit.
All non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for information on the 18050 straps.
The CURT 11158 is designed for use with ball mount #D-55001 or #45501. A Euro mount option is also available: #45571 (1-7/8") or #45572 (2" ball).
Required tools are: ratchet, torque wrench, power drill, die grinder, 15/32" drill bit, 6" socket extension, 11/16" socket, 13mm socket, and safety glasses. Proper tools will greatly improve installation quality and reduce installation time.
Two people may be required to ease installation. The installation difficulty is rated as moderate to challenging depending on your experience level. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 877-287-8634.
Yes, drilling is required. You will drill holes in the vehicle frame rails using a 15/32" drill bit. The hitch is used as a template to mark drill locations on both sides before drilling. A power drill and die grinder are needed to enlarge access holes.
Fishwire is a technique used to route the 7/16"-14 carriage bolts and SP7 spacers through enlarged access holes and out the holes drilled in the frame rails. Two 7/16" fishwires are included in the parts kit. The manual references a fishwire diagram for detailed technique guidance.
No, you do not need to remove the exhaust system. You only need to remove the 4 bolts securing the 2 rear exhaust brackets and lower them temporarily. The bolts are returned to the owner. The hitch side plates are then sandwiched between the frame rails and exhaust brackets during final assembly.
Torque all M8 hardware (M8x1.25 hex bolts) to 23 ft-lbs. Torque all 7/16" hardware (7/16"-14 carriage bolts and flange nuts) to 70 ft-lbs. Use a torque wrench to ensure proper tightness.
Periodically check that all fasteners are tight and all structural components are sound. This is especially important after initial installation and before each towing use.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. Using proper tools will greatly improve the quality of the install and reduce the time required.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. Perform this check before each towing use and at regular intervals during the towing season.
Yes, if your vehicle is a 2012-Present Ford Focus Sedan or Hatchback (excluding ST and Electric models). Check your vehicle specifications before purchasing.
Minimum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, torque wrench, power drill, die grinder, 15/32" drill bit, 6" extension, 11/16" socket, 13mm socket, and safety glasses.
Yes, drilling is required. You will drill holes in the frame rails using a 15/32" drill bit and enlarge access holes with a die grinder.
M8 hardware: 23 ft-lbs. 7/16" hardware: 70 ft-lbs.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer or call technical support at 877-287-8634.
Safety glasses must be worn at all times during installation.
Yes, CURT part 56273 is designed for Ford Focus hatchback. The manual identifies this as a passenger car application (P-series). Confirm your vehicle is a hatchback model, as the installation procedure is specific to this body style.
The CURT 56273 is a custom wiring harness that connects to your vehicle's taillight assemblies. It includes a 4-flat connector for trailer use and a converter box. The harness is routed through the trunk and connects to the vehicle's existing taillight wiring.
You will need: 10mm socket, 1/4" socket, T-20 Torx bit, ratchet, panel trim removal tool, crimping tool, wire cutters, and a cutting tool. You will also need sealant (not included by CURT) to seal the grommet after routing the wires through it.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning any other work.
Open the tailgate and remove all trunk floor coverings and storage trays. Remove the rear scuff panel by removing push fasteners and pulling out at the bottom then up. On the driver side, remove two fasteners from the side trim panel, pull it back, then remove the taillight assembly fasteners. Gently pull the taillight rearward and out to access the connectors behind it.
Locate the grommet with wires running from inside the trunk to the taillight. Make a small slit in the grommet large enough to route the harness wires through. Route the wiring harness end with the yellow wire out through the grommet opening and through the slit. Insert the harness end with the yellow wire between the separated taillight connectors, ensuring the connectors are fully inserted with locking tabs in place. Seat the grommet with the harness wires passing through.
The manual requires you to use a sealant (not included) to seal the grommet where the wires pass through and where the grommet was cut. The specific type of sealant is not specified in the manual; consult the vehicle manufacturer or a sealant supplier for a product suitable for automotive trunk grommets.
Drilling may be required. Step 9 instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you must drill a 3/32" pilot hole for the provided screw. The manual warns to check for miscellaneous items hidden behind or under surfaces before drilling to avoid damage and personal injury.
The harness has two circuit ratings: signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed this rating, as exceeding the product rating can cause loss of warranty, overheating, and potential fire.
The harness includes a yellow wire (routed to the driver side taillight connector), a green wire (routed to the passenger side taillight connector), a white ground wire (secured to a grounding point with a ring terminal and provided screw), and a black power wire (routed from the vehicle battery). The 4-flat connector is used for trailer connection.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The manual does not specify whether this is on the driver side or passenger side; consult the included CME-PCL-INS sheet or contact CURT for clarification on the exact location.
After completing Steps 1–8 on the driver side, route the CURT wiring harness end with the green wire to the passenger side behind the removed scuff panels. Repeat Steps 4–8 on the passenger side using the harness end with the green wire. This mirrors the driver side installation process.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer. Reconnect the negative battery terminal before testing.
Reinstall all items removed during installation, including the taillight assemblies, side trim panels, rear scuff panel, and trunk floor coverings and storage trays. Reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
Do not exceed the product rating (signal circuits 3.0 amps per side, tail/running circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Additionally, check for miscellaneous items hidden behind or under surfaces before drilling to avoid damage and personal injury.
Yes, the CURT 56273 is designed for Ford Focus hatchback models.
You need: 10mm socket, 1/4" socket, T-20 Torx bit, ratchet, panel trim removal tool, crimping tool, wire cutters, cutting tool, and sealant (not included).
Yes, disconnect the negative battery terminal before starting installation.
Drilling may be required if no existing screw is available for the ground wire. You may need to drill a 3/32" pilot hole for the provided screw.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating.
