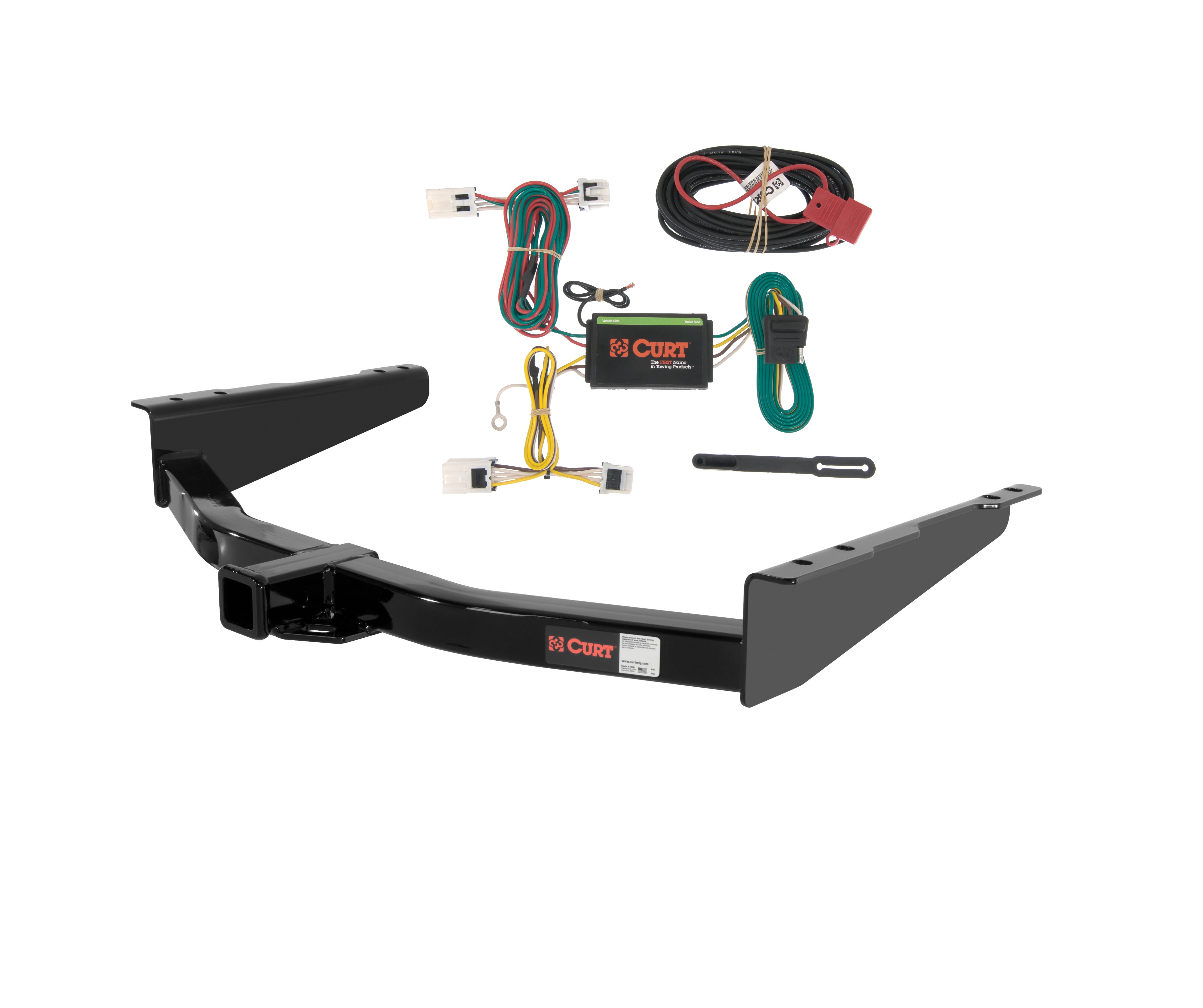

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2012 - 2021 Nissan NV1500. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Nissan NV1500, NV2500 and NV3500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 7,500 lbs. GTW and 750 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

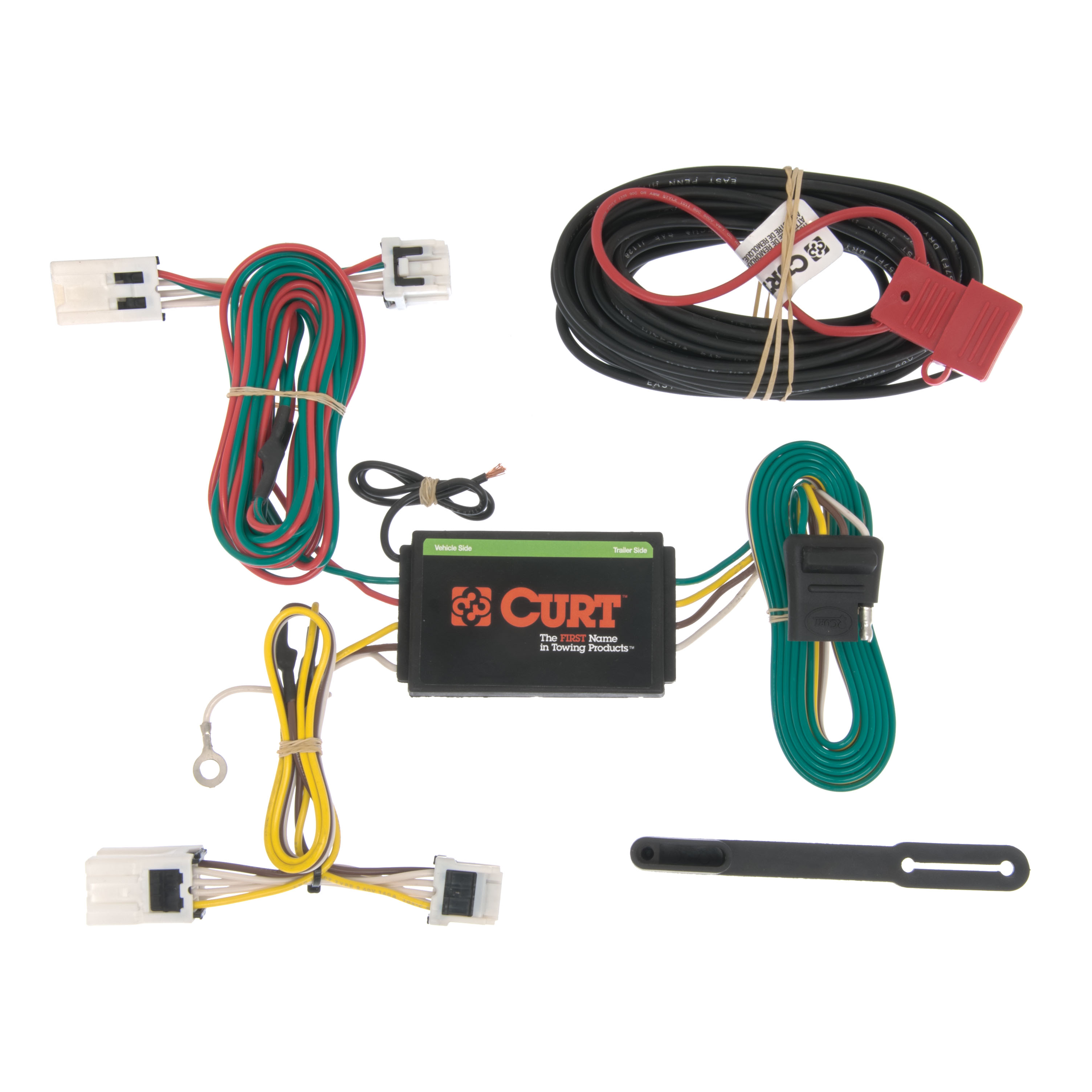

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Nissan NV1500, NV2500 and NV3500 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2021 | Nissan NV1500 | — |
The 12 - 21 Nissan NV1500 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13109 (Part #CHW-2525) fits the following vehicles: 2012-2021 Nissan NV1500. Always verify your specific year, make, and model before ordering.
Yes, the 12 - 21 Nissan NV1500 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13109 (Part #CHW-2525) is designed to fit the 2012-2021 Nissan NV1500.
The 12 - 21 Nissan NV1500 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13109 (Part #CHW-2525) fits 2012-2021 Nissan NV1500 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 12 - 21 Nissan NV1500 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13109 (Part #CHW-2525) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13109 is designed to fit Nissan NV 1500, 2500, and 3500 in all model years and configurations.
No, drilling is not required. The hitch uses existing weldnuts in the frame rails on both the driver and passenger sides.
You will need a torque wrench, a ratchet, and a 19mm socket. These are the only tools required for installation.
The hitch includes 8 M12×1.25×40 hex bolts (part number 10-10277) and 8 1/2" conical toothed washers (part number 30-00149). These fasteners attach the hitch to the existing frame weldnuts.
All M12 hardware must be torqued to 86 ft-lbs.
1. Raise the hitch into position, aligning the holes in the hitch with the weldnuts in the frame rails on both driver and passenger sides. 2. Secure the hitch using the M12×1.25×40 hex bolts and 1/2" conical toothed washers. 3. Torque all M12 hardware to 86 ft-lbs.
The manual references a Weldnut Cleaning Detail in step 1 but does not provide the specific procedure. Contact Curt Manufacturing technical support at 1-877-287-8634 for detailed guidance on weldnut preparation.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual states that the hitch has a gross load capacity when used as a weight-carrying hitch and when used as a weight-distribution hitch, but the specific capacity values are not provided in this manual. Contact Curt Manufacturing at 1-877-287-8634 or consult your vehicle's owner manual for exact capacity ratings.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval; regular inspection before towing is recommended.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt will repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Yes, Curt 13109 fits all Nissan NV 1500, 2500, and 3500 models.
No. The hitch uses existing frame weldnuts; no drilling is required.
Torque wrench, ratchet, and 19mm socket.
All M12 hardware: 86 ft-lbs.
8 M12×1.25×40 hex bolts and 8 1/2" conical toothed washers.
Periodically check that all fasteners are tight and structural components are sound.
The Curt 56148 is designed for Nissan NV 1500, NV 2500, and NV 3500 models. These are full-sized vans in the SUVs, Mini & Full-Sized Vans category. Confirm your exact model year and variant before purchasing.
The Curt 56148 is a custom wiring harness that connects your Nissan NV van's taillight circuits to a trailer connector. It includes a converter box and a 4-flat connector for towing applications.
The manual does not specify required tools. However, the installation involves locating connectors, potentially drilling a 3/32" pilot hole for a ground screw, and routing wires. You may need basic hand tools and a drill. Refer to the included CME-PCL-INS sheet for battery connection requirements, which may specify additional tools.
The taillight wiring connectors are located inside the access pockets in the cargo area behind the rear access panels. On the driver side, they are behind the driver side rear access panel (S3). On the passenger side, they are behind the passenger side rear access panel (S4).
1. Locate the vehicle taillight wiring connectors in the cargo area access pockets. 2. Carefully separate the connectors from the taillight housing without damaging the locking tabs. 3. Insert the custom wiring harness end (yellow wire for driver side, red and green wires for passenger side) between the separated connectors. 4. Ensure the connectors are fully inserted with locking tabs in place. Repeat this process on both sides of the vehicle.
Drilling may be required for the ground wire connection. If a suitable existing screw with nut is not available on the vehicle frame near the taillight connector, you will need to drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If none exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and the provided screw. Ensure a clean metal-to-metal connection for proper grounding.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The converter box should be mounted on a clean, dry surface for secure adhesion.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route it to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties to prevent tangling and damage.
You must remove the rear scuff panel to route the wiring harness to the passenger side. On the passenger side, remove the jack for ease of installation. All removed items must be reinstalled after the wiring harness installation is complete.
Signal Circuits are rated at 3.0 amps per side. Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these product ratings or your tow vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Do not exceed this rating. Exceeding the fuse rating can cause loss of warranty, overheating and potential fire.
After installation, test the wiring harness for proper function using a test light or by connecting a properly wired trailer. This ensures all circuits are functioning correctly before towing. Reinstall all items removed during installation, and install the provided 4-flat dust cover to help prevent corrosion.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or your tow vehicle's lamp load rating, whichever is lower. Exceeding either limit can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
The manual references an included CME-PCL-INS sheet that contains instructions for routing the black power wire from the vehicle battery. This sheet is essential for completing the battery connection portion of the installation. Refer to that sheet for specific routing and connection details.
Yes, the Curt 56148 is designed for Nissan NV 1500, NV 2500, and NV 3500 models.
A 10-amp maximum fuse is required for the battery connection. Do not exceed this rating.
Possibly. You may need to drill a 3/32" pilot hole for the ground screw if an existing screw with nut is not available on the vehicle frame.
Remove the rear scuff panel and the passenger side jack. Both must be reinstalled after installation.
Test the wiring harness using a test light or by connecting a properly wired trailer to verify proper function before towing.
