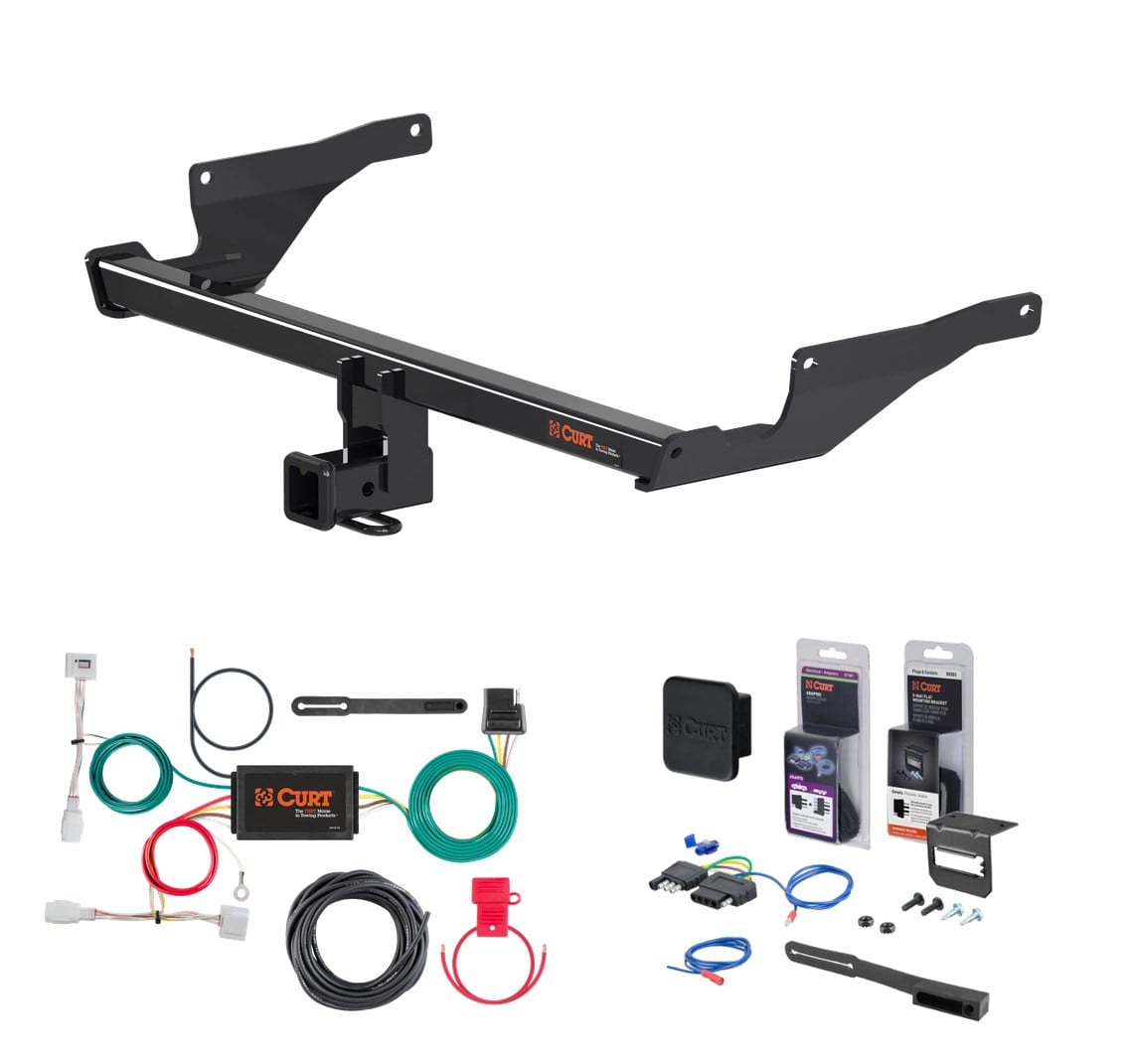

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2013 - 2015 Mazda CX-5 Excluding diesel. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mazda CX-5 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Honda Civic sedan (except hybrid), Honda Fit 5door sport, Honda Accord without LED taillights, Mazda 3, Mazda CX5 and Mitsubishi Galant sedan, 2.4L, single exhaust (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The 13 - 15 Mazda CX-5 Excluding diesel Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13315 (Part #5W-CHW-2273) fits the following vehicles: 2013-2015 Mazda CX-5. Always verify your specific year, make, and model before ordering.
Yes, the 13 - 15 Mazda CX-5 Excluding diesel Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13315 (Part #5W-CHW-2273) is designed to fit the 2013-2015 Mazda CX-5.
The 13 - 15 Mazda CX-5 Excluding diesel Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13315 (Part #5W-CHW-2273) fits 2013-2015 Mazda CX-5 models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 13 - 15 Mazda CX-5 Excluding diesel Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13315 (Part #5W-CHW-2273) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

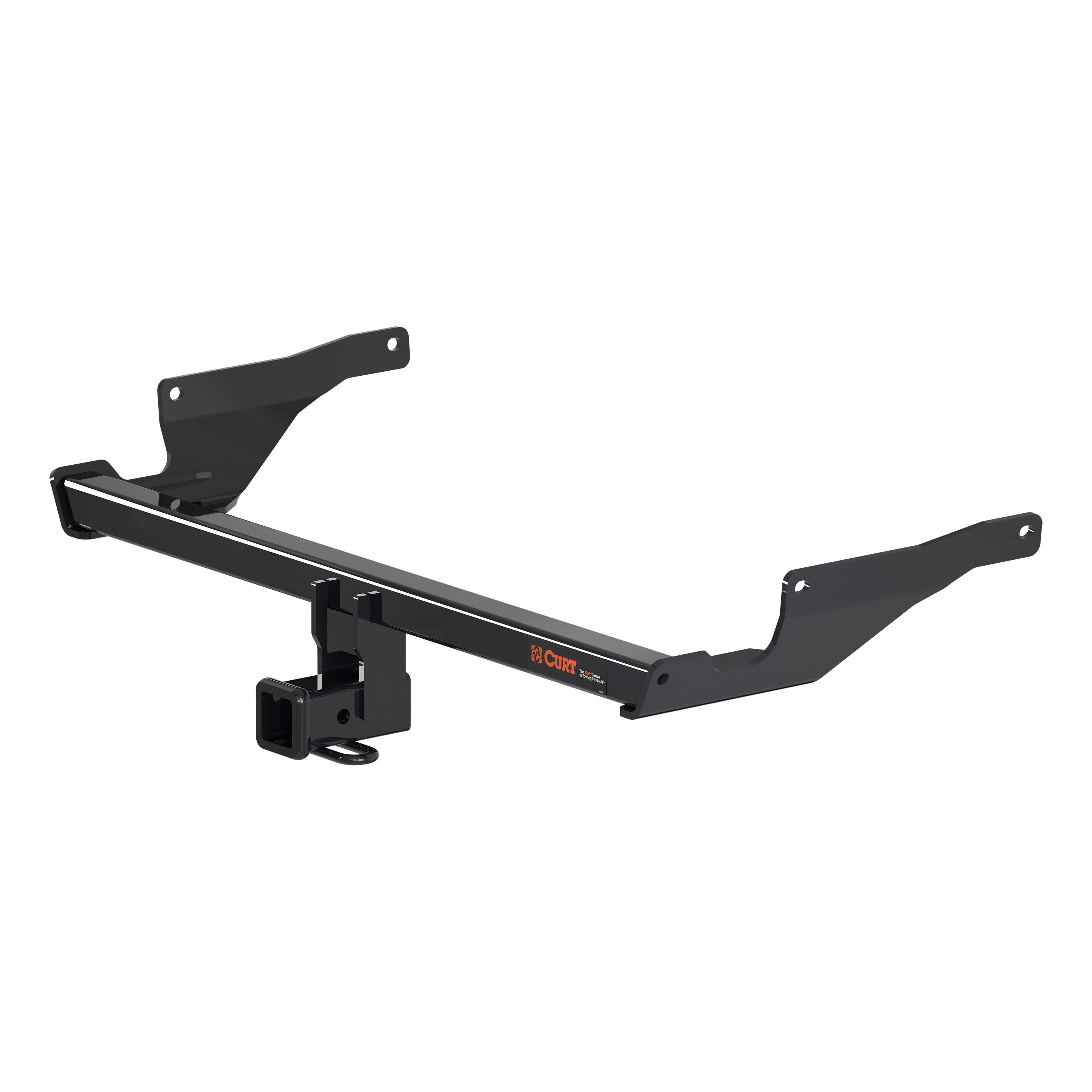

Yes, CURT part number 13315 is designed for 2013 and later Mazda CX-5 Crossover models. The hitch is a weight-carrying style with a maximum trailer weight capacity of 4,000 lbs and tongue weight capacity of 600 lbs.
The CURT 13315 is rated for a maximum trailer weight of 4,000 lbs and tongue weight of 600 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
No, drilling is not required. The CURT 13315 uses existing factory frame rail mounting locations and weld nuts. The installation uses a fishwire technique to route hardware through access holes in the frame rails without drilling.
Required tools are: 3/4" and 19mm sockets, ratchet, torque wrench, flathead screwdriver, pliers, safety glasses, masking tape, and a pry bar. Safety glasses must be worn at all times during installation.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, CURT recommends contacting an authorized CURT installer for additional assistance.
Yes, if a plastic underbody panel is present under the rear bumper, it must be removed. Remove the two plastic fasteners using a flathead screwdriver. Return the panel and fasteners to the vehicle owner after installation.
Yes, the exhaust must be temporarily lowered. Remove two to four of the rearmost rubber exhaust hangers (the exact number depends on your vehicle). Leave the rubber hangers attached to the vehicle; do not remove them completely.
Remove any plastic insert and/or electrical harness clip between the hitch mounting locations on the passenger side frame rail. On the driver side, unfasten the electrical harness clip on the outside of the frame rail and follow the harness to unfasten the nearest clip towards the center of the vehicle. These must be re-secured after the hitch is positioned.
The fishwire technique is used to route 1/2" carriage bolts with CM-SP12 spacers through the frame rail access holes. Thread the fishwire through the access hole and out the rearmost mounting location in the frame rail, leaving the hardware fully inside the frame rail with the fishwire attached. The fishwire is then threaded through the hitch mounting holes, and the hardware is pulled into position before the fishwire is removed.
Tape four 1/2" flat washers into position on the inside of the hitch side plates before beginning the fishwire process. When inserting M12 bolts, ensure the tooth side of the conical toothed washers are against the hitch, and the 1/2" flat washers are clamped in position between the hitch and frame rail.
Torque all M12 hardware (part number 10-10277) to 86.2 ft-lbs. Torque all 1/2" hardware (part number 10-10287 bolts and part number 20-00062 nuts) to 110 ft-lbs.
After pulling the 1/2" hardware into position and removing the fishwire, wrap cable tie(s) around the hitch mounting plate(s) and harness. Pull the cable ties tight and trim any excess.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is a critical maintenance step to ensure safe towing operation.
Safety glasses must be worn at all times while installing this product. Additionally, never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
The kit includes: 3 M12x1.25 hex head cap screws (part 10-10277), 2 1/2-13 UNC carriage bolts (part 10-10287), 2 1/2-13 UNC serrated flange nuts (part 20-00062), 4 1/2" flat washers (part 30-00133), 3 1/2" split-cone washers (part 30-00149), 2 square hole spacers (part CM-SP12), 2 lengths of 1/2" fishwire (part 1_2 FISHWIRE), and 2 cable ties 3/16" x 8" (part 600043).
Yes, remove the tape on the side of the vehicle frame rails to expose the mounting locations. Also trim any excess seam seal if it will interfere with the hitch installation.
Yes, the CURT 13315 is designed for 2013 and later Mazda CX-5 models. It is rated for 4,000 lbs trailer weight and 600 lbs tongue weight, but you must not exceed your vehicle manufacturer's towing capacity.
No, drilling is not required. The hitch uses existing factory frame rail mounting locations and weld nuts.
You will need 3/4" and 19mm sockets, ratchet, torque wrench, flathead screwdriver, pliers, safety glasses, masking tape, and a pry bar.
Yes, you must temporarily lower the exhaust by removing two to four rearmost rubber hangers (leave them attached to the vehicle). The exact number depends on your vehicle.
Torque M12 bolts to 86.2 ft-lbs and 1/2" bolts to 110 ft-lbs.
The hitch is rated for 4,000 lbs trailer weight and 600 lbs tongue weight, but you must never exceed your vehicle manufacturer's recommended towing capacity.
Two people may be required to ease installation. If you are hesitant, contact an authorized CURT installer.
Yes, the Curt 56011 custom wiring harness is compatible with Honda Accord coupes. However, if your vehicle has LED brake lights, you should verify compatibility with the manufacturer, as the manual lists separate compatibility for Accord coupes with and without LED brake lights.
The Curt 56011 is compatible with Honda Civic sedans, with one exclusion: hybrid models are not supported. If you have a non-hybrid Civic sedan, the harness will fit.
No. The Curt 56011 is not compatible with Mazda 3 Grand Touring models from 2010–2013. Other Mazda 3 model years and trims may be compatible; check with the manufacturer for your specific year and trim.
Yes, the Curt 56011 custom wiring harness is compatible with Mazda CX-5 vehicles.
Yes, the Curt 56011 custom wiring harness is compatible with Mitsubishi Galant vehicles.
Yes, the Curt 56011 is compatible with Honda Fit. During installation, you must use the blue three-pin connector, not the green three-pin connector, when connecting to the vehicle's taillight wiring harness.
The Curt 56011 has two amperage ratings: signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
You will need: a ratchet, 10mm socket, Phillips screwdriver, and a panel trim removal tool. The manual also recommends having a test light or properly wired trailer available to test the harness after installation.
Yes. You must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process and is essential for safety.
You must remove the rear access covers on both sides of the vehicle, all trunk floor coverings, and the rear scuff panel. These items must be removed to access the taillight wiring harness connectors.
Locate the vehicle's taillight wiring harness connectors inside the rear access panel. Separate the connectors from the taillight housing carefully, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors on the driver side, ensuring the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the harness end with the green wire.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. When not in use, the 4-flat connector should be rolled up and stored in a convenient, out-of-the-way location.
Drilling may be required for the ground wire connection. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
If you need to drill a grounding point for the white ground wire, drill a 3/32" pilot hole. The area should be free of rust, dirt and paint before securing the ring terminal and provided screw.
After routing the wiring harness, secure any loose wires with the provided cable ties. This helps prevent damage and keeps the installation neat.
After installation is complete and the battery is reconnected, test the wiring harness for proper function using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the harness will function properly.
Reinstall all items you removed during installation, reconnect the negative battery terminal, and install the provided 4-flat dust cover to help prevent corrosion. Test the harness for proper function using a test light or a properly wired trailer.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. The signal circuits are rated at 3.0 amps per side and tail/running circuits at 6.0 amps total.
The Curt 56011 fits Honda Accord coupe, Accord sedan, Civic sedan (non-hybrid), Fit, Mazda 3 (excluding Grand Touring 2010–2013), CX-5, and Mitsubishi Galant. LED brake light compatibility varies; check with the manufacturer for your specific vehicle.
You need a ratchet, 10mm socket, Phillips screwdriver, and panel trim removal tool. A test light or properly wired trailer is recommended for post-installation testing.
Yes, disconnect the negative battery terminal before starting installation. Reconnect it after all installation steps are complete.
Drilling may be required for the ground wire connection if no existing screw is available in the vehicle frame. If drilling is needed, drill a 3/32" pilot hole. Always check for hidden items before drilling.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2015 | Mazda CX-5 | Excluding diesel |
