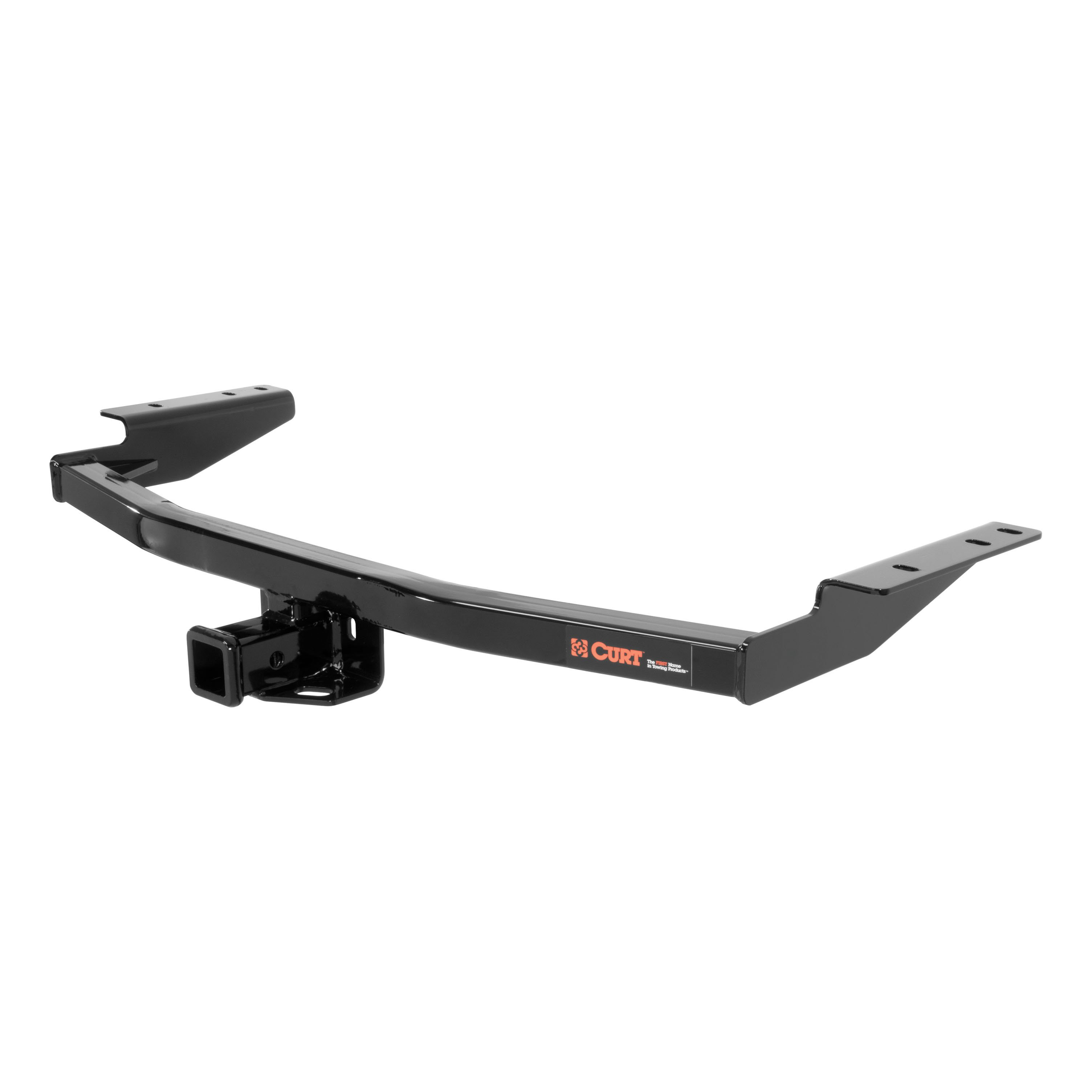

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2013 - 2016 Nissan Pathfinder. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Infiniti QX60 and Nissan Pathfinder (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

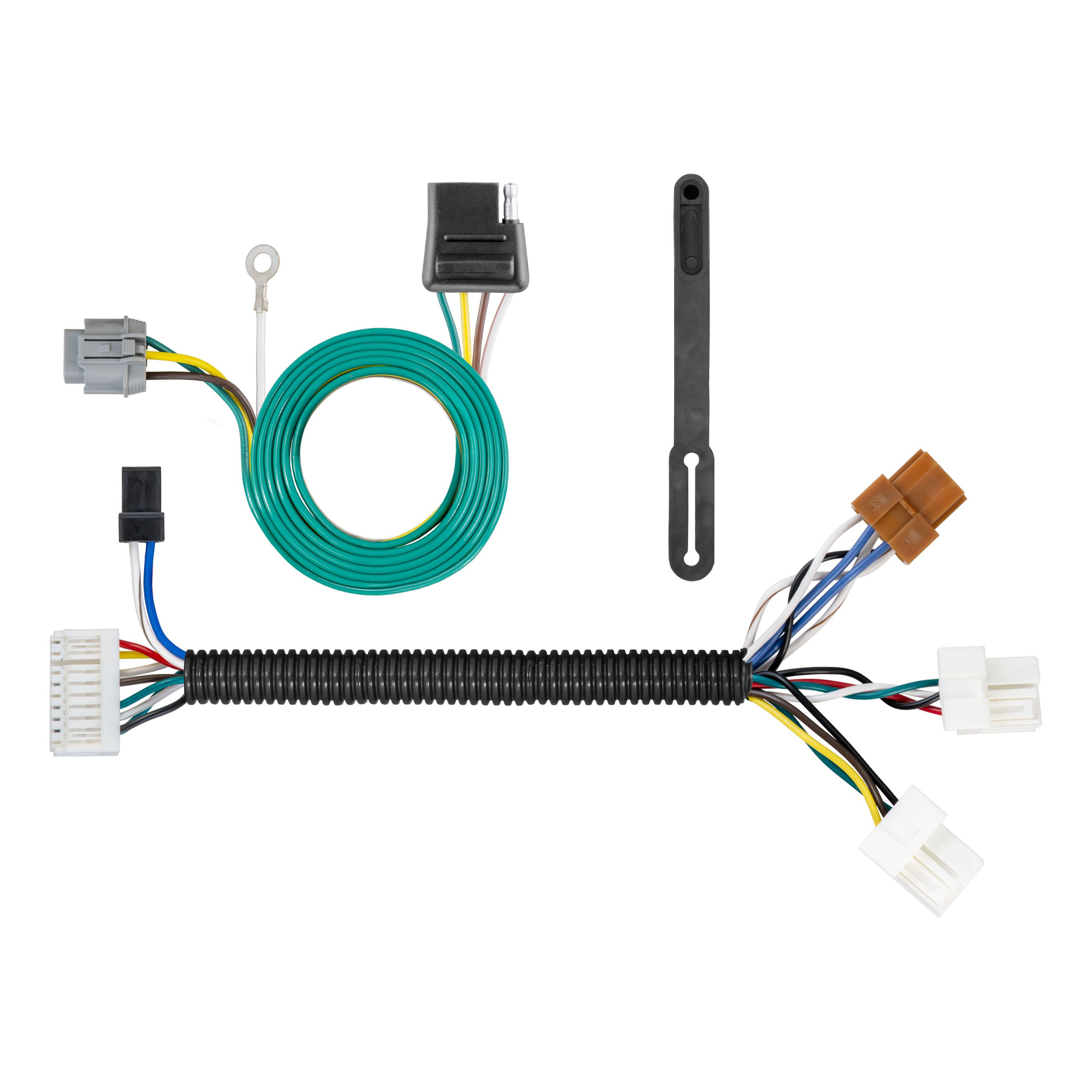

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Nissan Pathfinder, Infiniti JX35 and Infiniti QX60 (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2016 | Nissan Pathfinder | — |
Yes, the 13 - 16 Nissan Pathfinder Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13126 (Part #5W-CHW-2535) is designed to fit the 2013-2016 Nissan Pathfinder.
The 13 - 16 Nissan Pathfinder Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13126 (Part #5W-CHW-2535) fits 2013-2016 Nissan Pathfinder models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The 13 - 16 Nissan Pathfinder Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13126 (Part #5W-CHW-2535) fits the following vehicles: 2013-2016 Nissan Pathfinder. Always verify your specific year, make, and model before ordering.
The 13 - 16 Nissan Pathfinder Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13126 (Part #5W-CHW-2535) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. CURT part number 13126 is designed for 2013-Present Infiniti QX60, along with Infiniti JX35 and Nissan Pathfinder. Confirm your vehicle matches these models before purchasing.
Yes. CURT part number 13126 is compatible with Nissan Pathfinder 2013-Present. The hitch is designed for this model year range and later.
When used as a weight-carrying hitch, the gross load capacity is 4000 lbs trailer weight and 600 lbs tongue weight. When used as a weight distribution hitch, the capacity is 5000 lbs trailer weight and 600 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weighs 85 lbs.
The hitch includes 6 hex cap screws (HHCS) M12 x 1.25 x 30mm, Class 10.9, zinc-plated (part number 10-10419) and 6 conical toothed washers 1/2" (part number 30-00149). These fasteners secure the hitch to existing weldnuts on the vehicle frame.
Required tools are: ratchet, torque wrench, 12mm socket, 18mm socket, 19mm socket, 21mm socket, tape measure, and marker. Safety glasses should be worn at all times during installation. A rotary tool may be helpful for cleaning weldnuts.
No. The manual states "NO DRILLING REQUIRED." The hitch uses existing weldnuts on the vehicle frame.
Yes. Step 1 requires removing the tow hook from the driver side frame rail. Return the tow hook and its fasteners to the vehicle owner.
Yes. Step 2 requires lowering the spare tire using a tire lug wrench or ratchet with a 21mm socket. The spare tire is raised back into position in step 7 after the hitch is installed.
Yes. Step 3 requires removing the fascia mounting brackets by first removing plastic clips on the bottom of the fascia and then unbolting the brackets from the bumper. Retain the brackets for reinstallation after hitch installation (step 6).
The fascia trim area is approximately 2 1/2" wide by 1 3/8" tall, centered on the vehicle. The manual notes that dimensions are approximate and you should confirm fit prior to trimming. Mark the area before trimming in step 4.
Yes. The fascia trimming is a permanent modification. The manual requires trimming approximately 2 1/2" x 1 3/8" from the center of the vehicle fascia to accommodate the hitch.
All M12 fasteners must be torqued to 86 ft-lbs. This applies to the 6 hex cap screws (M12 x 1.25 x 30mm) that secure the hitch to the weldnuts.
Two people may be required to ease installation. The manual states this is not strictly required but is recommended to improve the quality of the install and reduce installation time.
Professional installation time is approximately 22 minutes. Novice (DIY) installation time is approximately 80 minutes. Actual time may vary based on experience and vehicle condition.
Safety glasses should be worn at all times while installing this product. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. While CURT hitch 13126 has a gross load capacity of 4000 lbs (weight-carrying) or 5000 lbs (weight distribution) trailer weight, your vehicle's manufacturer specifications may be lower and must be followed.
After installation, confirm that all fasteners are tight and all structural components are sound. Periodically check the receiver hitch to ensure all fasteners remain tight and all structural components remain sound during ownership.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection is recommended to maintain safe operation.
CURT 13126 fits 2013-Present Infiniti JX35, QX60, and Nissan Pathfinder only. Confirm your exact model and year before purchasing.
Weight-carrying: 4000 lbs trailer, 600 lbs tongue. Weight distribution: 5000 lbs trailer, 600 lbs tongue. Never exceed your vehicle manufacturer's recommended capacity.
Ratchet, torque wrench, 12mm/18mm/19mm/21mm sockets, tape measure, marker, and safety glasses. A rotary tool is helpful for cleaning weldnuts.
No drilling required. The hitch uses existing weldnuts on the vehicle frame.
Yes. Minor fascia trimming is required: approximately 2.5" wide by 1.375" tall at the center. Confirm fit before trimming.
All M12 fasteners must be torqued to 86 ft-lbs.
Wear safety glasses at all times. Never exceed vehicle manufacturer's towing capacity. Read all instructions before starting. Contact an authorized CURT installer if unsure.
Professional: approximately 22 minutes. DIY/Novice: approximately 80 minutes.
Yes, the Curt 56281 Custom Wiring Connector is designed for the Infiniti QX60. It is also compatible with the Nissan Pathfinder. Both vehicles are in the SUVs, Mini & Full-Sized Vans category.
Yes, the Curt 56281 Custom Wiring Connector is designed for the Nissan Pathfinder. It is also compatible with the Infiniti QX60. Both vehicles are in the SUVs, Mini & Full-Sized Vans category.
The Curt 56281 has two amperage ratings: Signal Circuits are rated at 7.5 amps per side, and Tail/Running Circuits are rated at 7.5 amps total. You must not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need: a ratchet, 10mm socket, panel trim removal tool, Phillips screwdriver, cutting tool, and test probe. The 10mm socket is used to remove cargo tie down loops and the three bolts securing the cargo storage tray. The test probe is used to verify proper function after installation.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning installation.
You must remove: the cargo storage tray (secured by three 10mm bolts), the trim panel on the back of the cargo storage tray, the center trim piece and scuff panel from the rear, fasteners securing the cargo storage tray, push fasteners holding rear seat covers, and the side floor panel (which is secured by cargo tie down loops removed with a 10mm socket). If your vehicle has a rear subwoofer, you must also carefully remove it by unscrewing the retainer bolt and disconnecting the speaker connector without damaging the locking tabs.
The factory harness is located in the back corner of the side wall panel, behind the driver's side cargo hook floor panel. You will access it after removing the side floor panel (component H) in Step 7.
You need to install five relays total. Three relays must be installed on the harness in the cargo area (Step 7) before connecting the housings to the factory harness. Two additional blue relays must be installed in the vehicle relay box behind the driver-side headlight (Step 11). All relays must be fully inserted with locking tabs in place. Ensure relays are seated on the housing by pulling on them.
The sequence is: (1) Install the three relays on the harness and ensure they are fully seated with locking tabs in place (Step 7); (2) Connect the two relay harness housings into the factory harness, ensuring the locking tab is in place (Step 8); (3) Insert the custom wiring connector end into the white vehicle tow/trailer connector, ensuring full insertion with locking tabs in place (Step 9).
The grey 6-pin tow plug is located on the passenger side, behind the rear bumper. You will locate and open it in Step 12, remove the protective cap, and ensure the connector surfaces are clean and free of dirt before connecting the 4-flat connector.
Connect the 4-flat to the mating end of the grey 6-pin vehicle tow plug located on the passenger side behind the rear bumper. Ensure the connectors are fully inserted with locking tabs in place (Step 13). Before connecting, remove the protective cap and verify that connector surfaces are clean and free of dirt.
Drilling may be required for the ground wire installation. In Step 14, you must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you may drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw (Step 14). Before drilling, check for hidden items to avoid damage and personal injury.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties (Step 15).
After installation is complete, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector functions properly. The test probe (included in required tools) can be used for testing.
After installation: (1) Reinstall all items removed during installation (cargo storage tray, trim panels, side floor panel, and rear subwoofer if equipped); (2) Reconnect the negative battery terminal; (3) Install the provided 4-flat dust cover to help prevent corrosion (Step 16).
Signal Circuits are rated at 7.5 amps per side, and Tail/Running Circuits are rated at 7.5 amps total. You must not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. You must not exceed the product rating (Signal Circuits 7.5 amps per side, Tail/Running Circuits 7.5 amps total) or your tow vehicle's lamp load rating, whichever is lower.
The Curt 56281 fits the Infiniti QX60 and Nissan Pathfinder.
You need a ratchet, 10mm socket, panel trim removal tool, Phillips screwdriver, cutting tool, and test probe.
Yes, you must disconnect the negative battery terminal before beginning installation.
Drilling may be required for the ground wire installation if no suitable existing screw point is available in the vehicle frame. If drilling is needed, you will drill a 3/32" pilot hole.
Signal Circuits are rated at 7.5 amps per side; Tail/Running Circuits are rated at 7.5 amps total. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer.
The kit includes the custom wiring connector, three relays for the harness, two blue relays for the vehicle relay box, a white ground wire with ring terminal and provided screw, cable ties, and a 4-flat dust cover.
