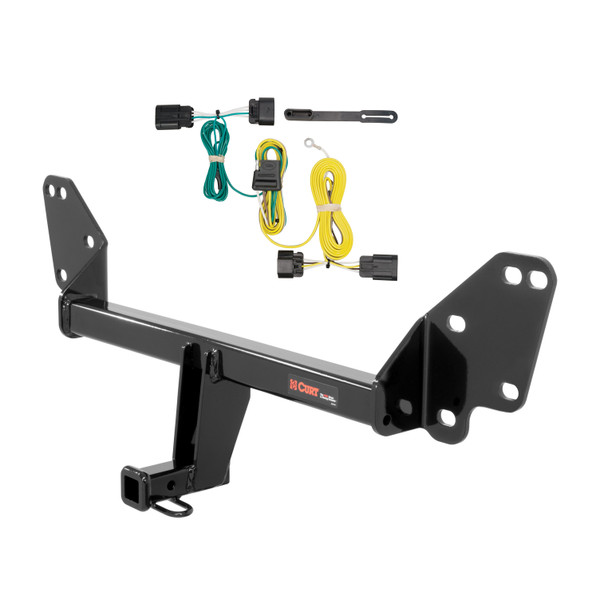

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2014 - 2015 Chevrolet Camaro. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Chevy Camaro and Cadillac CTS (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Camaro (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2015 | Chevrolet Camaro | — |
The 14 - 15 Chevrolet Camaro Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11900 (Part #CHW-344) fits the following vehicles: 2014-2015 Chevrolet Camaro. Always verify your specific year, make, and model before ordering.
Yes, the 14 - 15 Chevrolet Camaro Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11900 (Part #CHW-344) is designed to fit the 2014-2015 Chevrolet Camaro.
The 14 - 15 Chevrolet Camaro Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11900 (Part #CHW-344) fits 2014-2015 Chevrolet Camaro models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 14 - 15 Chevrolet Camaro Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11900 (Part #CHW-344) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT 11900 is designed for 2016-present Cadillac CTS and CTS-V sedans. Confirm your vehicle matches the sedan body style shown in the manual before purchasing.
Yes, CURT 11900 is designed for 2016-present Chevrolet Camaro coupes. The installation steps include specific notes for Camaro models where they differ from CTS vehicles.
No. CURT 11900 is designed for 2016-present Cadillac CTS and CTS-V models only. Earlier model years are not supported.
CURT 11900 has a maximum trailer weight capacity of 2,000 lbs and a tongue weight capacity of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
A weight-carrying hitch is designed to support trailer loads up to the specified capacity. CURT 11900 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight. For non-trailer loads applied to the hitch, you must use CURT 18050 stabilizing straps.
Required tools: T15 Torxbit socket, T20 Torxbit socket, T45 Torxbit socket, 7mm socket, 8mm socket, 15mm socket, torque wrench, ratchet, 8-inch socket extension, plastic pry bar, aviation shears, and safety glasses. A socket set and basic hand tools are assumed.
Yes. A torque wrench is required to properly tighten the M10 fasteners to 45 ft-lbs in step 10. This is a critical safety specification.
Two people may be required to ease installation. While one person may be able to complete the work, having a second person is recommended to help manage the bumper fascia, bumper beam, and other components during removal and reinstallation.
No drilling is required. CURT 11900 uses existing vehicle studs for mounting. However, trimming of the rear bumper fascia is required using aviation shears.
Yes. The rear bumper fascia must be trimmed using aviation shears to accommodate the hitch receiver. For CTS models, the cutout should be approximately 2.50" × 5.00" centered on the fascia. For Camaro models, the cutout should be approximately 2.50" × 3.00" centered on the fascia.
Yes. The trimming of the rear bumper fascia is a permanent modification. Once cut, the fascia cannot be restored to its original condition.
For Cadillac CTS models, the approximate cutout dimension is 2.50" × 5.00", centered on the bumper fascia.
For Chevrolet Camaro models, the approximate cutout dimension is 2.50" × 3.00", centered on the bumper fascia.
Yes. The rear bumper fascia and bumper beam must be removed to access the vehicle frame studs and install the hitch. Both are reinstalled after the hitch is secured.
Yes. Both taillights must be removed to access the trunk area and remove the bumper fascia. They are reinstalled in step 12 after the hitch is secured.
The bumper fascia is secured by (4) T15 screws along the wheel well (2 on each side), (12) M4 screws on the bottom, (2) M4 screws in the wheel well (1 on each side), and (2) T45 bolts inside the trunk (1 on each side). CTS-V models also have (4) T20 screws connecting the heat shield to the fascia.
CTS-V models require removal of (4) T20 Torxbit screws connecting the heat shield to the fascia in step 2. CTS models do not have this step. All other installation steps are identical.
Camaro models require removal of (4) plastic clips (2 on each side) to access the taillight in step 5, and (4) plastic wing nuts inside the trunk in step 4 instead of (2) T45 bolts. CTS models use (2) T45 bolts and (2) plastic clips. All other steps are the same.
Remove (8) M10 nuts using a 15mm socket, (4 on each side). Set the bumper beam aside for reinstallation after the hitch is mounted.
Install the hitch on the rear of the vehicle frame using the existing studs. The hitch mounts directly to these factory studs without drilling or additional modifications.
No. In step 9, loosely secure the bumper beam with M10 hardware. Do not fully tighten until step 10, when you torque all M10 hardware to 45 ft-lbs.
All M10 fasteners must be torqued to 45 ft-lbs. This includes the (8) M10 nuts securing the bumper beam to the hitch.
Yes. In step 7, you unclip the motion sensor harness on the driver side to remove the bumper fascia. In step 12, you must reinstall the bumper fascia, which includes reclipping this harness.
Yes. In step 6, you unclip the electrical harness from each taillight before removal. In step 12, you must reclip the electrical harness when reinstalling the taillights.
Never exceed your vehicle manufacturer's recommended towing capacity. CURT 11900 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but your vehicle's manufacturer may specify a lower limit. Always follow the more restrictive specification.
Non-trailer (wheel-less) loads applied to CURT 11900 must be supported by CURT 18050 stabilizing straps. Do not apply non-trailer loads without these straps. See the CURT catalog or www.curtmfg.com for further information.
Safety glasses must be worn at all times while installing CURT 11900. This is a mandatory safety requirement.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is especially important before towing.
The manual recommends periodically checking all fasteners to ensure they remain tight. A retorque interval is not specified, but it is good practice to check fasteners before your first towing trip.
CURT 11900 is designed for use with ball mount #45521. Optional ball heads include #45571 (1 7/8" ball) and #45572 (2" ball). Verify compatibility before purchasing a ball mount.
CURT 11900 fits 2016-present Cadillac CTS(V) sedans and Chevrolet Camaro coupes only. Confirm your vehicle model and year before purchasing.
All M10 fasteners must be torqued to 45 ft-lbs. Use a torque wrench to ensure proper tightness.
Non-trailer loads must be supported by CURT 18050 stabilizing straps. Do not apply non-trailer loads without these straps.
Periodically check all fasteners to ensure they are tight and all structural components are sound before towing.
CURT part 56197 is designed for Chevrolet Camaro without LED taillights. The manual does not specify which model years or trim levels are compatible. Consult the Wiring Location Guide or contact CURT technical support at 1-877-287-8634 to confirm fitment for your specific Camaro.
No. The CURT 56197 is specifically designed for Chevrolet Camaro without LED taillights. If your Camaro has LED taillights, this product is not compatible.
Yes. Step 2 of the installation requires you to locate the vehicle's battery and disconnect the negative battery terminal before proceeding with any wiring work.
You must remove the trunk floor coverings, the plastic covers on top of the rear taillights (three plastic fasteners on each side), and the rear scuff panel (three plastic wing nuts on each side). You will also need to pull back the felt trunk liner to access the rubber grommet leading to the back of the taillights.
Remove the rubber grommet that the taillight wire harness passes through. Make a cut in the grommet from the center outwards that is large enough to pass the T-Connector's housings through. After routing the T-Connector, re-seat the rubber grommet.
Route the T-Connector end with the yellow wire to the driver's side behind the taillight. Route the T-Connector end with the green wire to the passenger's side behind the removed scuff panel.
Locate the taillight wiring harness connectors. Separate the connectors carefully, taking care not to damage the alignment tabs. Insert the T-Connector end (yellow for driver's side, green for passenger's side) between the separated housings. Ensure the housings are fully inserted with locking tabs in place.
The kit includes cable ties to secure wires to the existing wiring harness, a ring terminal, and a screw for the ground wire. The screw is used to secure the white ground wire at a suitable grounding point near the connector.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" pilot hole. Clean the ground area of rust and dirt. Secure the white ground wire using the ring terminal and screw provided.
Drill a 3/32" pilot hole if a suitable existing grounding point is not available. Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged.
Drilling may be required. If a suitable existing grounding point (such as an existing screw with nut in the vehicle's frame) is available, no drilling is needed. If not, you must drill a 3/32" pilot hole for the provided ground screw. Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged.
The manual does not specify a tow rating for the CURT 56197. However, it warns that exceeding the vehicle's tow rating can cause loss of warranty, overheating and potential fire. You must not exceed the tow vehicle's lamp load rating. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow rating and lamp load rating.
The manual does not specify the lamp load rating. You must not exceed the tow vehicle's lamp load rating, as exceeding it can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
After installation, reinstall all items removed during the install, including trunk floor coverings, plastic covers on the taillights, and the rear scuff panel. Route the 4-flat connector out from under the felt trunk liner and to the center of the vehicle when in use. Roll up and store the connector in an out-of-the-way location when not in use.
The CURT 56197 is designed for Chevrolet Camaro without LED taillights. Confirm your Camaro does not have LED taillights and consult the Wiring Location Guide or call CURT technical support at 1-877-287-8634 to verify fitment for your model year.
Yes, disconnect the negative battery terminal before beginning installation.
Do not exceed your vehicle's tow rating or lamp load rating; exceeding either can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the manufacturer for your specific limits.
