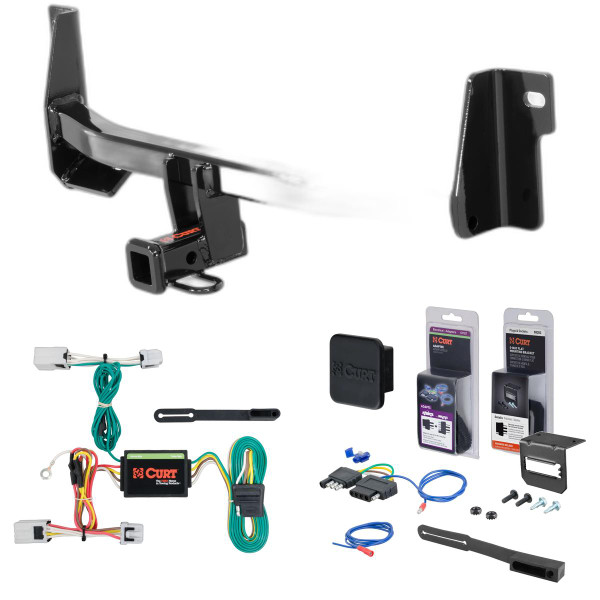

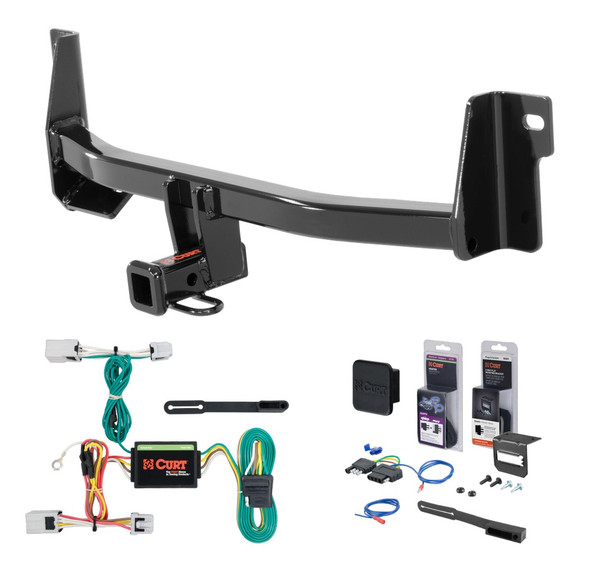

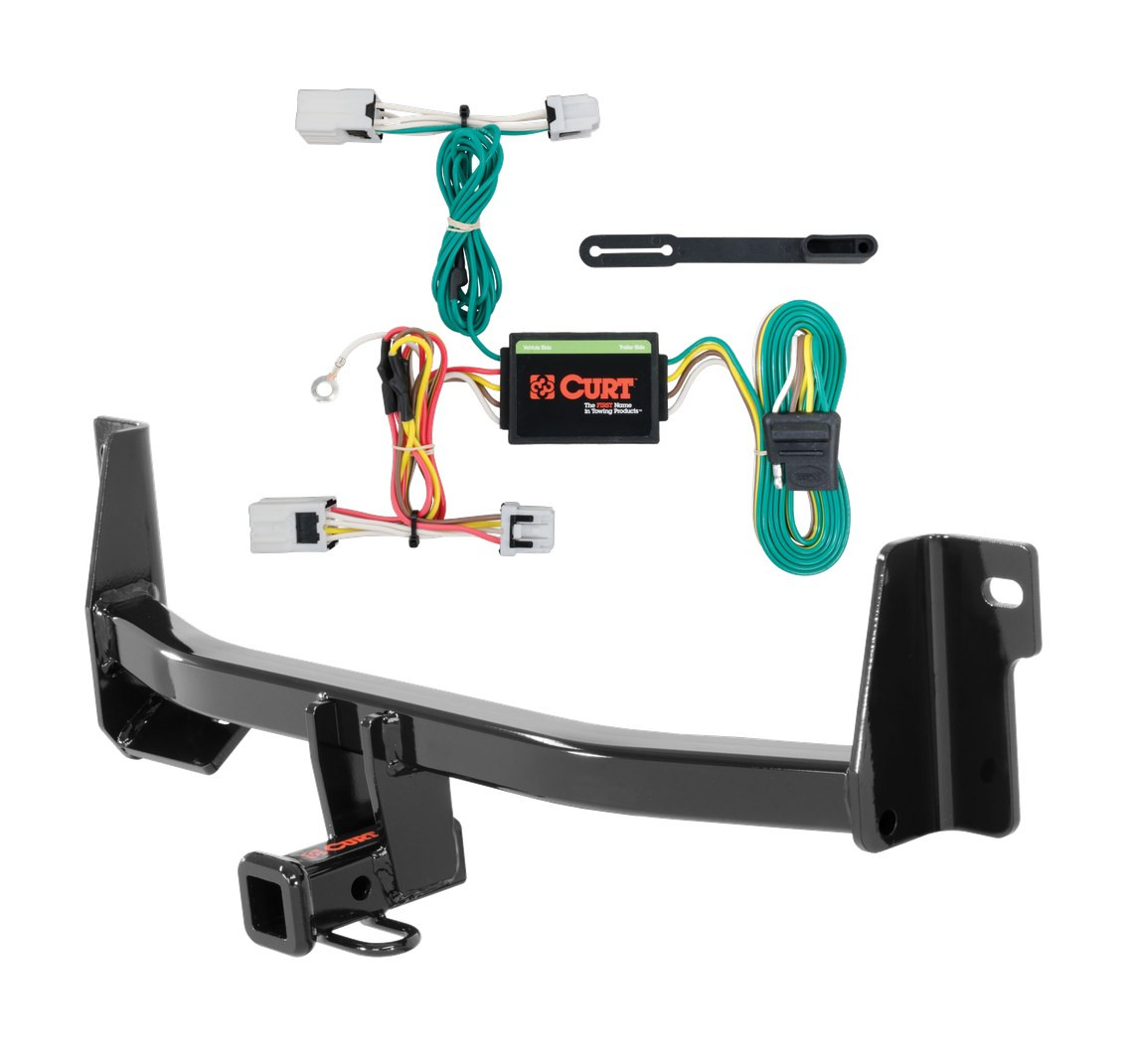

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2014 - 2019 Nissan Versa Note. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Nissan Versa Note (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Nissan Versa Note (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2019 | Nissan Versa Note | — |
Yes, the 14 - 19 Nissan Versa Note Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11378 (Part #5W-CHW-2573) is designed to fit the 2014-2019 Nissan Versa Note.
The 14 - 19 Nissan Versa Note Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11378 (Part #5W-CHW-2573) fits 2014-2019 Nissan Versa Note models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The 14 - 19 Nissan Versa Note Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11378 (Part #5W-CHW-2573) fits the following vehicles: 2014-2019 Nissan Versa Note. Always verify your specific year, make, and model before ordering.
The 14 - 19 Nissan Versa Note Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11378 (Part #5W-CHW-2573) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part 11378 is designed for 2014-Present Nissan Versa Note Hatchback models. Confirm your vehicle matches this specification before purchasing.
The CURT 11378 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The CURT 11378 is designed for use with ball mount 45521. Euro mount options are available: 45571 (1 7/8" ball) and 45572 (2" ball).
You will need: a torque wrench, ratchet, 11/16" socket, 3/4" socket, screwdriver, rotary tool, and safety glasses. A torque wrench is essential because fasteners must be torqued to specific values (70 ft-lbs for 7/16" hardware and 110 ft-lbs for 1/2" hardware).
No, drilling is not required. The hitch uses existing holes on the vehicle. However, fascia trimming is required.
Yes, fascia trimming is required. You will need to mark and trim the rear fascia according to the Fascia Trim Diagram. The dimensions provided (2.50 in, 2.75 in, 2.19 in) are approximate, so you must confirm the fit prior to trimming.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Torque all 7/16" hardware to 70 ft-lbs. Torque all 1/2" hardware to 110 ft-lbs. This includes the carriage bolts and hex flange nuts used to secure the hitch to the vehicle.
The kit includes: 4× CM-SP16 spacers (.250 x 1.50 x 2.00" round hole), 1× 1/2"-13 UNC carriage bolt (1-3/4"), 2× 7/16"-14 UNC carriage bolts (1-1/2"), 1× 1/2"-13 hex flange nut, and 2× 7/16"-14 hex flange nuts. The three original fascia fasteners removed during installation are retained and reinstalled.
1. Remove and retain the three fascia fasteners. 2. Mark and trim the rear fascia using the Fascia Trim Diagram (dimensions are approximate; confirm fit before trimming). 3. Flex the fascia back and raise the hitch into position. Insert 7/16"-14 x 1-1/2" carriage bolts through both driver and passenger side plates into existing holes; the passenger side bolt passes through a SP16 spacer. Secure both sides with SP16 spacers and 7/16"-14 hex flange nuts. 4. Insert the 1/2"-13 x 1-3/4" carriage bolt through the tow loop plate and out the tow loop. Secure with a SP16 spacer and 1/2"-13 hex flange nut. 5. Torque all 7/16" hardware to 70 ft-lbs and all 1/2" hardware to 110 ft-lbs. 6. Reinstall the three fascia fasteners.
Safety glasses must be worn at all times while installing this product. Additionally, never exceed your vehicle manufacturer's recommended towing capacity. All non-trailer loads applied to this hitch must be supported by 18050 stabilizing straps; failure to do so will void the product warranty.
Periodically check that all fasteners are tight and all structural components are sound. This ongoing inspection helps ensure safe operation of the hitch.
The manual states you should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact inspection interval. Regular checks before towing are recommended.
Non-trailer loads can be applied to this hitch only if they are fully supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. For more information on stabilizing straps, see the CURT catalog or visit www.curtmfg.com.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
The manual does not mention disconnecting the battery. No electrical work is required for this installation.
Yes, the CURT 11378 is designed for 2014-Present Nissan Versa Note Hatchback models. It is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required. The hitch uses existing vehicle holes. Fascia trimming is required and must be done using a rotary tool according to the Fascia Trim Diagram.
You need a torque wrench, ratchet, 11/16" and 3/4" sockets, screwdriver, rotary tool, and safety glasses. A torque wrench is essential for proper fastener tightening.
Torque all 7/16" hardware to 70 ft-lbs and all 1/2" hardware to 110 ft-lbs. Use a torque wrench to ensure proper tightening.
The hitch is rated for 2,000 lbs trailer weight and 200 lbs tongue weight. However, never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Two people may be required to ease installation. If you are hesitant, contact an authorized CURT installer for assistance.
Safety glasses must be worn at all times during installation. Additionally, all non-trailer loads must be supported by 18050 stabilizing straps to avoid voiding the warranty.
Yes, the Curt 56206 T-Connector is designed for the Nissan Versa Note. The manual does not specify model year range, so contact Curt technical support at 1-877-287-8634 to confirm fitment for your specific year.
Yes. Disconnect the negative battery terminal on the driver's side under the hood before beginning installation. This is a required safety step.
The vehicle's wiring harness connectors are located in the cargo area behind the taillight in positions P3 and P4, as shown in the Wiring Location Guide on the manual.
Remove all floor coverings, the two plastic push fasteners on each side of the rear scuff panel, and the rear scuff panel itself (by pulling out at the bottom then up). On both sides of the trunk, remove the plastic cargo net tie down using a small flat screwdriver and the two plastic screw fasteners along the trunk floor.
On the driver's side, pull back the trim panel to locate the taillight wiring harness connectors. Separate the connector from the taillight housing carefully, taking care not to damage the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the T-Connector end with the green wire.
Drilling may be required for the ground wire connection. Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no existing screw is available, drill a 3/32" pilot hole for the provided screw. Before drilling, verify that miscellaneous items hidden behind or under surfaces will not be damaged.
The ground wire is white. Secure it using the ring terminal and screw provided. First, clean the ground area from any rust, dirt or paint. The ground wire connects to an existing screw with nut in the vehicle's frame or to a 3/32" pilot hole drilled for the provided screw.
The T-Connector harness includes a yellow wire (driver's side connection), a green wire (passenger's side connection), and a white ground wire. The converter box connects to a 4-flat wire that routes to the center of the vehicle.
Inside the vehicle, locate a flat spot and adhere the black converter box using the double-sided tape provided. The manual does not specify alternative mounting methods or locations.
Route the 4-flat wire to the center of the vehicle and secure it in a convenient, out-of-the-way location. Use the provided cable ties to secure any loose wires.
The battery connection must be fuse protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the tow vehicle's lamp load rating or the product rating, whichever is lower.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 7.5 amps total. Do not exceed the tow vehicle's lamp load rating or the product rating, whichever is lower. Check your vehicle owner's manual or contact the vehicle manufacturer for your vehicle's lamp load rating.
A small flat screwdriver is required to remove the plastic cargo net tie down. The manual does not specify other tools needed, such as a drill bit for the 3/32" pilot hole or general hand tools.
The kit includes a T-Connector harness with yellow and green wire ends, a white ground wire with ring terminal, a screw for grounding, a black converter box, double-sided tape, a 4-flat wire, and cable ties.
The Curt 56206 is designed for the Nissan Versa Note. Confirm your specific model year with Curt technical support at 1-877-287-8634.
Yes, disconnect the negative battery terminal before installation.
Drilling may be required for the ground wire connection if no existing screw is available in the vehicle frame. A 3/32" pilot hole is drilled for the provided screw.
A small flat screwdriver is required. A drill may be needed if drilling a 3/32" pilot hole for the ground wire.
10 amps maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 7.5 amps total. Do not exceed your vehicle's lamp load rating.
