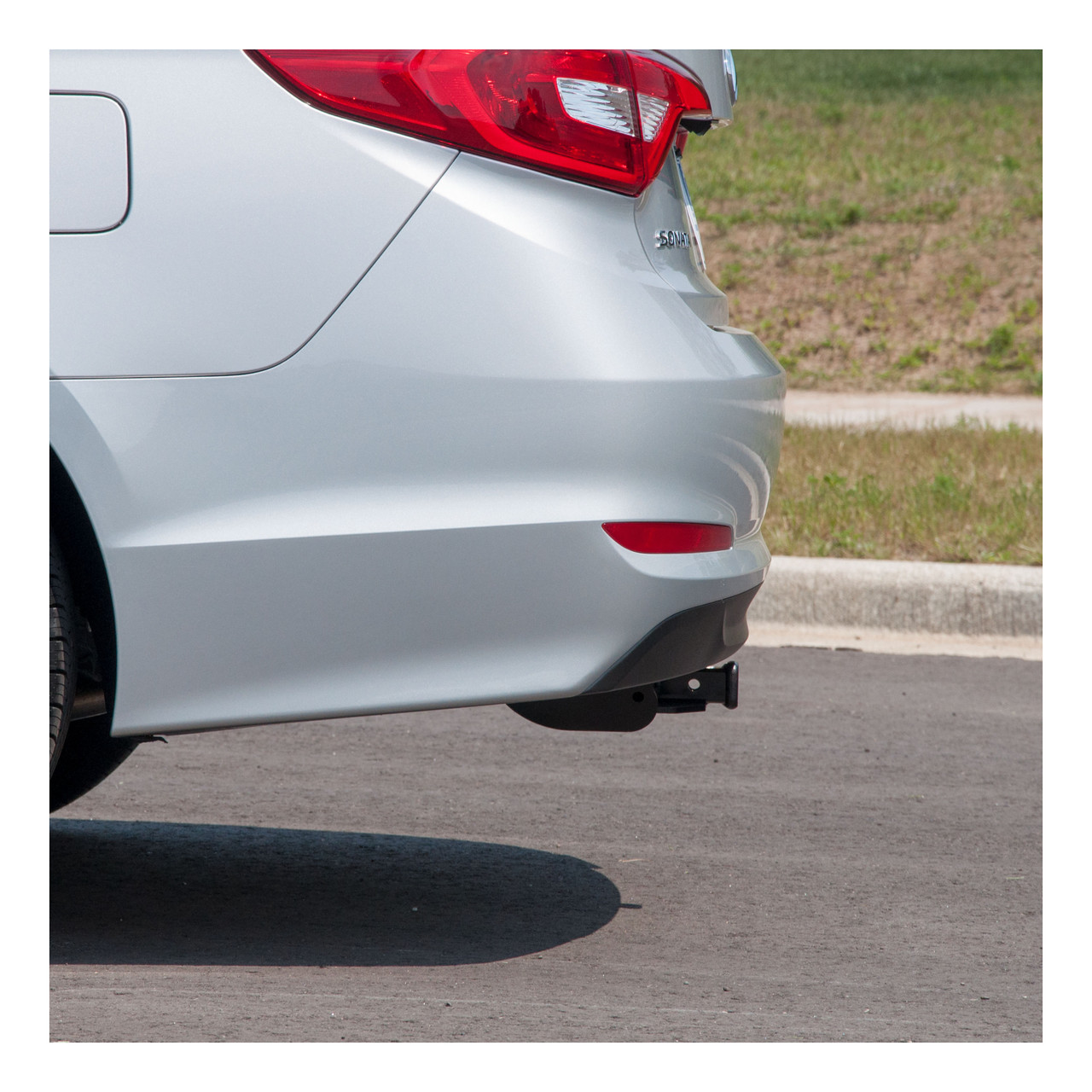

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2015 - 2019 Hyundai Sonata Excluding Hybrid. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Hyundai Sonata and Kia Optima (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.

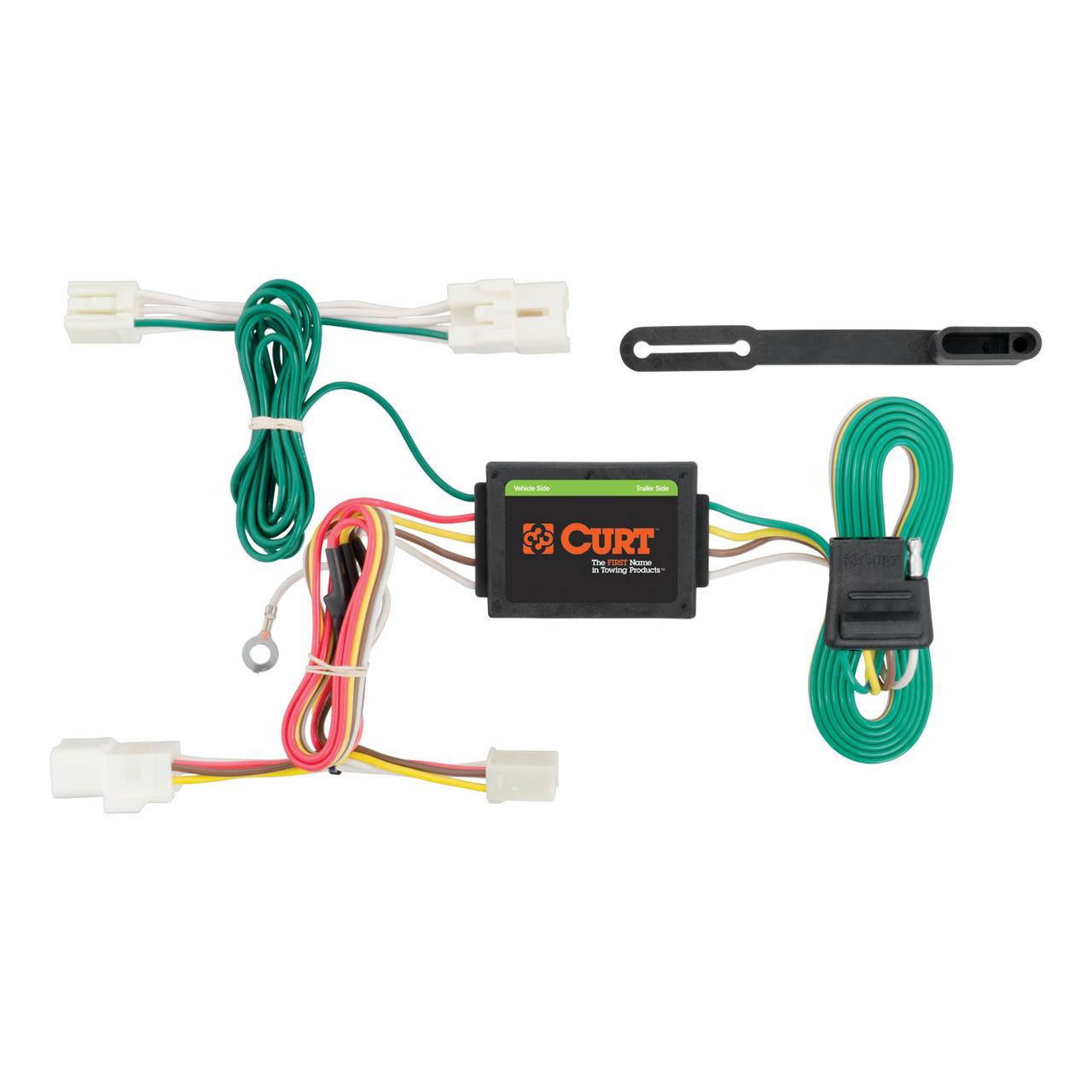

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Hyundai Sonata (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Hyundai Sonata | Excluding Hybrid |
Yes, the 15 - 17 Hyundai Sonata Excluding Hybrid Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11402 (Part #CHW-1870) is designed to fit the 2015-2017 Hyundai Sonata.
The 15 - 17 Hyundai Sonata Excluding Hybrid Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11402 (Part #CHW-1870) fits the following vehicles: 2015-2017 Hyundai Sonata. Always verify your specific year, make, and model before ordering.
The 15 - 17 Hyundai Sonata Excluding Hybrid Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11402 (Part #CHW-1870) fits 2015-2017 Hyundai Sonata models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 15 - 17 Hyundai Sonata Excluding Hybrid Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11402 (Part #CHW-1870) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the CURT 11402 is designed for 2016-present Kia Optima sedans. The hitch is a weight-carrying receiver hitch with a maximum trailer weight capacity of 2,000 lbs and tongue weight capacity of 200 lbs. Always verify your vehicle's manufacturer-recommended towing capacity before towing.
Yes, the CURT 11402 is designed for 2015-present Hyundai Sonata sedans, including Blue Drive models. The hitch is a weight-carrying receiver hitch with a maximum trailer weight capacity of 2,000 lbs and tongue weight capacity of 200 lbs. Always verify your vehicle's manufacturer-recommended towing capacity before towing.
The CURT 11402 has a maximum trailer weight capacity of 2,000 lbs and a tongue weight capacity of 200 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
You will need: a ratchet, 10 mm socket, 3/4 inch socket, torque wrench, pry bar, safety glasses, spray lubricant, and a die grinder. The die grinder is needed to enlarge the forward-most hole on both frame rails to allow 1/2" bolts and spacers to pass through.
The kit includes: 4 bolts (1/2-13 UNC, 1-1/4", grade 8, yellow zinc, part 10-10278); 4 square hole spacers (0.250 x 1.00 x 3.00", part CM-SP6); 4 serrated flange nuts (1/2-13 UNC, grade 8, yellow zinc, part 20-00062); and 2 pieces of 1/2" x 30" fishwire (part 1_2 x 30 FISHWIRE).
Yes. You must remove the rubber exhaust hangers and temporarily lower the exhaust to access the frame rails. Be sure to support the exhaust to prevent damage. After installation is complete, you will raise the exhaust back into position.
Yes. You must temporarily remove the heat shield(s) by removing fasteners with a 10 mm socket. After the hitch is installed and torqued, you will reinstall the heat shield(s), leaving the rear-most fastener off. You may have to slot the front hole in the heat shield to accommodate the hitch.
If your vehicle has a plastic underbody panel, you must temporarily remove it by removing plastic fasteners and fasteners with a 10 mm socket. After installation, you will trim the panel (see trim diagram for approximate dimensions) and reinstall it.
No new holes need to be drilled. However, you must enlarge the forward-most hole on both frame rails to allow 1/2" bolts and spacers to pass through. This enlargement is done using a die grinder. The rear holes are already present and will be used as-is.
Fishwire is a technique to route hardware through tight spaces. For this hitch: thread the 1/2" bolts and spacers through the enlarged forward hole and out through the rear holes on each side. Then reverse the bolts and spacers back into the enlarged holes. This allows you to position the hardware before raising the hitch into place. The manual references fishwire technique diagrams for visual guidance.
All 1/2" hardware (bolts and flange nuts) must be torqued to 110 ft-lbs. Use a torque wrench to ensure proper tightness. This torque should be applied after the hitch is raised into position and attached to the frame.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person can help, particularly when raising the hitch into position.
The CURT 11402 is rated as an EASY installation. However, it requires specific tools (including a die grinder for hole enlargement), removal of multiple vehicle components (exhaust, heat shield, underbody panel), and the fishwire technique for hardware routing. If you are hesitant to undertake this task, CURT recommends contacting an authorized CURT installer for assistance.
Safety glasses must be worn at all times while installing this product. When lowering the exhaust, be sure to support it to prevent damage. When raising the hitch into position, be careful not to push hardware into the frame. Read all instructions thoroughly before beginning installation.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer loads.
After installation, verify that all 1/2" hardware has been torqued to 110 ft-lbs. Ensure the heat shield(s) are reinstalled with the rear-most fastener left off. Confirm the exhaust is raised back into position. If an underbody panel was present, verify it has been trimmed and reinstalled. Periodically check that all fasteners remain tight and all structural components are sound.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
The CURT 11402 is designed for use with ballmount 45521. Euro mount options are available: part 45571 (1-7/8" ball) and part 45572 (2" ball).
Yes, the CURT 11402 fits 2016-present Kia Optima sedans and 2015-present Hyundai Sonata sedans (including Blue Drive). Maximum towing capacity is 2,000 lbs trailer weight and 200 lbs tongue weight, but never exceed your vehicle manufacturer's recommended towing capacity.
No new holes are drilled, but you must enlarge the forward-most hole on both frame rails using a die grinder to allow 1/2" bolts and spacers to pass through.
Yes, you must temporarily remove rubber exhaust hangers and lower the exhaust (supporting it to prevent damage), and temporarily remove the heat shield(s). Both are reinstalled after the hitch is torqued.
All 1/2" bolts and flange nuts must be torqued to 110 ft-lbs using a torque wrench.
Never exceed your vehicle manufacturer's recommended towing capacity. All non-trailer loads must be supported by CURT 18050 stabilizing straps. Wear safety glasses during installation.
Yes, part 56247 is designed for Hyundai Sonata models, excluding Hybrid variants. If you own a Sonata Hybrid, this harness is not compatible.
The harness is rated for Signal Circuits at 3.0 amps per side and Tail/Running Circuits at 7.5 amps total. Do not exceed these ratings or your tow vehicle's lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need a panel trim removal tool and a Phillips screwdriver. You may also need a drill with a 3/32" bit if you need to create a pilot hole for the grounding screw, depending on whether a suitable existing screw with nut is available on the vehicle frame.
Yes. The first step of installation is to locate the vehicle's battery on the driver side under the hood and disconnect the negative battery terminal. This must be done before proceeding with any other installation steps.
The black converter box should be adhered to a flat spot inside the vehicle near the taillight using the provided double-sided tape. The manual does not specify an exact location, only that it should be mounted near the taillight.
Pull back the side trim panel to locate the vehicle's taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the T-connector end (yellow wire for driver side, green wire for passenger side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Not necessarily. First, locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no existing screw is available, you will need to drill a 3/32" pilot hole for the provided grounding screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided grounding screw. The grounding point should be located near the taillight connector on a flat area of the vehicle frame that is free of rust, dirt and paint.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Install the provided 4-flat dust cover to help prevent corrosion. This should be done after all other installation steps are complete and the battery has been reconnected.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer. The manual does not provide detailed testing procedures beyond this.
1. Open the trunk and remove all trunk floor coverings. 2. Remove the fasteners securing the rear scuff panel and pull it out at the bottom then up. 3. Remove the push fastener and Phillips screw from the felt liner. 4. Pull back on the side trim panel to locate the taillight wiring harness connectors. Repeat this sequence on both the driver and passenger sides.
The driver side taillight wiring is located behind the driver side taillight housing, inside the trunk (P3). The passenger side taillight wiring is located behind the passenger side taillight housing, inside the trunk (P4). These are the two connection points for the yellow and green T-connector ends.
The T-connector end with the yellow wire connects to the driver side taillight. The T-connector end with the green wire connects to the passenger side taillight. The white ground wire is used for the grounding connection near the taillight connectors.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame, or drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
No. The Curt 56247 is designed for Hyundai Sonata models excluding Hybrid variants.
Panel trim removal tool, Phillips screwdriver, and optionally a drill with 3/32" bit if no existing grounding point is available.
Yes, disconnect the negative battery terminal before beginning installation.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 7.5 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
Only if no existing screw with nut is available on the vehicle frame for grounding. If drilling is needed, a 3/32" pilot hole is required.
3/32" pilot hole.
