| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 7.5 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Electrical System Type | 3W |
| Finish | N/A |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2022 | Ram ProMaster City | — |
The 15-22 RAM ProMaster City CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2164) fits 2015-2022 Ram ProMaster City models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 15-22 RAM ProMaster City CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2164) is designed to fit the 2015-2022 Ram ProMaster City.
The 15-22 RAM ProMaster City CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2164) fits the following vehicles: 2015-2022 Ram ProMaster City. Always verify your specific year, make, and model before ordering.
The 15-22 RAM ProMaster City CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2164) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

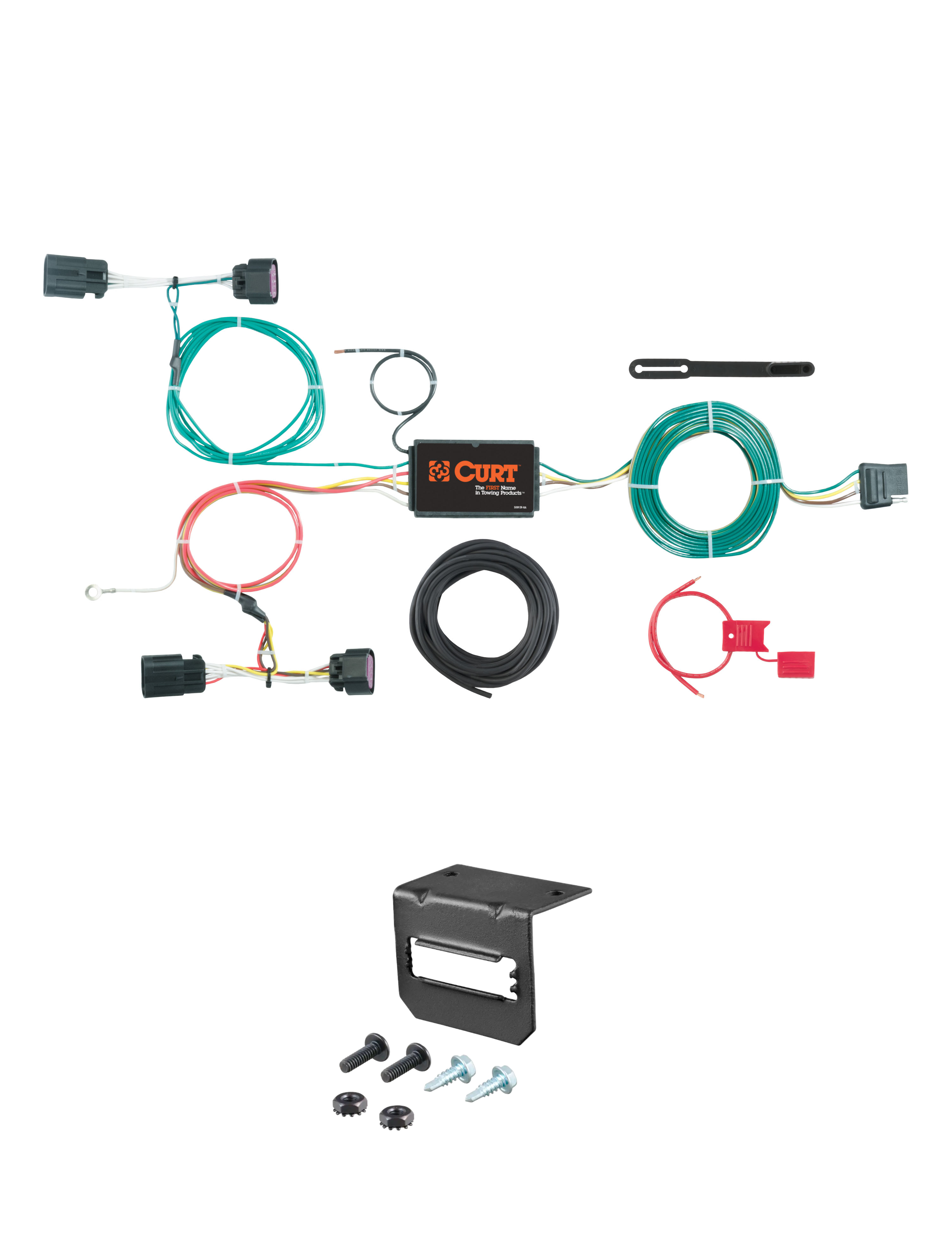

Yes, the Curt 56270 is designed for the Ram ProMaster City (SUVs, Mini & Full-Sized Vans category). The harness includes yellow and green wire ends that route to the driver and passenger side taillights respectively.
Signal circuits are rated at 7.5 amps per side, and tail/running circuits are rated at 7.5 amps total. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Fuse protection is required to prevent overheating and potential fire. The battery connection must use a 10-amp maximum fuse. Exceeding the product rating can cause loss of warranty, overheating, and potential fire hazard.
You will need: panel trim removal tool, Phillips screwdriver, wire stripper, crimping tool, side cutter, fish wire, and right angle pick. A 3/32" drill bit may also be needed if drilling a pilot hole for the ground screw.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process and is required for safety.
Insert the yellow wire end into the top frame hole on the driver side. Fish it down the channel leading to the rear of the taillight connector. Route the end through the opening and insert it between the separated taillight connectors, ensuring the connectors are fully inserted with locking tabs in place. Reinstall the taillight.
Run a long fish wire into the top frame hole on the passenger side above the cargo door towards the center of the vehicle, using the hole from the removed dome light to guide it to the driver side. Fasten the green wire end to this routed fish wire and pull it back to the passenger side. Repeat the taillight connector installation process on the passenger side with the green wire end.
Mount the black converter box on the driver side inside the cargo area, on a flat spot on the upper corner inside the rear cargo door frame. Use the provided double-sided tape to adhere it.
Drilling may be required. Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt, and paint. Always check for hidden items behind or under surfaces before drilling to avoid damage and personal injury.
Route the 4-flat wire through the top frame hole where the converter is installed and down out the bottom of the 12V DC accessory hole. Coil the 4-flat wire for storage when not in use. Reinstall the 12V DC accessory cover after routing.
Reinstall all items removed during installation, reconnect the negative battery terminal, and install the provided 4-flat dust cover to help prevent corrosion.
Test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Locate and remove the Phillips screws holding the taillight in place. Remove the taillight to access the vehicle taillight wiring harness. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end between the separated connectors, ensuring they are fully inserted with locking tabs in place before reinstalling the taillight.
Yes, you must remove the dome light located inside the rear cargo area above the cargo doors. This removal provides access for routing the fish wire that guides the green wire end to the passenger side.
Open the rear cargo doors. On the driver side, locate the yellow push latch and push it in to be able to open the cargo door past 90°.
The Curt 56270 custom wiring harness is designed for the Ram ProMaster City.
Signal circuits: 7.5 amps per side. Tail/running circuits: 7.5 amps total. Battery connection must be fuse-protected with a 10-amp maximum fuse.
Panel trim removal tool, Phillips screwdriver, wire stripper, crimping tool, side cutter, fish wire, and right angle pick. A 3/32" drill bit may be needed for the ground screw.
Yes, disconnect the negative battery terminal before starting installation.
Drilling may be required if no existing screw with nut is available. If drilling, use a 3/32" pilot hole. Always check for hidden items before drilling.
Fuse protection prevents overheating and potential fire. Exceeding the product rating can cause loss of warranty and fire hazard.
