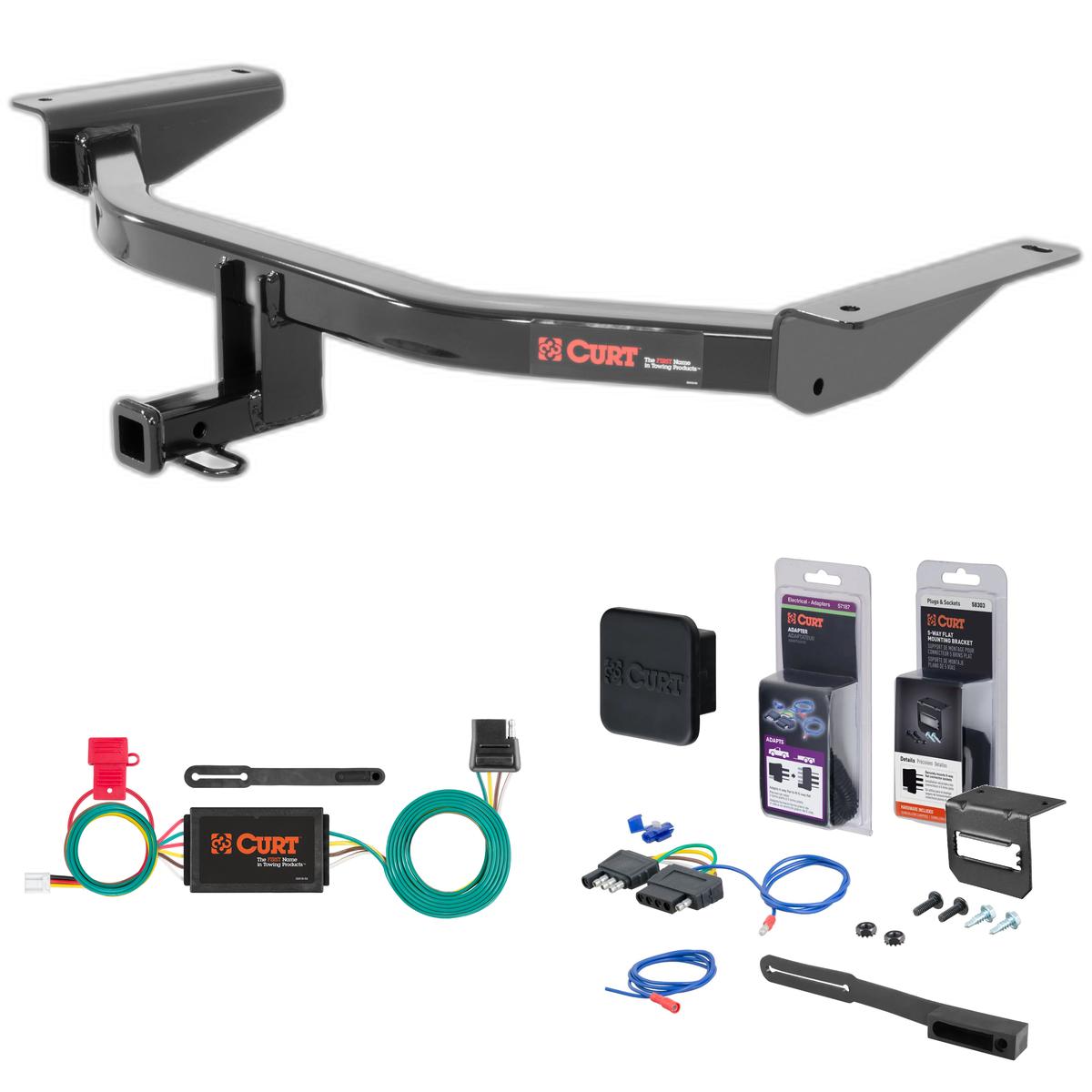

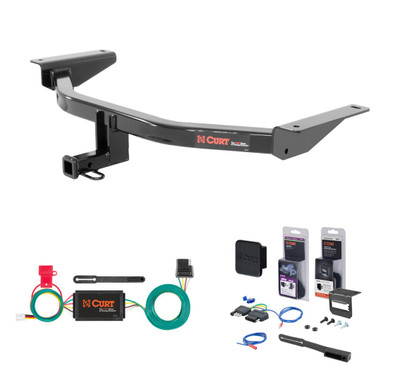

Complete CURT Class 2 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2016 - 2023 Mazda CX-9. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Mazda CX-9 (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Mazda CX9 (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Mazda CX-9 | — |
Yes, the 16 - 23 Mazda CX-9 Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12156 (Part #5W-CHW-2281) is designed to fit the 2016-2023 Mazda CX-9.
The 16 - 23 Mazda CX-9 Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12156 (Part #5W-CHW-2281) fits 2016-2023 Mazda CX-9 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 16 - 23 Mazda CX-9 Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12156 (Part #5W-CHW-2281) fits the following vehicles: 2016-2023 Mazda CX-9. Always verify your specific year, make, and model before ordering.
The 16 - 23 Mazda CX-9 Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12156 (Part #5W-CHW-2281) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the CURT 12156 is designed for 2016-current Mazda CX-9 SUVs. Before purchasing, verify your vehicle matches this year range and model. The hitch is a weight-carrying type with a maximum trailer weight capacity of 3500 lbs and tongue weight capacity of 350 lbs.
The CURT 12156 is rated for a maximum trailer weight of 3500 lbs and a tongue weight of 350 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
The CURT 12156 is designed for use with ballmount #45521. Euro mount options are also available: #45571 (1 7/8" ball) or #45572 (2" ball).
You will need: a ratchet, 10mm and 3/4" sockets, a 6" socket extension, a torque wrench, a flathead screwdriver, and safety glasses. The manual also references exhaust removal pliers or an equivalent method for removing rubber exhaust hangers.
No. The CURT 12156 is a no-drill application. It uses existing holes in the frame rails and access holes for installation.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Safety glasses must be worn at all times while installing this product. When removing the exhaust hangers, make sure the exhaust is properly supported before proceeding with installation.
All 1/2" fasteners must be torqued to 110 ft-lbs. This is the final step after the hitch is raised into position and secured with the 1/2" hex flange nuts.
The hitch includes: 4 carriage bolts (1/2-13 UNC, 1-1/2", grade 8, part 10-10287), 4 serrated flange nuts (1/2-13 UNC, grade 8, part 20-00062), 4 square hole spacers (0.250 x 1.00 x 3.00", part CM-SP6), and 4 pieces of 1/2" fishwire (part 1_2 FISHWIRE).
Fishwire is used to guide bolts and spacers through the frame rail access holes. In step 3, you thread one 1/2" carriage bolt and one CM-SP6 spacer through the access hole and into the forward-most hole in each frame rail, leaving the fishwires attached. In step 4, you reverse fishwire one bolt and spacer through the access hole in each frame rail, again leaving fishwires attached. When raising the hitch into position in step 5, you guide the fishwire ends through the attachment holes, then remove the fishwires and secure the hitch with hex flange nuts.
You must remove the four rubber exhaust hangers to access the installation area. The exhaust itself does not need to be fully removed, but it must be supported while the hangers are removed. After the hitch is installed and torqued, you raise the exhaust back into position and reinstall the exhaust hangers.
Yes. The first installation step is to remove the lower trim panel from the vehicle by removing two plastic fasteners using a flathead screwdriver and two hex nuts using a 10mm socket. The trim panel should be returned to the vehicle owner after installation.
All non-trailer (wheel-less) loads applied to this hitch must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. For further information about stabilizing straps, see the CURT catalog or visit www.curtmfg.com.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
The CURT 12156 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 12156 is designed for 2016-current Mazda CX-9 SUVs. Maximum towing capacity is 3500 lbs trailer weight and 350 lbs tongue weight, but never exceed your vehicle manufacturer's recommended capacity.
No, the CURT 12156 is a no-drill application. It uses existing frame rail holes and access holes for installation.
You will need a ratchet, 10mm and 3/4" sockets, 6" socket extension, torque wrench, flathead screwdriver, safety glasses, and exhaust removal pliers or equivalent method.
All 1/2" fasteners must be torqued to 110 ft-lbs after the hitch is raised into position and secured with hex flange nuts.
The hitch is rated for 3500 lbs trailer weight and 350 lbs tongue weight, but you must never exceed your vehicle manufacturer's recommended towing capacity.
Yes. All non-trailer loads must be supported by 18050 stabilizing straps. Failure to do so voids the warranty. For more information, see the CURT catalog or visit www.curtmfg.com.
Two people may be required to ease installation. If you are hesitant, contact an authorized CURT installer for assistance.
Yes, the Curt 56338 custom wiring connector is designed for Mazda CX-9 vehicles in the SUVs, Mini & Full-Sized Vans category. The connector is located behind the passenger side rear access panel.
The Curt 56338 is a custom wiring connector that provides a 4-flat trailer connector interface for your Mazda CX-9. It includes a black converter box that mounts behind the side trim panel and allows you to connect a trailer or towed vehicle.
The Curt 56338 has the following electrical ratings: signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total. The battery connection must be fuse-protected with a maximum 10-amp fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
You will need a ratchet, 10mm socket, and panel trim removal tool. The manual also recommends having a pry tool available for removing trim panels and accessing the vehicle connector.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process and is required for safety.
The vehicle connector is located behind the passenger side rear access panel. To access it, you must open the rear hatch, remove floor coverings and storage trays, remove the scuff panel, unscrew the tire jack, remove cargo loops from the rear trim panel using a 10mm socket, and then pull back the rear trim panel to expose the connector.
Insert the custom connector end into the vehicle connector, ensuring the connectors are fully inserted with the locking tabs in place. The custom connector is designed to match the vehicle connector, so alignment should be straightforward.
Mount the black converter box on a flat spot behind the side trim panel using the double-sided tape provided with the connector. Secure any loose parts of the wiring connector with the provided cable ties.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties to prevent damage and maintain a clean appearance.
Test the connector for proper function by using a test light or by connecting a properly wired trailer. All connections must be complete for the harness to function properly. For the initial test, reset the electrical system by temporarily removing the vehicle key from the ignition.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Exceeding the product rating can cause loss of warranty, overheating, and potential fire. The product is rated for signal circuits at 3.0 amps per side and tail/running circuits at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
You must remove the following items from the passenger side of the rear hatch area: floor coverings, storage trays, the scuff panel, the tire jack, and cargo loops from the rear trim panel. The rear trim panel itself must be pulled back to access the vehicle connector, but is not permanently removed.
After connecting the custom connector to the vehicle connector, mount the black converter box behind the side trim panel using the provided double-sided tape, secure loose wires with cable ties, reinstall all removed items, reconnect the negative battery terminal, and install the provided 4-flat dust cover to prevent corrosion.
The Curt 56338 includes a custom wiring connector with a black converter box, double-sided tape for mounting the converter box, cable ties for securing loose wires, and a 4-flat dust cover to prevent corrosion.
Yes, the Curt 56338 is designed for Mazda CX-9 vehicles. The connector mounts behind the passenger side rear access panel.
You need a ratchet, 10mm socket, and panel trim removal tool. A pry tool is also helpful for removing trim panels.
Yes, disconnect the negative battery terminal before starting installation. This is required for safety.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Battery connection must use a 10-amp max fuse. Do not exceed the product rating or tow vehicle lamp load rating.
The battery connection must use a 10-amp maximum fuse. Exceeding this can cause overheating, fire, and loss of warranty.
