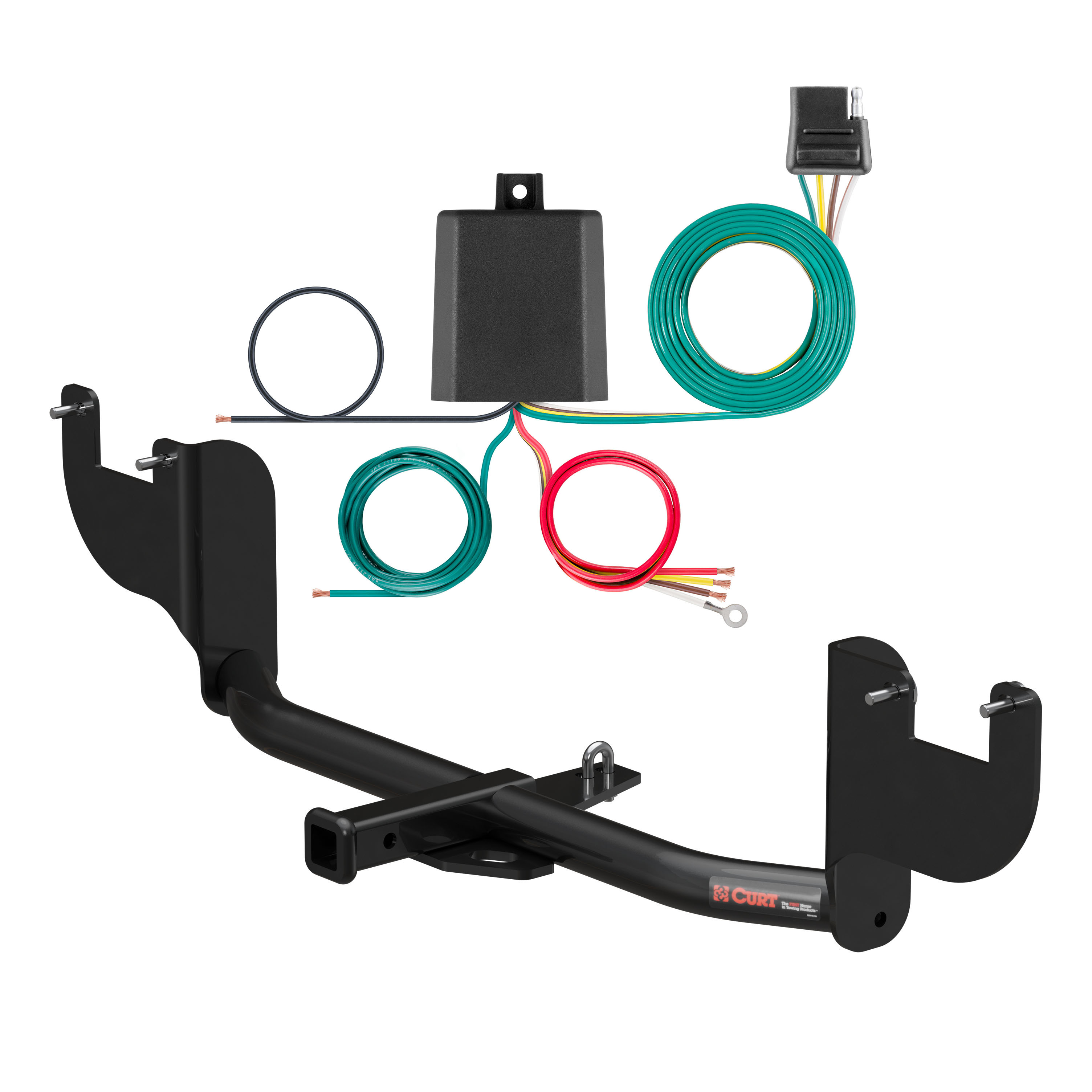

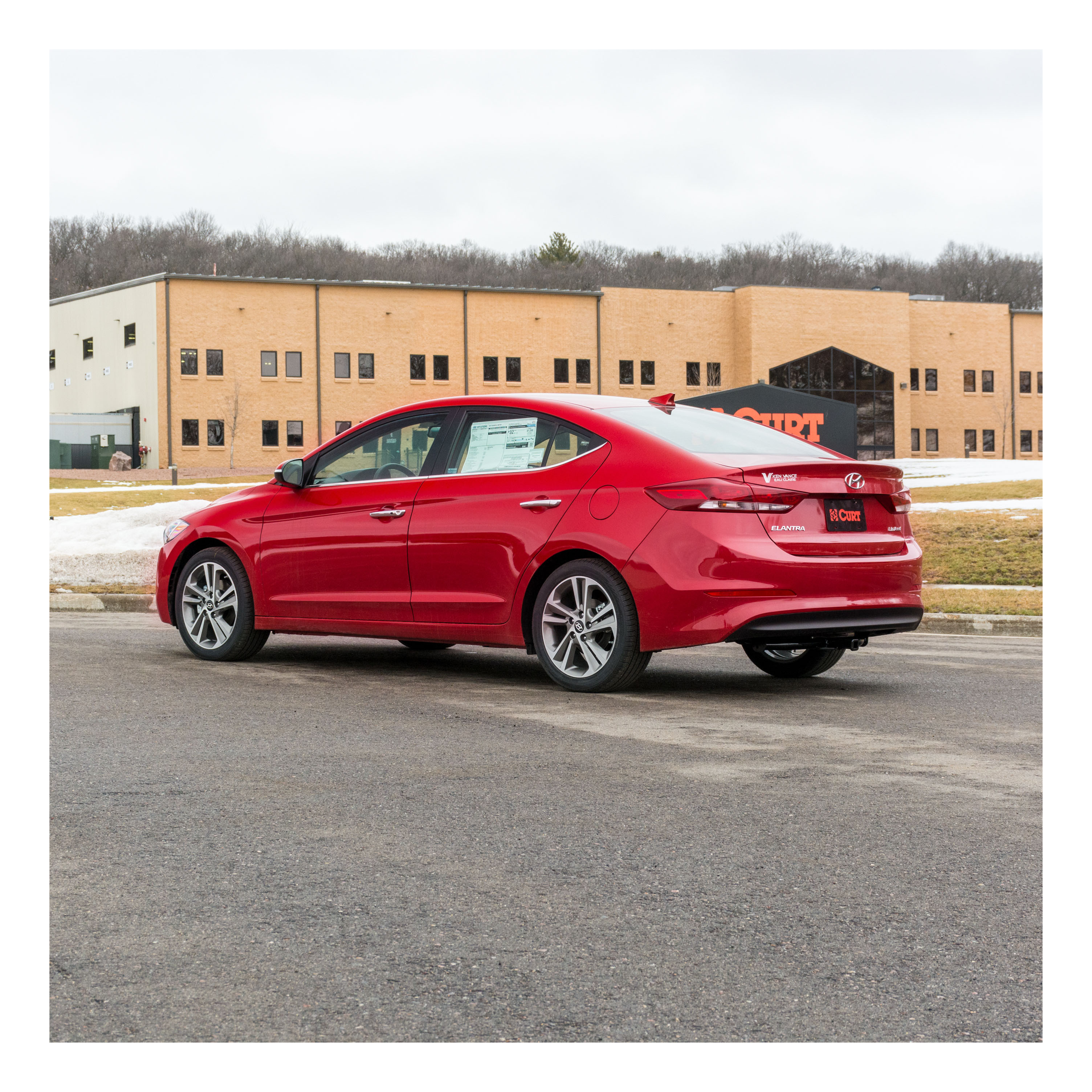

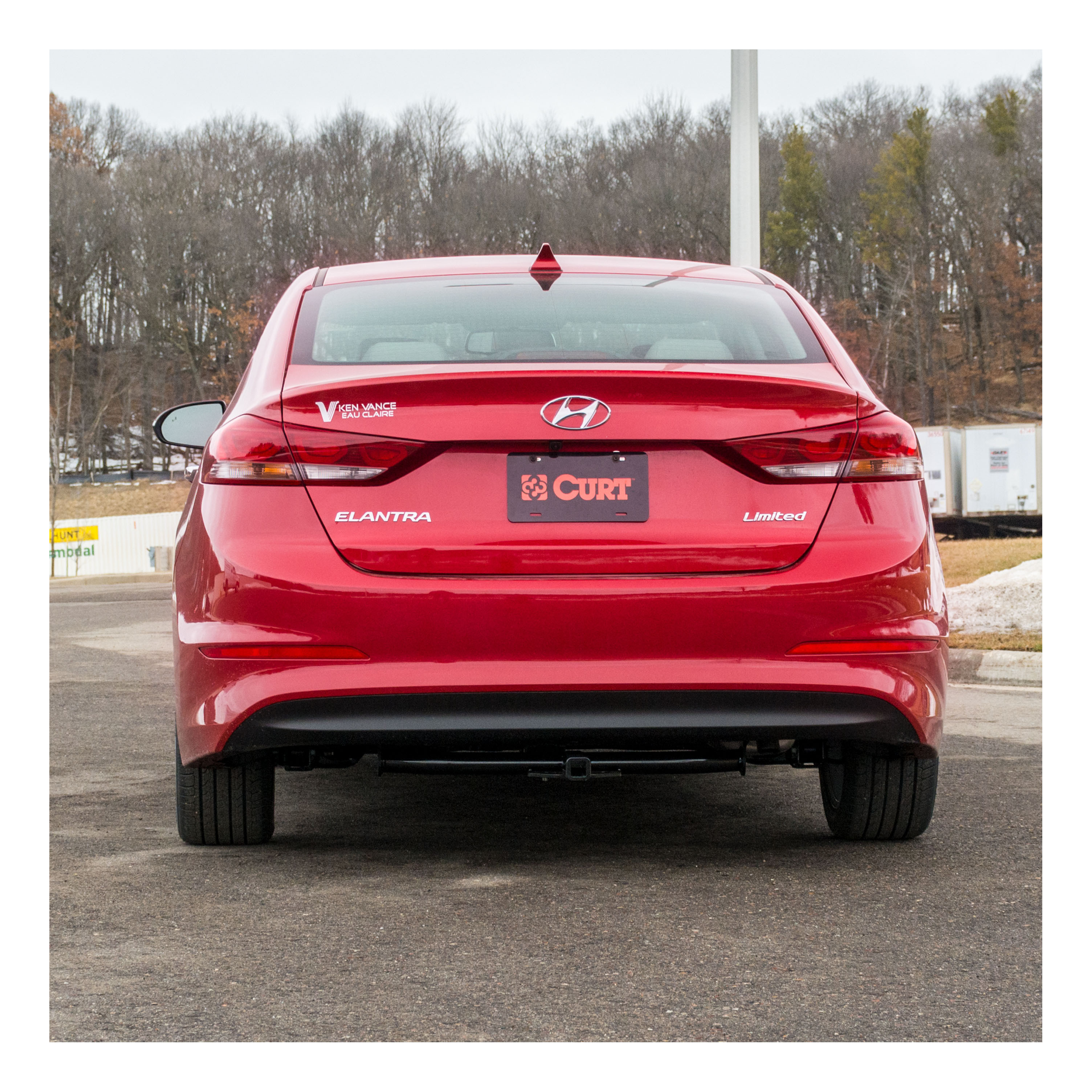

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2017 - 2018 Hyundai Elantra Sedan, with factory recovery loop. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Hyundai Elantra (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Hyundai Elantra sedan Limited (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2018 | Hyundai Elantra | Sedan, with factory recovery loop |
Yes, the 17 - 18 Hyundai Elantra Sedan, with factory recovery loop Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11424 (Part #CHW-1811) is designed to fit the 2017-2018 Hyundai Elantra.
The 17 - 18 Hyundai Elantra Sedan, with factory recovery loop Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11424 (Part #CHW-1811) fits the following vehicles: 2017-2018 Hyundai Elantra. Always verify your specific year, make, and model before ordering.
The 17 - 18 Hyundai Elantra Sedan, with factory recovery loop Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11424 (Part #CHW-1811) fits 2017-2018 Hyundai Elantra models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The 17 - 18 Hyundai Elantra Sedan, with factory recovery loop Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11424 (Part #CHW-1811) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT 11424 is designed for Hyundai Elantra Sedan models from 2017 to current. It attaches to the existing vehicle tow loop and requires no drilling.
The hitch has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch.
CURT 11424 is designed for use with ball mount D-21 / 45521. Euro mount options are available: #45571 (1-7/8" ball) or #45572 (2" ball).
Required tools: flat head screwdriver, 10mm, 13mm, 15mm, and 17mm sockets, 9/16" socket, 6" socket extension, socket wrench, torque wrench, masking tape, tape measure, and die grinder (or cutoff wheel). A torque wrench is essential for proper fastener tightening.
No, drilling is not required. The hitch attaches to the existing vehicle tow loop and uses existing bolt holes on the bumper beam.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve installation quality and reduce time required.
Two modifications are required: (1) Lower the exhaust by detaching two rubber isolators towards the rear of the vehicle, and (2) Trim the driver side underbody panel. The underbody panel is temporarily removed during installation and then reinstalled after cutting out a marked section using a cutoff wheel. The exhaust is then raised and reattached.
The underbody panel trim dimensions are 1 inch, 1.75 inches, and 3.5 inches. Mark the cut location using masking tape before cutting with a cutoff wheel.
1. Lower exhaust by detaching two rubber isolators. 2. Temporarily remove driver side underbody panel (3 clips and 4 nuts). 3. Remove two bolts from bumper beam (driver and passenger sides). 4. Place 3/8" u-bolt over vehicle tow loop. 5. Raise hitch and slide u-bolt through hitch holes. 6. Secure with appropriate bolts and washers (M10 for USA-built, M8 for Korean-built models). 7. Torque fasteners. 8. Mark and cut underbody panel. 9. Reinstall underbody panel. 10. Raise and reattach exhaust.
Remove three clips using a flat head screwdriver and four nuts using a 10mm socket. The panel is temporarily removed to access the hitch mounting area. After installation and cutting, reinstall in reverse order.
Detach two rubber isolators towards the rear of the vehicle. After hitch installation is complete, raise the exhaust back into position and reattach the isolators.
Torque M10 hardware to 48 lb-ft (USA-built models), M8 hardware to 23 lb-ft (Korean-built models), and 3/8" u-bolt hardware to 26 lb-ft. Use a torque wrench to ensure proper fastening.
Included hardware: one 3/8-16 x 1.938 x .875" u-bolt, four M10 x 1.25 x 35mm bolts with 7/16" conical toothed washers (USA-built), or four M8 x 1.25 x 35mm bolts with 3/8" conical toothed washers (Korean-built), two 3/8" hex nuts, two 3/8" lock washers, and two 5/16" flat washers.
USA-built models use M10 bolts (10-10298) with 7/16" conical toothed washers (30-00163) and torque to 48 lb-ft. Korean-built models use M8 bolts (10-10393) with 3/8" conical toothed washers (30-00148) and torque to 23 lb-ft. Both models use the same u-bolt and 3/8" hardware, which torques to 26 lb-ft.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Never exceed your vehicle manufacturer's recommended towing capacity. While CURT 11424 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, your Hyundai Elantra may have a lower manufacturer limit that must be observed.
Periodically check that all fasteners are tight and all structural components are sound. This inspection should be performed regularly throughout the life of the hitch to ensure safe operation.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection is recommended to maintain safe operation.
Yes. It attaches to the existing tow loop with no drilling required.
No. The hitch uses the existing vehicle tow loop and existing bumper beam bolt holes.
Lower the exhaust by detaching two rubber isolators and trim the driver side underbody panel using a cutoff wheel.
M10 bolts: 48 lb-ft (USA-built), M8 bolts: 23 lb-ft (Korean-built), 3/8" u-bolt hardware: 26 lb-ft.
Safety glasses should be worn at all times during installation.
Yes, CURT 18050 stabilizing straps are required for all non-trailer (wheel-less) loads. Failure to use them voids the warranty.

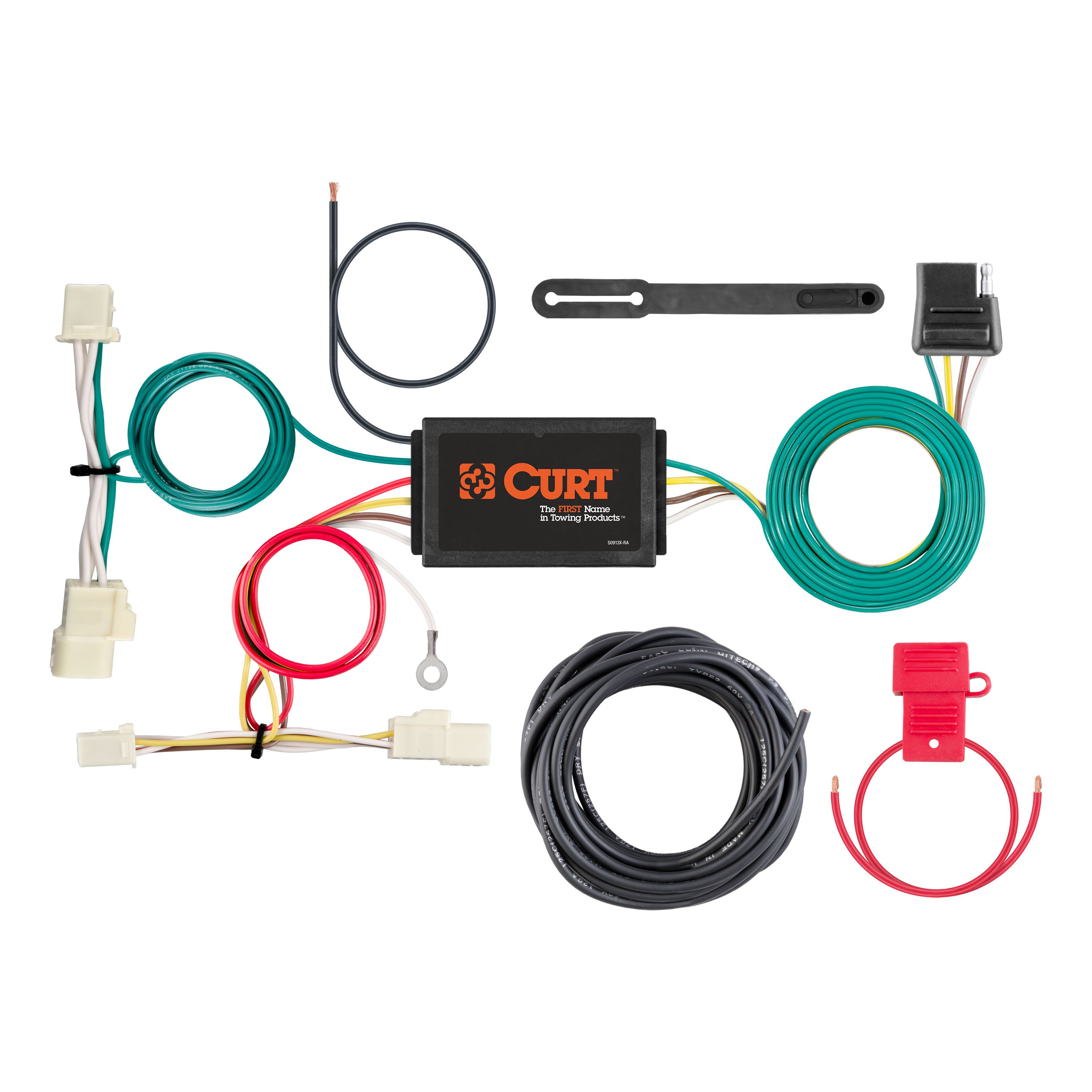

The Curt 56316 Custom Wiring Harness is designed for the Hyundai Elantra sedan (limited trim only). If your vehicle is a different trim level, body style, or model year, this harness may not be compatible. Check your vehicle's trim designation before purchasing.
The Curt 56316 fits Hyundai Elantra sedan (limited trim only). It is not compatible with other trim levels or body styles.
The Curt 56316 is a Custom Wiring Harness that provides trailer lighting connections for your vehicle. It includes a converter box and a 4-flat connector for attaching a trailer. The harness handles signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total).
You will need: a ratchet, 10mm socket, panel trim removal tool, wire stripper, wire crimper, and cutting tool. These tools are required to remove panels, disconnect connectors, prepare wires, and secure the installation.
The harness includes: custom wiring harness ends (yellow and green wire), white ground wire with ring terminal, black converter box, provided screw for grounding, double-sided tape, 4-flat connector, 4-flat dust cover, and cable ties.
Yes. You must disconnect the negative battery terminal before beginning installation. This is a required safety step to prevent electrical hazards during the wiring work.
The manual does not specify whether professional installation is required. The installation involves panel removal, wiring, drilling, and electrical connections. If you are not comfortable with these tasks, consult a professional installer.
Yes. You must drill a 3/32" pilot hole in the vehicle frame to secure the white ground wire using the provided screw. The drilling location should be a flat spot near the taillight, free of rust, dirt, and paint. You may also use an existing screw with nut in the vehicle frame if one is available nearby.
Drill a 3/32" pilot hole in the vehicle frame near the taillight connector. The area must be free of rust, dirt, and paint. Alternatively, you can use an existing screw with nut in the vehicle frame if one is suitable and nearby.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
The battery connection must use a 10-amp maximum fuse. Exceeding this rating can cause overheating and fire.
The harness has three main wires: yellow wire (driver side taillight connection), green wire (passenger side taillight connection), and white wire (ground connection). The black converter box connects to the vehicle battery via a black power wire. Route the 4-flat connector to the center of the vehicle when in use, and store it out of the way when not in use.
The white ground wire connects to the vehicle frame using the provided ring terminal and screw. Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole. The area must be free of rust, dirt, and paint.
The black converter box should be mounted on a flat spot inside the vehicle near the taillight using the provided double-sided tape. This location keeps the converter box secure and out of the way during normal vehicle operation.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the vehicle. When in use, route it to the center of the vehicle. Secure any loose wires with the provided cable ties to prevent tangling and damage.
1. Disconnect the negative battery terminal. 2. Remove trunk floor coverings and rear scuff panel. 3. Remove side felt liner push fasteners on the driver side. 4. Locate and separate the vehicle taillight connectors. 5. Insert the harness end with yellow wire between the connectors. 6. Secure the white ground wire to the vehicle frame. 7. Route the harness end with green wire to the passenger side and repeat steps 3–5. 8. Mount the black converter box with double-sided tape. 9. Route the black power wire from the battery (see included CME-PCL-INS sheet). 10. Route and secure the 4-flat connector. 11. Reinstall all removed items and reconnect the battery. 12. Install the 4-flat dust cover.
Locate the vehicle taillight wiring harness connectors behind the taillight housing inside the trunk. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end (yellow wire for driver side, green wire for passenger side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
You must remove: all trunk floor coverings, the rear scuff panel (by pulling out on the bottom and then up), and the side felt liner push fasteners on both the driver and passenger sides. Take care not to damage the alignment tabs on the back of the scuff panel or the locking tabs on the connectors.
After installation, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly. The manual does not provide detailed testing procedures beyond these methods.
After installation: 1. Reconnect the negative battery terminal. 2. Install the provided 4-flat dust cover to help prevent corrosion. 3. Test for proper function using a test light or by connecting a properly wired trailer. 4. Ensure all panels are reinstalled and all loose wires are secured with cable ties.
Before drilling the 3/32" pilot hole for the ground wire, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The drilling area should be free of rust, dirt, and paint.
Signal circuits are rated for 3.0 amps per side. Tail and running circuits are rated for 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating, and potential fire.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or the vehicle's lamp load rating.
Verify that all installation steps have been completed correctly. Check that: 1. The negative battery terminal is reconnected. 2. The harness ends (yellow and green wires) are fully inserted into the taillight connectors with locking tabs in place. 3. The white ground wire is securely fastened to the vehicle frame. 4. The black converter box is properly mounted and the black power wire is correctly routed from the battery. 5. All connectors are fully seated and undamaged. Test using a test light or properly wired trailer. If the issue persists, consult the vehicle owner's manual or contact the vehicle manufacturer.
