Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 3,500 LB |
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 1-1/4 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2020 | Honda CR-V | Excluding hybrid with kick sensor |

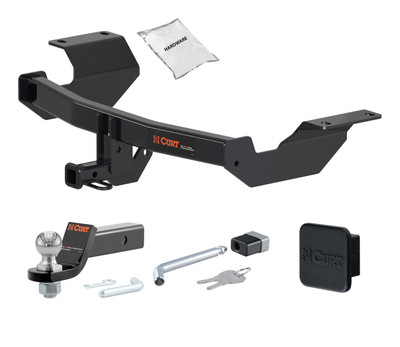

Yes, the 17 - 20 HONDA CR-V Excluding hybrid with kick sensor 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1351 (Part #HWA1351) is designed to fit the 2017-2020 Honda CR-V.
The 17 - 20 HONDA CR-V Excluding hybrid with kick sensor 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1351 (Part #HWA1351) fits the following vehicles: 2017-2020 Honda CR-V. Always verify your specific year, make, and model before ordering.
The 17 - 20 HONDA CR-V Excluding hybrid with kick sensor 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1351 (Part #HWA1351) fits 2017-2020 Honda CR-V models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 17 - 20 HONDA CR-V Excluding hybrid with kick sensor 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1351 (Part #HWA1351) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the CURT 12169 is designed for 2017-present Honda CR-V SUVs. Before purchasing, verify your vehicle matches this model and year range, and confirm your vehicle's towing capacity meets or exceeds the hitch's 3,500 lbs trailer weight and 350 lbs tongue weight ratings.
The CURT 12169 is designed for use with ball mount #45521. Euro mount options are also available: #45571 (1 7/8" ball) and #45572 (2" ball).
The CURT 12169 has a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
Required tools are: ratchet, 11/16" and 3/4" sockets, 6" socket extension, torque wrench, masking tape, aviation shears, screwdriver, pry bar, electrical tape, and safety glasses. Proper tools will greatly improve installation quality and reduce installation time.
The kit includes: (4) 7/16-14 UNC 1-1/4" grade 8 carriage bolts (10-10281), (1) 1/2-13 UNC 2" grade 8 bolt (10-10288), (1) 1/2-13 UNC serrated flange nut (20-00062), (4) 7/16-14 UNC serrated flange nuts (20-00103), (4) .250 x .88 x 2.25" square hole spacers (CM-SP2), (1) .188 x 1.50 x 2.00" round hole spacer (CM-SP32), and (4) 7/16" fishwires (7_16 FISHWIRE).
Yes. The first installation step requires lowering the exhaust by removing (3) rubber isolators from the exhaust towards the rear of the vehicle. You will also need to remove (5) clips from the lower fascia. Both items must be reinstalled after the hitch is secured.
Fishwire is used to guide the carriage bolts and spacers through the vehicle access holes to the frame rail attachment holes on each side. You thread (2) 7/16" carriage bolts and (2) CM-SP2 spacers through the vehicle access hole using the fishwire, then feed the fishwires through the hitch holes as you raise it into position. Once the hitch is in place, remove the fishwires and secure the bolts with hex flange nuts.
Yes, the lower fascia must be trimmed as shown in the fascia trim diagram. The trim is 4.625 inches. When trimming, be aware of electrical components. Trimming of the underbody panel may also ease installation but is optional.
Torque all 7/16" hardware to 59 ft-lbs and all 1/2" hardware to 110 ft-lbs. This applies to the carriage bolts, hex flange nuts, and the tow loop plate attachment bolt.
Never exceed your vehicle manufacturer's recommended towing capacity. The CURT 12169 is rated for 3,500 lbs trailer weight and 350 lbs tongue weight, but your vehicle's manufacturer may have a lower limit. Always follow the more restrictive specification.
All non-trailer (wheel-less) loads applied to the CURT 12169 must be supported by 18050 stabilizing straps. Refer to the CURT catalog or visit www.curtmfg.com for further information on these straps.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the hitch.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
The installation is rated as Easy to Moderate difficulty. The manual recommends reading all instructions thoroughly before beginning, using proper tools to improve installation quality, and considering two people for the task.
Yes, the CURT 12169 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 12169 is designed for 2017-present Honda CR-V SUVs with a 3,500 lbs trailer weight and 350 lbs tongue weight capacity.
You need a ratchet, 11/16" and 3/4" sockets, 6" socket extension, torque wrench, masking tape, aviation shears, screwdriver, pry bar, electrical tape, and safety glasses.
No drilling is required. The installation uses existing vehicle access holes and frame rail attachment holes. However, trimming of the lower fascia (4.625 inches) is required.
Torque all 7/16" hardware to 59 ft-lbs and all 1/2" hardware to 110 ft-lbs.
The CURT 12169 is rated for 3,500 lbs trailer weight and 350 lbs tongue weight, but you must never exceed your vehicle manufacturer's recommended towing capacity.
Yes, you must lower the exhaust by removing (3) rubber isolators from the rear of the exhaust, and remove (5) clips from the lower fascia. Both are reinstalled after the hitch is secured.
