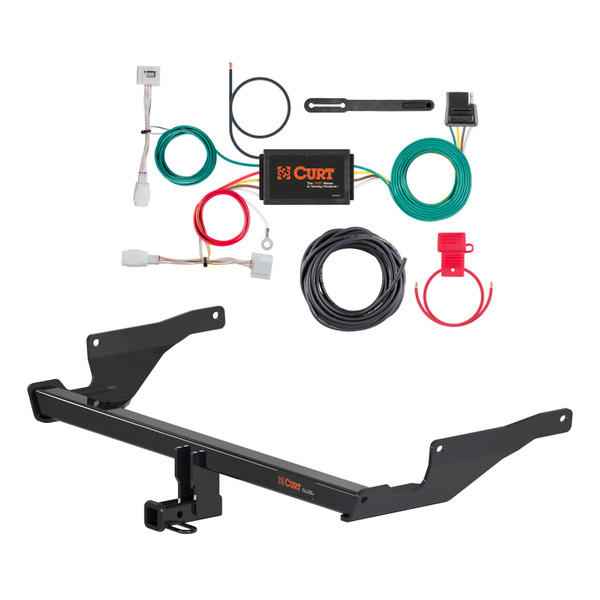

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2017 - 2021 Mazda CX-5. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

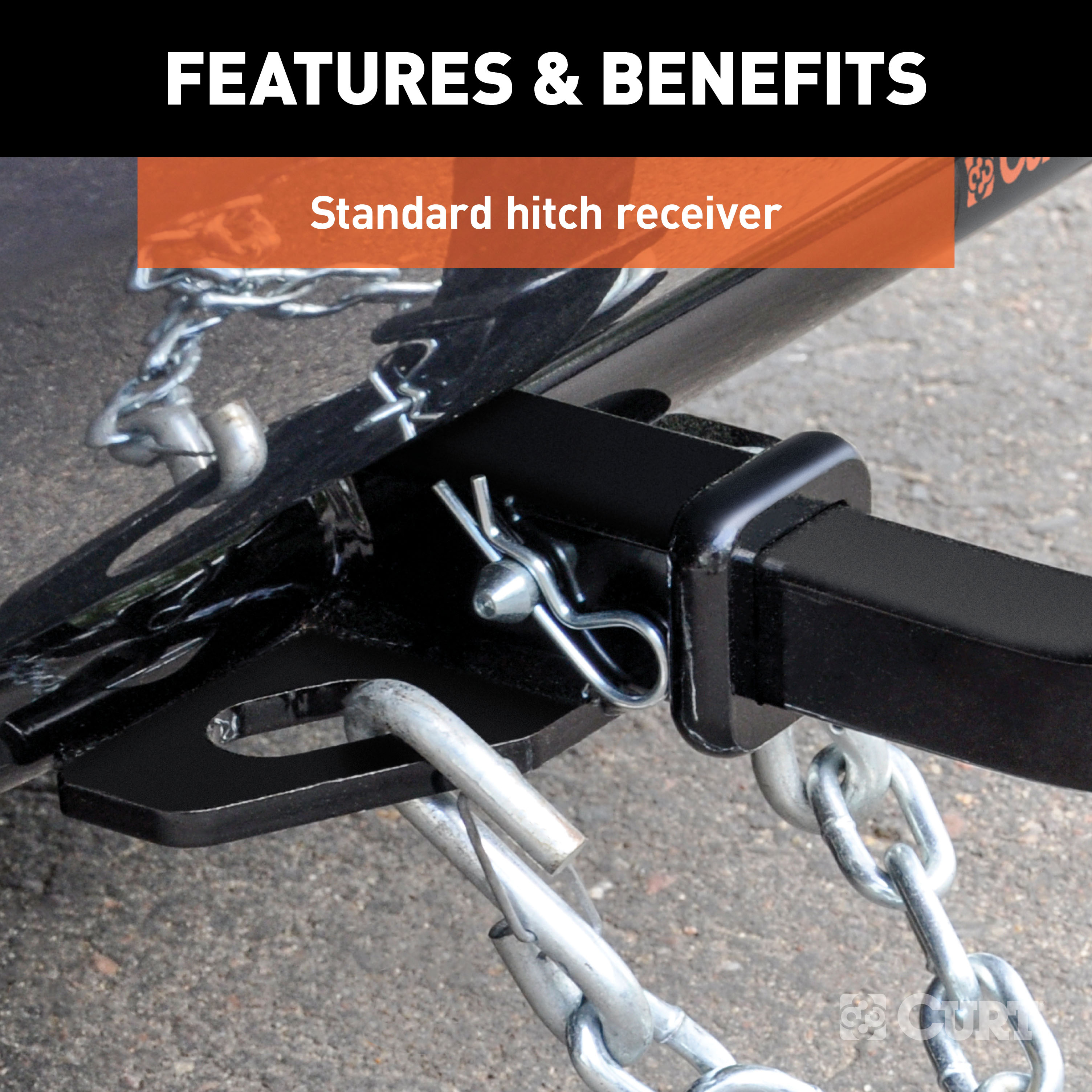

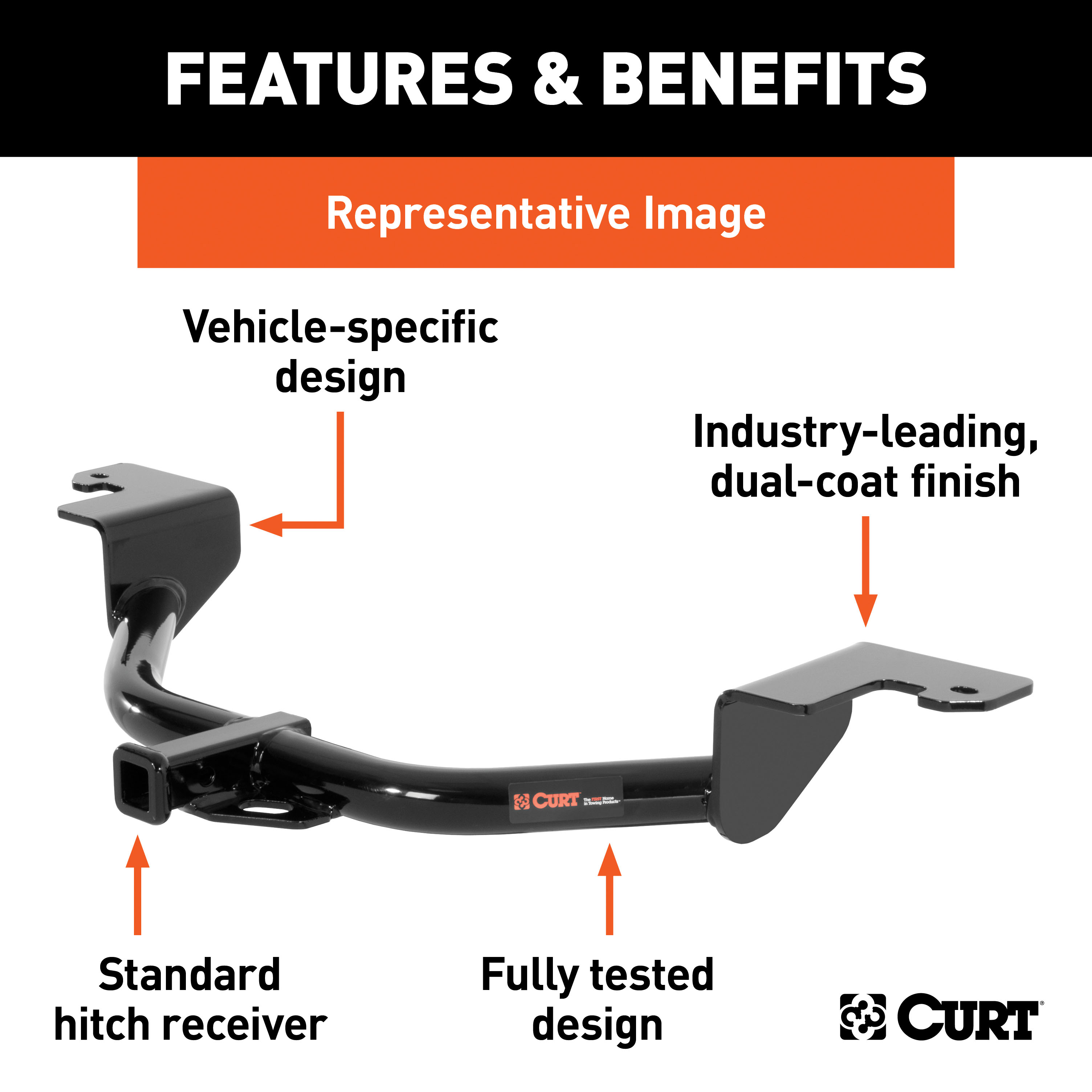

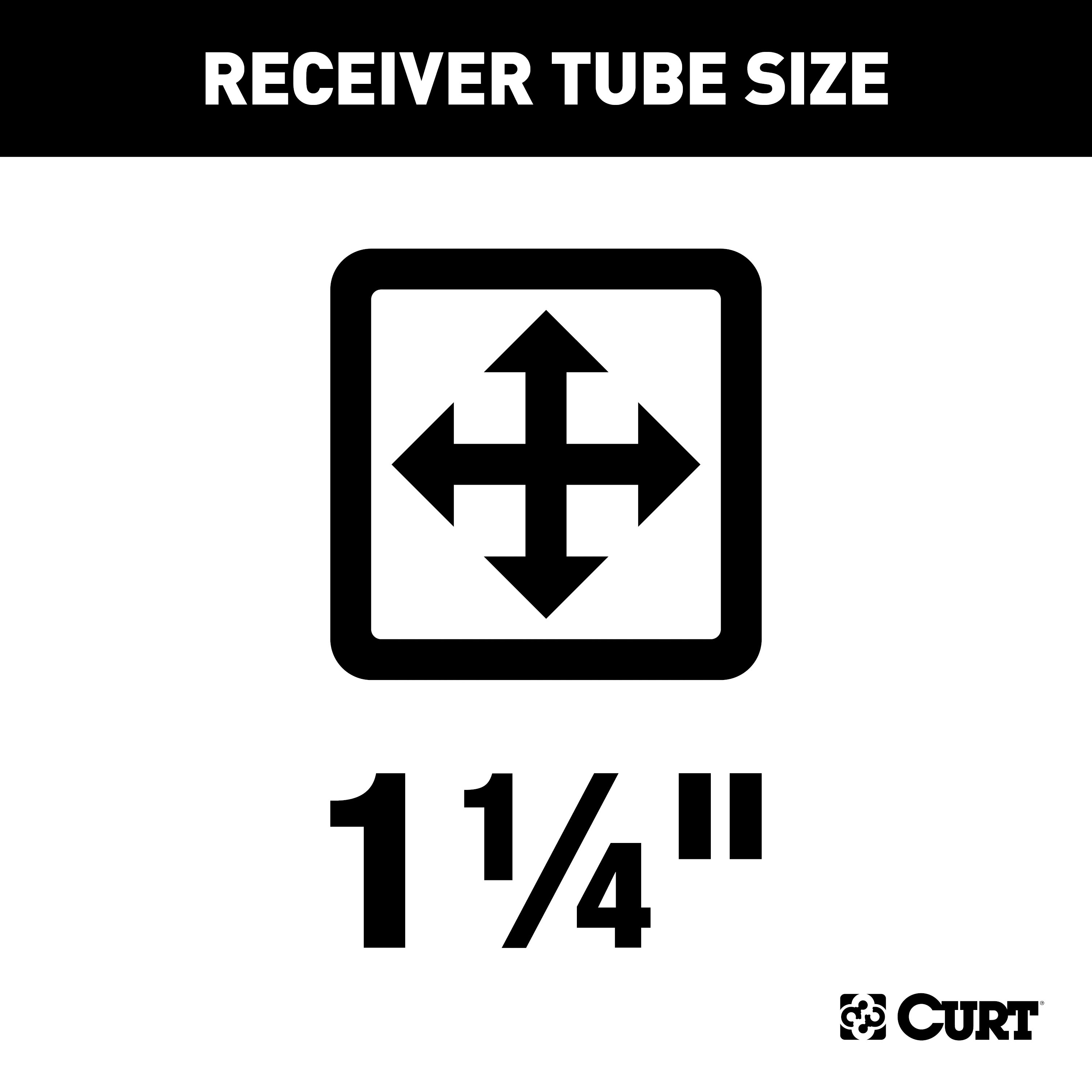

Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Mazda CX-5 (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.

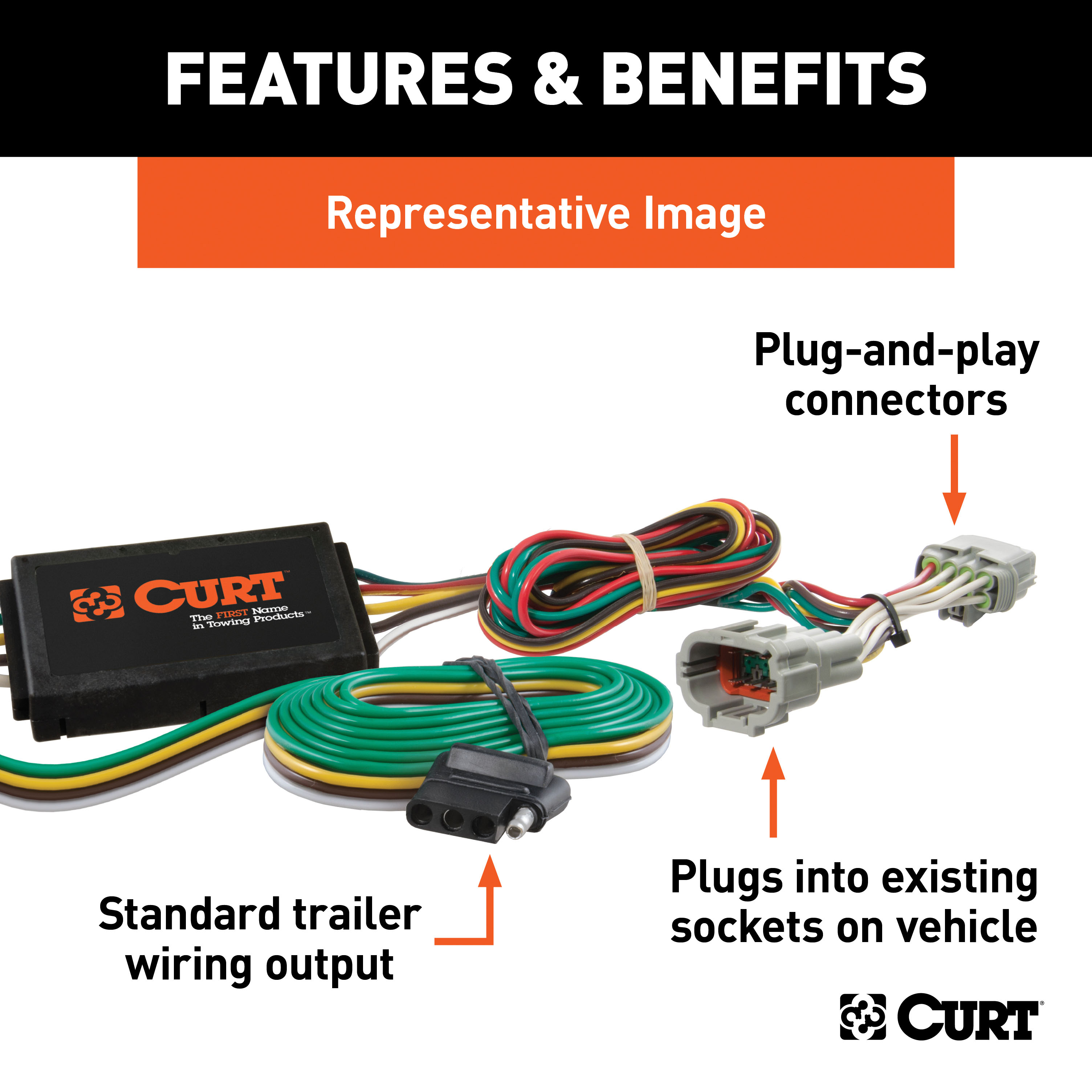

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mazda CX5 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2021 | Mazda CX-5 | — |
The 17 - 21 Mazda CX-5 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12170 (Part #CHW-2271) fits the following vehicles: 2017-2021 Mazda CX-5. Always verify your specific year, make, and model before ordering.
The 17 - 21 Mazda CX-5 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12170 (Part #CHW-2271) fits 2017-2021 Mazda CX-5 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 17 - 21 Mazda CX-5 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12170 (Part #CHW-2271) is designed to fit the 2017-2021 Mazda CX-5.
The 17 - 21 Mazda CX-5 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12170 (Part #CHW-2271) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 12170 is designed for 2013 and newer Mazda CX-5 Crossover models. Before purchasing, verify your vehicle matches this specification and confirm the hitch matches your vehicle using the vehicle photo and hitch illustration provided in the manual.
The manual specifies the hitch is designed for 2013 and newer Mazda CX-5 models, so it should be compatible with newer model years. However, always verify fitment by checking the vehicle photo and hitch illustration in the manual to ensure your specific vehicle matches.
The CURT 12170 is rated for a maximum of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Always check your vehicle's owner manual for the final towing limit.
The CURT 12170 is designed for use with ball mount #45521. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
Required tools are: torque wrench, ratchet, 3/4" and 19mm sockets, flathead screwdriver, pliers, pry bar, masking tape, and safety glasses. Using proper tools will greatly improve the quality of the install and reduce installation time.
The kit includes: 3 M12x1.25 hex head cap screws (part 10-10277), 2 half-inch carriage bolts (part 10-10287), 2 serrated flange nuts (part 20-00062), 3 conical toothed washers (part 30-00149), 4 flat washers (part 30-00133), 2 square hole spacers CM-SP12, 2 pieces of 1/2" fishwire, and 2 cable ties (part 600043).
No, drilling is not required. The hitch uses existing weld nuts in the frame rails and access holes on both sides of the vehicle. The installation uses a fishwire technique to route hardware through existing frame openings.
If a plastic underbody panel is present under the rear bumper, it must be removed by removing two plastic fasteners with a flathead screwdriver. The panel and fasteners should be returned to the vehicle owner after installation.
Yes, the exhaust must be temporarily lowered by removing two to four rearmost rubber hangers (the number depends on your vehicle). Leave the rubber hangers attached to the vehicle; they are only temporarily removed to provide clearance during installation.
Yes. Remove any plastic insert and/or electrical harness clip between the hitch mounting locations on the passenger side frame rail. On the driver side, unfasten the electrical harness clip on the outside of the frame rail and follow the harness to unfasten the nearest clip towards the center of the vehicle. These must be re-secured after the hitch is positioned (step 9).
The fishwire technique is used to route the carriage bolts and spacers through the frame rails without drilling. You thread the 1/2" fishwire through the access hole on both sides, attach it to the carriage bolt and CM-SP12 spacer, then pull the hardware through the frame rail and out the rearmost mounting location. The fishwire is then threaded through the hitch mounting holes to position the hitch, and finally removed once the hardware is in place.
Tape four 1/2" flat washers into position on the inside of the hitch side plates before beginning the fishwire process. These washers will be clamped in position between the hitch and frame rail when the M12 bolts are inserted.
The tooth side of the conical toothed washers must be against the hitch. The flat washers are clamped in position between the hitch and frame rail.
After pulling the 1/2" hardware into position and removing the fishwire, re-secure the harness that was unfastened in step 3. Wrap cable tie(s) around the hitch mounting plate(s) and harness, pull tight, and trim excess cable tie.
Torque all M12 hardware to 86.2 ft-lbs and all 1/2" hardware to 110 ft-lbs. Use a torque wrench to ensure proper fastener tension.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. Using proper tools will greatly improve the quality of the install and reduce the time required.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This maintenance is important for safe towing operation.
Never exceed your vehicle manufacturer's recommended towing capacity. While the CURT 12170 is rated for 3,500 lbs trailer weight and 350 lbs tongue weight, your vehicle's manufacturer may specify a lower limit. Always consult your vehicle's owner manual for the final towing capacity.
Yes. CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
The CURT 12170 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 12170 is designed for 2013 and newer Mazda CX-5 Crossover models. Verify fitment using the vehicle photo and hitch illustration in the manual.
The hitch is rated for 3,500 lbs trailer weight and 350 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Required tools: torque wrench, ratchet, 3/4" and 19mm sockets, flathead screwdriver, pliers, pry bar, masking tape, and safety glasses.
No, drilling is not required. The hitch uses existing weld nuts in the frame rails and access holes.
Yes, the exhaust must be temporarily lowered by removing two to four rearmost rubber hangers. Leave the hangers attached to the vehicle.
Torque all M12 hardware to 86.2 ft-lbs and all 1/2" hardware to 110 ft-lbs.
Periodically check the hitch to ensure all fasteners are tight and all structural components are sound.
Yes, the Curt 56377 is designed for Mazda CX-5 SUVs. It is compatible with the vehicle's taillight wiring system and interior trim configuration shown in the installation guide.
The harness has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Do not exceed this rating, as it can cause loss of warranty, overheating and potential fire.
Required tools are: ratchet, ratchet extension, 10mm socket, Phillips screwdriver, flat blade screwdriver, wire stripper, wire crimper, and cutting tool. A panel trim removal tool is also needed to remove the interior side trim panel without damage.
The manual does not specify whether the battery must be disconnected before installation. Contact the vehicle manufacturer or Curt Manufacturing for this safety requirement.
Open the rear hatch and remove all floor coverings and storage trays. Remove the rear scuff panel by removing its fasteners, then pulling out at the bottom and up. On each side, remove the interior side trim panel by first removing: the push fastener and cargo tie down at the rear, the fastener from the rear seat release handle, the Phillips screw at the front upper side, and the cargo tie down at the front lower end. Use a panel trim removal tool to remove the trim panel itself.
Locate the vehicle taillight wiring harness connectors behind the side trim panel. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the harness end with the green wire.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. Clean the area of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required. If a suitable existing screw with nut is not available as a grounding point near the taillight connector, you must drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet. Refer to that sheet for specific routing instructions.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route it to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.

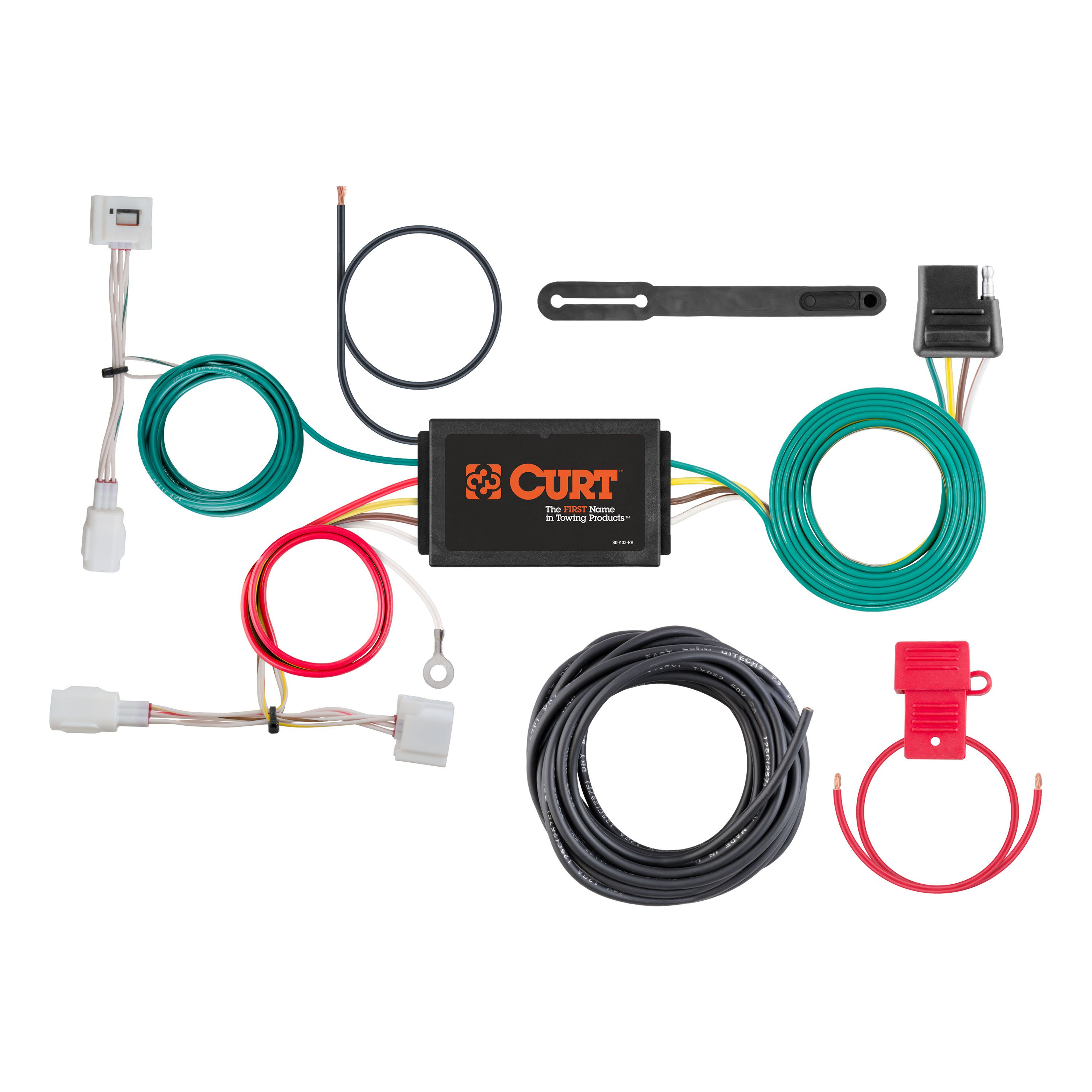

The harness includes: custom wiring harness ends with yellow and green wires, a white ground wire with ring terminal, a provided ground screw, a black converter box, double-sided tape for mounting the converter box, a 4-flat dust cover, cable ties for securing loose wires, and the CME-PCL-INS sheet for battery power wire routing instructions.
Reinstall all items removed during installation, including floor coverings, storage trays, rear scuff panel, and interior side trim panels. Install the provided 4-flat dust cover to help prevent corrosion. Test the harness for proper function using a test light or a properly wired trailer.
Yes, the Curt 56377 is designed for Mazda CX-5 SUVs and is compatible with the vehicle's taillight wiring system.
A 10-amp maximum fuse is required for the battery connection. Do not exceed this rating.
You need a ratchet, ratchet extension, 10mm socket, Phillips and flat blade screwdrivers, wire stripper, wire crimper, cutting tool, and a panel trim removal tool.
Signal Circuits are rated at 3.0 amps per side; Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating.
