CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2017 - 2024 Volvo S90
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2024 | Volvo S90 | — |
Yes, the Curt 56285 is designed for the Volvo S90. It is also compatible with the Volvo XC90. The harness is designed for SUVs, mini and full-sized vans (S-series applications).
Yes, the Curt 56285 is designed for the Volvo XC90. It is also compatible with the Volvo S90. The harness is designed for SUVs, mini and full-sized vans (S-series applications).
The signal circuits are rated at 3.0 amps per side. The tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
The tail and running circuits are rated at 6.0 amps total. The signal circuits are rated at 3.0 amps per side. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
You will need a ratchet, 10mm socket, 8mm socket, panel trim removal tool, and a cutting tool. A 3/32" drill bit is also required if you need to drill a pilot hole for the ground screw.
Yes, you must disconnect the negative battery terminal before beginning installation. This is a required safety step performed in Step 2 of the installation process.
You must remove: all trunk floor coverings, the driver side access panel (to reach the battery), the rear scuff panel, the storage tray from the passenger side, and the fasteners securing the cargo tie down. The side trim panels must also be pulled back to access the taillight wiring harness connectors.
The custom wiring harness end with the yellow wire is inserted between the separated taillight wiring harness connectors on the driver side, behind the side trim panel. The connectors must be fully inserted with locking tabs in place.
The custom wiring harness end with the green wire is routed to the passenger side behind the removed scuff panels and inserted between the separated taillight wiring harness connectors on the passenger side, following the same procedure as the driver side (yellow wire). The connectors must be fully inserted with locking tabs in place.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. Repeat this process on the passenger side.
Drilling may be required. If a suitable existing grounding point (such as a screw with nut in the vehicle frame) is not available near the taillight connector, you must drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground screw. The area should be free of rust, dirt and paint. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
The black converter box should be adhered to a flat spot inside the vehicle near the taillight using the provided double-sided tape. This is typically located in the trunk area.
Route the power wire to the battery's positive (+) terminal. Using a 10mm socket, remove the nut on the positive (+) terminal auxiliary stud. Attach the power wire terminal ring and reinstall the nut. The battery connection must be fuse-protected with a 10-amp max fuse.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location. When in use, route it to the center of the vehicle. Secure any loose wires with the provided cable ties.
After installation, test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure the wiring harness functions properly. Reconnect the negative battery terminal and reinstall all items removed during installation.

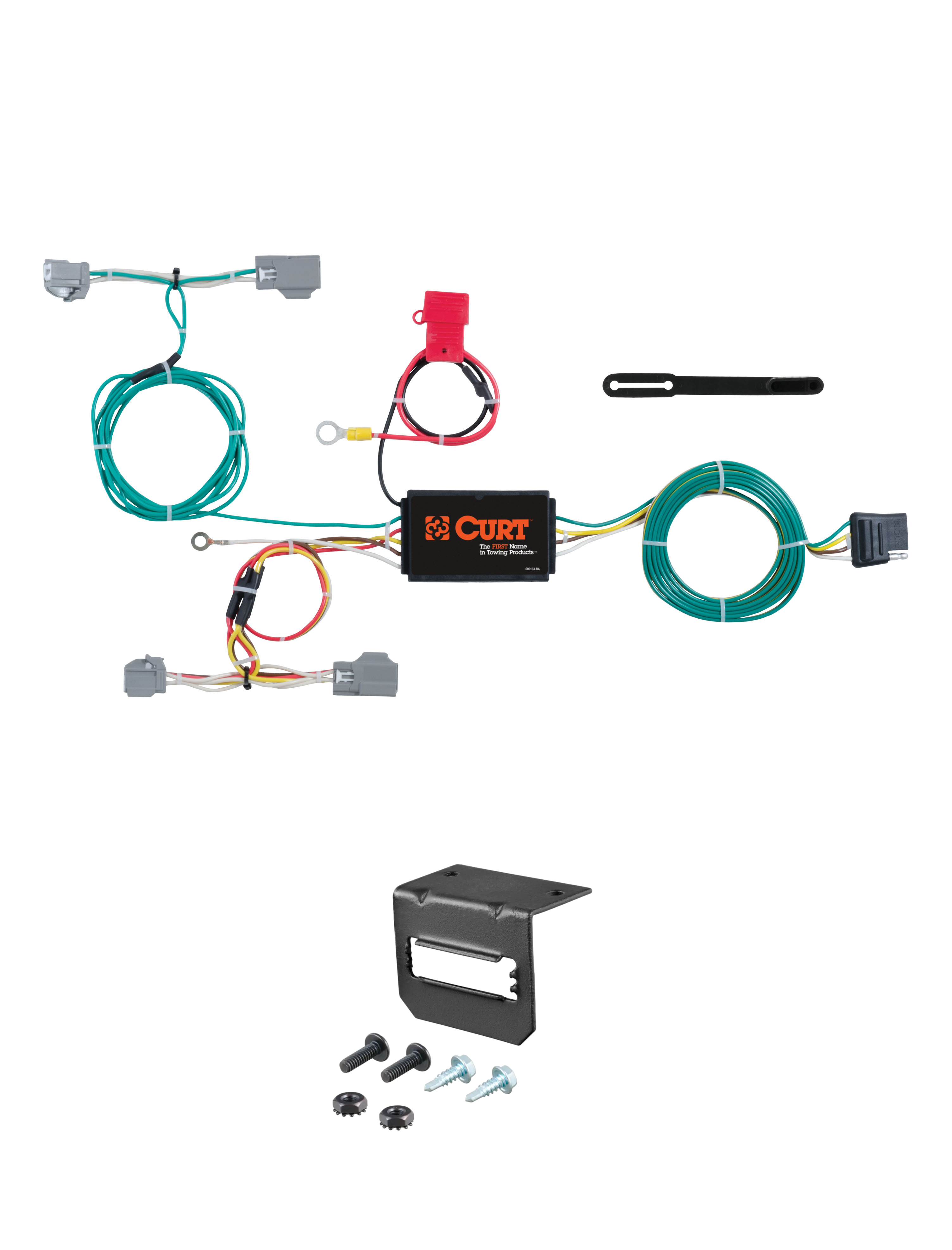

The Curt 56285 includes the custom wiring harness with yellow and green wire ends, a white ground wire with ring terminal, a provided ground screw, a black converter box, double-sided tape for mounting the converter box, a 4-flat dust cover, and cable ties for securing loose wires.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the signal circuit rating (3.0 amps per side), tail/running circuit rating (6.0 amps total), or the tow vehicle lamp load rating, whichever is lower.
Yes, you should check your vehicle owner's manual or contact the vehicle manufacturer for more information about your specific vehicle's electrical system and lamp load rating before installation.
Yes, the Curt 56285 is designed for both Volvo S90 and XC90 models.
You need a ratchet, 10mm socket, 8mm socket, panel trim removal tool, and cutting tool. A 3/32" drill bit is needed if drilling a ground hole.
Yes, you must disconnect the negative battery terminal before starting installation.
Drilling may be required if no suitable existing ground point is available. You would drill a 3/32" pilot hole for the provided ground screw.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or the vehicle's lamp load rating.
Test for proper function using a test light or by connecting a properly wired trailer.
