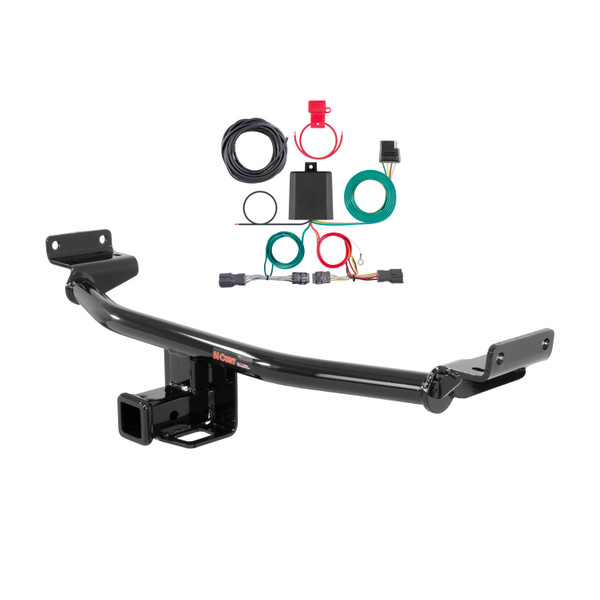

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2019 - 2021 Hyundai Tucson Excluding Night. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Tucson (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Hyundai Entourage, Kia Sedona and Kia Seltos (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2021 | Hyundai Tucson | Excluding Night |
The 19 - 21 Hyundai Tucson Excluding Night Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13240 (Part #CHW-1888) fits 2019-2021 Hyundai Tucson models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 19 - 21 Hyundai Tucson Excluding Night Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13240 (Part #CHW-1888) is designed to fit the 2019-2021 Hyundai Tucson.
The 19 - 21 Hyundai Tucson Excluding Night Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13240 (Part #CHW-1888) fits the following vehicles: 2019-2021 Hyundai Tucson. Always verify your specific year, make, and model before ordering.
The 19 - 21 Hyundai Tucson Excluding Night Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13240 (Part #CHW-1888) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual confirms CURT 13240 is designed for Hyundai Tucson. However, the manual does not specify which model years, generations, trim levels, or drivetrain configurations are compatible. Contact CURT technical support at 1-877-287-8634 or consult a fitment database to confirm compatibility with your specific Tucson.
The manual specifies a gross load capacity of 3,500 lbs. trailer weight and 525 lbs. tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your Hyundai Tucson owner's manual for the vehicle's maximum towing capacity.
Non-trailer loads can be applied to this hitch only if they are supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads with these straps will void the product warranty.
You will need: ratchet, extension, 17mm socket, torque wrench, and short #2 Phillips screwdriver.
The hitch includes 8 M10×1.25×30 hex head cap screws (HHCS) grade 10.9 with zinc plating, and 8 conical tooth washers (3/8" S-CON, zinc plated). These fasteners attach the hitch to the frame rails.
If equipped, yes. Two plastic panels are located under the bumper behind the rear tires. Remove three plastic clips from each panel using a screwdriver and pull down to dislodge. Set the panels and fasteners aside for reinstallation after hitch installation.
No. The manual explicitly states no drilling is required for this installation.
Insert the hitch over the exhaust on the passenger side. Rotate the hitch and raise it into position. Pulling down on the exhaust will ease the installation process.
Four M10×1.25×30 fasteners with four 3/8" conical tooth washers attach to each side (passenger and driver side frame rails), for a total of 8 fasteners.
The tooth portion of the conical washer must be against the hitch. This ensures proper load distribution and fastener security.
All M10 fasteners must be torqued to 40 ft-lbs.
Yes. The manual notes that weld nut cleaning may be required. Inspect the existing weld nuts on the frame rails before installation and clean them if necessary to ensure proper fastener engagement.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and preserve the warranty.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
CURT 13240 is designed for Hyundai Tucson. Confirm your specific model year and configuration with CURT technical support at 1-877-287-8634.
All M10 fasteners must be torqued to 40 ft-lbs.
If equipped, yes. Two plastic panels under the bumper behind the rear tires must be removed and reinstalled after hitch installation.
CURT part number 56442 is a trailer wiring harness with a powered converter system. It provides electrical connections for trailer lighting on compatible vehicles. The system includes a converter box that connects to the vehicle's taillight circuits and battery to power a 4-flat trailer connector. It is designed for use on 12-volt negative ground systems only.
CURT part 56442 is designed for the following vehicles: Hyundai Entourage, Hyundai Tucson, Hyundai Veloster, Kia Sedona, Kia Seltos, and Kia Soul. Each vehicle has specific installation steps. Verify your exact vehicle model and year match one of these applications before purchasing.
Yes, if your vehicle is a 12-volt negative ground system. The converter system is designed only for 12-volt negative ground vehicles. Check your vehicle owner's manual to confirm your electrical system type before installation.
Required tools are: ratchet, flathead screwdriver, 10mm socket, utility knife, socket extension, wire crimper, electrical tape, wire stripper, Phillips screwdriver, and panel removal tool. Proper tools will improve installation quality and reduce installation time.
The kit includes: custom wiring harnesses with yellow and green wire connectors, a black converter box, a 4-flat connector with dust cover, cable ties, double-sided tape for mounting the converter box, a white ground wire with ring terminal and screw, a fuse holder with 10-amp fuse, and butt connectors. Specific quantities are shown in the Hardware Photo on page 1.
Yes, you must disconnect the negative battery terminal before beginning installation. Secure the disconnected wire away from the battery while completing the installation. Reconnect the negative battery terminal only after all other installation steps are complete and before testing the system.
The installation is rated as Easy. However, this rating assumes you have the proper tools and follow all steps carefully. Each vehicle model has specific installation procedures that must be followed for proper function.
Open the vehicle hatch. Starting on the driver side, use a Phillips screwdriver to remove three screws securing the taillight assembly. Pull the taillight straight back and separate the connectors from the taillight housing, taking care not to damage the locking tabs. Repeat on the passenger side.
Open the vehicle hatch. Use a trim removal tool to release a small tab in the taillight trim cover and set it aside. Use a 10mm socket to remove the taillight fasteners. Pull the taillight straight back and separate the connectors from the taillight housing, taking care not to damage the locking tabs. Repeat on the passenger side.
Open the vehicle trunk. Starting on the driver side, use a flathead screwdriver to open the access covers for the taillight mounting screws. Use a Phillips screwdriver to remove three screws: two under the removed access caps and one in the rubber bumper. Remove the taillights by pulling them straight back and up. Separate the connectors from the taillight housings, taking care not to damage the locking tabs. Repeat on the passenger side.
Open the vehicle hatch. Starting on the driver side, use a Phillips screwdriver to remove two screws securing the taillight. Remove the taillights by pulling straight back. Separate the connectors from the taillight housings, taking care not to damage the locking tabs. Remove the two push fasteners as shown. Repeat on the passenger side.
Open the vehicle hatch. Starting on the driver side, use a Phillips screwdriver to remove three screws as shown. Remove the taillight by pulling straight back. Separate the connectors from the taillight housings, taking care not to damage the locking tabs. Repeat on the passenger side.
Route the custom wiring end with the green wire and 4-way flat down between the body and the bumper cover. Route the 4-flat along the backside of the bumper to the center of the vehicle and mount it close to the trailer hitch. Route the green wire along the backside of the bumper to the passenger side using a fishwire. Secure any loose wires with the provided cable ties.
Use the trim panel removal tool to remove two push fasteners in the bumper cover. Run a fishwire down between the body of the vehicle and the bumper cover. Attach the custom wiring end with yellow wire to the fishwire and pull the harness up between the body and the bumper cover. You may need to flex the bumper cover to get the housings through the opening. Route the green wire along the backside of the bumper to the passenger side. Secure any loose wires with the provided cable ties.
Attach the custom wiring end with the green wire and 4-flat to the fishwire and pull the harness down inside the bumper to the underbody of the vehicle. From under the vehicle, route over to the center of the vehicle. Continue routing the wiring to the passenger side of the vehicle and up to the taillight. Secure any loose wires with the provided cable ties.
Route the fishwire down between the body and bumper cover. From underneath the vehicle, locate the connector with the yellow wire. Pull the harness up to the taillight. Route the 4-flat along the backside of the bumper to the center of the vehicle and mount it close to the trailer hitch. Route the green wire along the backside of the bumper to the passenger side. Use a trim removal tool to remove the two push fasteners to locate the fishwire. Secure any loose wires with the provided cable ties.
Use a Phillips screwdriver to remove the push fastener in the bumper cover to allow more room while fishwiring the custom wiring housing up to the taillight. Route the fishwire down between the body and bumper cover. From underneath the vehicle, locate the connector with the yellow wire. Pull the harness up to the taillight. Route the 4-flat along the backside of the bumper to the center of the vehicle and mount it close to the trailer hitch. Route the green wire along the backside of the bumper to the passenger side. Secure any loose wires with the provided cable ties.
Insert the custom wiring end with yellow wire between the separated taillight connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat for the green wire connector on the passenger side. Take care not to damage the locking tabs during insertion.
Locate a flat clean surface that is out of the path of spray and debris from the rear wheels and road. Adhere the black converter box using the provided double-sided tape. For Hyundai Veloster and Kia Seltos, mount it in a flat spot between the body of the vehicle and the bumper cover just below the taillight. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
Drilling is required only for the ground wire connection on some vehicles. You may need to drill a 3/32" pilot hole for the provided ground screw if a suitable existing screw with nut is not available in the vehicle frame. The area should be free of rust, dirt and paint. Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and personal injury.
The pilot hole size is 3/32". Drill this hole only if a suitable existing screw with nut is not available in the vehicle frame near the connector. The area should be free of rust, dirt and paint before drilling.
Signal circuits: 3.0 amps per side. Tail/Running circuits: 6.0 amps total. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Install the fuse after all other installation steps are complete. The fuse holder is included in the kit.
Use 12 GA wire or larger to route from the vehicle battery to the converter system. Route the 12 GA wire to the vehicle battery location, taking care to avoid any pinch points and hot or rotating components.
Disconnect the negative battery terminal before wiring the power wire. Route the black 12 GA power wire to the positive battery (+) terminal using a ring terminal for the battery connection. Use the ring terminal provided with the kit. Secure the power wire to the vehicle chassis using the provided cable ties. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the power wire from sharp edges. Install the 10-amp fuse after all other steps are complete.
Locate a suitable grounding point near the connector such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. This connection is required on Hyundai Tucson, Hyundai Veloster, and Kia Soul.
Yellow wire: Left turn signal. Green wire: Right turn signal. Red wire: Brake. Brown wire: Taillight. The custom wiring harness uses yellow and green wires to connect to the vehicle's taillight connectors. The black power wire connects to the positive battery terminal. The white ground wire connects to the vehicle frame.
The 4-flat connector is the trailer connector that plugs into your trailer's wiring harness. It carries the signal and lighting circuits from the vehicle to the trailer. Route the 4-flat along the backside of the bumper to the center of the vehicle and mount it close to the trailer hitch. When not in use, roll it up and store in a convenient, out-of-the-way location. A dust cover is provided to help prevent corrosion.
Disconnect the negative battery terminal before beginning installation. Secure the disconnected wire away from the battery. Do not lay tools on the positive (+) battery terminal, as this can cause a short in the system, sparks and/or electrical shocks. Reconnect the negative battery terminal only after all other installation steps are complete.
Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and personal injury. This is especially important when drilling the 3/32" pilot hole for the ground wire screw.
Once the 12-volt power wire is connected to the harness, verify that the harness is functioning using a test light, 4-flat tester, or a functioning trailer. This test should be performed before considering the installation complete.
Reinstall all items removed during installation. If the negative battery terminal was disconnected at the beginning, reconnect it. Install the provided 4-flat dust cover to help prevent corrosion. Verify that the harness is functioning using a test light, 4-flat tester, or a functioning trailer before towing.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Install the provided 4-flat dust cover to help prevent corrosion when the connector is not in use.
CURT 56442 fits Hyundai Entourage, Hyundai Tucson, Hyundai Veloster, Kia Sedona, Kia Seltos, and Kia Soul. Verify your exact vehicle model matches before purchasing.
You need: ratchet, flathead screwdriver, 10mm socket, utility knife, socket extension, wire crimper, electrical tape, wire stripper, Phillips screwdriver, and panel removal tool.
Yes, disconnect the negative battery terminal before starting installation and reconnect it only after all other steps are complete.
Drilling is optional and only needed if no existing screw with nut is available for the ground wire connection. If drilling is necessary, drill a 3/32" pilot hole.
Use a 10-amp maximum fuse. The battery connection must be fuse-protected. Install the fuse after all other installation steps are complete.
Use 12 GA wire or larger to connect from the vehicle battery to the converter system.
Do not exceed the product rating or tow vehicle lamp load rating. The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Verify the harness is functioning using a test light, 4-flat tester, or a functioning trailer before towing.
The converter box may be mounted in an area exposed to spray and debris from the rear wheels and road. Remount the converter box in a flat clean surface that is out of the path of spray and debris. Failure to mount the box in a protected area can cause product failure, overheating and potential fire. Also verify that the 10-amp fuse is installed and that all wire connections are secure with locking tabs fully inserted.
First, verify the harness is functioning using a test light, 4-flat tester, or a functioning trailer. Check that the 10-amp fuse is installed in the fuse holder. Verify that all custom wiring connectors are fully inserted into the taillight connectors with locking tabs in place. Ensure the negative battery terminal is reconnected. Check that the white ground wire is securely attached to the vehicle frame using the ring terminal and screw. Verify that the black power wire is connected to the positive battery terminal with a ring terminal.
The locking tabs may not be fully engaged. When inserting the custom wiring end between the separated connectors, make sure the connectors are fully inserted with locking tabs in place. Take care not to damage the locking tabs during insertion. If the tabs are damaged, the connectors will not stay secure.
