Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2019 - 2023 Ford Ranger. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford Ranger (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 900 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing setup. If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that plugs into your vehicle's electrical system and provides a standard trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular harness provides a 7-way RV blade connector socket and is designed to be a custom wiring harness for certain years of the Ford Ranger (see application info to verify fitment). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Ford Ranger | — |
The 19 - 23 Ford Ranger Curt 2", Class 3 Trailer Tow Hitch + 7-way Wiring Kit 13417 (Part #CHW-1272) fits the following vehicles: 2019-2023 Ford Ranger. Always verify your specific year, make, and model before ordering.
The 19 - 23 Ford Ranger Curt 2", Class 3 Trailer Tow Hitch + 7-way Wiring Kit 13417 (Part #CHW-1272) fits 2019-2023 Ford Ranger models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 19 - 23 Ford Ranger Curt 2", Class 3 Trailer Tow Hitch + 7-way Wiring Kit 13417 (Part #CHW-1272) is designed to fit the 2019-2023 Ford Ranger.
The 19 - 23 Ford Ranger Curt 2", Class 3 Trailer Tow Hitch + 7-way Wiring Kit 13417 (Part #CHW-1272) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 13417 is designed for 2019-Present Ford Ranger trucks. Verify your vehicle year and model match before purchasing.
When used as a weight carrying hitch, the CURT 13417 supports 6,000 lbs trailer weight and 900 lbs tongue weight. When used as a weight distribution hitch, it supports 8,000 lbs trailer weight and 900 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
The hitch weight is 40 lbs.
You will need a 21mm socket, ratchet, 6" extension, torque wrench, and C-clamp. No power tools are required.
Two people may be required to ease installation, though it is not explicitly stated as mandatory. Using proper tools will greatly improve the quality of the install and reduce the time required.
No. The CURT 13417 requires no drilling or trimming. It uses existing vehicle hardware.
1. Clamp the bumper assembly in position. 2. Remove the four M16 bolts (two on each side) from the vehicle frame rails. 3. Raise the hitch into position and use the existing hardware removed in step 2 to secure the hitch and assembly to the vehicle. 4. Torque the M16 hardware to 196 ft-lbs.
Torque the M16 hardware to 196 ft-lbs.
Yes. The installation uses the existing M16 bolts that you remove from the vehicle frame rails in step 1. These same bolts are used to secure the hitch to the vehicle in step 2.
The C-clamp is used to hold the bumper assembly in position during the initial stage of installation (step 1), before the hitch is raised and secured with the existing vehicle hardware.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
Safety glasses should be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. Although the CURT 13417 hitch is rated for 6,000 lbs (weight carrying) or 8,000 lbs (weight distribution) trailer weight, your Ford Ranger's manufacturer specifications may impose a lower limit. Always follow the vehicle manufacturer's guidance.
The CURT 13417 uses the existing M16 bolts from your Ford Ranger's frame rails. No additional bolts or fasteners are required for installation. The hitch assembly itself is the only new component being installed.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty.
The CURT 13417 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Call CURT technical support at 877-287-8634. If you are hesitant to undertake the installation on your own, you can also contact an authorized CURT installer for additional assistance.
Part 56431 is designed for trucks with a factory tow plug located behind the rear driver-side axle along the frame rail. Check your vehicle for this factory tow plug to confirm compatibility. The manual does not list specific vehicle makes, models, or years. Contact CURT or your vehicle manufacturer to confirm fitment for your specific truck.

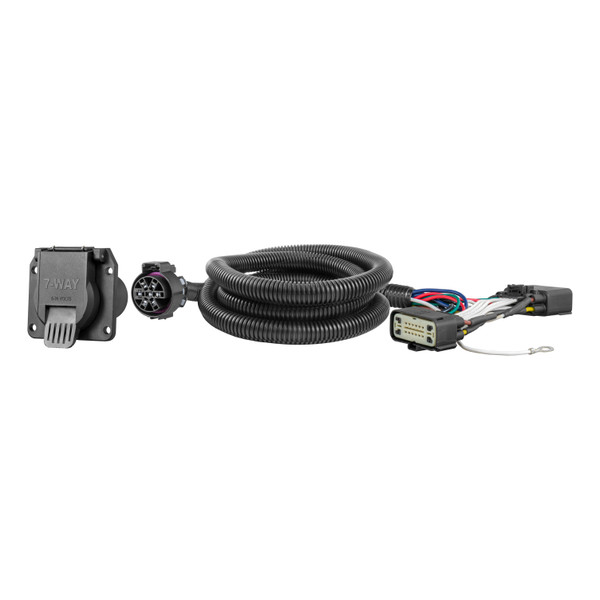

Part 56431 is a custom connector tow harness that connects your truck's factory tow plug to a 7-way socket connector. This allows you to connect a trailer with standard 7-way connectors to your vehicle's factory towing system.
You need side cutters. The manual lists this as the only required tool. Proper tools will improve the quality of installation and reduce installation time.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative terminal before beginning installation. You will reconnect it at the end of the installation after all items are reinstalled.
The factory tow plug is located behind the rear driver-side axle along the frame rail. It will have connectors similar to those on the custom connector included with part 56431.
Separate the factory tow plug connectors carefully, taking care not to damage the locking tabs. Insert the custom connector between the separated tow plug connector and the factory connector. Make sure the connectors are fully inserted with locking tabs in place.
Determine the 7-way mounting location on your vehicle and mount the 7-way socket connector. Route the harness from the custom connector to the 7-way socket connector and connect them. Make sure the connectors are fully inserted with locking tabs in place.
Yes. If necessary, you can secure the harness with the provided cable ties during installation.
The maximum stop/turn light load is 10 amps total. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The maximum taillights load is 10 amps total. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The maximum backup light load is 10 amps total. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The maximum power circuit load is 30 amps total. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The maximum trailer brake load is 20 amps total for 3 axles with 6 brakes. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The manual warns to take care not to damage the locking tabs when separating the factory tow plug connectors. If the locking tabs are damaged, the connectors may not stay fully inserted and the product will not function properly. Contact CURT or your vehicle manufacturer for replacement connector guidance.
After installation, test for proper function by using a test light or connecting a properly wired trailer. This will verify that all connections are working correctly.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. This will help maintain proper function and safety.
Part 56431 fits trucks with a factory tow plug behind the rear driver-side axle along the frame rail. Check your vehicle for this factory tow plug, or contact CURT for specific vehicle compatibility.
Side cutters are the only tool required.
Yes, disconnect the negative battery terminal before starting installation and reconnect it after all items are reinstalled.
Stop/turn lights: 10 amps; taillights: 10 amps; backup: 10 amps; power circuit: 30 amps; trailer brakes (3 axles/6 brakes): 20 amps. Do not exceed the product rating or your vehicle's lamp load rating, whichever is lower.
Periodically inspect all wires and connections for visible damage or loose connections.
