11-19 Ford Explorer CURT 7-way Plug and Play Trailer WiringCURTOriginal price was $113.90. Current price is $102.09.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2019 - 2023 Ford Ranger
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Finish | BLACK PLASTIC |
| Material | THERMOPLASTIC RUBBER |
| Mount Type Description | Blank |

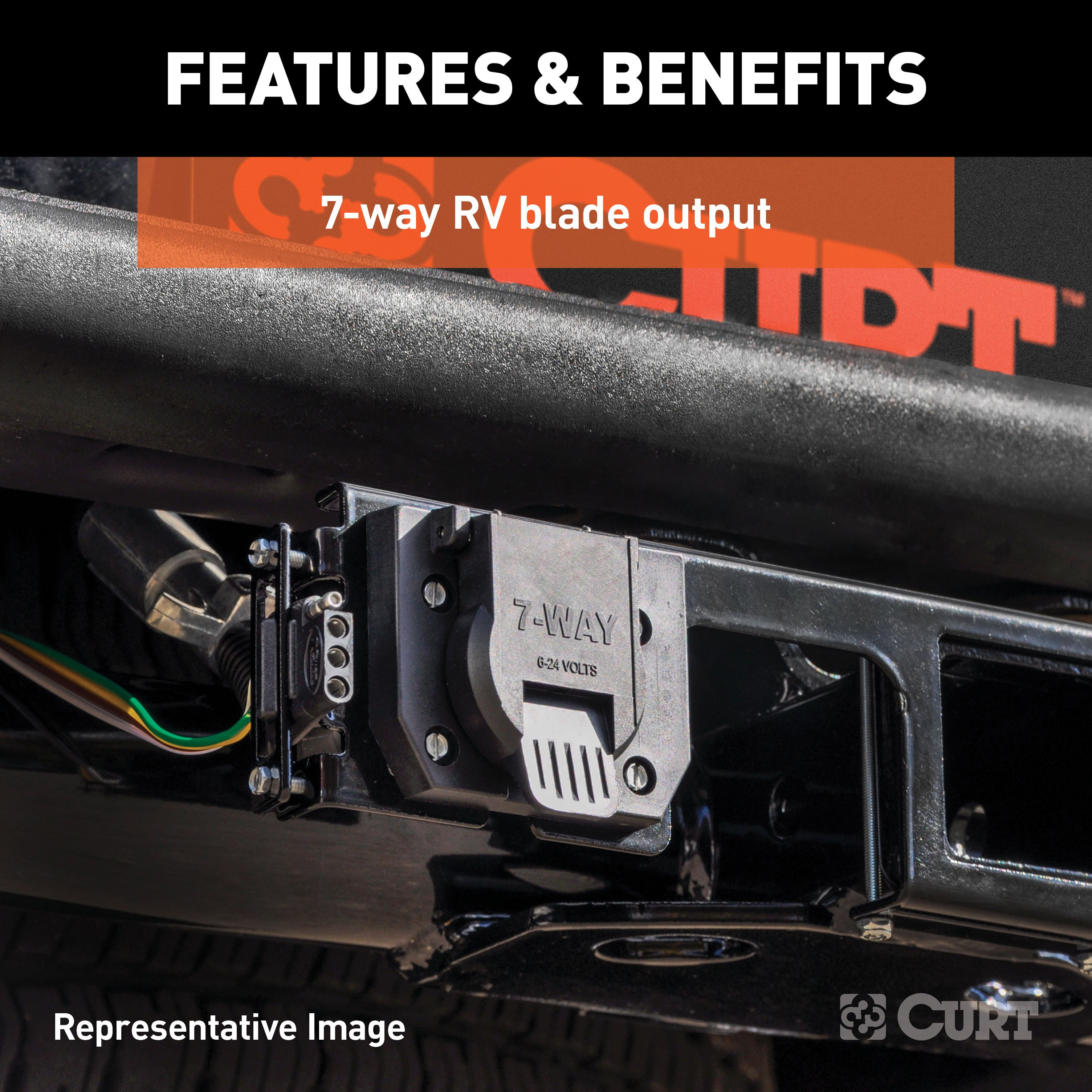

| Output Type | 7-Way RV Blade |
| Side Application Type Description | Blank |
| T-Connector Location | T3 |
| Tail Light Circuits | 10.0 Amps |
| Turn and Brake Circuits | 20.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Ford Ranger | — |
Yes, the 19-23 Ford Ranger CURT 7-way Plug and Play Trailer Wiring (Part #CTW975) is designed to fit the 2019-2023 Ford Ranger.
The 19-23 Ford Ranger CURT 7-way Plug and Play Trailer Wiring (Part #CTW975) fits 2019-2023 Ford Ranger models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 19-23 Ford Ranger CURT 7-way Plug and Play Trailer Wiring (Part #CTW975) fits the following vehicles: 2019-2023 Ford Ranger. Always verify your specific year, make, and model before ordering.
The 19-23 Ford Ranger CURT 7-way Plug and Play Trailer Wiring (Part #CTW975) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 56431 is designed for trucks with a factory tow plug located behind the rear driver-side axle along the frame rail. Check your vehicle for this factory tow plug to confirm compatibility. The manual does not list specific vehicle makes, models, or years. Contact CURT or your vehicle manufacturer to confirm fitment for your specific truck.

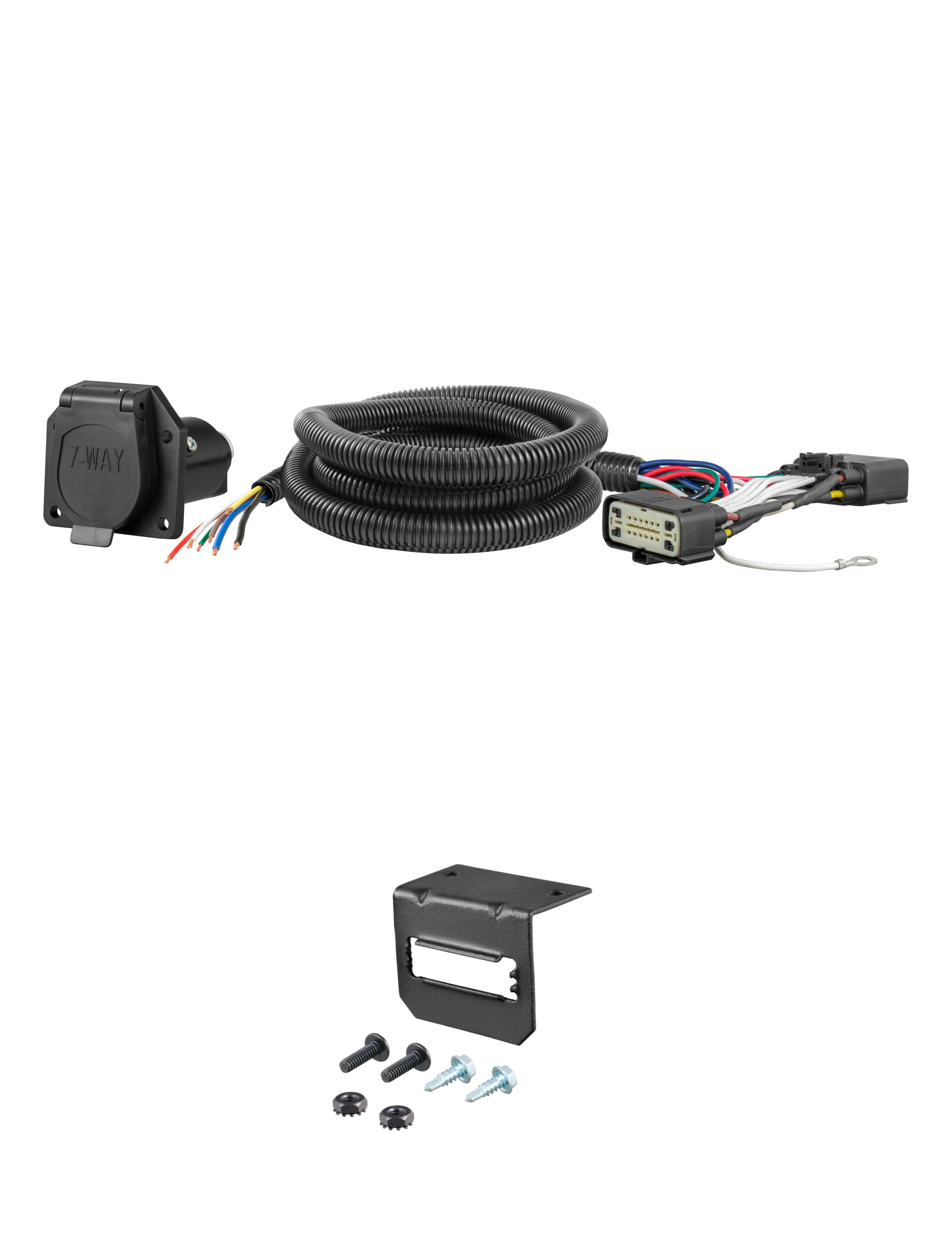

Part 56431 is a custom connector tow harness that connects your truck's factory tow plug to a 7-way socket connector. This allows you to connect a trailer with standard 7-way connectors to your vehicle's factory towing system.
You need side cutters. The manual lists this as the only required tool. Proper tools will improve the quality of installation and reduce installation time.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative terminal before beginning installation. You will reconnect it at the end of the installation after all items are reinstalled.
The factory tow plug is located behind the rear driver-side axle along the frame rail. It will have connectors similar to those on the custom connector included with part 56431.
Separate the factory tow plug connectors carefully, taking care not to damage the locking tabs. Insert the custom connector between the separated tow plug connector and the factory connector. Make sure the connectors are fully inserted with locking tabs in place.
Determine the 7-way mounting location on your vehicle and mount the 7-way socket connector. Route the harness from the custom connector to the 7-way socket connector and connect them. Make sure the connectors are fully inserted with locking tabs in place.
Yes. If necessary, you can secure the harness with the provided cable ties during installation.
The maximum stop/turn light load is 10 amps total. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The maximum taillights load is 10 amps total. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The maximum backup light load is 10 amps total. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The maximum power circuit load is 30 amps total. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The maximum trailer brake load is 20 amps total for 3 axles with 6 brakes. Do not exceed this rating or your vehicle's lamp load rating, whichever is lower.
The manual warns to take care not to damage the locking tabs when separating the factory tow plug connectors. If the locking tabs are damaged, the connectors may not stay fully inserted and the product will not function properly. Contact CURT or your vehicle manufacturer for replacement connector guidance.
After installation, test for proper function by using a test light or connecting a properly wired trailer. This will verify that all connections are working correctly.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. This will help maintain proper function and safety.
Part 56431 fits trucks with a factory tow plug behind the rear driver-side axle along the frame rail. Check your vehicle for this factory tow plug, or contact CURT for specific vehicle compatibility.
Side cutters are the only tool required.
Yes, disconnect the negative battery terminal before starting installation and reconnect it after all items are reinstalled.
Stop/turn lights: 10 amps; taillights: 10 amps; backup: 10 amps; power circuit: 30 amps; trailer brakes (3 axles/6 brakes): 20 amps. Do not exceed the product rating or your vehicle's lamp load rating, whichever is lower.
Periodically inspect all wires and connections for visible damage or loose connections.
