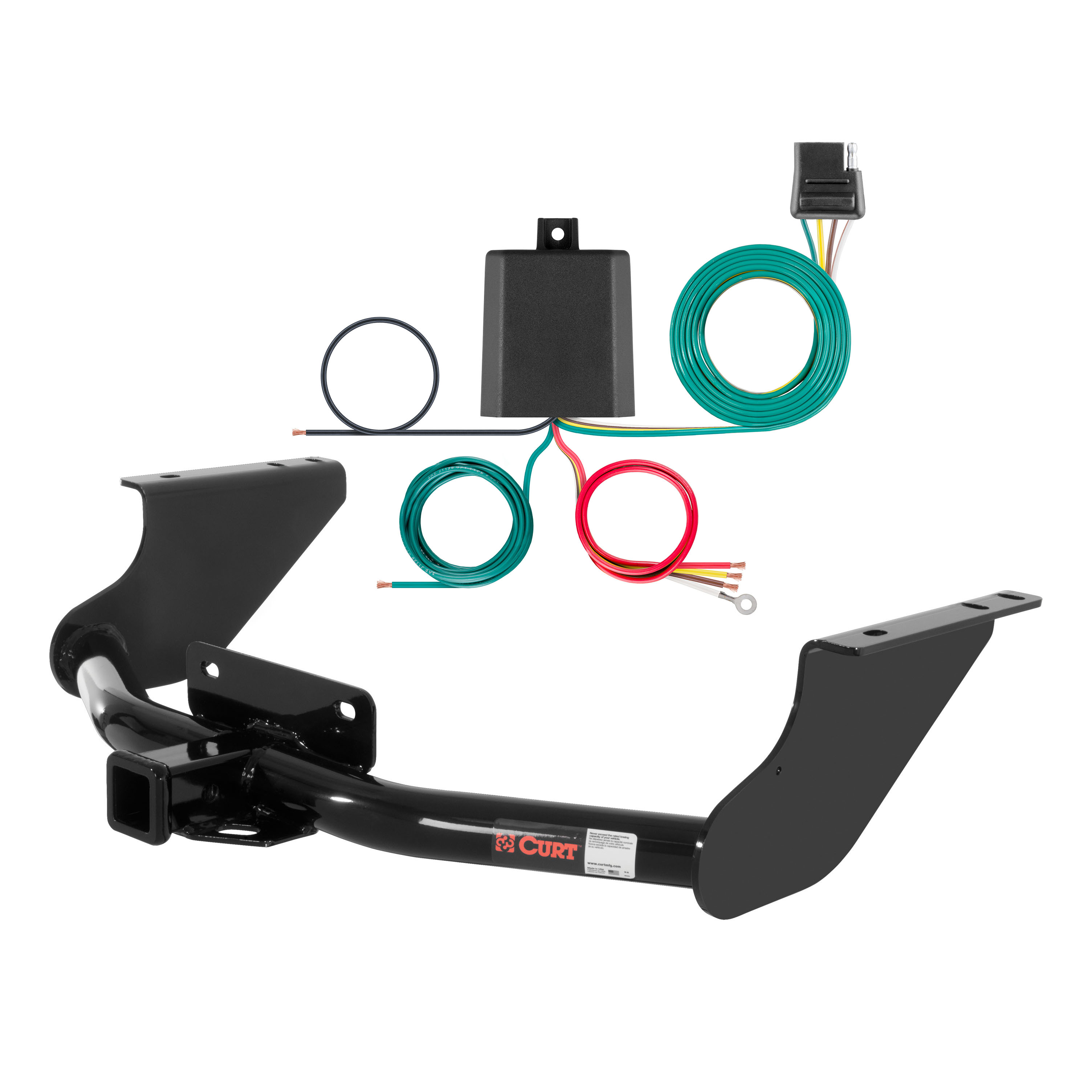

Complete CURT Class 4 2" trailer hitch and Universal Wiring Kit engineered for the 2019 - 2024 RAM 1500 Classic Excluding factory receiver. Vehicle-specific hitch fit, with a universal taillight converter for trailer wiring; all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Ram 1500 and Dodge Ram 1500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
This CURT universal taillight converter is the go-to solution when a vehicle-specific custom harness isn't available for your make and model. It provides a standard 4-way flat trailer connector for tail lights, brake lights and turn signals, and is compatible with most vehicles (light splicing required). Built with surface-mount circuitry and a potted enclosure for durability against moisture, vibration and road debris. Includes a dust cover and is backed by a limited one-year warranty.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Ram 1500 Classic | Excluding factory receiver |

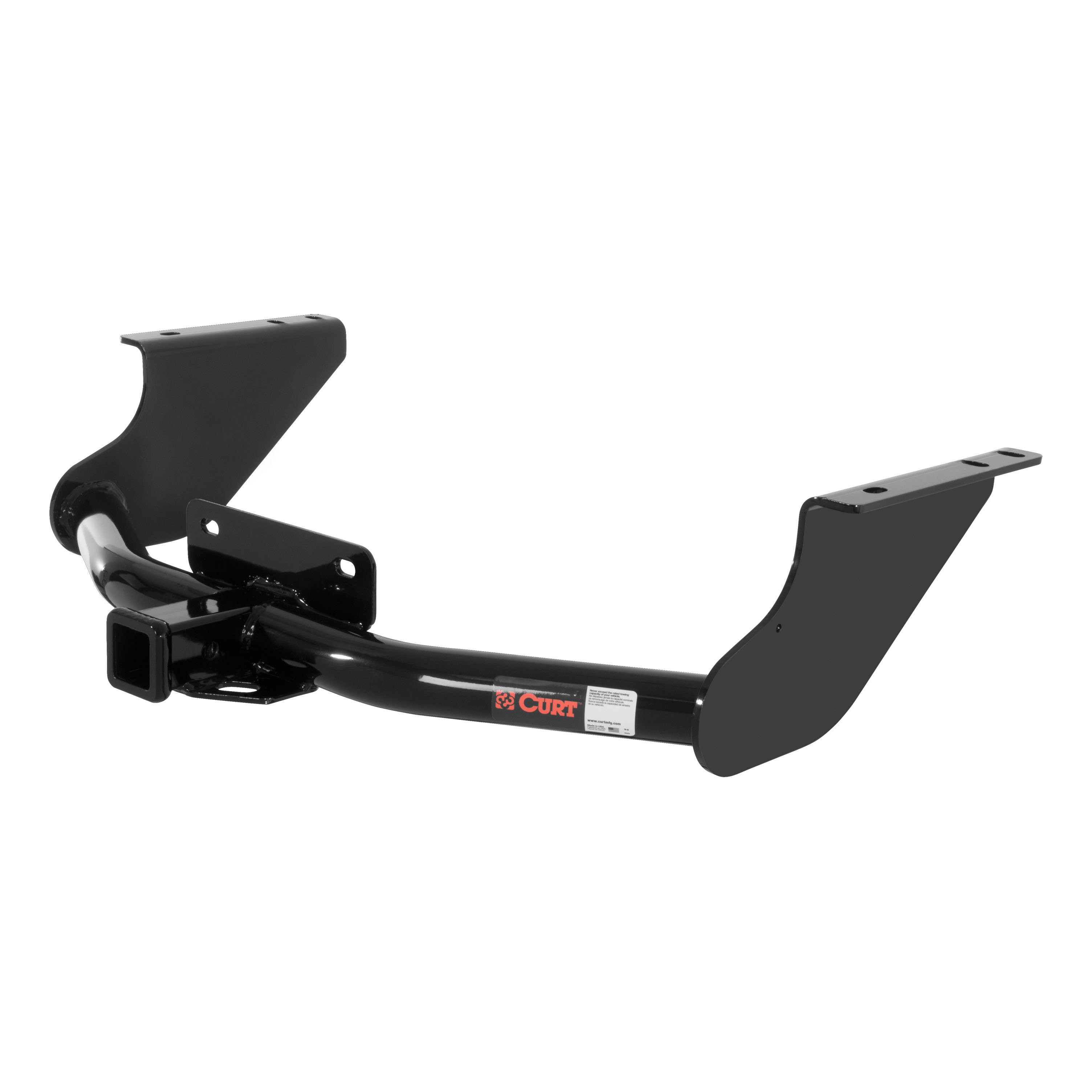

The 19 - 24 Ram 1500 Classic Excluding factory receiver Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14374 (Part #CHW-2659) fits 2019-2024 Ram 1500 Classic models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 19 - 24 Ram 1500 Classic Excluding factory receiver Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14374 (Part #CHW-2659) fits the following vehicles: 2019-2024 Ram 1500 Classic. Always verify your specific year, make, and model before ordering.
Yes, the 19 - 24 Ram 1500 Classic Excluding factory receiver Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14374 (Part #CHW-2659) is designed to fit the 2019-2024 Ram 1500 Classic.
The 19 - 24 Ram 1500 Classic Excluding factory receiver Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14374 (Part #CHW-2659) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 14374 is designed for Dodge Ram 1500 models without an OEM hitch. If your vehicle already has a factory-installed hitch, this product is not compatible. Verify your vehicle does not have an existing OEM hitch before purchasing.
The hitch weight is 60 lbs.
The manual lists gross load capacity specifications for both weight-carrying and weight-distribution modes, but the specific trailer weight and tongue weight values are not filled in on the provided documentation. Contact Curt Manufacturing technical support at 1-877-287-8634 for the complete capacity ratings. Regardless of the hitch capacity, you must not exceed your vehicle manufacturer's recommended towing capacity.
No. Part 14374 is designed only for Dodge Ram 1500 models without an OEM hitch.
No drilling is required. The hitch uses fishwire hardware to thread bolts through existing frame rail holes.
You will need: socket wrench, torque wrench, 6" socket extension, 3/4" socket, and 21mm socket. A torque wrench is essential because the installation requires precise torque specifications: 110 lb-ft for 1/2" hardware and 126 lb-ft for M14 hardware.
The kit includes: two .250 x 1.50 x 3.00" square hole spacers (CM-SP4), two .188 x 1.00 x 3.00" square hole spacers (CM-SP40), four 1/2-13 UNC grade 8 serrated flange nuts, four 1/2-13 UNC grade 8 carriage bolts (1-1/2" long), and two 1/2" x 30" fishwires.
Yes. Step 1 of the installation requires you to lower the spare tire for ease of installation. After the hitch is installed and torqued, you will raise the spare tire back into position in Step 8.
1. Lower the spare tire. 2. Remove the existing M14 bolts connecting the bumper beam to the frame rail on both driver and passenger sides; save these bolts. 3. Use the reverse fishwire technique to thread 1/2-13 x 1-1/2" carriage bolts and CM-SP40 spacers through the large round holes in the frame rails. 4. Use the fishwire technique to thread 1/2-13 x 1-1/2" carriage bolts and CM-SP4 spacers through the bumper beam ends and out the slot in front of the bumper beam. 5. Raise the hitch into position and loosely install 1/2-13 hex flange nuts on the carriage bolts. 6. Reinstall the M14 bolts removed in Step 2. 7. Torque 1/2" hardware to 110 lb-ft and M14 hardware to 126 lb-ft. 8. Raise the spare tire back into position.
The manual references both a standard fishwire technique and a reverse fishwire technique but does not provide detailed instructions for either method in the provided pages. The fishwire technique is used to thread carriage bolts and spacers through the bumper beam, while the reverse fishwire technique is used to thread bolts through the frame rail holes. For detailed guidance on these techniques, contact Curt Manufacturing technical support at 1-877-287-8634.
Yes. Step 2 requires you to remove the existing M14 bolts that connect the bumper beam to the frame rail on both the driver and passenger sides, and you must save these bolts. In Step 6, you reinstall these same bolts. Do not discard them.
Torque all 1/2" hardware (the carriage bolts and hex flange nuts) to 110 lb-ft.
Torque the M14 bolts (the factory bumper beam bolts) to 126 lb-ft.
Torque 1/2" hardware to 110 lb-ft and M14 hardware to 126 lb-ft.
No. In Step 5, you loosely install the 1/2-13 hex flange nuts on the carriage bolts. The fasteners are only fully tightened in Step 7, after the hitch is raised into position and the M14 bolts are reinstalled. This allows for proper alignment before final torquing.
You must not exceed your vehicle manufacturer's recommended towing capacity. The hitch itself has gross load capacity ratings for both weight-carrying and weight-distribution modes, but the specific values are not provided in the available documentation. Contact Curt Manufacturing at 1-877-287-8634 for the complete specifications, and always defer to your Dodge Ram 1500's manufacturer towing limits.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a particular interval, so regular visual inspection before each towing use is recommended.
The manual lists estimated install times: 30 minutes for a professional installer and 60 minutes for a novice (DIY) installer.
Curt Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. The warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.

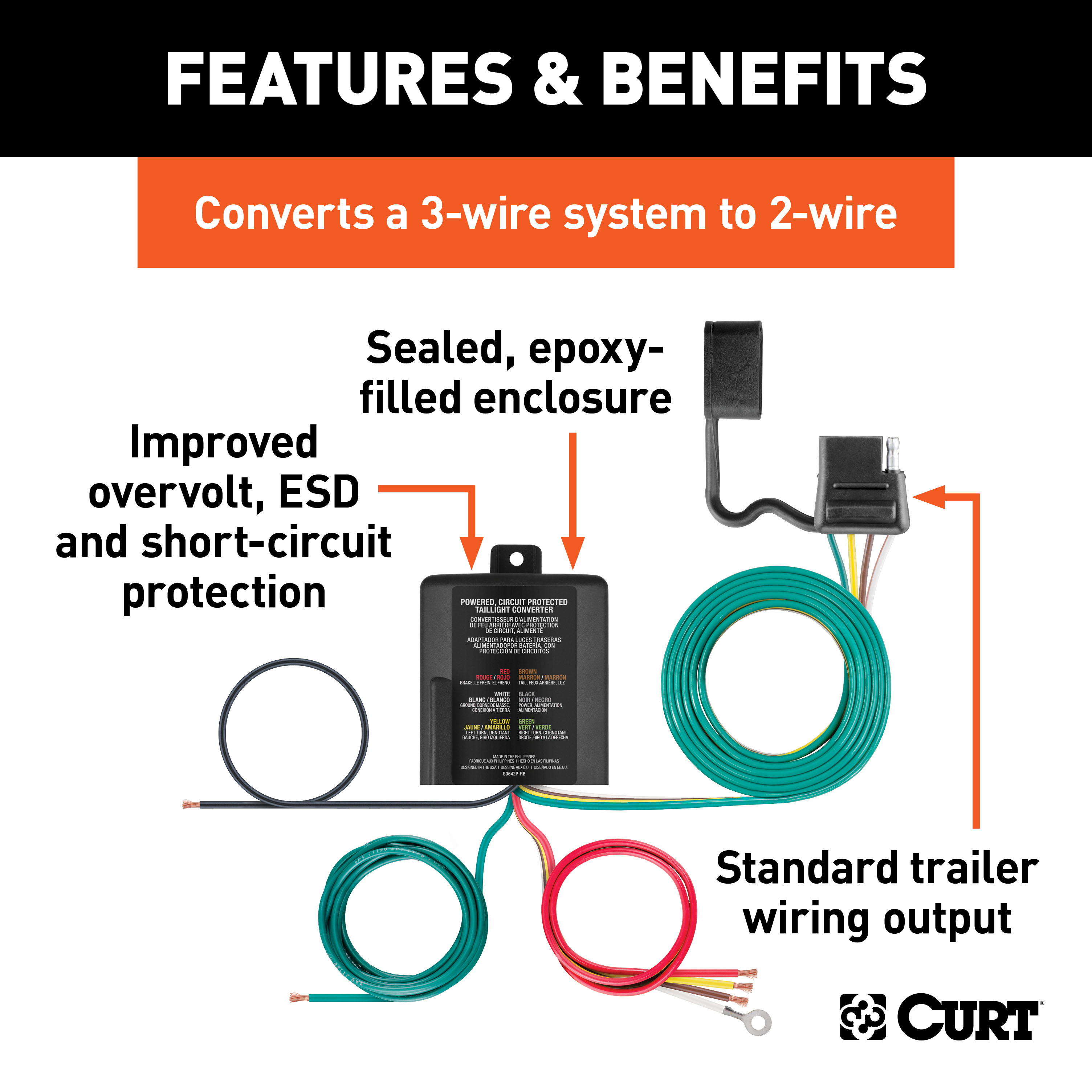

The CURT taillight converter (56496) is a module that converts a vehicle's taillight wiring to a 4-flat trailer connector. It allows you to connect a trailer with a 4-flat plug to vehicles that do not have a factory trailer connector. The converter interprets your vehicle's existing taillight signals (brake, turn, and tail lights) and outputs them through the 4-flat connector to power the trailer lights.
The converter is designed for SUVs, mini and full-sized vans, passenger cars, and pickup trucks. The manual provides wiring location guides for three vehicle categories: SUVs/vans (S-series locations), passenger cars (P-series locations), and pickup trucks (T-series locations). However, the manual does not provide a specific year, make, or model compatibility list. Contact CURT or consult a fitment database to confirm compatibility with your specific vehicle.
The converter is designed only for 12-volt negative ground electrical systems. Before purchasing, confirm your vehicle uses a 12-volt negative ground system. If your vehicle uses a different voltage or positive ground system, this converter will not work. Check your vehicle owner's manual or contact the vehicle manufacturer to verify your system type.
Included with the converter: snap locks, double-sided tape, cable ties, ground screw, and white ground wire with ring terminal. You must source separately: 12 gauge wire (or larger), 10-amp fuse (maximum), fuse holder, butt connectors, and ring terminal. Alternatively, CURT part 55151 is a kit that includes these items. Tools needed: multimeter or test light for wiring identification, wire strippers, and a drill with 3/32" bit (if drilling a ground hole is necessary). A socket wrench or screwdriver may be needed to disconnect the battery terminal.
Yes. Step 3 of the installation instructions requires you to locate the vehicle battery and disconnect the negative battery terminal before wiring the converter. The negative terminal must remain disconnected until Step 7, after all wiring is complete and the fuse is installed. This prevents electrical shorts and damage during installation.
The manual provides a 'How to Determine Vehicle Wiring Types' procedure on page 2. With the vehicle running and all lights off, probe the taillight connectors (still connected to the vehicle) using a multimeter set to DC volts or a test light. Wires carrying less than 2 volts (or that do not illuminate a test light) are not used. Then activate each light circuit (left turn, right turn, tail, brake) one at a time and probe the remaining wires to identify which wires carry which signals. This determines whether your vehicle has a two-wire system (combined stop/turn with independent tail) or three-wire system (independent stop, turn, and tail signals). This information is essential for correctly splicing the converter wires in Step 4.
Mount the converter near the taillight. The manual provides a wiring location guide showing eight possible locations for SUVs/vans (S1–S8), seven for passenger cars (P1–P7), and five for pickup trucks (T1–T5). These locations are behind taillight housings, rear bumpers, rear access panels, or under rear floor panels, depending on vehicle type. Once you have selected the location, adhere the black converter box using the provided double-sided tape and secure it with the included cable ties. Ensure the area is clean and dry before applying the tape.
In Step 4, use snap locks to attach the converter's input wires to the corresponding vehicle harness wires. The converter has four input wires: red (brake), yellow (left turn), green (right turn), and brown (tail). The wiring installation table on page 3 shows which converter wire splices to which vehicle wire, depending on whether your vehicle has a two-wire or three-wire system. For a two-wire system: green splices to the right stop/turn wire, yellow to the left stop/turn wire, brown to the tail wire, and red is grounded. For a three-wire system: green splices to the right turn wire, red to the stop wire, yellow to the left turn wire, and brown to the tail wire. Photos A, B, and C on page 3 show how to install the snap locks.
In Step 6, locate a suitable grounding point near the taillight. The white ground wire has a ring terminal attached. If an existing screw with nut is available in the vehicle frame, attach the ring terminal to that screw. If not, drill a 3/32" pilot hole in a clean, rust-free, paint-free area of the vehicle frame and use the provided screw to secure the ring terminal. Before drilling, check for hidden items behind or under surfaces to avoid damage and personal injury.
Route 12 gauge wire (or larger) from the converter's black power wire to the vehicle battery positive (+) terminal, taking care to avoid pinch points and hot or rotating components. At the battery, use a ring terminal (not included) to attach the wire to the positive post. Install a 10-amp fuse (maximum) in a fuse holder (not included) on this power wire, positioned as close to the battery as possible. Install the fuse only after all other wiring steps are complete. The negative battery terminal must remain disconnected until the fuse is installed.
In Step 7, secure any loose wires with the provided cable ties. This prevents wires from moving, chafing, or becoming pinched during vehicle operation. Route the 4-flat connector to the center of the vehicle when in use, and secure it in a convenient out-of-the-way location when not in use.
The converter is rated for a maximum of 3.0 amps per signal circuit (left turn, right turn, brake) and 6.0 amps total for tail and running circuits. Do not exceed these ratings. Also do not exceed your tow vehicle's lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not use a fuse larger than 10 amps. The fuse holder and fuse are not included and must be purchased separately, or as part of CURT part 55151 kit. Install the fuse after all other wiring steps are complete and immediately before reconnecting the negative battery terminal.
Use 12 gauge wire or larger to route from the converter's black power wire to the vehicle battery. This wire must be routed carefully to avoid pinch points and hot or rotating components. The wire is not included and must be purchased separately, or as part of CURT part 55151 kit.
The converter has four input wires: red (brake signal), yellow (left turn signal), green (right turn signal), and brown (tail/running light signal). There is also a white ground wire with a ring terminal. Each input wire is spliced to the corresponding vehicle taillight wire using snap locks, according to your vehicle's wiring type (two-wire or three-wire system). The black power wire connects to the vehicle battery positive terminal through a fused connection. The white ground wire connects to the vehicle frame or body.
Before drilling any holes, check for miscellaneous items (wires, fuel lines, brake lines) that may be hidden behind or under surfaces to avoid damage and personal injury. Disconnect the negative battery terminal before beginning any wiring work. When routing the power wire to the battery, avoid pinch points and hot or rotating components. Ensure the area where you ground the converter is free of rust, dirt, and paint. Do not exceed the converter's amperage rating (3.0 amps per signal circuit, 6.0 amps total for tail/running) or your vehicle's lamp load rating, as this can cause overheating and fire. Use a 10-amp maximum fuse on the battery connection.
The manual provides two testing methods. Method 1 (test light): Attach the ground lead of the tester to the exposed ground terminal of the 4-flat connector. Activate the tow vehicle's left turn, right turn, tail, and brake lights one at a time. Probe the three receptacles of the 4-flat to confirm proper functionality. Method 2 (trailer): Mate the 4-flat with a trailer and run the same test using the trailer lights. If a function on the trailer lights does not work, disconnect the trailer 4-flat, turn the vehicle functions off, and recheck with a circuit tester. If the circuit tester shows the function is good, the problem is with the trailer, not the converter.
Included: snap locks, double-sided tape, cable ties, ground screw, and white ground wire with ring terminal. Not included: 12 gauge wire, 10-amp fuse, fuse holder, butt connectors, and ring terminal for the battery connection. These items must be purchased separately or as part of CURT part 55151 kit, which is sold separately.
After securing all loose wires with cable ties and installing the fuse on the battery power wire, reinstall all items you removed during installation (trim panels, bumpers, etc.). Reconnect the negative battery terminal. When the converter is in use, route the 4-flat connector to the center of the vehicle. When not in use, secure the connector in a convenient out-of-the-way location to prevent damage.
The converter fits SUVs, vans, passenger cars, and pickup trucks with 12-volt negative ground systems. The manual does not provide a specific year/make/model list. Contact CURT or check a fitment database with your vehicle details to confirm compatibility.
You must source: 12 gauge wire, 10-amp fuse, fuse holder, butt connectors, and a ring terminal for the battery. These are available separately or as CURT part 55151 kit.
Yes. Disconnect the negative battery terminal in Step 3 before wiring, and keep it disconnected until the fuse is installed in Step 7.
Drilling may be required. If a suitable existing screw is not available near the taillight for grounding, you must drill a 3/32" pilot hole in the vehicle frame. Before drilling, check for hidden items (wires, fuel lines) behind or under surfaces to avoid damage.
Maximum 3.0 amps per signal circuit and 6.0 amps total for tail/running circuits. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
Before drilling, check for hidden items (wires, fuel lines, brake lines) behind or under surfaces to avoid damage and personal injury.
Disconnect the trailer 4-flat connector from the converter. Turn off the corresponding function on the vehicle (e.g., turn off the left turn signal if the left turn on the trailer is not working). Recheck the function using a circuit tester on the 4-flat receptacles. If the circuit tester shows the function is working properly, the problem is with the trailer, not the converter. If the circuit tester shows the function is not working, the converter or vehicle wiring connection may be faulty.

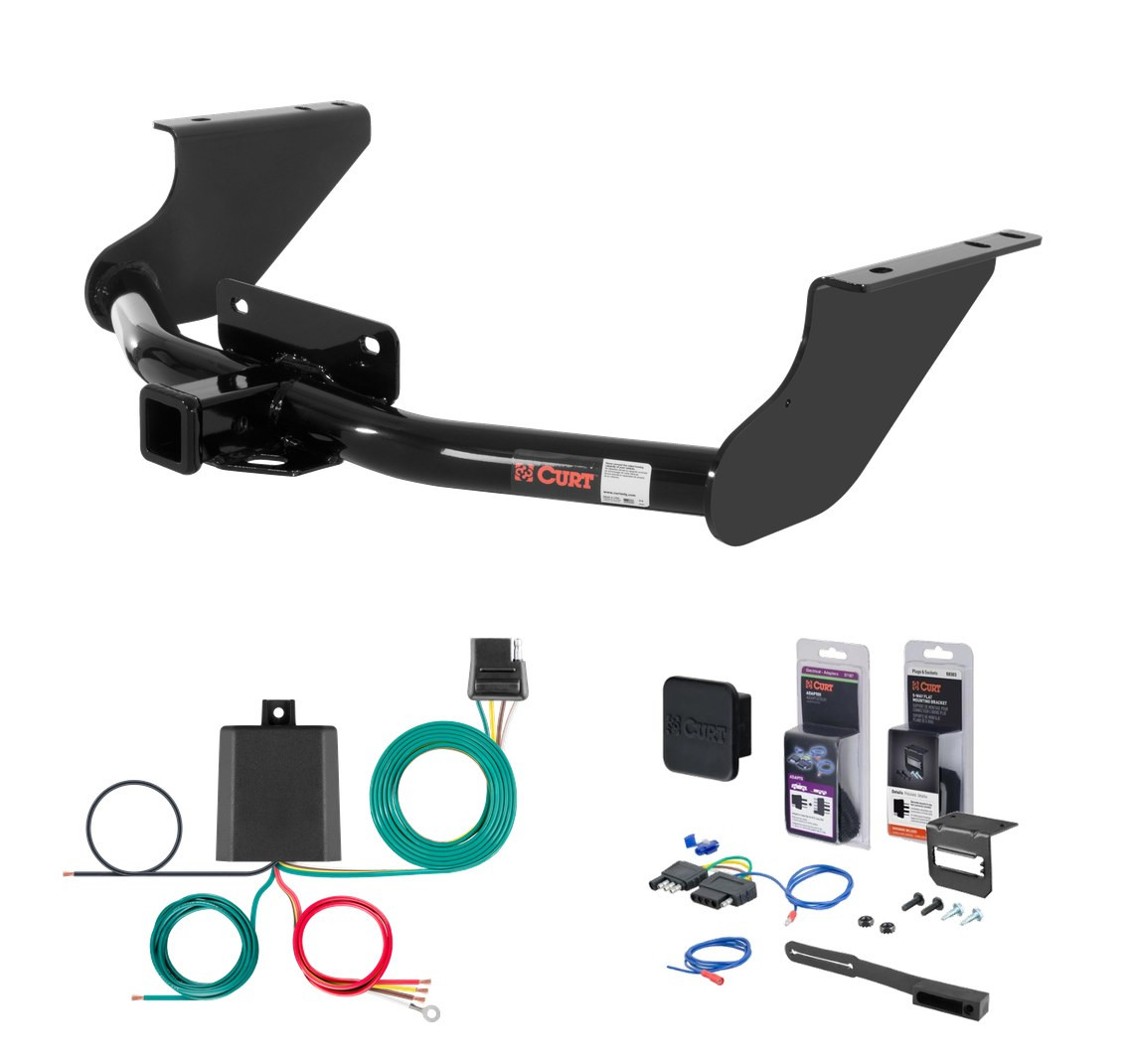

Total for 4 items:
