These durable custom hitches are manufactured for 1963-1986 Chevrolet C10, 1963-1986 Chevrolet C20, 1988-1991 Chevrolet C2500, 1963-1986 Chevrolet C30, 1988-1991 Chevrolet C3500, 1963-1986 Chevrolet K10, 1963-1986 Chevrolet K20, 1988-1991 Chevrolet K2500, 1973-1986 Chevrolet K30, 1988-1991 Chevrolet K3500, 2001-2007 Chevrolet Silverado 3500, 2007-2023 Chevrolet Silverado 3500 HD, 1999-2000 Ford F-350 Super Duty, 1963-1965 GMC 1000 Series, 1963-1965 GMC 1500 Series, 1963-1965 GMC 2500 Series, 1963-1966 GMC 3000, 1963-1966 GMC 3500, 1975-1978 GMC C15, 1967-1974 GMC C15/C1500, 1979-1999 GMC C1500, 1967-1978 GMC C25, 1979-2000 GMC C2500, 1967-1978 GMC C35, 1979-2000 GMC C3500, 1967-1978 GMC K15, 1979-1999 GMC K1500, 1967-1978 GMC K25, 1979-2000 GMC K2500, 1968-1978 GMC K35, 1979-2000 GMC K3500, 2001-2007 GMC Sierra 3500, 2007-2023 GMC Sierra 3500 HD and attach to your vehicle?s frame with strong, secure heavy-duty side brackets. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. DRAW-TITE Class 5 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a limited lifetime guarantee. So, whether you are headed out to the campground, the snowmobile trails, or off-roading, or you are hauling cargo to and from the job site, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.

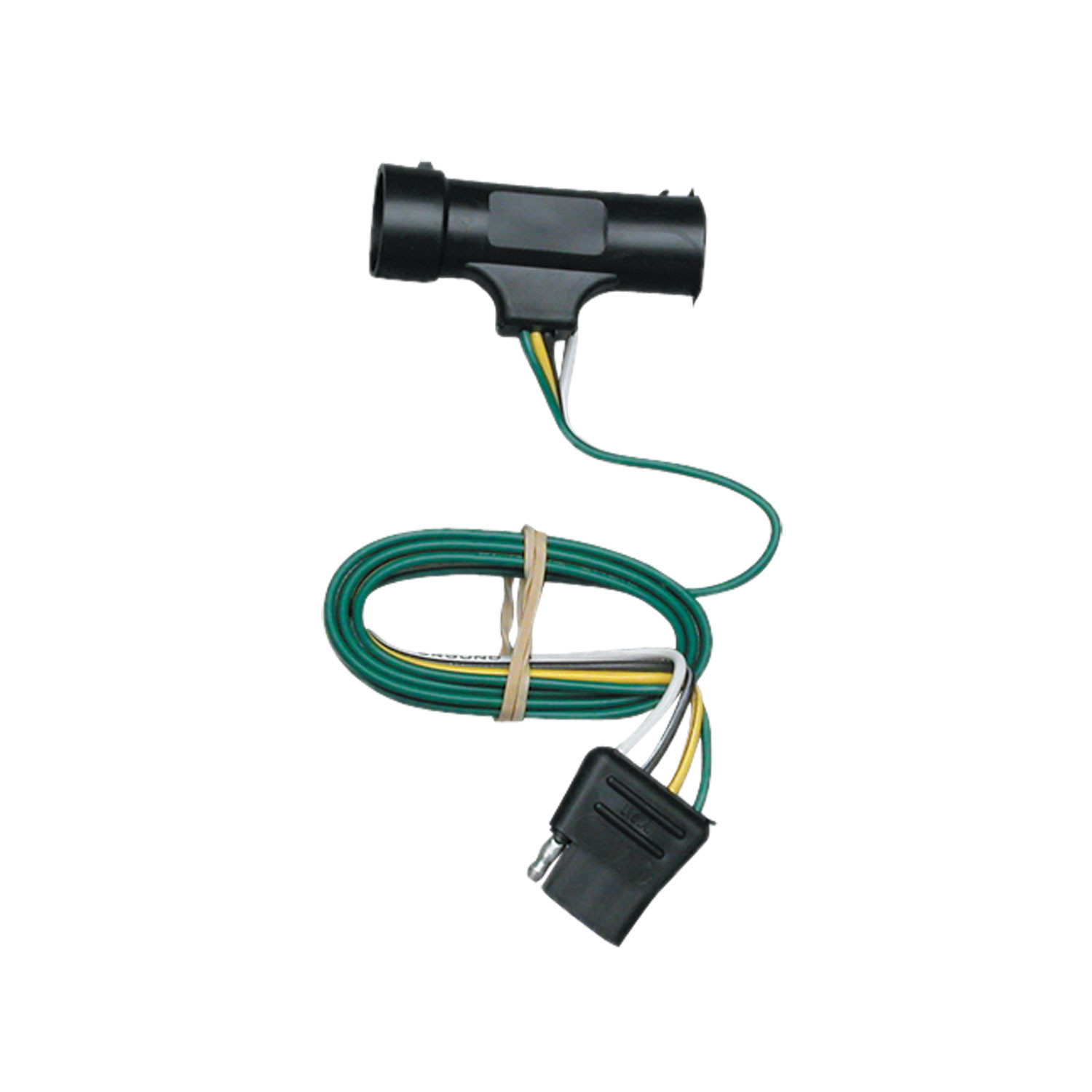

Tekonsha offers the largest, most complete line of T-Connectors. Its T-One trailer wiring harnesses come in a number of custom lengths to accommodate the needs of each specific vehicle. They feature solid, weather-proof, one-piece construction. To install a Tekonsha T-One vehicle wiring harness, simply locate your vehicle?s wiring harness connector ? located most often behind the taillight ? unplug the connection and insert the T-Connector into the vehicle?s harness. It?s that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life?s a Journey. Stop Often!
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1967 - 1978 | GMC K25 | — |

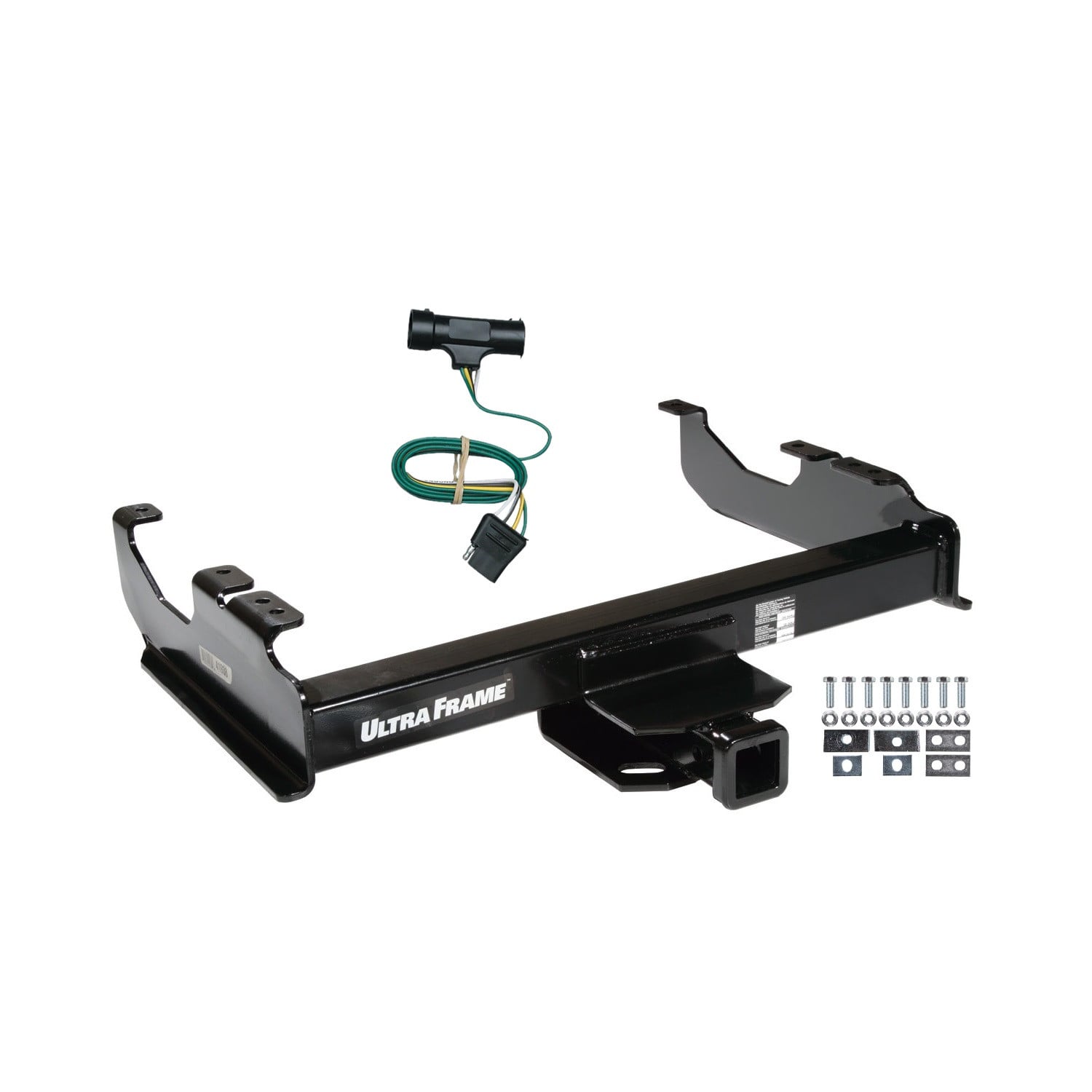

Yes, the 1967-1978 GMC K25 Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 41938 (Part #DTB41938-48-118311) is designed to fit the 1967-1978 GMC K25.
The 1967-1978 GMC K25 Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 41938 (Part #DTB41938-48-118311) fits 1967-1978 GMC K25 models. The 1978 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1967-1978 GMC K25 Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 41938 (Part #DTB41938-48-118311) fits the following vehicles: 1967-1978 GMC K25. Always verify your specific year, make, and model before ordering.
The 1967-1978 GMC K25 Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 41938 (Part #DTB41938-48-118311) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 41938 fits Chevrolet and GMC Cab & Chassis models with an 8' box only. Your vehicle must have a minimum of 19" from the end of the frame rail to the spring shackle bracket. This hitch is not compatible with 6' box (short wheelbase) vehicles. Confirm your box length and frame spacing before purchasing.
Yes, part 41938 is designed for Ford 350 Super Duty Cab & Chassis with an 8' box. Your vehicle must have a minimum of 19" from the end of the frame rail to the spring shackle bracket. Do not install on vehicles with a 6' box.
No. The manual explicitly states: "Under no circumstances is this hitch to be installed on a vehicle with 6' box (short wheelbase)." This hitch is designed only for 8' box vehicles.
Your vehicle must have a minimum of 19" from the end of the frame rail to the spring shackle bracket. Measure this distance before installation to confirm compatibility.
On 1981 and later models with factory step bumpers, the support brackets must be removed from the frame during hitch installation. These brackets should be retained for replacement if the hitch is later removed. Important: the step bumper should not be used for towing with the brackets removed.
The spare tire and carrier must be removed before installation. If you want to retain under-box tire storage, the spare tire carrier will need to be relocated and/or modified after the receiver is installed. The manual does not specify the extent of modification required.
You will need: wrenches in 13/16" and 7/8" sizes, a 9/16" drill bit, and a torque wrench capable of applying 110 Lb.-Ft. (149 N-M) of torque.

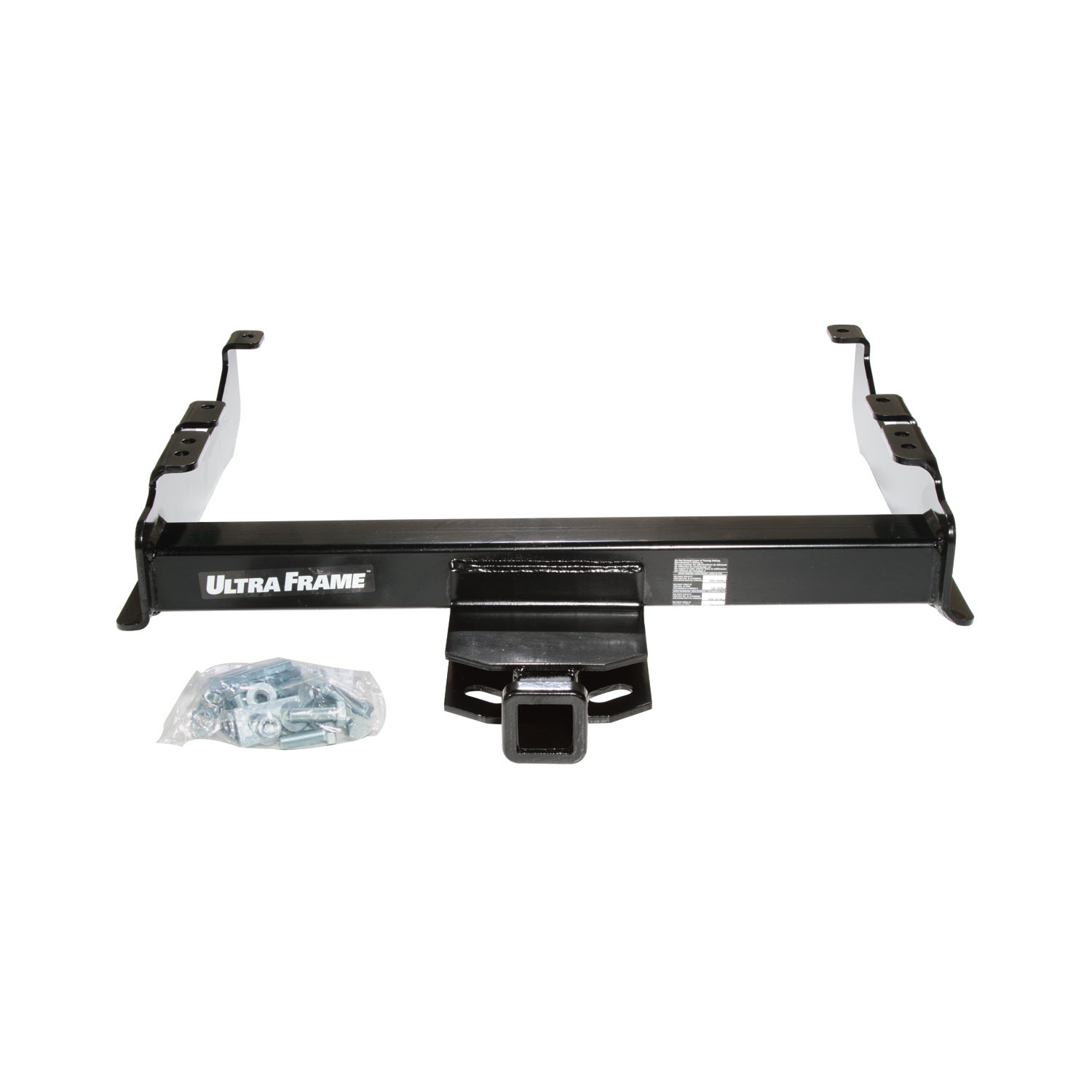

The fastener kit 41938F includes: (8) hex bolts 9/16-18 x 1-3/4" GR5, (8) flanged locknuts 9/16-18, (2) spacers 3/8 x 1-1/2 x 3" with single hole, (2) spacers 3/8 x 1-1/2 x 3" with 2 holes, and (2) spacers 3/8 x 1-1/2 x 2".
Yes. Step 1 of the installation instructions states: "Remove the spare tire and carrier from the vehicle." This is a required step before positioning the receiver.
Yes. Step 3 states: "Using the receiver as a template, drill and/or enlarge the remaining holes." You will need a 9/16" drill bit. The manual does not permit cutting holes with a torch.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." Use a 9/16" drill bit instead.
All 9/16-18 GR5 fasteners must be tightened to 110 Lb.-Ft. (149 N-M) using a torque wrench. This applies to all 8 hex bolts.
The hitch has two capacity ratings depending on type: Weight Distributing hitch supports max 15,000 Lb. gross trailer weight and 1,500 Lb. tongue weight; Weight Carrying Ball Mount supports max 12,000 Lb. gross trailer weight and 1,200 Lb. tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch limits.
Step 2 states: "Position the receiver on the vehicle with the rear attaching holes aligned with the slots in the end of the frame." Step 3 continues: "Center the receiver on the frame." Use the receiver as a template to mark and drill the remaining holes.
Step 4 states: "Install all fasteners as shown, placing the blocks inside the frame rails." The kit includes spacers of different sizes (3/8 x 1-1/2 x 3" single-hole, 3/8 x 1-1/2 x 3" dual-hole, and 3/8 x 1-1/2 x 2") that must be positioned inside the frame rails during fastener installation.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection as part of ongoing maintenance.
The manual states: "Check hitch frequently, making sure all fasteners and ball are properly tightened." No specific interval is provided, but regular inspection is recommended.
The hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The 41938 fits Chevrolet & GMC Cab & Chassis and Ford 350 Super Duty Cab & Chassis with 8' boxes only. Your vehicle must have at least 19" from the frame rail end to the spring shackle bracket. It does not fit 6' box vehicles.
You need 13/16" and 7/8" wrenches, a 9/16" drill bit, and a torque wrench for 110 Lb.-Ft. specification.
All 9/16-18 GR5 hex bolts must be tightened to 110 Lb.-Ft. (149 N-M) using a torque wrench.
Weight Distributing: 15,000 Lb. max trailer weight, 1,500 Lb. tongue weight. Weight Carrying Ball Mount: 12,000 Lb. max trailer weight, 1,200 Lb. tongue weight. Do not exceed your vehicle manufacturer's rating.
Yes, the spare tire and carrier must be removed before installation. If you want to retain under-box tire storage, the carrier will need to be relocated and/or modified after installation.
On 1981 and later models with factory step bumpers, the support brackets must be removed for hitch installation. The step bumper cannot be used for towing with the brackets removed.
This unit is rated for 7.5 amps per circuit.
The tail light wiring harness is located along the inside of the left rear frame rail. It will have a connection point with connectors that match the ends of the T-connector adapter.
You will need a drill with a 3/32" drill bit. The installation also requires electrical tape or tie straps (not supplied) to secure the wiring to the vehicle's cross member or other mounting points.
Separate the harness connectors carefully, being careful not to break the locking tabs. Check that the mating surfaces of the connectors are free of dirt and clean them if necessary before inserting the T-connector adapter.
Insert the T-connector adapter between the harness connectors and lock it into place. Ensure that the connectors are fully inserted with the locking tabs in place.
Locate a suitable grounding point near the connector on the vehicle's frame or cross member. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area, then drill a 3/32" hole to secure the white wire eyelet using the screw provided.
The grounding hole must be 3/32" in diameter.
Route the T-connector harness to the center of the vehicle and secure the wire to the vehicle's cross member or other mounting point using electrical tape or tie straps (not supplied).
Test the installation with a test light or trailer to verify that the connections are working correctly.
Yes. Do not drill into the vehicle floor or bed when locating the grounding point for the white wire.
The T-connector is designed to connect to vehicle tail light wiring harnesses with matching connectors located along the inside of the left rear frame rail. Verify that your vehicle's connectors match the T-connector ends before purchasing.
The T-connector includes the adapter itself and a screw for securing the white wire eyelet. Electrical tape or tie straps are not supplied and must be obtained separately.
Yes. A 3/32" hole must be drilled in the vehicle's frame or cross member to secure the white wire grounding eyelet. Do not drill into the vehicle floor or bed.
The unit is rated for 7.5 amps per circuit.
Test the installation using a test light or trailer to confirm that the tail light connections are functioning properly.
