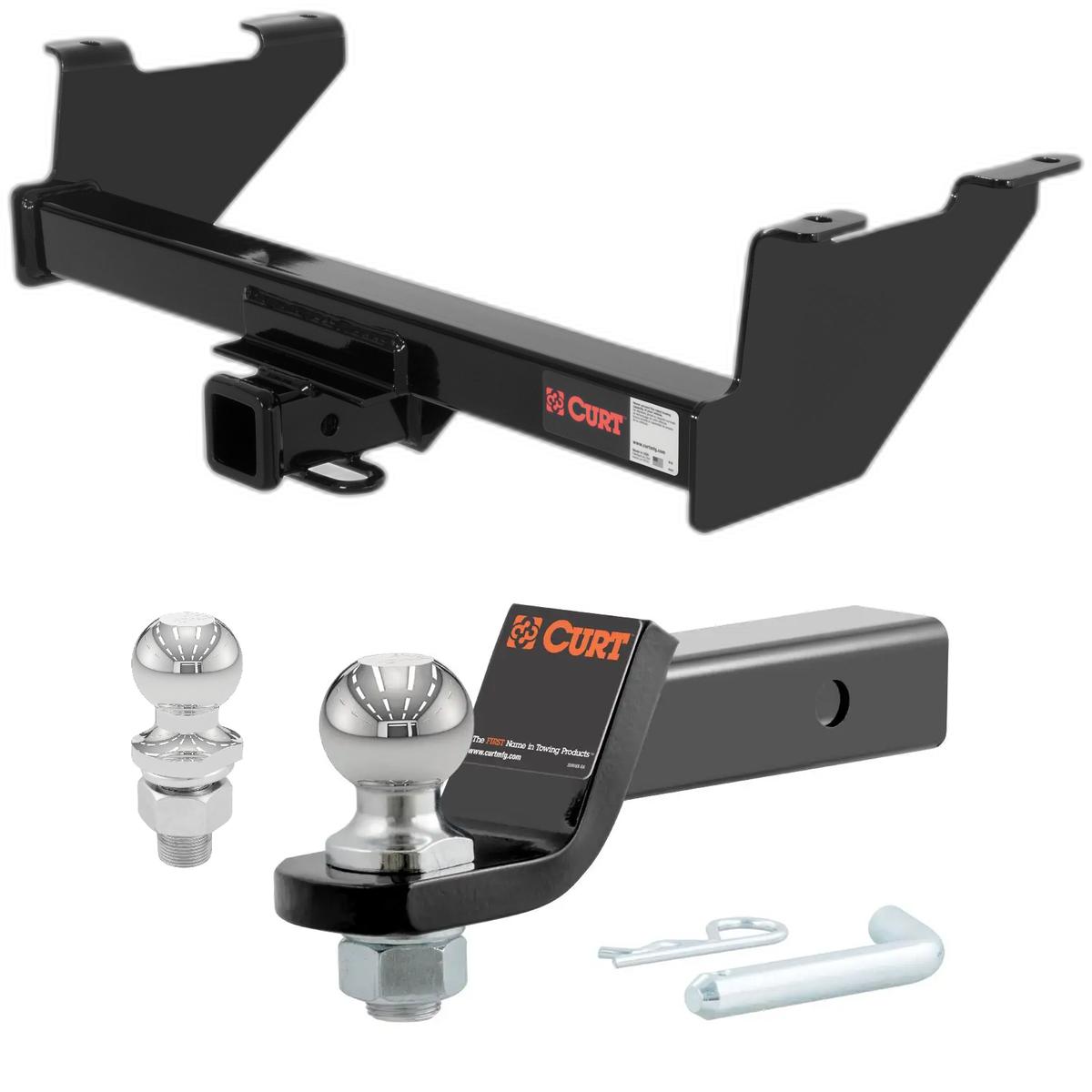

1987-1991 Chevrolet Blazer Full Size CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball KitCURTIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 1973-1974 Chevrolet Blazer Full Size
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the GMC Jimmy, Chevy Blazer and Chevy K5 Blazer (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
1973, 1974 Chevrolet Blazer Full Size Class 3 Trailer Hitch, 2" Receiver, Select GMC Jimmy, Chevrolet Blazer, K5
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1973 - 1974 | Chevrolet Blazer | Full Size |
On Sale Today
You save $12.23
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Sun, Sep 6 - Wed, Sep 9
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Yes, the 1973-1974 Chevrolet Blazer Full Size CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13401-001) is designed to fit the 1973-1974 Chevrolet Blazer.
The 1973-1974 Chevrolet Blazer Full Size CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13401-001) fits 1973-1974 Chevrolet Blazer models. The 1974 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1973-1974 Chevrolet Blazer Full Size CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13401-001) fits the following vehicles: 1973-1974 Chevrolet Blazer. Always verify your specific year, make, and model before ordering.
The 1973-1974 Chevrolet Blazer Full Size CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13401-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13401 is designed for 1973–1991 Chevy Blazer and GMC Jimmy full-size models. However, if your vehicle is a 1973–1980 model, the forward attachment holes must be drilled as part of the installation process.
Drilling is required only if your vehicle is a 1973–1980 model. For 1981–1991 vehicles, the frame holes already exist and correspond to the hitch attachment holes. For 1973–1980 vehicles, the forward attachment holes must be drilled.
Before installation, locate the holes in the bottom of the frame that correspond to the hitch attachment holes. Remove any undercoating present from the attaching surfaces. You may also need to remove the license plate to access the installation area.
The kit includes: 2 car bolts (1/2-13 UNC, 1-3/4", Grade 8, part 10-10272); 2 hex head cap screws (1/2-13 UNC, 1-3/4", Grade 8, part 10-10370); 4 serrated flange nuts (1/2-13 UNC, Grade 8, part 20-00062); 4 flat washers (1/2", part 30-00133); 2 square hole spacers (0.250 × 1.50 × 2.00", part CM-SP44); and 2 pieces of 1/2" fishwire.
A torque wrench is required to tighten all fasteners to the specified torque value of 110 ft-lbs. For 1973–1980 vehicles, drilling equipment is also needed to create the forward attachment holes. A socket set or wrench set to fit 1/2-13 UNC fasteners is recommended.
1. Locate and prepare the frame holes, removing undercoating from attaching surfaces. 2. Fishwire the applicable bolts and spacers into the frame holes. 3. Raise the hitch into position and place one flat washer per side between the frame and hitch at the rearward attachment location. 4. Torque all hardware to 110 ft-lbs using a torque wrench.
Fishwiring is a technique where bolts and spacers are threaded through frame holes using fishwire (a flexible wire) before the hitch is raised into position. This holds the fasteners in place and prevents them from falling out while you position the hitch. The kit includes 2 pieces of 1/2" fishwire for this purpose.
All fasteners must be torqued to 110 ft-lbs using a torque wrench. This applies to all bolts, hex head cap screws, and nuts included in the kit.
The hitch weight is 90 lbs.
The manual does not provide specific towing capacity values for this hitch. You must not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing technical support at 1-877-287-8634 for capacity specifications.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Yes. Note: 1973–1980 vehicles require drilling of forward attachment holes.
Yes, but only for 1973–1980 vehicles. The forward attachment holes must be drilled. 1981–1991 vehicles have existing frame holes.
A torque wrench is required. For 1973–1980 vehicles, drilling equipment is also needed. Standard sockets and wrenches for 1/2-13 UNC fasteners are recommended.
All fasteners must be torqued to 110 ft-lbs using a torque wrench.
License plate removal may be required to install the hitch, depending on your vehicle's configuration.
Periodically check that all fasteners are tight and structural components are sound. Retorque fasteners as needed to maintain 110 ft-lbs.
