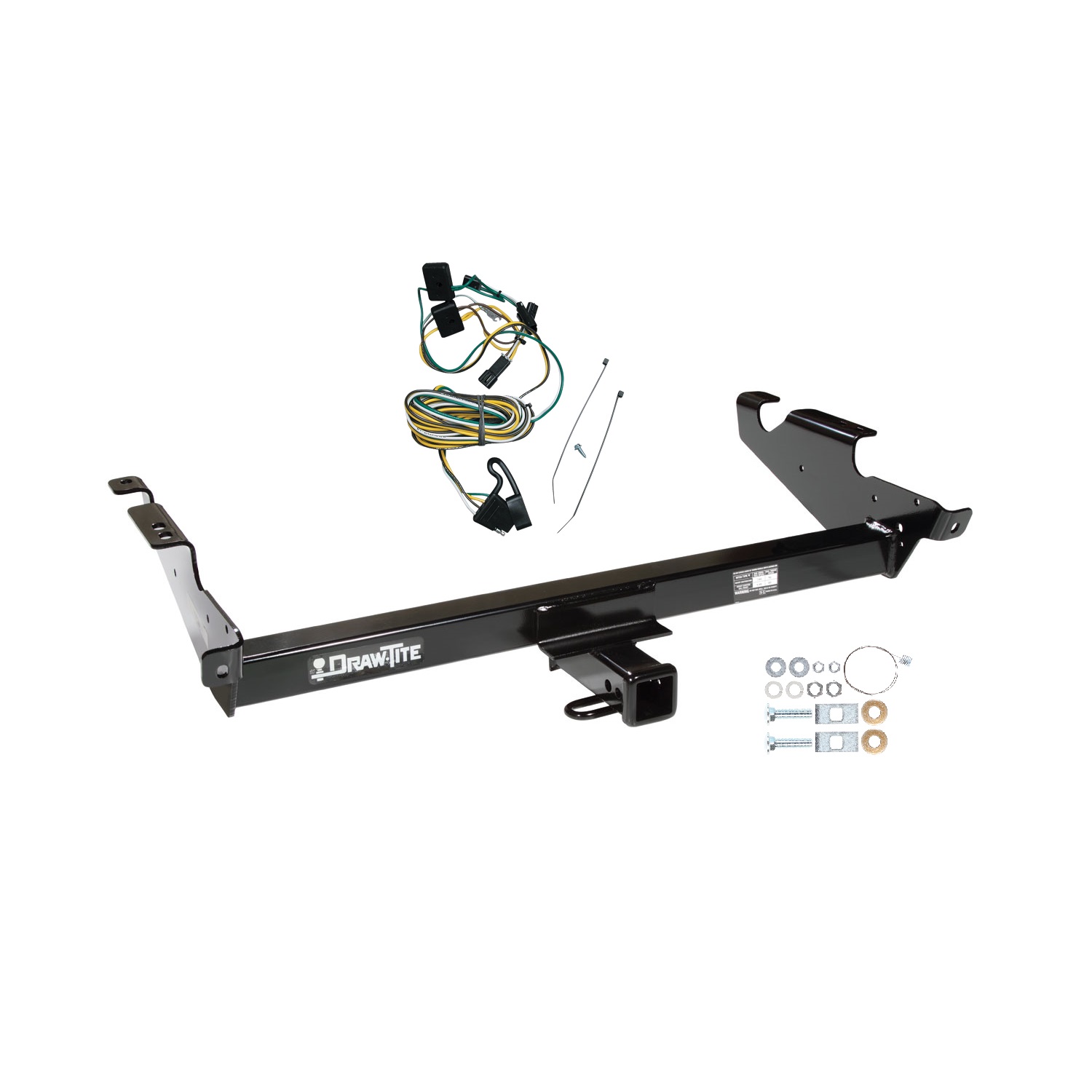

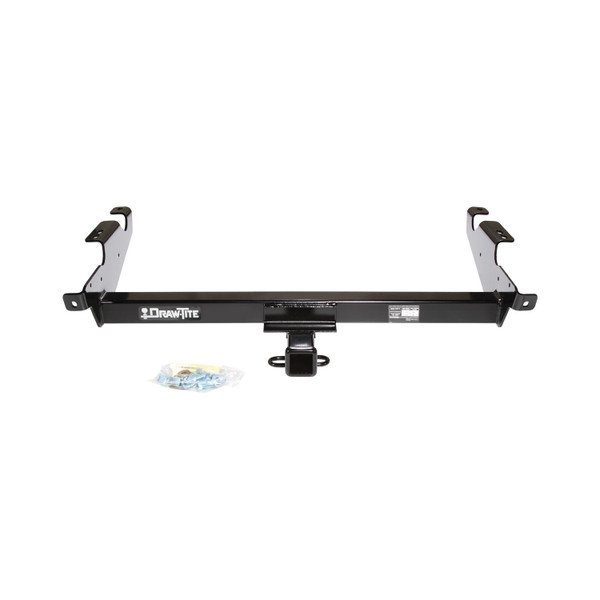

These durable custom hitches are manufactured for 1978-1995 Chevrolet G10, 1978-1995 Chevrolet G20, 1978-1996 Chevrolet G30, 1979-1995 GMC G1500, 1979-1995 GMC G2500, 1979-1996 GMC G3500 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1987 - 1995 | GMC G1500 | — |
Part number 75121 is designed for Chevrolet and GMC vans. However, the manual does not specify model years, cab styles, or other fitment variables. Contact the manufacturer or a fitment database to confirm compatibility with your specific van model, year, and configuration before purchasing.
The 75121 hitch supports two configurations: Weight Distributing hitches rated for 7,500 lb (3,405 kg) gross trailer weight and 750 lb (341 kg) tongue weight; Weight Carrying Ball Mount hitches rated for 5,000 lb (2,270 kg) gross trailer weight and 500 lb (227 kg) tongue weight. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch rating.

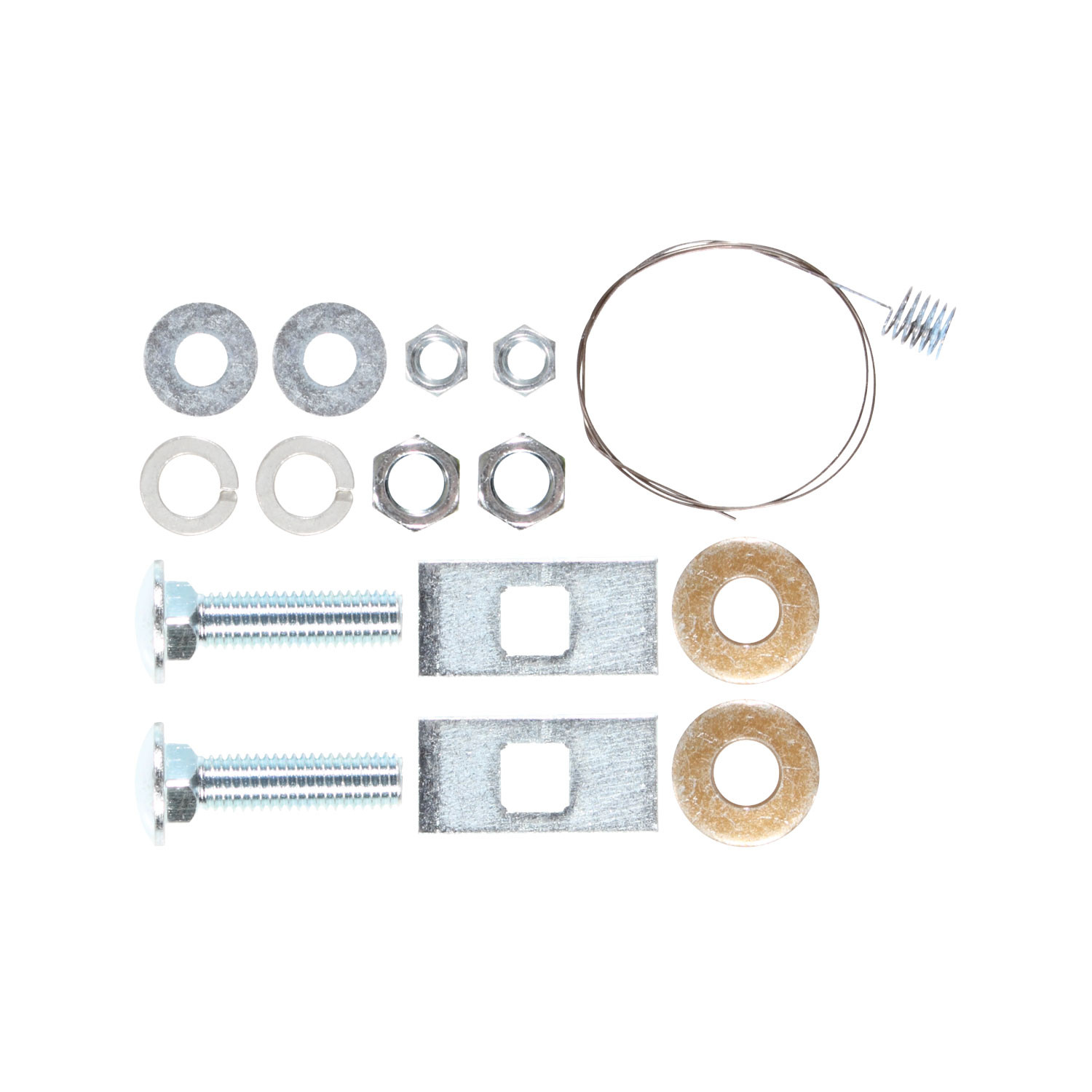

Fastener kit 01130492 includes: two 3/8" washers, two 3/8" conical washers, two 3/8" hex locknuts, two 1/2" conical washers, two 1/2" lock washers, two 1/2" hex nuts, two 1/2" carriage bolts (2.00" length), two blocks, and two pull wires (1/2"-13). The factory bumper support brackets and their bolts and washers are reused during installation.
You will need a 9/16" socket and wrench, and a 3/4" socket and wrench. No drill bits are required. The pull wire is provided with the kit.
The manual requires removal of the two lower bumper support brackets (one per side) and their bolts and washers. These brackets are saved and reused during installation. The manual does not state whether the entire bumper must be removed, only that the lower support brackets must be accessed and removed.
1. Remove the two lower bumper support brackets and save bolts, washers, and brackets. 2. Place left and right side brackets against the frame bottom and install four 1/2" bolts and washers (removed in step 1), leaving them loose. 3. Install two 3/8" bumper bolts, two 3/8" conical washers, and two 3/8" lock nuts from the parts package, leaving lock nuts loose. 4. Screw the pull wire (55392) onto a 1/2" carriage bolt, feed through a bolt plate and the large hole in the outboard side of the frame, pull out the bottom hole, and install two 1/2" conical washers, lock washers, and nuts, leaving nuts loose. 5. Tighten in the exact order specified in the torque section.
The pull wire (55392) is used to align the receiver rearward to the bumper before the frame bolts are fully tightened. It is screwed onto a 1/2" carriage bolt, fed through a bolt plate and the large hole in the outboard side of the frame, and pulled out the bottom hole. The pull wire must be kinked to keep the spacer independent of the bolt.
The two 3/8" lock nuts on the bumper must be torqued to 30 ft·lb (41 N·m). Two 3/8" lock nuts must be used with the two 3/8" bumper bolts; otherwise the receiver could loosen and separate from the vehicle.
The 1/2" nuts and bolts must be torqued to 75 ft·lb (102 N·m). These bolts attach the left and right side brackets to the frame bottom.
Tighten bolts and nuts in the exact order listed in step 5: first torque the two 3/8" lock nuts on the bumper to 30 ft·lb (41 N·m), then torque the 1/2" nuts and bolts to 75 ft·lb (102 N·m). This sequence allows the receiver to be pulled rearward to the bumper before the frame bolts are tightened.
Two 3/8" lock nuts must be used with the two 3/8" bumper bolts. If only one lock nut is used, the receiver could loosen and separate from the vehicle during towing, creating a safety hazard.
No. Do not lubricate threads on any bolts or fasteners. Lubrication may cause bolt failure due to over-tightening.
No. Do not drill or weld to the hitch. Additionally, do not cut access or attachment holes with a torch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Yes. The manual instructs you to save the brackets and return them to the owner. The bolts and washers from the factory brackets are also saved and reused during installation.
Conical washers are included in the fastener kit. The manual shows that the teeth side of the conical washer should be placed against the hitch. Two 3/8" conical washers are used with the bumper bolts, and two 1/2" conical washers are used with the carriage bolts.
The 75121 is designed for Chevrolet and GMC vans. Confirm your specific model year and configuration with the manufacturer or a fitment database before purchasing.
Weight Distributing: 7,500 lb gross trailer weight, 750 lb tongue weight. Weight Carrying Ball Mount: 5,000 lb gross trailer weight, 500 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
You need a 9/16" socket and wrench, and a 3/4" socket and wrench. No drilling is required. The pull wire is provided.
Torque the two 3/8" lock nuts on the bumper to 30 ft·lb (41 N·m), then torque the 1/2" nuts and bolts to 75 ft·lb (102 N·m). Do not lubricate threads.
No. Do not drill, weld, or cut the hitch with a torch. Use only Towing Products supplied or approved fasteners.
